This document is a CAT C15 quick stop troubleshooting file for the 0084-14 Quick Stop Occurrence diagnostic code on C15 On-highway Engines. It explains the ECM conditions that generate PID 0084 FMI 14, the recorded operating data, and the single troubleshooting check shown in the extract. The file is a short Caterpillar troubleshooting reference, not a repair procedure for a failed electronic component.
Official CAT C15 quick stop document details
| Brand | CAT |
|---|---|
| Model coverage | C15 TRUCK ENGINE MXS; C15 On-Highway Truck MXS00001-UP |
| System/Group | C15 (MXS, NKS, or RKS) / DTCs; SMCS – 7463-038 |
| Publication no. | RENR5088-10 |
| Year/Revision | Publication Date – 01/02/2009; Date Updated – 25/02/2009 |
| Pages | 2 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Document table of contents
- Product: TRUCK ENGINE
- Model: C15 TRUCK ENGINE MXS
- Configuration: C15 On-Highway Truck MXS00001-UP
- Troubleshooting
- C15 On-highway Engines
- 0084-14 Quick Stop Occurrence
- SMCS – 7463-038
- PID 0084 FMI 14
- Conditions Which Generate This Code
- System Response
- Possible Performance Effect
- Troubleshooting
- Test Step 1
- Expected Result
- Results: OK – STOP
Applicable truck models
This PDF applies to the Caterpillar C15 TRUCK ENGINE MXS and the C15 On-Highway Truck MXS00001-UP configuration listed in the extract. The document belongs to the C15 On-highway Engines troubleshooting material and addresses diagnostic code 0084-14 Quick Stop Occurrence. For current brand information, see the official Caterpillar website.
Who needs this CAT C15 quick stop manual

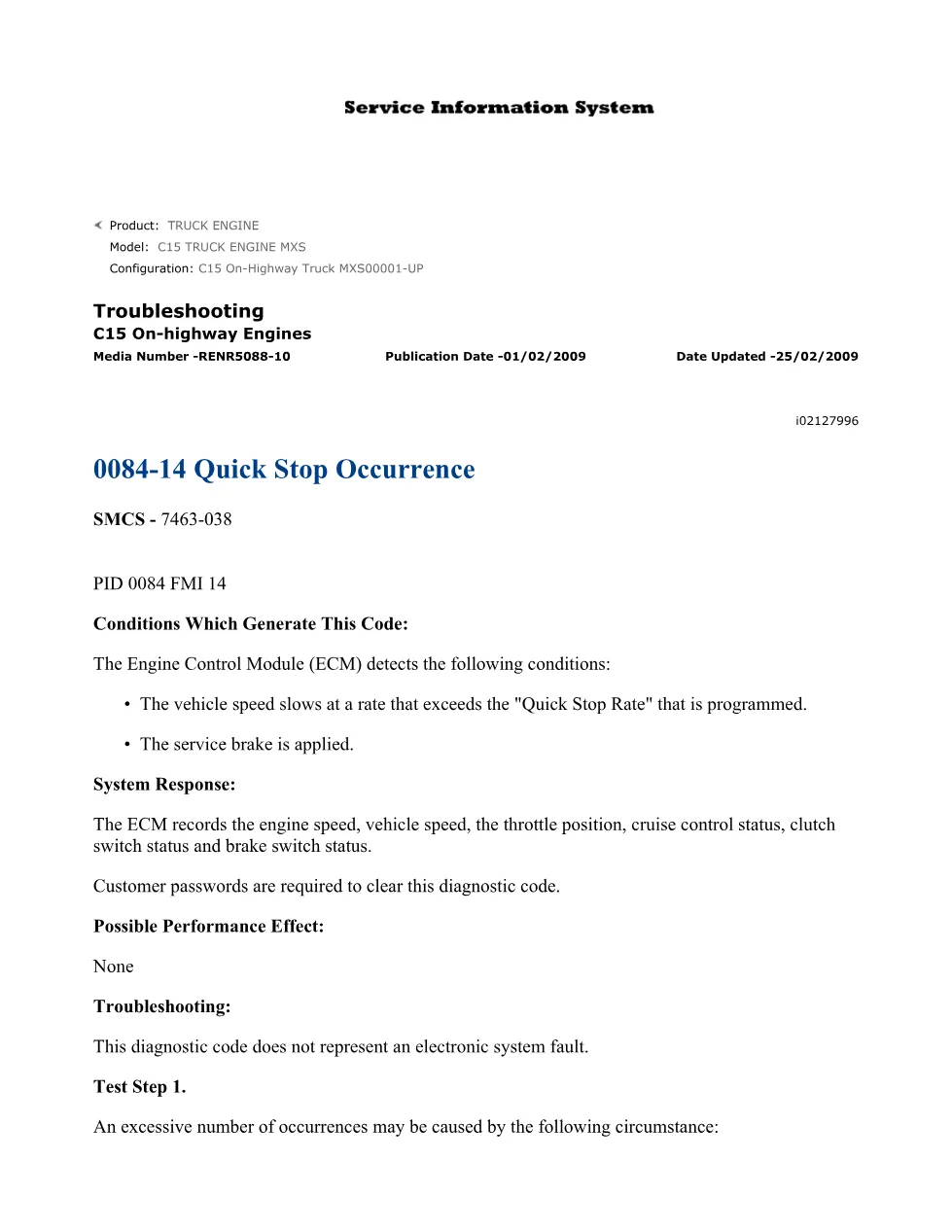

Mechanics and workshop owners need this manual when a C15 MXS truck engine logs PID 0084 FMI 14 and the service brake application is associated with a vehicle deceleration rate above the programmed Quick Stop Rate. The extract states that customer passwords are required to clear this diagnostic code and that the code does not represent an electronic system fault.

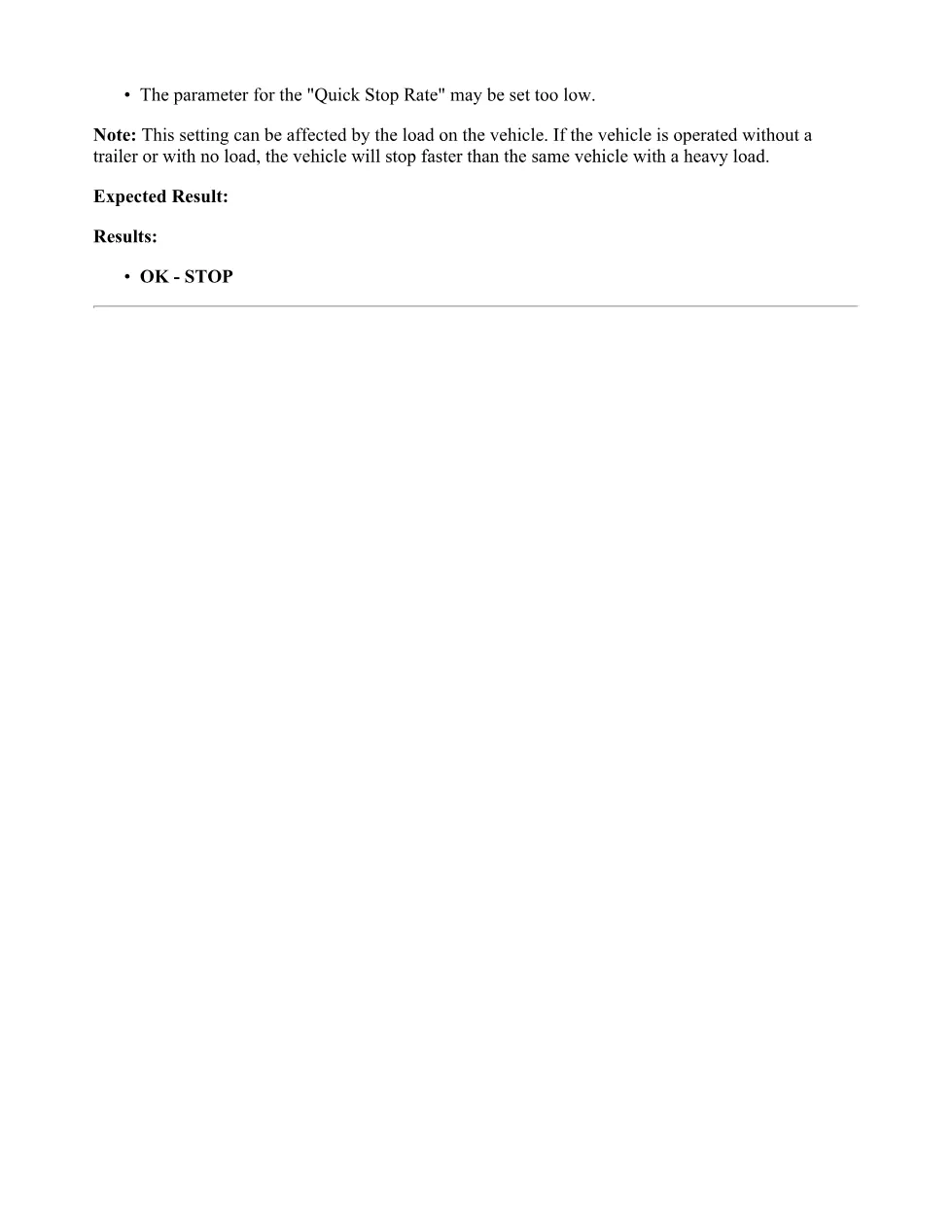

The diagnostic notes identify one likely cause for excessive occurrences: the Quick Stop Rate parameter may be set too low. The note also states that load can affect this setting because a vehicle operated without a trailer or without load can stop faster than the same vehicle with a heavy load. The ECM records engine speed, vehicle speed, throttle position, cruise control status, clutch switch status, and brake switch status when the condition occurs.
The full PDF is available in the DiagTechPro manuals library, free account required to download.
