This CAT C15 speed signal troubleshooting manual covers diagnostic code 0084-10 Vehicle Speed signal rate of change (36) for the C15 On-Highway Truck MXS engine. It explains the ECM conditions that set the code, the system response, and the linked Vehicle Speed and Speedometer Circuit – Test procedure.
Official CAT C15 speed signal document details
| Brand | CAT |
|---|---|
| Model coverage | C15 Truck Engine MXS; C15 On-Highway Truck MXS00001-UP |
| System/Group | C15 (MXS, NKS, or RKS) / DTCs; SMCS – 7463-038 |
| Publication no. | RENR5088-10 |
| Year/Revision | Publication Date – 01/02/2009; Date Updated – 25/02/2009 |
| Pages | 15 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents

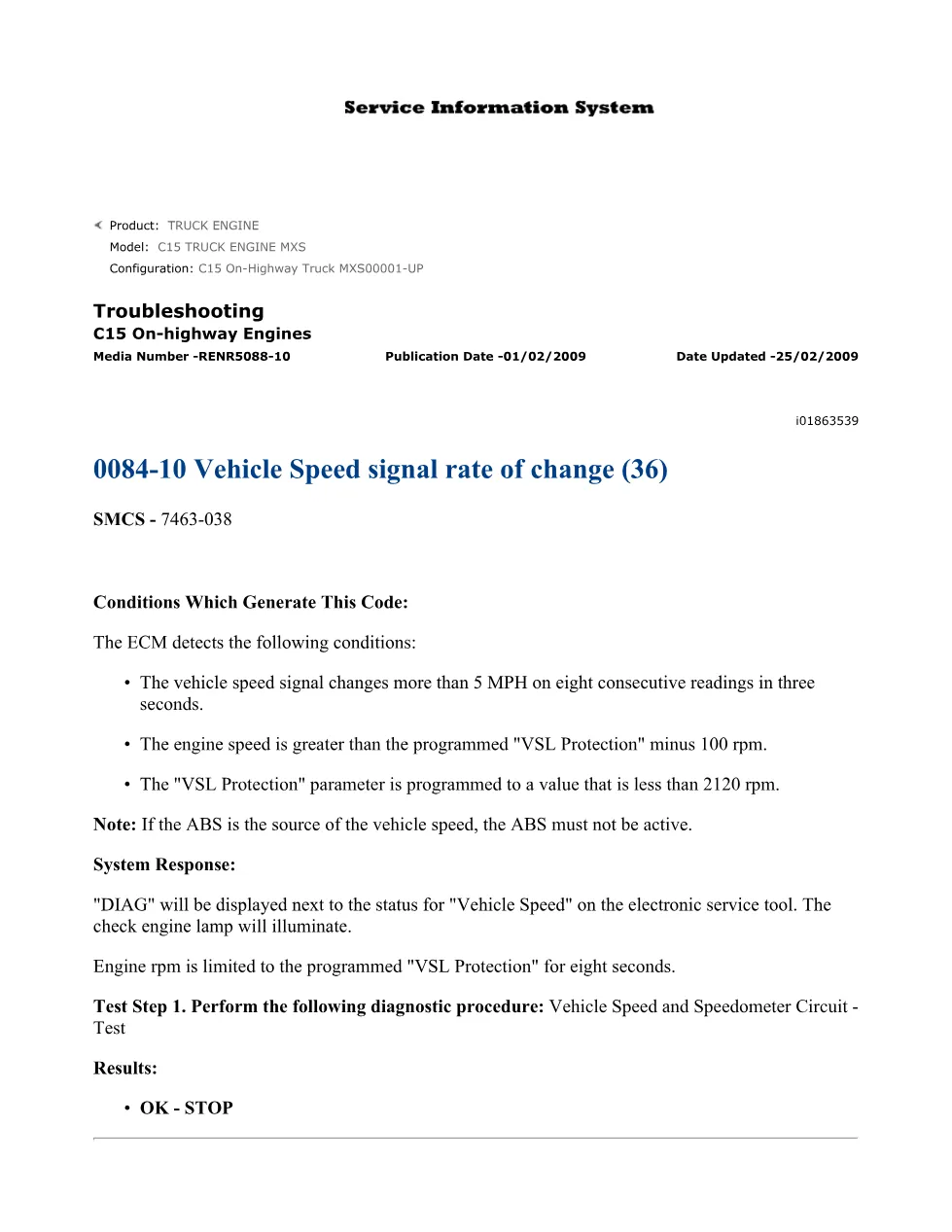

- 0084-10 Vehicle Speed signal rate of change (36)
- Conditions Which Generate This Code
- System Response

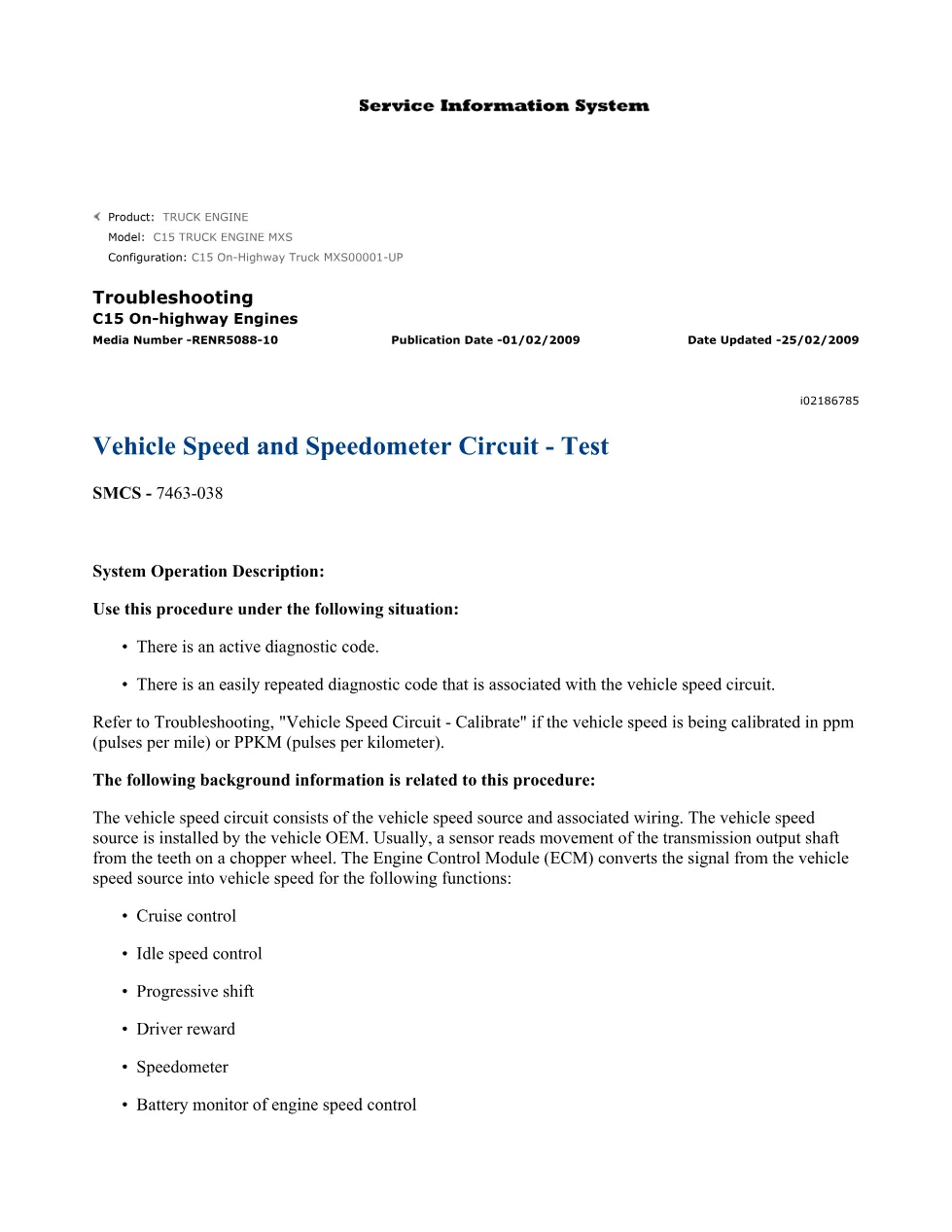

- Vehicle Speed and Speedometer Circuit – Test
- System Operation Description
- Vehicle Speed Circuit Wiring
- Speedometer Connection
- Speedometer Special Test
- Magnetic Sensors
- Vehicles with Electronic Vehicle Speed Sources
- Connector, harness, and wiring inspection steps
- Determine the Type of Vehicle Speed Problem
- Use the Special Test to Check the Speedometer
- Sensor resistance checks
- Test ECM Vehicle Speed Inputs by Using the Speedometer Special Test
Applicable truck models

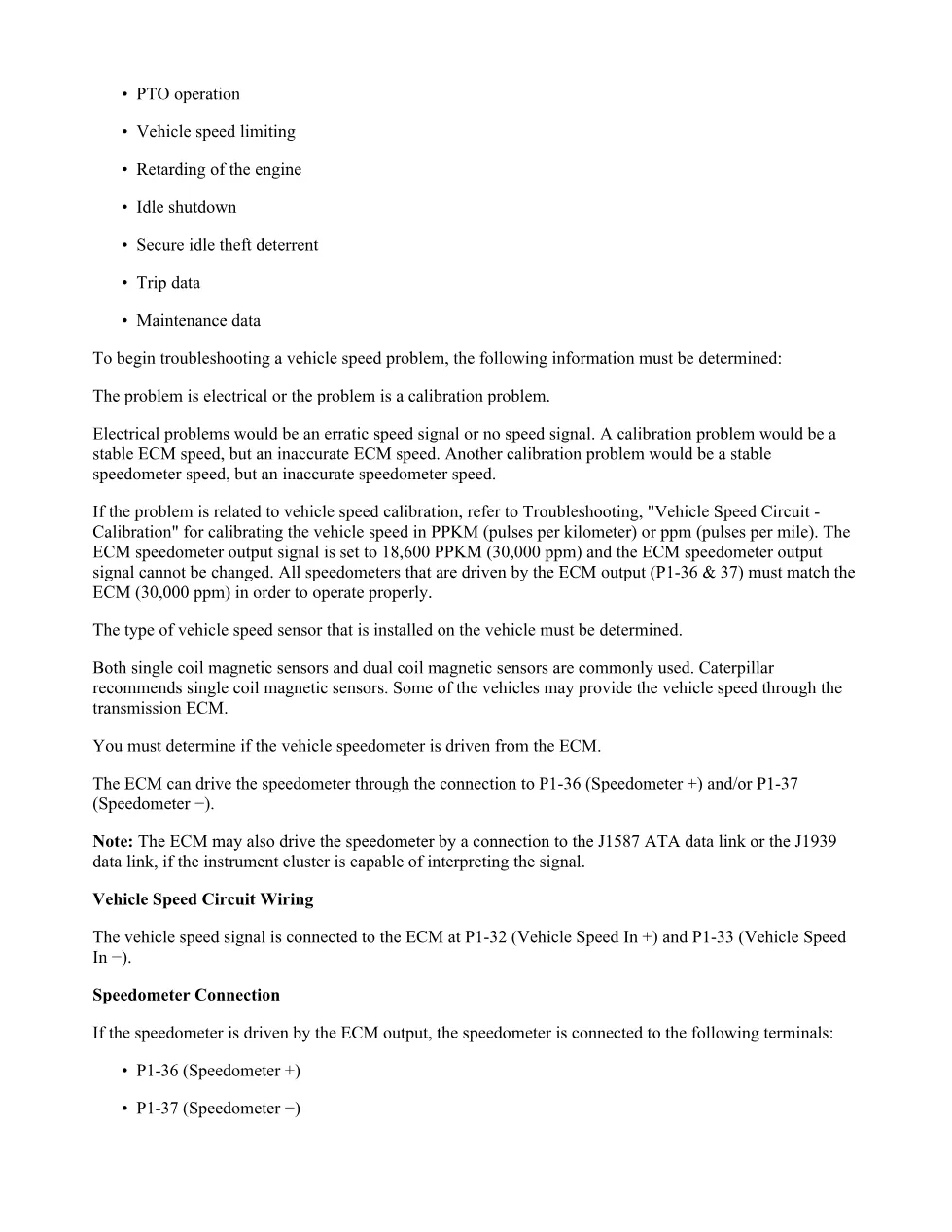

This file applies to the Product: TRUCK ENGINE, Model: C15 TRUCK ENGINE MXS, Configuration: C15 On-Highway Truck MXS00001-UP. The extract identifies vehicle speed input at P1-32 and P1-33, ECM speedometer output at P1-36 and P1-37, Cat ET testing, magnetic vehicle speed sensors, electronic vehicle speed sources, and the 55 mph VSP/Speedometer Test for trucks using this engine control system. See the manufacturer at Caterpillar official website.
Who needs this C15 speed signal manual
Workshop technicians, fleet mechanics, and diagnostic tool users need this C15 speed signal procedure when a truck has an active or repeatable vehicle speed circuit diagnostic code. It helps separate electrical faults from calibration issues, inspect connectors and harnesses, test sensor resistance, and verify ECM vehicle speed inputs with Cat ET.
The full PDF is available in the DiagTechPro manuals library, free account required to download.
