This 10-page Caterpillar service document provides the official CAT C15 low battery troubleshooting procedure for diagnostic code 168-04 (Low ECU Battery Power) on C15 On-Highway Truck Engines (MXS configuration). It details the conditions that trigger the code, the ECM system response, and a step-by-step test sequence covering wiring inspection, voltage measurement at ECM terminals, battery load testing, and bypass harness installation to isolate intermittent power faults.
Official CAT C15 low battery troubleshooting document details
| Brand | Caterpillar (CAT) |
| Model coverage | C15 Truck Engine MXS (MXS00001-UP) |
| System / Group | ECM Battery Supply & Keyswitch Circuit — DTC 168-04 |
| Publication no. | RENR5088-10 |
| Year / Revision | Published 01/02/2009, Updated 25/02/2009 |
| Pages | 10 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents

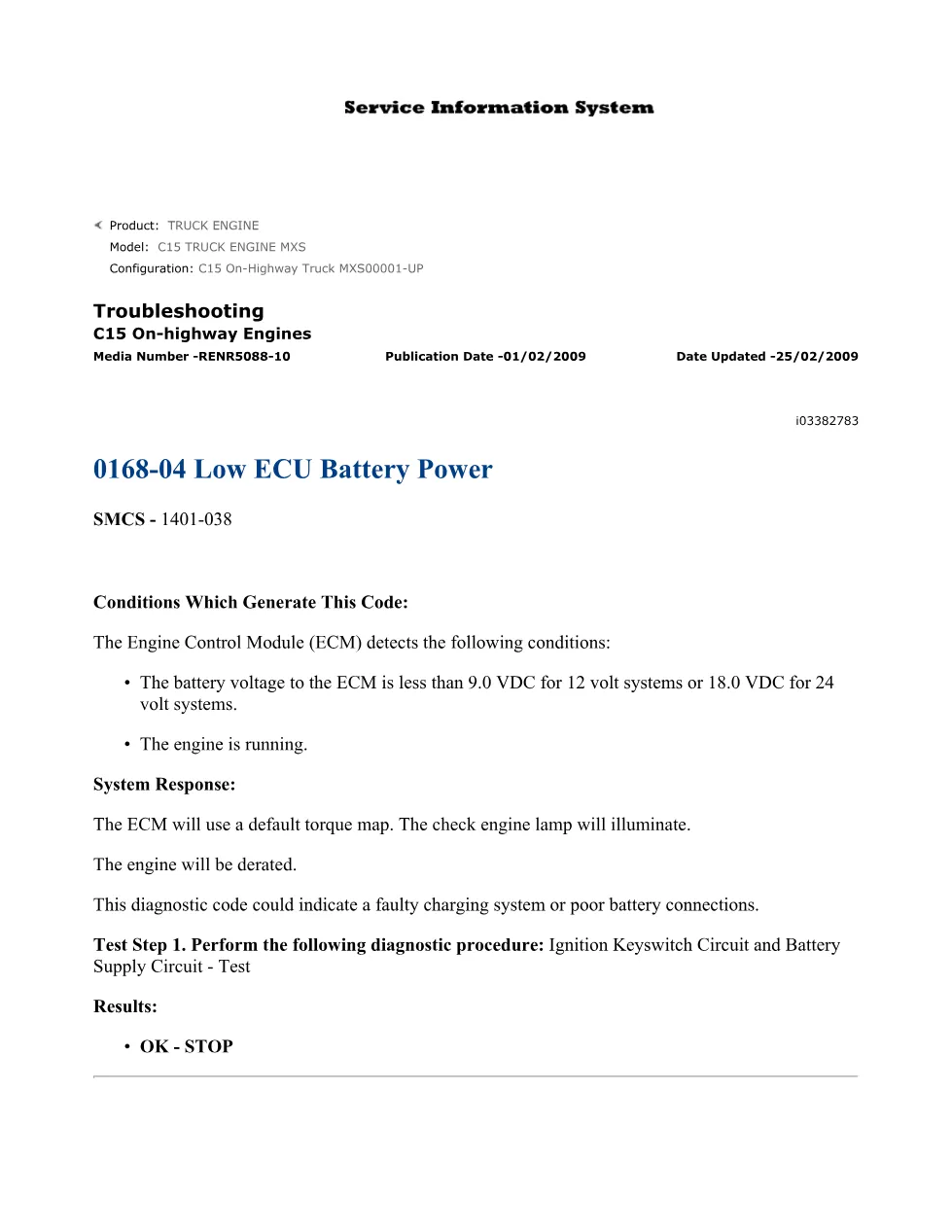

- 0168-04 Low ECU Battery Power — Conditions Which Generate This Code & System Response

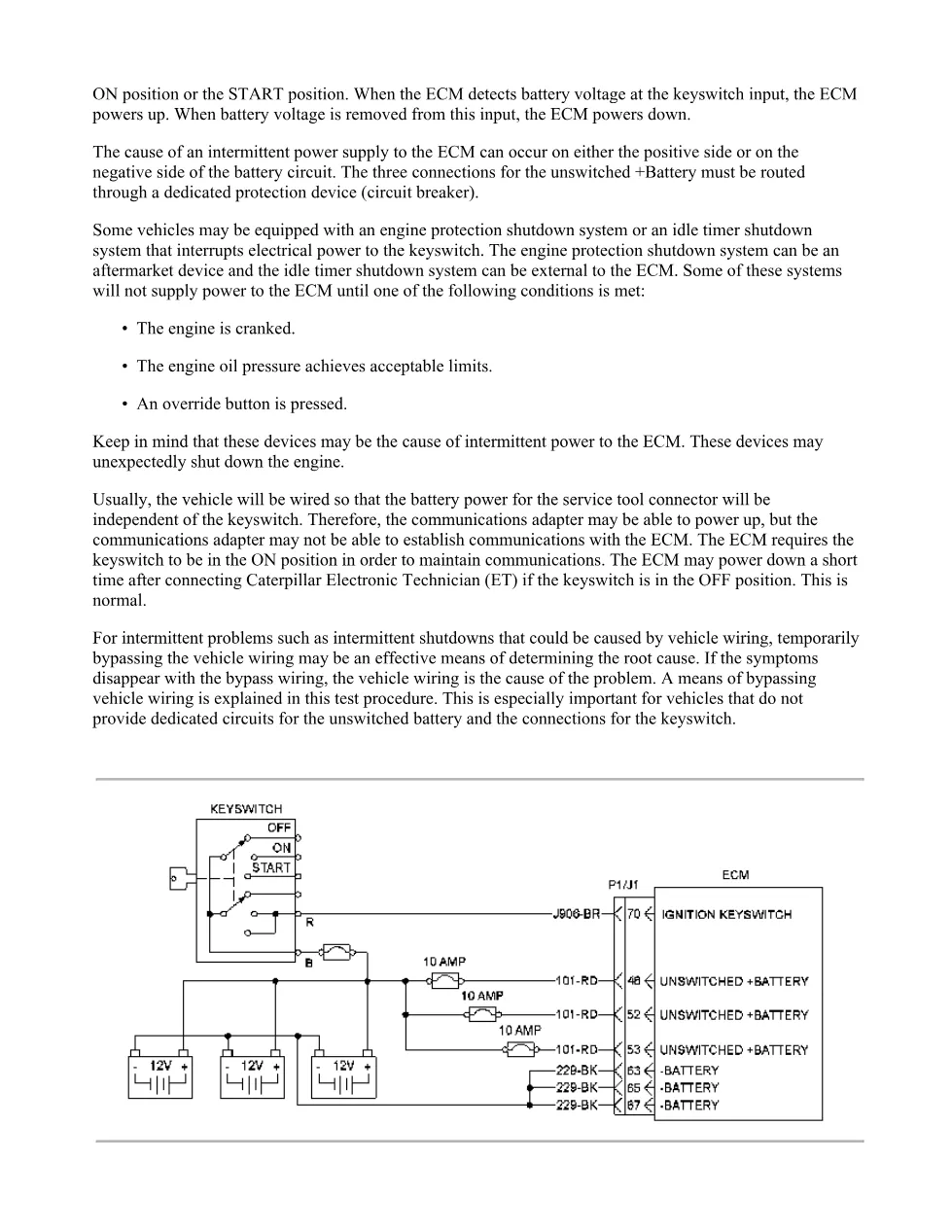

- Ignition Keyswitch Circuit and Battery Supply Circuit — Test (System Operation Description)
- Test Step 1: Inspect the Electrical Connectors and the Wiring (J1/P1 ECM connectors, pull test, torque check)
- Test Step 2: Use Cat ET to Check for Communications with the ECM
- Test Step 3: Check for Active Diagnostic Codes or Logged Diagnostic Codes (43-2, 168-0, 168-1, 168-2)
- Test Step 4: Check for Battery Voltage at the ECM Connector (P1-48, P1-52, P1-53, P1-63, P1-65, P1-67, P1-70)
- Test Step 5: Check the Batteries (load test using 4C-4911 Battery Load Tester)
- Test Step 6: Bypass Harness Installation (167-9225 Harness) — Isolate Intermittent Vehicle Wiring Faults
Applicable truck models

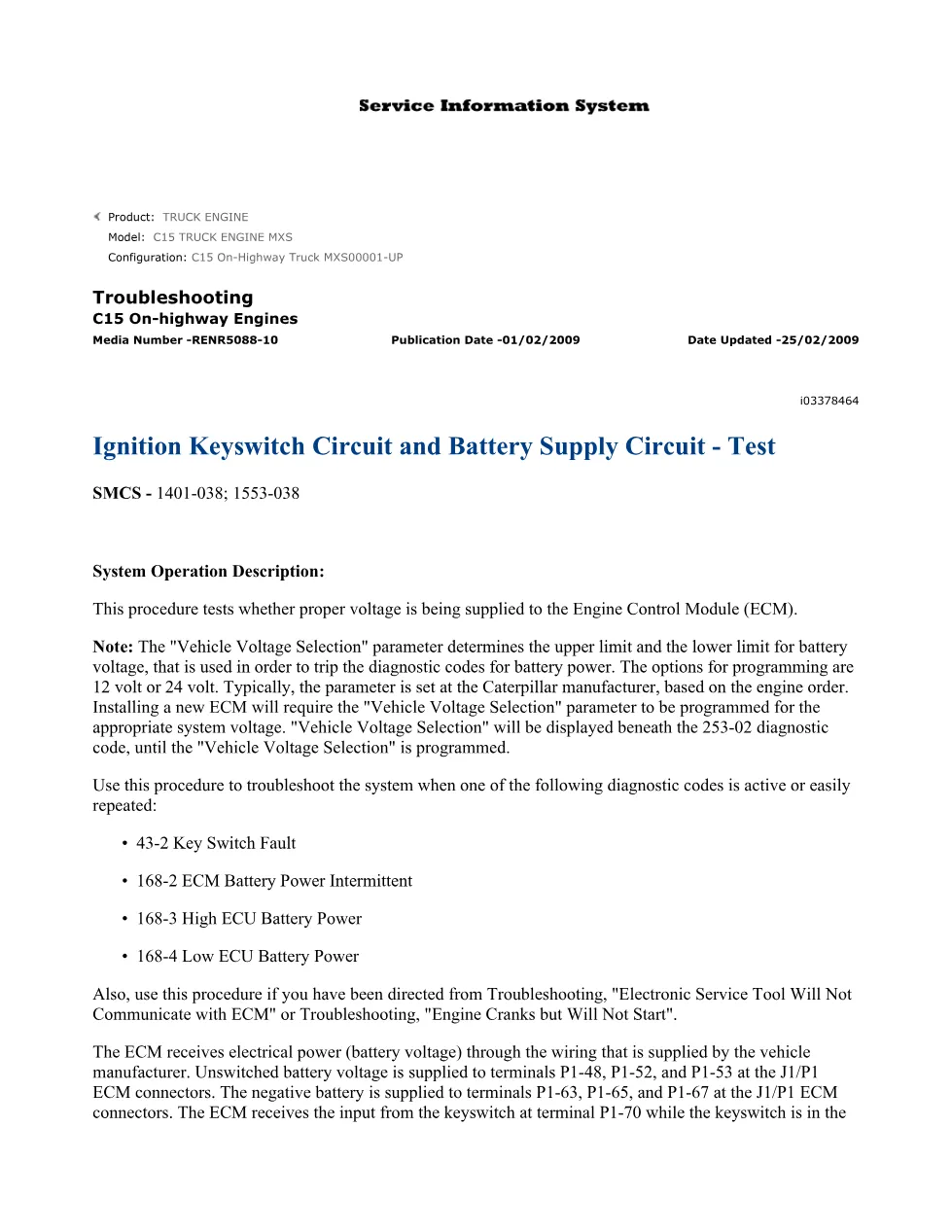

This procedure applies to the Caterpillar C15 On-Highway Truck Engine, configuration MXS00001-UP. The document references both 12-volt and 24-volt electrical systems. The ECM triggers DTC 168-04 when battery voltage drops below 9.0 VDC (12 V systems) or 18.0 VDC (24 V systems) while the engine is running. Expected normal voltage ranges are 11.0–13.5 VDC for 12-volt systems and 22.0–27.0 VDC for 24-volt systems. The Vehicle Voltage Selection parameter must be programmed correctly, especially after ECM replacement. For additional Caterpillar product support, visit Caterpillar Official Support.
Who needs this CAT C15 low battery troubleshooting manual
Fleet mechanics and independent workshop owners diagnosing derated C15 engines with an illuminated check engine lamp caused by low ECM battery voltage will use this procedure. It is also relevant when Cat ET cannot communicate with the ECM or when intermittent shutdowns point to faulty vehicle wiring, aftermarket engine protection switches, or degraded batteries.
