This official Caterpillar service document is a CAT C15 285-07 actuator troubleshooting manual covering diagnostic code 0285-07 (Intake Valve Actuator #1 Not Responding) for C15 on-highway truck engines with MXS, NKS, or RKS serial prefixes. It provides complete system operation theory, step-by-step electrical and mechanical diagnostic procedures, oil pressure specifications, sensor testing, and leak test instructions across 36 pages.
Official CAT C15 285-07 actuator document details
| Brand | Caterpillar (CAT) |
| Model coverage | C15 Truck Engine — MXS, NKS, RKS configurations |
| System / Group | Intake Valve Actuation (IVA) System — Diagnostic Trouble Codes |
| Publication no. | RENR5088-10 |
| Year / Revision | Published 01/02/2009, Updated 25/02/2009 |
| Pages | 36 |
| File size | 1.4 MB |
| Format | |
| Language | English |
Document table of contents

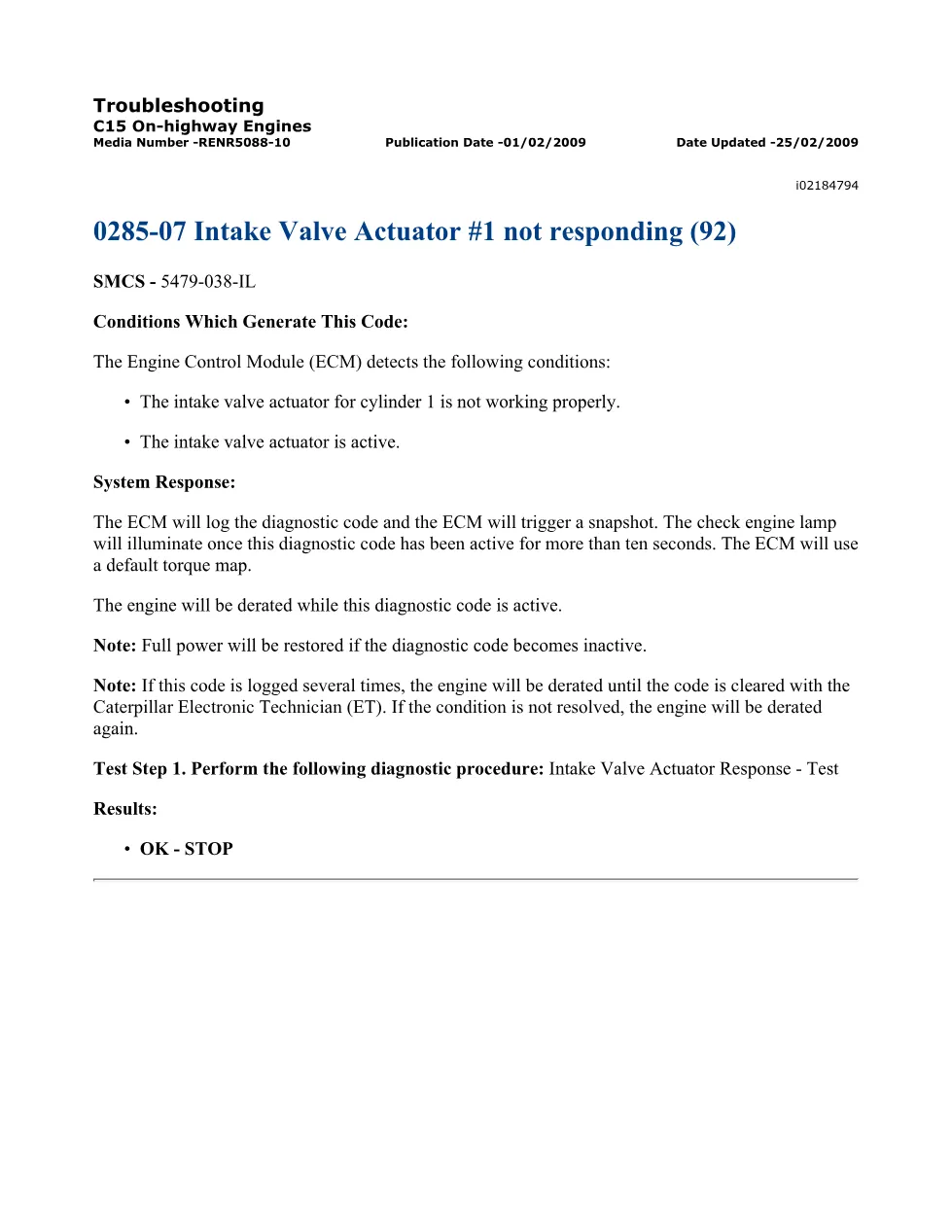

- DTC 0285-07 — Intake Valve Actuator #1 Not Responding: conditions, system response, and derate behavior
- Intake Valve Actuator Response — Test (SMCS 5479-038-IL)

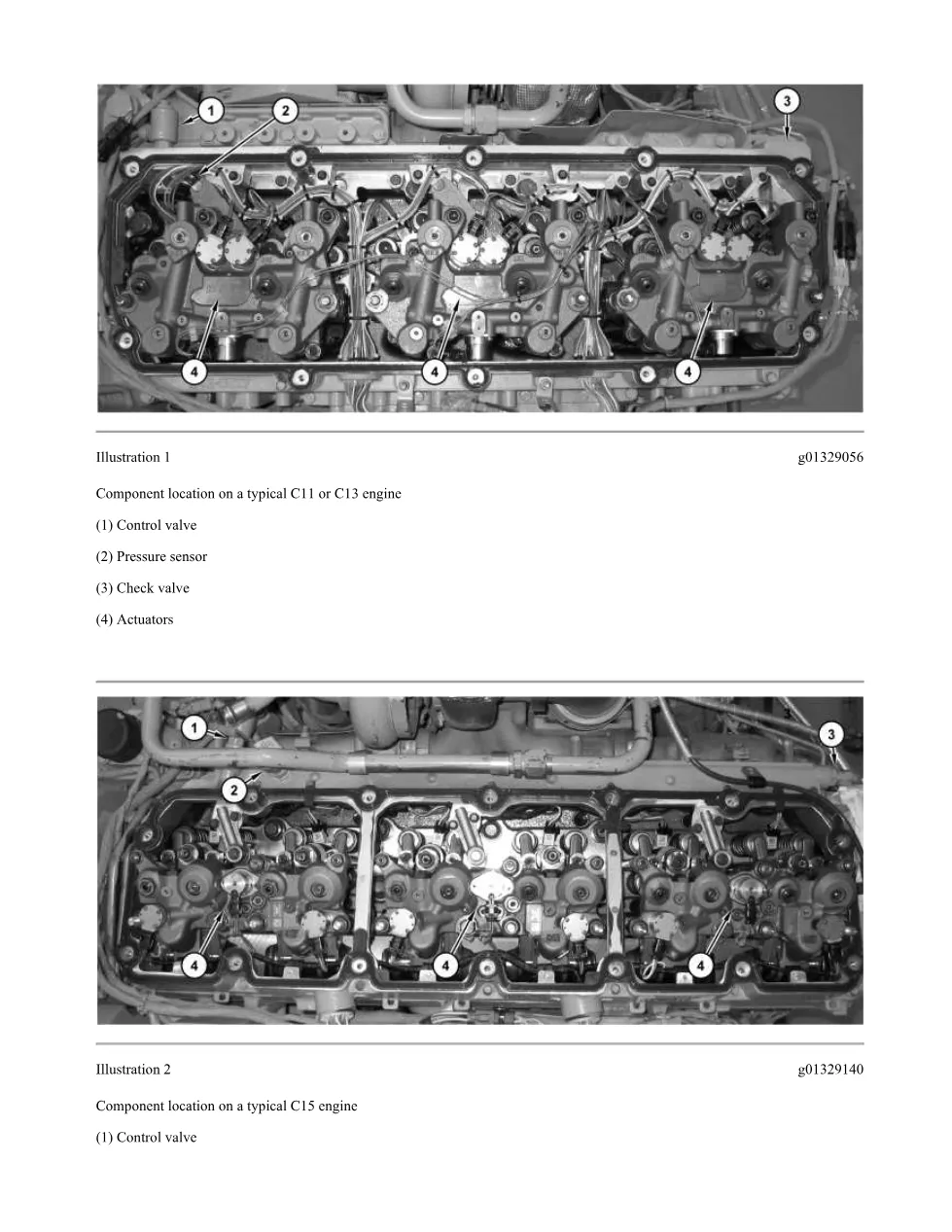

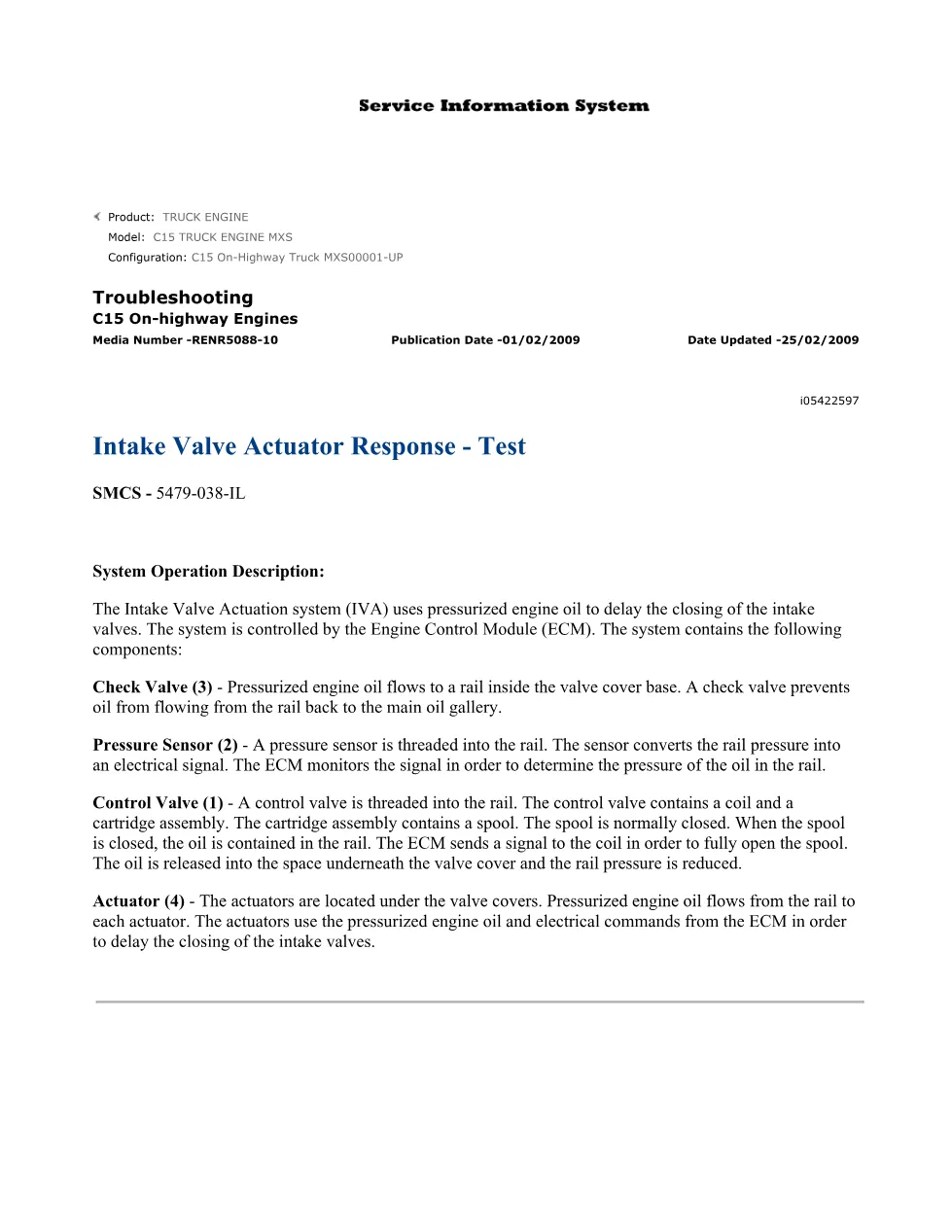

- System Operation Description — IVA components: check valve, pressure sensor, control valve, actuators
- System Operation During Engine Start — ECM sequence, control valve timing, 283-7 code activation
- System Operation During Engine Operation — solenoid energization, piston and rocker arm interaction, rail pressure monitoring
- Troubleshooting Procedure — diagnostic codes table (283-7, 285-7 series) for mechanical and electrical faults
- Engine Oil Pressure Verification — severity 1 and severity 2 trip points, Tables 2 and 3, pressure maps for C11/C13 and C15
- Intake Valve Actuation Oil Pressure Sensor Test — fabricated test apparatus, air pressure procedure, voltage ranges (Table 4)
- Leak Test Procedure — actuator purge orifice check, face seal inspection, O-ring verification
- Final Actuator Inspection and Road Test — debris check, face seal replacement, road test under load
Applicable truck models
This manual applies to the Caterpillar C15 on-highway truck engine in MXS (MXS00001-UP), NKS, and RKS configurations. Diagnostic procedures also reference component locations on C11 and C13 engines where the IVA system shares a similar architecture. The document is intended for engines equipped with the Intake Valve Actuation system controlled by the Caterpillar ECM and serviced using Caterpillar Electronic Technician (Cat ET) software. For additional product support resources, visit Caterpillar official support.
Who needs this CAT C15 285-07 actuator manual
Diesel mechanics and workshop owners diagnosing engine derates, check engine lamps, or DTC 0285-07 on Caterpillar C15 truck engines need this manual. It is essential for anyone performing IVA oil rail pressure tests, actuator solenoid diagnostics, or hydraulic leak inspections on these powertrains.
The full PDF is available in the DiagTechPro manuals library, free account required to download.
