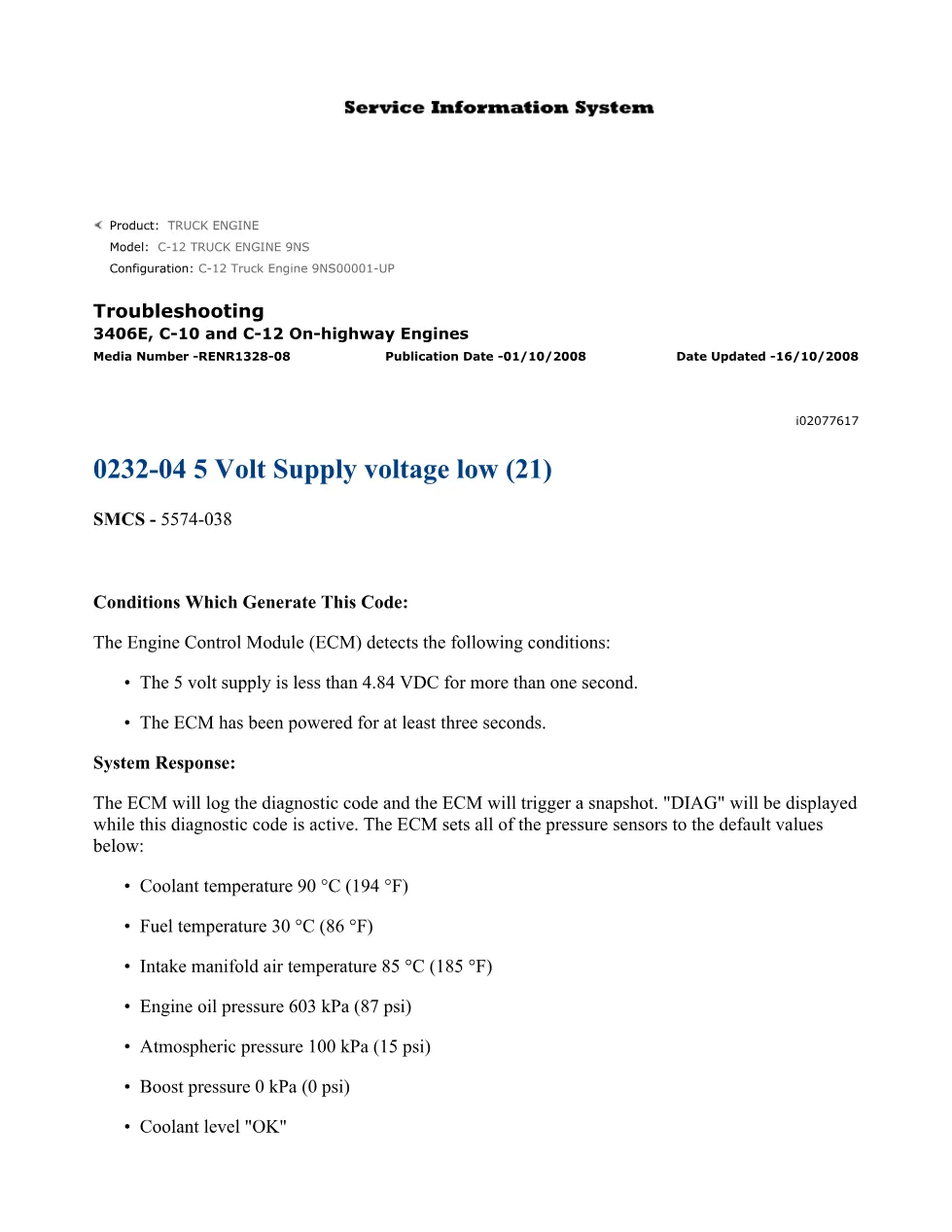

This CAT 0232-04 troubleshooting guide covers diagnostic code 0232-04 — 5 Volt Supply voltage low (21) — for Caterpillar 3406E, C-10, and C-12 on-highway truck engines. It details the conditions that generate the code, the ECM system response including default sensor values, and the recommended test procedure to resolve the fault.
Official CAT 0232-04 troubleshooting document details
| Brand | Caterpillar (CAT) |
| Model coverage | 3406E, C-10, C-12 Truck Engines (8YS, 9NS, 5DS, 1LW prefixes) |
| System / Group | Engine Control Module (ECM) — 5 Volt Supply Circuit, SMCS 5574-038 |
| Publication no. | RENR1328-08 |
| Year / Revision | Published 01/10/2008, updated 16/10/2008 |
| Pages | 2 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Document table of contents
- Conditions Which Generate This Code
- System Response — default sensor values for coolant temperature, fuel temperature, intake manifold air temperature, engine oil pressure, atmospheric pressure, boost pressure, coolant level, and outside air temperature

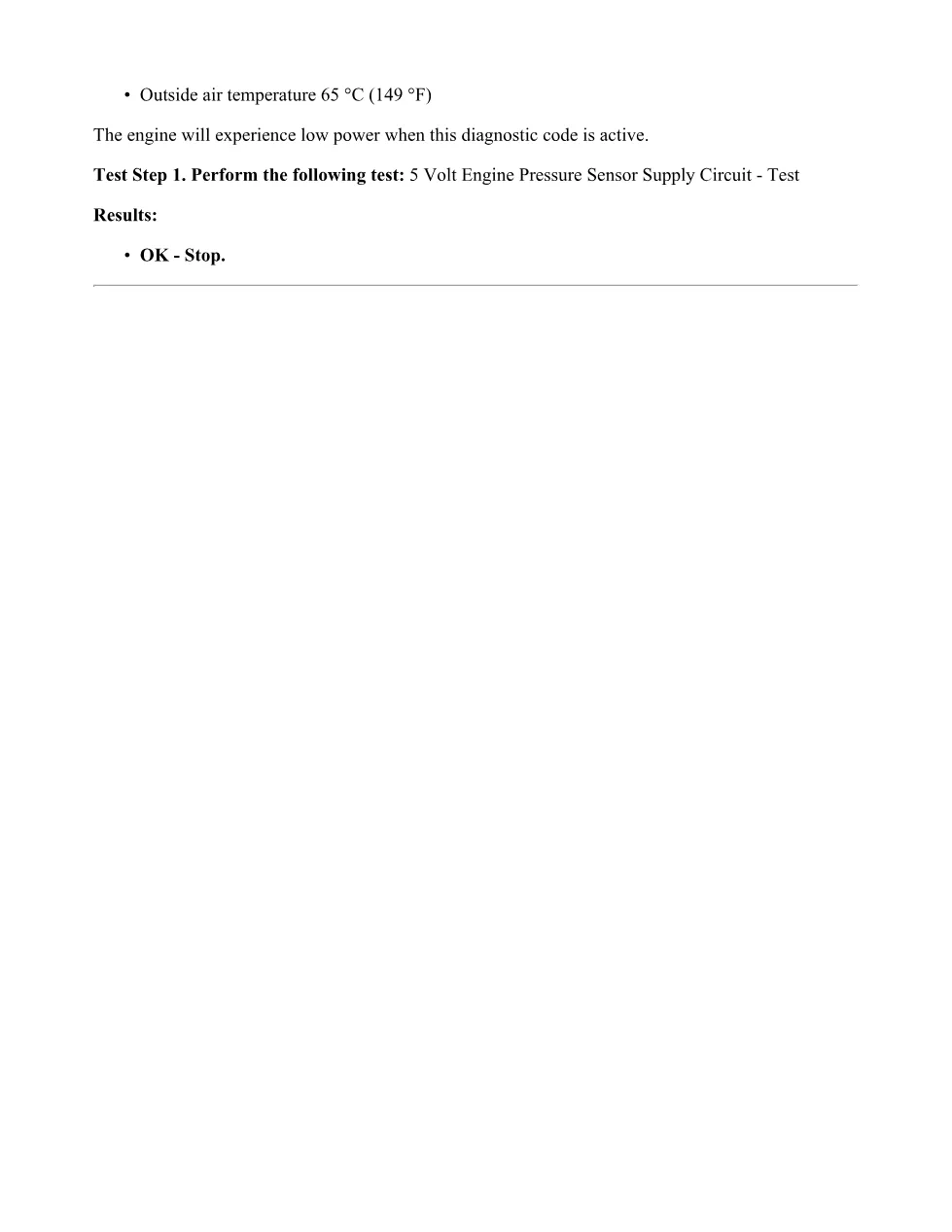

- Test Step 1: 5 Volt Engine Pressure Sensor Supply Circuit — Test
Applicable truck models
This CAT 0232-04 troubleshooting document applies to Caterpillar on-highway truck engines in the 3406E, C-10, and C-12 families. The specific configuration referenced is the C-12 Truck Engine 9NS00001-UP, but coverage extends to serial prefix groups 8YS, 9NS, 5DS, and 1LW. The diagnostic code is triggered when the ECM detects that the 5 volt supply drops below 4.84 VDC for more than one second after the ECM has been powered for at least three seconds. When active, the ECM assigns default values to all pressure sensors — including coolant temperature at 90 °C (194 °F), fuel temperature at 30 °C (86 °F), engine oil pressure at 603 kPa (87 psi), and boost pressure at 0 kPa (0 psi) — and the engine will experience low power. For additional Caterpillar technical resources, visit Caterpillar’s official support page.
Who needs this CAT 0232-04 troubleshooting manual
Diesel mechanics and workshop owners diagnosing a 5 volt supply fault code on 3406E, C-10, or C-12 Caterpillar engines need this document. It provides the exact trigger conditions, ECM default behavior, and the required 5 Volt Engine Pressure Sensor Supply Circuit test procedure to clear DTC 0232-04.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
