This CAT 0084-14 Quick Stop troubleshooting guide documents how the Engine Control Module (ECM) detects and records rapid deceleration events on Caterpillar 3406E, C-10, and C-12 on-highway truck engines. It explains the conditions that generate diagnostic code PID 0084 FMI 14, the system response, possible performance effects, and the recommended troubleshooting steps for resolving excessive occurrence counts.
Official CAT 0084-14 Quick Stop document details
| Brand | Caterpillar (CAT) |
| Model coverage | 3406E, C-10, C-12 Truck Engines (8YS, 9NS, 5DS, 1LW prefixes) |
| System / Group | Diagnostic Trouble Codes — SMCS 7463-038 |
| Publication no. | RENR1328-08 |
| Year / Revision | Published 01/10/2008, updated 16/10/2008 |
| Pages | 2 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Document table of contents
- Conditions Which Generate This Code
- System Response
- Possible Performance Effect
- Troubleshooting — Test Step 1: Quick Stop Rate Parameter Evaluation
Applicable truck models
This document applies to Caterpillar on-highway truck engines in the 3406E, C-10, and C-12 families. The specific configuration referenced is the C-12 Truck Engine 9NS00001-UP, but the troubleshooting procedure also covers serial prefix groups 8YS, 5DS, and 1LW. The diagnostic code PID 0084 FMI 14 is generated when vehicle speed decreases at a rate exceeding the programmed “Quick Stop Rate” while the service brake is applied. The ECM logs engine speed, vehicle speed, throttle position, cruise control status, clutch switch status, and brake switch status at the time of the event. Importantly, this code does not indicate an electronic system fault — an excessive number of occurrences typically means the Quick Stop Rate parameter is set too low relative to the vehicle’s actual operating load. Vehicles running without a trailer or with no load will decelerate faster than loaded vehicles, triggering the code more frequently. Customer passwords are required to clear this diagnostic code from the ECM. For official Caterpillar technical resources, visit Caterpillar Support.
Who needs this CAT 0084-14 Quick Stop manual
Fleet mechanics, independent diesel technicians, and workshop owners working on Caterpillar 3406E, C-10, or C-12 powered trucks will use this guide when diagnosing repeated PID 0084 FMI 14 event logs. It is essential for anyone adjusting the Quick Stop Rate parameter or clearing stored occurrence data from the ECM.

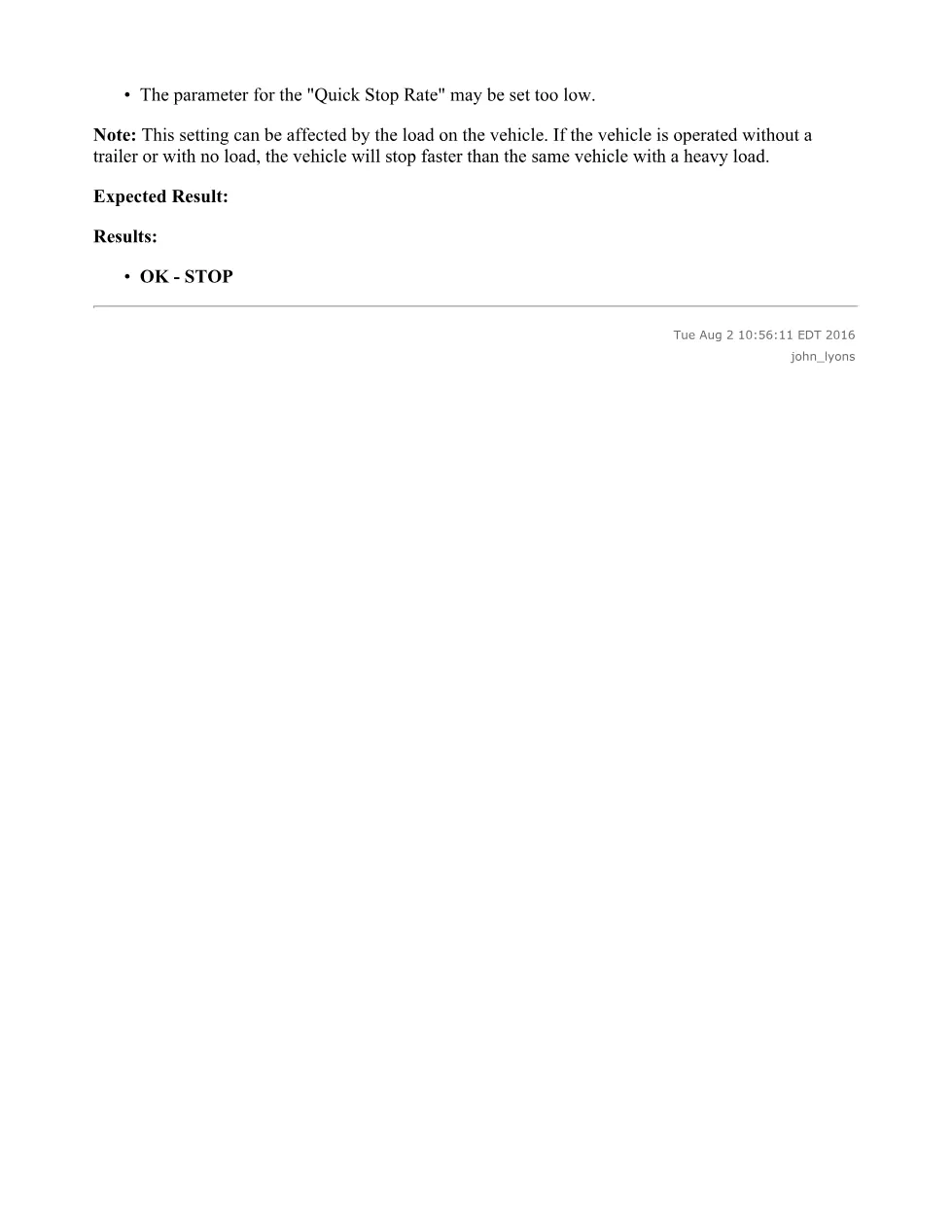

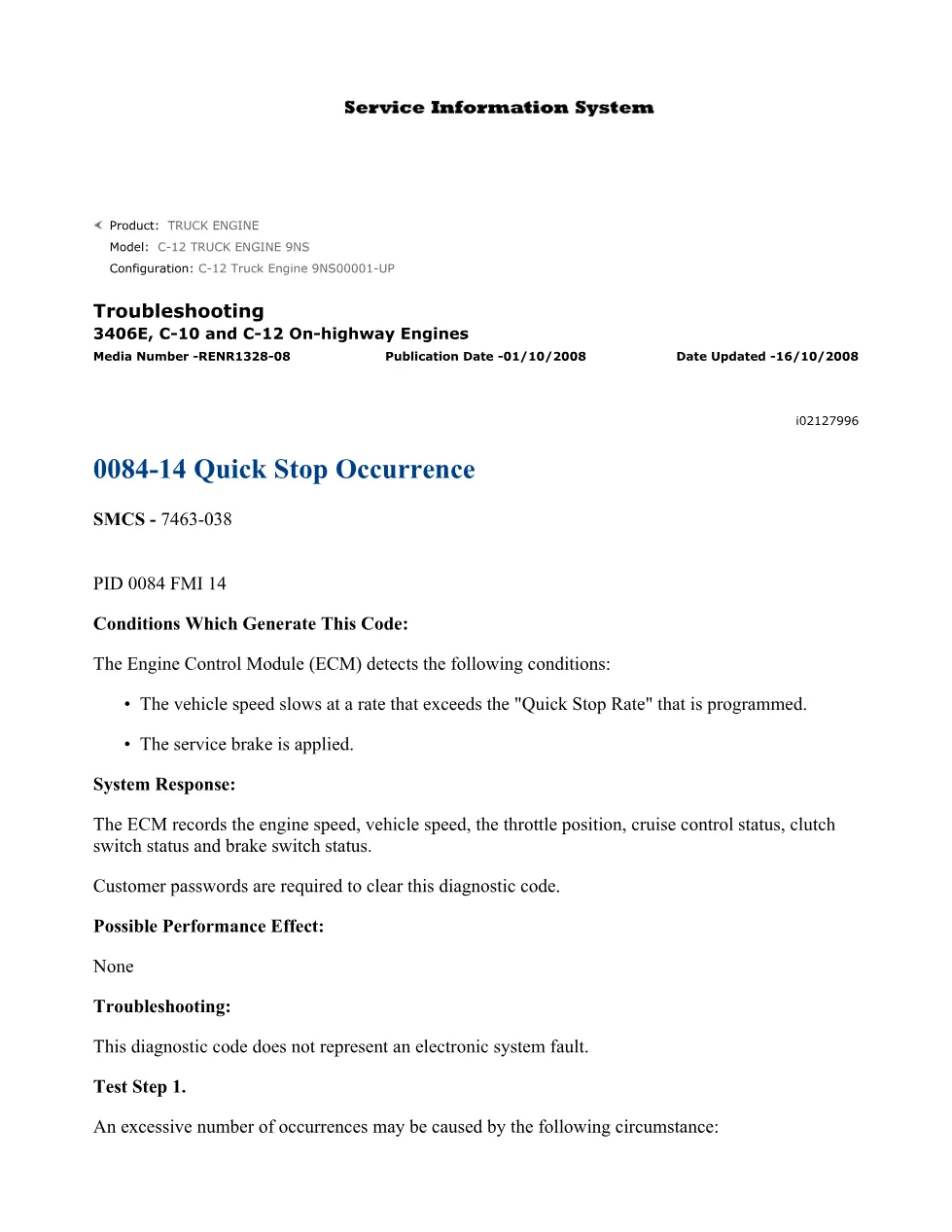

The full PDF is available in the DiagTechPro manuals library. A free account is required to download.
