This CAT 0084-08 vehicle speed troubleshooting document provides the official Caterpillar diagnostic procedure for fault code 0084-08, which indicates a vehicle speed signal out of range on 3406E, C-10, and C-12 on-highway truck engines. It details the conditions that generate the code, the ECM system response, and the required test steps to resolve the fault.
Official CAT 0084-08 vehicle speed troubleshooting document details
| Brand | Caterpillar (CAT) |
| Model coverage | 3406E, C-10, C-12 Truck Engines (8YS, 9NS, 5DS, or 1LW prefix) |
| System/Group | DTCs — SMCS 7463-038 |
| Publication no. | RENR1328-08 |
| Year/Revision | Published 01/10/2008, Updated 16/10/2008 |
| Pages | 2 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Document table of contents

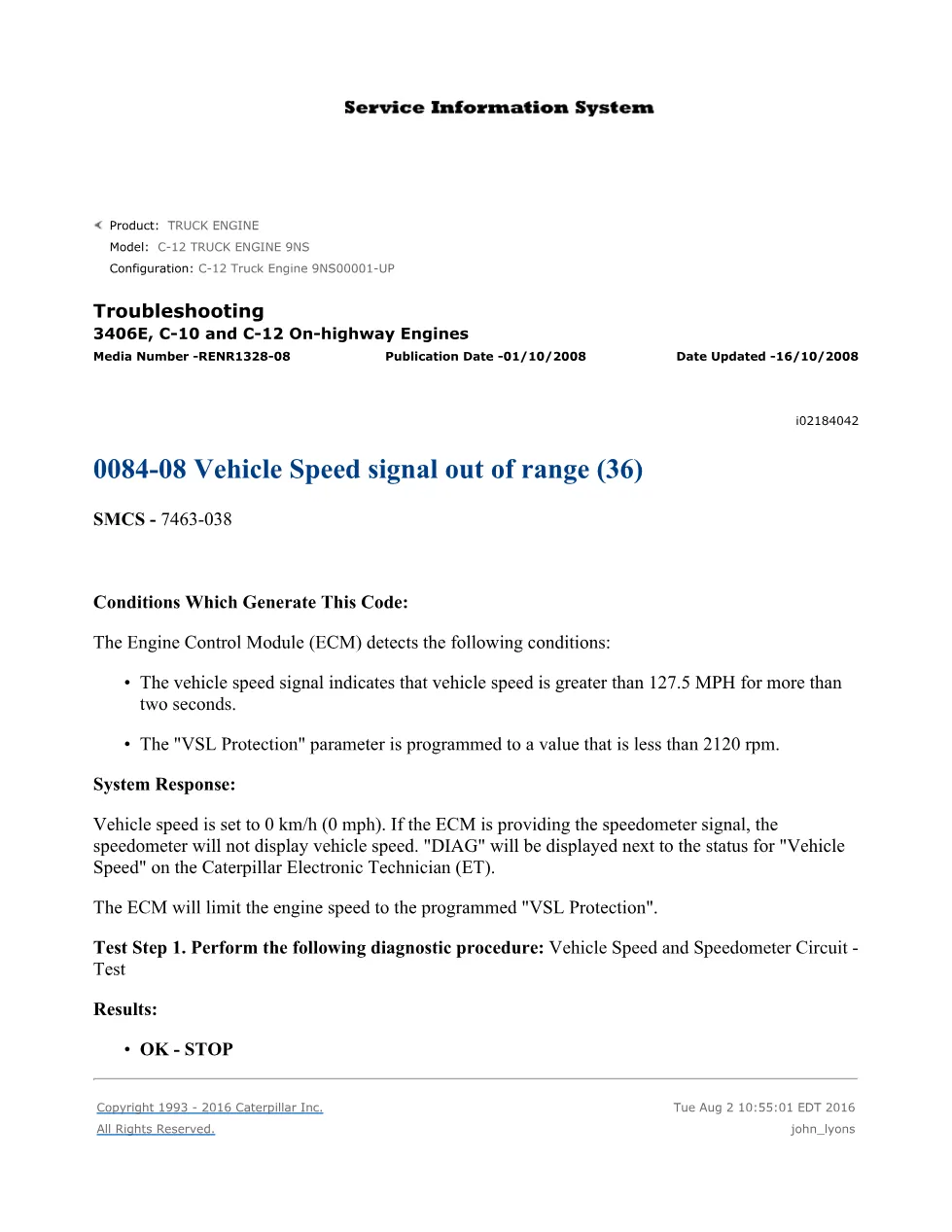

- Conditions Which Generate This Code (DTC 0084-08 — Vehicle Speed signal out of range)
- System Response — ECM behavior when fault is active
- Test Step 1: Vehicle Speed and Speedometer Circuit — Test
Applicable truck models
This document applies to Caterpillar on-highway truck engines in the 3406E, C-10, and C-12 families, specifically configurations with serial number prefixes 8YS, 9NS, 5DS, or 1LW. The extract references the C-12 Truck Engine 9NS00001-UP configuration. The fault code triggers when the Engine Control Module (ECM) detects a vehicle speed signal exceeding 127.5 MPH for more than two seconds while the “VSL Protection” parameter is set below 2120 rpm. When active, the ECM sets vehicle speed to 0 km/h and limits engine speed to the programmed VSL Protection value. The Caterpillar Electronic Technician (ET) will display “DIAG” next to the vehicle speed status. For additional product support, visit Caterpillar official support.
Who needs this 0084-08 vehicle speed troubleshooting manual
Fleet mechanics and independent workshop technicians servicing Caterpillar 3406E, C-10, or C-12 powered trucks need this document when diagnosing an active 0084-08 fault code. It is essential for anyone using the Caterpillar ET diagnostic tool to trace vehicle speed sensor or speedometer circuit faults on these engine platforms.
The full PDF is available in the DiagTechPro manuals library, free account required to download.
