This Allison CEC2 troubleshooting manual provides comprehensive diagnostic and repair guidance for Commercial Electronic Controls 2 (CEC2) systems used in Allison 5000, 6000, 8000, and 9000 series off-highway transmissions. Published in December 2005 as TS3353EN, the 243-page document covers fault code descriptions, system response tables, vehicle interface wiring, customer modifiable constants, wire and connector repair procedures, and diagnostic data reader information.
Official Allison CEC2 troubleshooting document details
| Brand | Allison Transmission (General Motors Corp.) |
| Model coverage | 5000, 6000, 8000, 9000 Series Transmissions |
| System / Group | Commercial Electronic Controls 2 (CEC2) |
| Publication no. | TS3353EN |
| Year / Revision | December 2005 |
| Pages | 243 |
| File size | 5.3 MB |
| Format | |
| Language | English |
Document table of contents

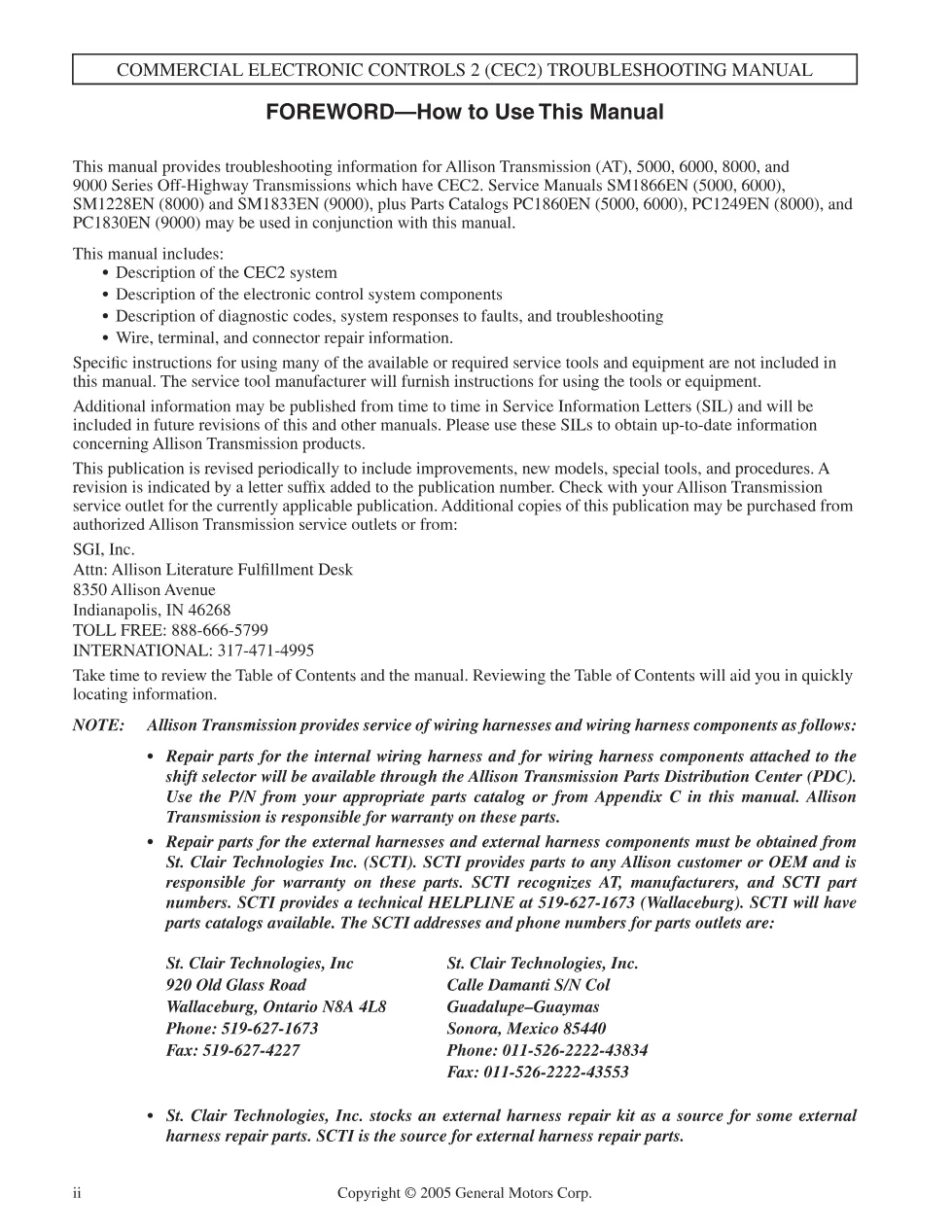

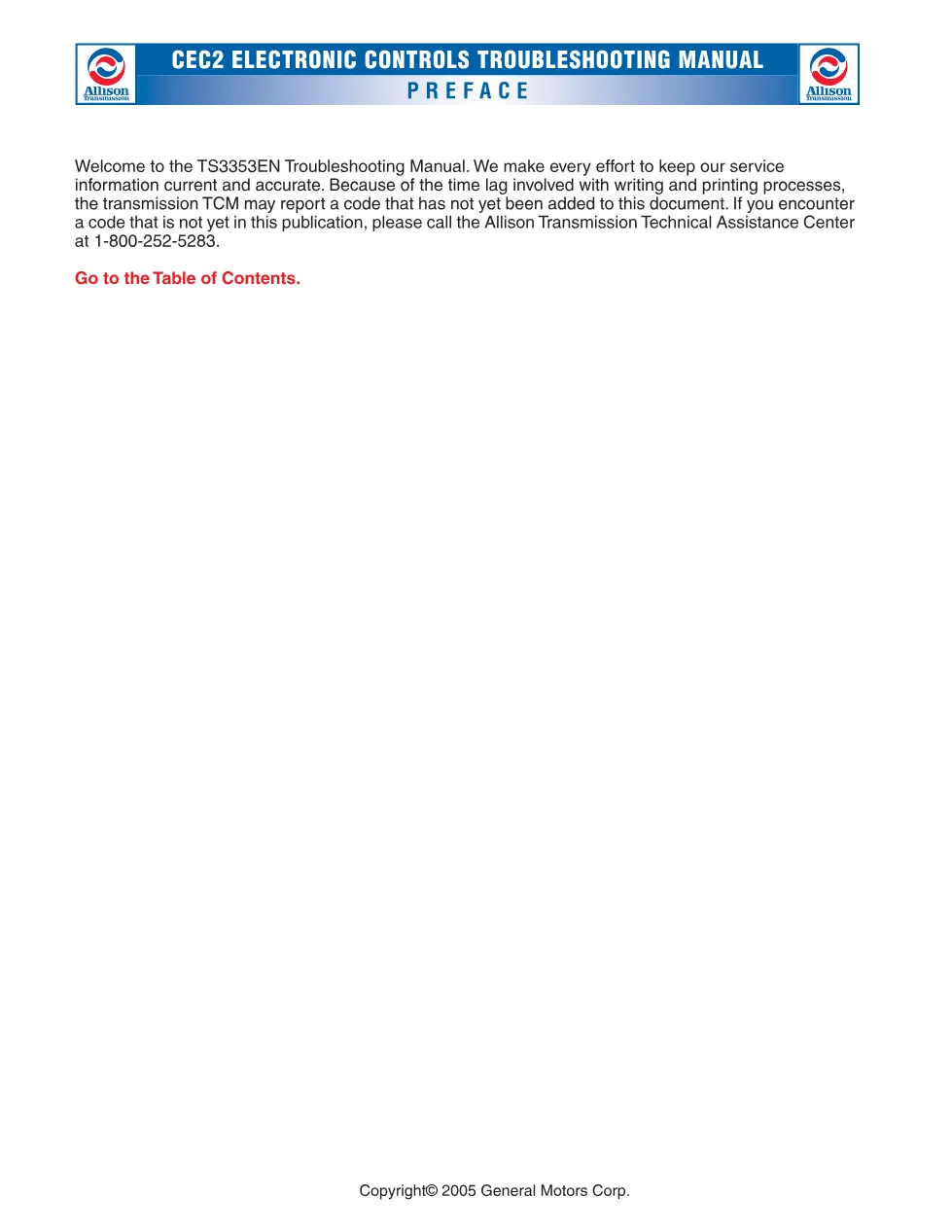

- Preface and Foreword — How to Use This Manual
- Warnings, Cautions, and Notes
- Description of the CEC2 System
- Description of Electronic Control System Components
- Diagnostic Codes, System Responses to Faults, and Troubleshooting (including solenoid failure codes, overcurrent faults, range verification ratio tests, engine rating codes, and serial communications interface faults)
- Vehicle Interface Wiring — Mandatory (VIW-M), including master disconnect switch installation
- Customer Modifiable Constants (CMC) — stall check range, retarder option, retarder modifier, available reverse settings
- Wire, Terminal, and Connector Repair Information (crimping procedures, J1939 interface connector details)
- Appendix C — Parts Information (internal and external wiring harness repair parts)
- Appendix J — Diagnostic Data Reader Information (Pro-Link® Plus, MPC cartridge, reprogramming and diagnostic cards)
Applicable truck models

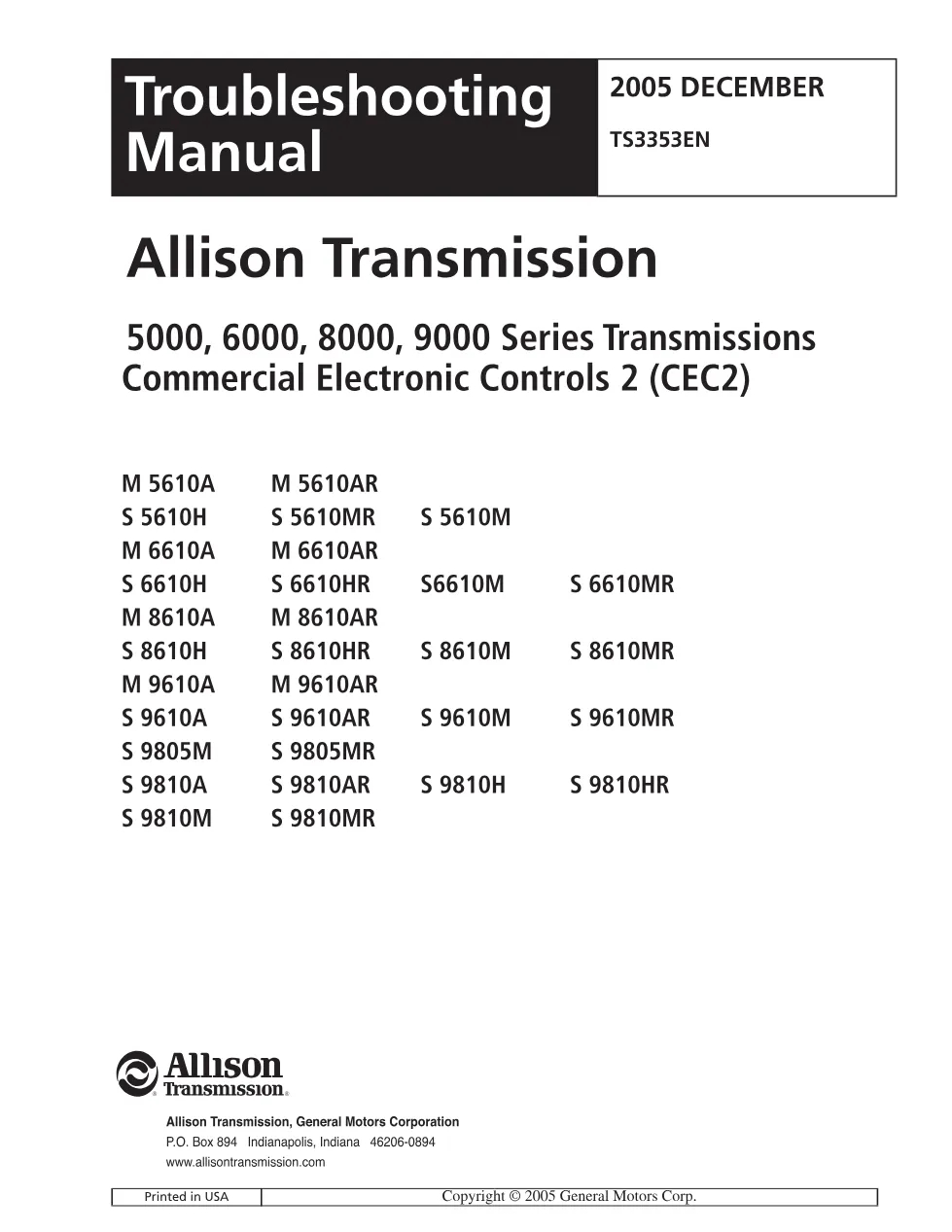

This manual applies to all Allison off-highway transmissions equipped with CEC2 electronic controls across four series. Covered model designations include M 5610A, M 5610AR, S 5610H, S 5610MR, S 5610M, M 6610A, M 6610AR, S 6610H, S 6610HR, S 6610M, S 6610MR, M 8610A, M 8610AR, S 8610H, S 8610HR, S 8610M, S 8610MR, M 9610A, M 9610AR, S 9610A, S 9610AR, S 9610M, S 9610MR, S 9805M, S 9805MR, S 9810A, S 9810AR, S 9810H, S 9810HR, S 9810M, and S 9810MR. Companion service manuals SM1866EN, SM1228EN, SM1833EN and parts catalogs PC1860EN, PC1249EN, PC1830EN are referenced for use alongside this publication. For official product support visit Allison Transmission’s website.
Who needs this Allison CEC2 troubleshooting manual
Fleet mechanics, independent workshop technicians, and OEM service departments working on heavy-duty off-highway equipment with Allison 5000–9000 series transmissions will find this manual essential for diagnosing CEC2 electronic control faults, interpreting diagnostic trouble codes, and performing wiring harness repairs.
The full PDF is available in the DiagTechPro manuals library. A free account is required to download.
