This 3200 electrical troubleshooting guide is the 2,332-page International Trucks service manual, publication S082503, covering the complete electrical system on 3200 and related medium-duty models built between October 2000 and May 2003. It provides circuit diagnostics, connector charts and diagnostic trouble codes for the entire chassis.
Official document details
| Brand | International Trucks (Navistar) |

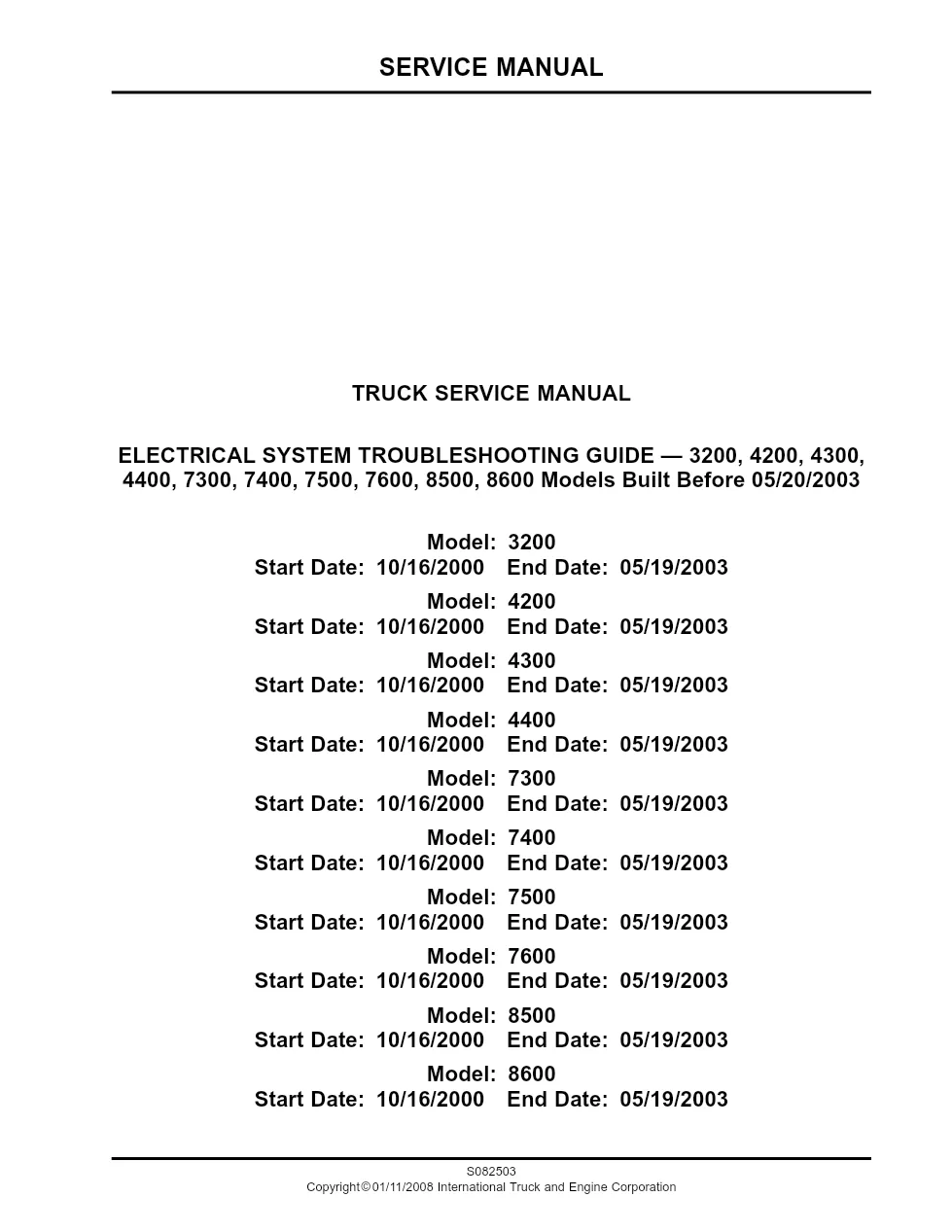

| Model coverage | 3200, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 8500, 8600 (built 10/16/2000 to 05/19/2003) |
| System / Group | 3000 Series / Electrical Troubleshooting |
| Publication no. | S082503 |
| Revision | 01/11/2008 |
| Pages | 2332 |
| File size | 23.2 MB |
| Format | |
| Language | English |
What the 3200 electrical troubleshooting guide includes

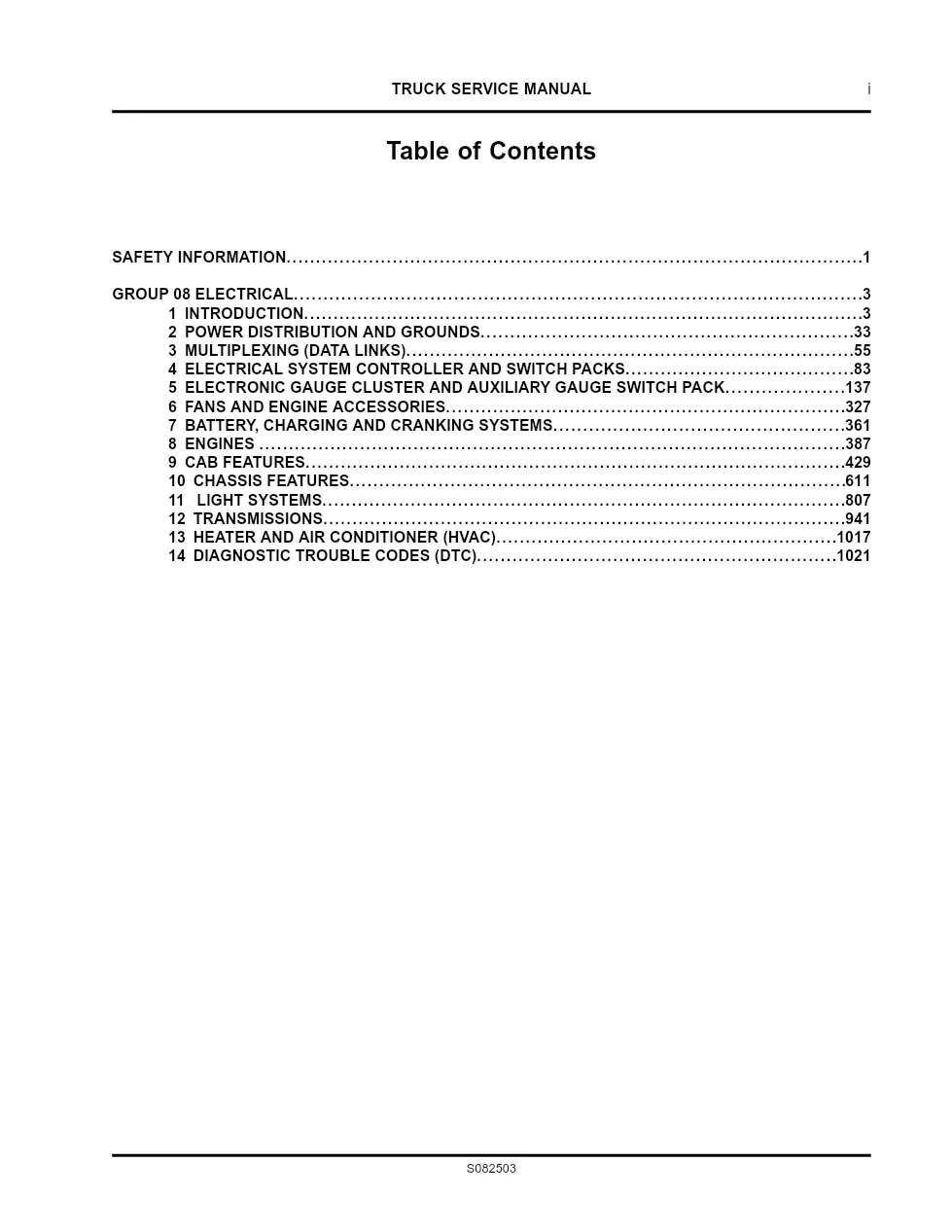

- Safety information and Group 08 Electrical introduction
- Power distribution and grounds, and multiplexing (data links)
- Electrical system controller and switch packs
- Electronic gauge cluster and auxiliary gauge switch pack
- Fans, engine accessories, battery, charging and cranking systems
- Cab and chassis features, light systems, transmissions and HVAC
- Diagnostic trouble codes (DTC) for park brake, fuel and remote air solenoid circuits
Test procedures and tools
Voltage-check tables give exact specifications, for example the fuel preheater and fuel level sensor circuits, with pass/fail comments for each test point. International specifies the breakout box ZTSE 4477 to take measurements on electrical system controller (ESC) connectors, and always checking connectors for damage and pushed-out terminals. Each chapter is self-contained, so a technician can jump straight to the affected system, follow the wiring and confirm the fault at the specified connector.
Applicable truck models
Coverage is limited to 3200, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 8500 and 8600 chassis built before 20 May 2003; later builds use separate guides. Confirm the exact build date against the vehicle identification on the official International Trucks website, and verify the emissions and engine build as well before starting work.
Who needs this 3200 electrical troubleshooting manual
Auto-electricians and fleet technicians chasing no-start, gauge, lighting or data-link faults use this 3200 electrical troubleshooting guide to follow circuits end to end and read live diagnostic trouble codes. The full PDF is available in the DiagTechPro manuals library, free account required to download.
