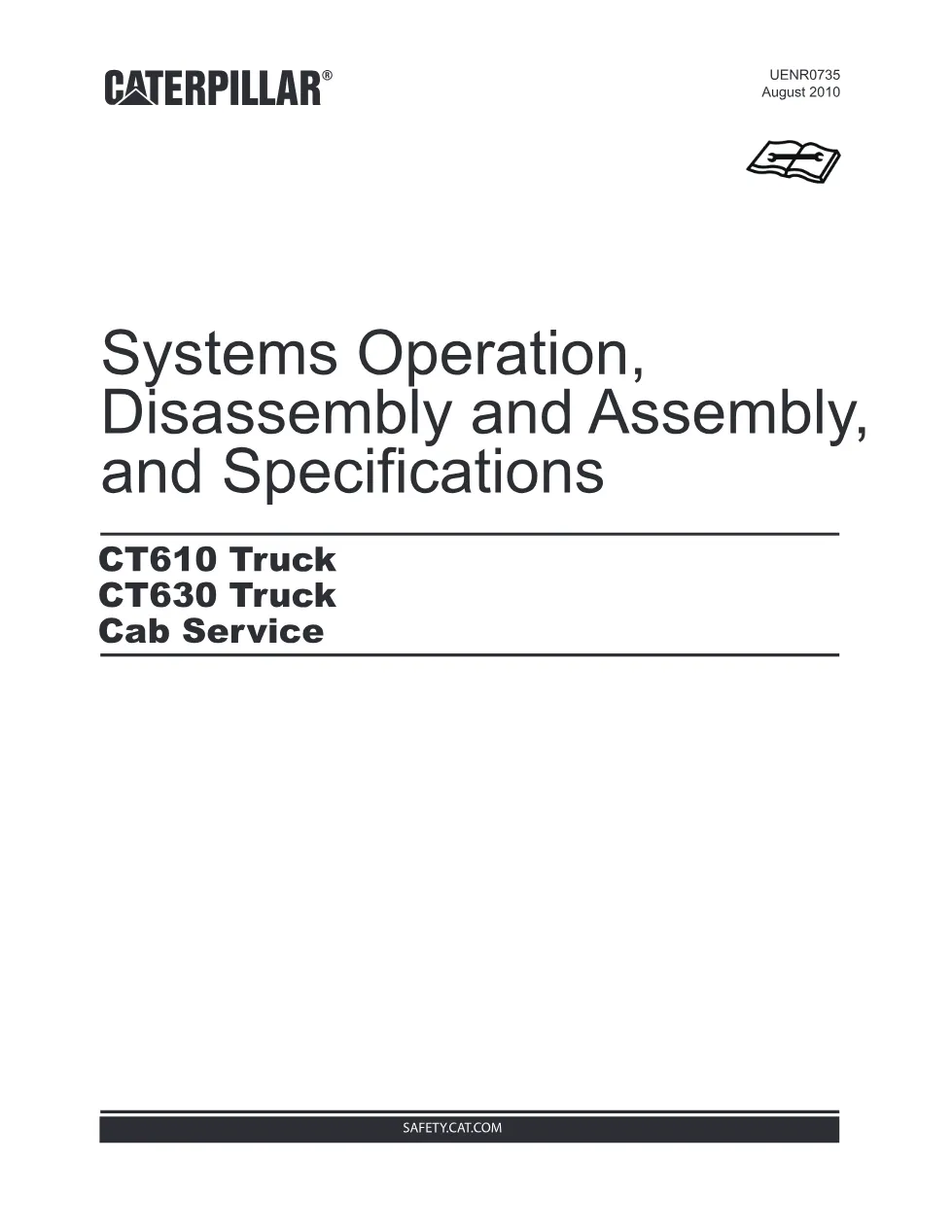

The Cat truck cab manual (publication UENR0735) is International’s August 2010 factory cab service manual covering the CT610 and CT630 vocational trucks. Issued under the Caterpillar brand, this 209-page document sets out systems operation, disassembly and assembly, and specifications for the complete cab structure, glass, trim, and air suspension. It is the authoritative reference for stripping, repairing, and reassembling the cab without guesswork.
Cat truck cab manual document details
| Brand | International Trucks (Cat-branded) |
| Model coverage | CT610 and CT630 |
| System / Group | CAT Trucks / Cab Manual |
| Publication no. | UENR0735 |
| Year | August 2010 |
| Pages | 209 |
| File size | 3.6 MB |
| Format | |
| Language | English |

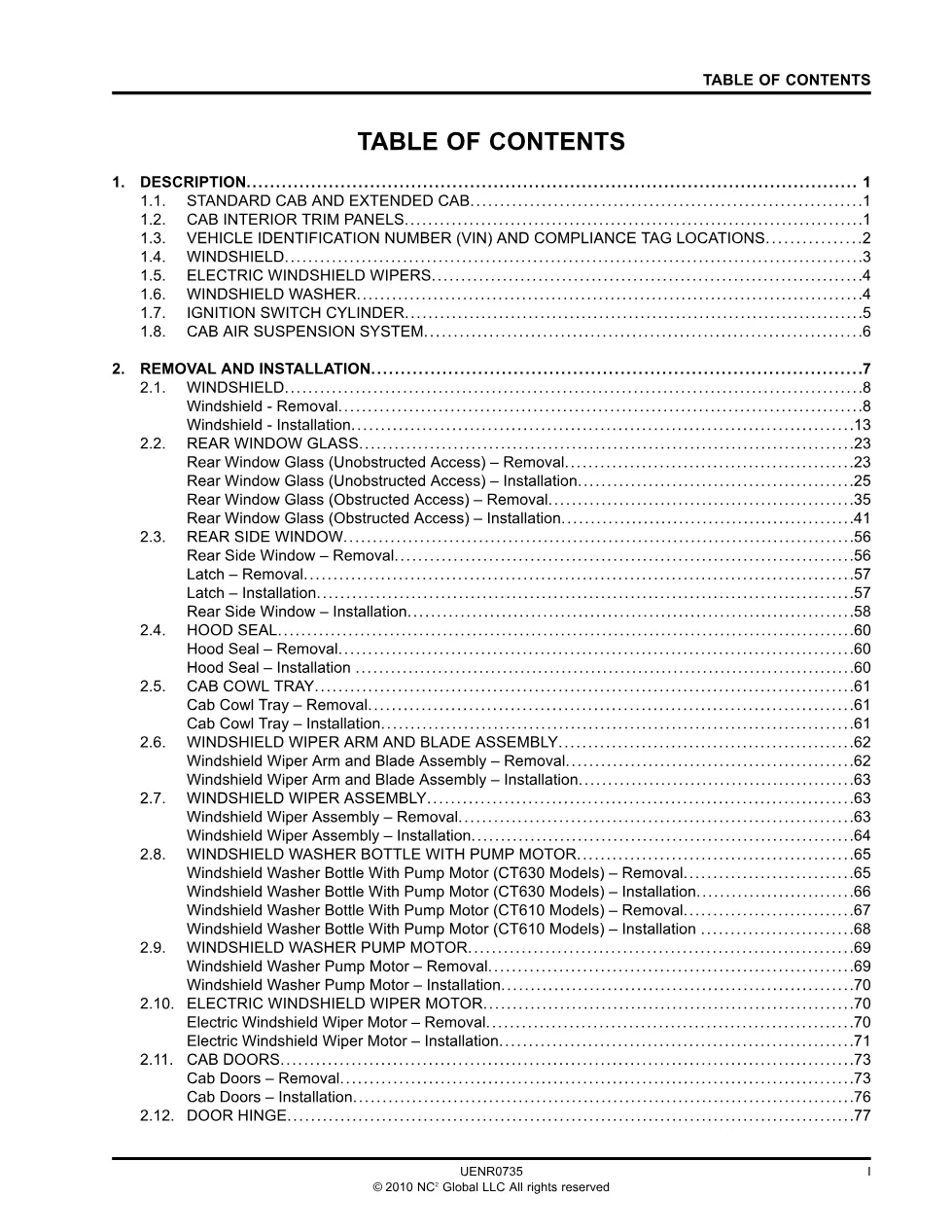

Document table of contents
- Description: standard cab and extended cab, cab interior trim panels
- VIN and compliance tag locations
- Windshield, electric windshield wipers and windshield washer
- Ignition switch cylinder and cab air suspension system
- Removal and installation: rear window glass, rear side window, hood seal, cab cowl tray
- Windshield wiper arm and electric window and door lock switch
- Cab removal, installation and cab squaring
- Rear cab air suspension assembly and torque chart
Applicable truck models covered
This service manual applies to the Caterpillar-branded CT610 and CT630 trucks, which are vocational International chassis marketed under the Cat name. Coverage runs from windshield removal and urethane bonding through rear window glass, rear side windows, hood seals, and the cab cowl tray, then on to full cab removal, cab-to-frame alignment, and cab squaring. Torque values are given for the rear cab air suspension assembly, shock absorber bolts, lateral control rod locknuts, and jounce bumper locknuts on both CT610 and CT630. For the current vocational range and model background, visit the official Caterpillar site at Caterpillar.
Who needs this Cat truck cab manual
Body technicians, auto-glass installers, and workshop owners servicing CT610 or CT630 cabs rely on this manual for correct 43532 body primer application, windshield bonding, air suspension torque, and safe cab lifting. Following the factory sequence protects the cab, frame, and mounting brackets from damage during reinstallation.
The complete PDF is available in the DiagTechPro manuals library, free account required to download.
