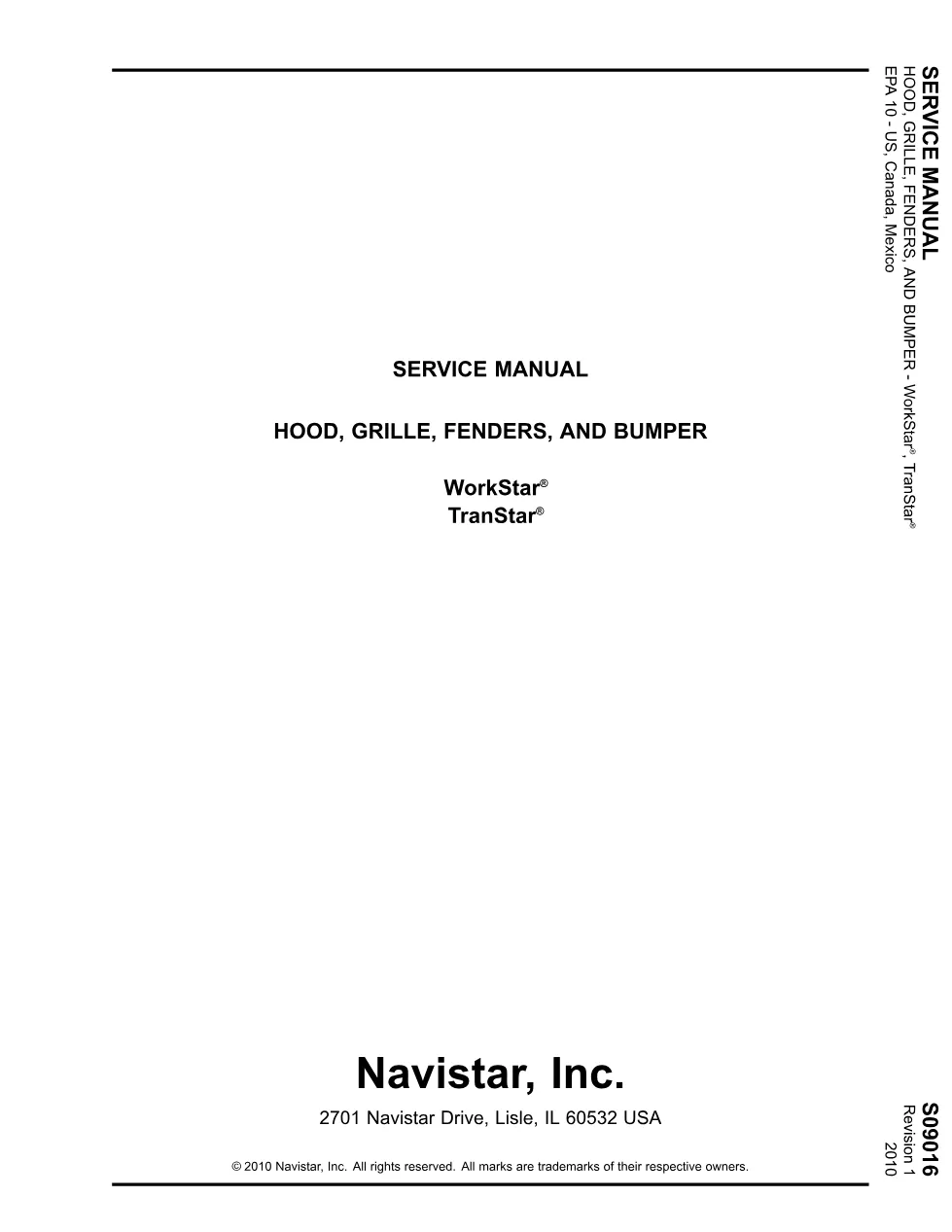

This WorkStar hood service manual (publication S09016, 2010) is the factory hood, grille, fenders and bumper section for International WorkStar and TranStar trucks. It gives separate procedures for each model across the front-end body panels.
Official document details
| Brand | International Trucks (Navistar) |
| Model coverage | International WorkStar and TranStar (7000 Series) |
| System / Group | Hood, Grille, Fenders and Bumper |
| Publication no. | S09016 |
| Year / Revision | 2010 (Navistar) |
| Pages | 66 |
| File size | 3.0 MB |
| Format | |
| Language | English |

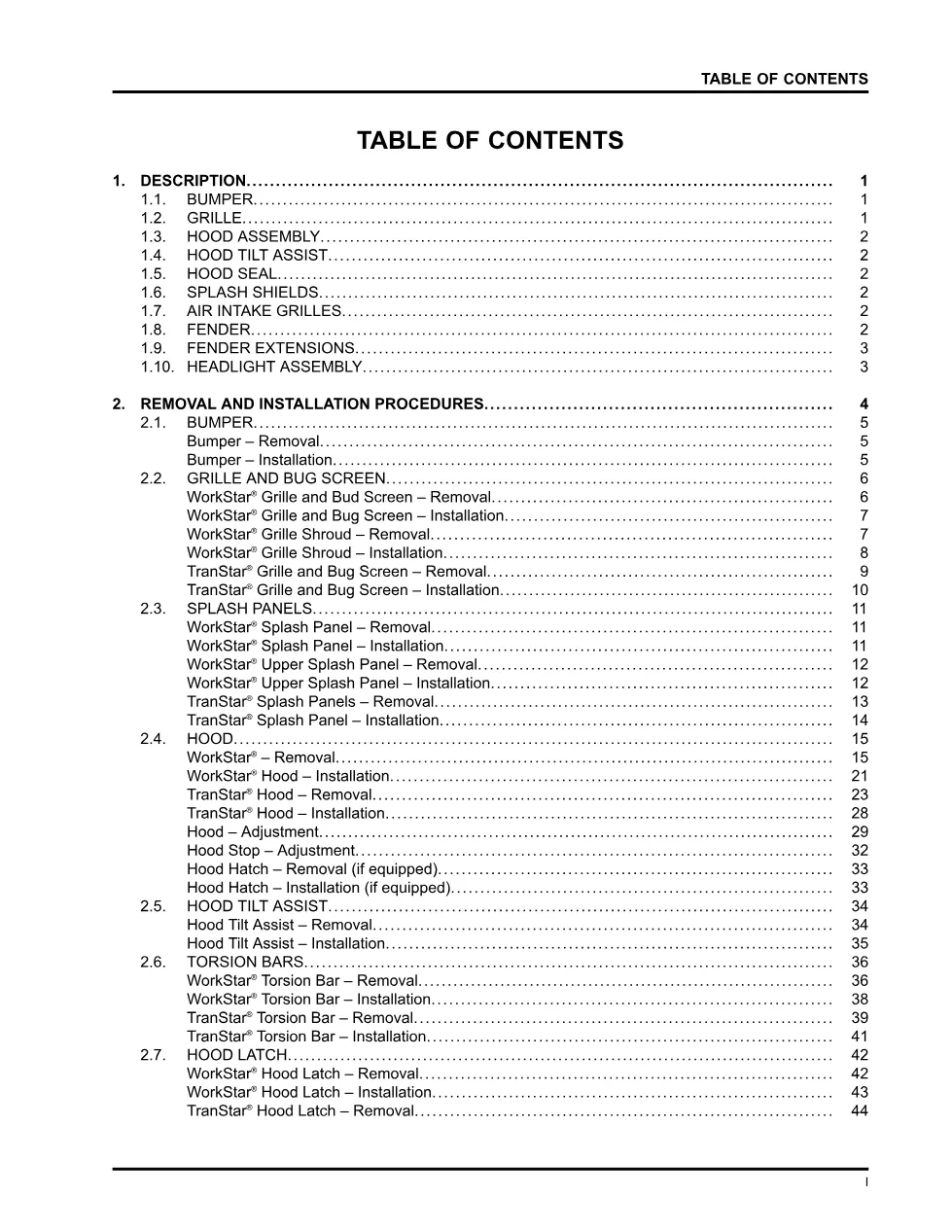

What the WorkStar hood service manual covers
- Description — bumper, grille and hood assembly
- Hood tilt assist and hood seal
- Splash shields and air intake grilles
- Fender, fender extensions and headlight assembly
- Bumper, grille and bug screen service
- Splash panel and hood removal (WorkStar and TranStar)
- Hood tilt assist, torsion bars and hood latch
- Fender extensions, headlights and torque chart
Publication S09016 gives separate WorkStar and TranStar procedures for the grille and bug screen, splash panels, hood tilt assist cylinder, torsion bars and headlight assembly, and finishes with a torque chart in lb-ft and N·m.
Applicable truck models
Coverage is the International WorkStar and TranStar trucks (7000 Series). Verify hood style before ordering parts. Brand details are on the International Trucks official website.
Who needs this WorkStar hood service manual
Collision shops, fleet technicians and owner-operators use this section to remove and refit hoods, grilles, fenders and bumpers after damage or for engine access. It is a professional reference.
Because WorkStar and TranStar hoods differ, follow the procedure that matches your grille and hood style, and mark the torsion bars left and right before removal so tension returns correctly. Support the tilted hood on a stand before touching the tilt-assist cylinder, disconnect the chassis-to-hood harness on both sides, and torque hinge, latch and fender-extension hardware to the chart so the front end opens and seals properly.
The full PDF is available in the DiagTechPro manuals library — a free account is required to download. Each listing shows the exact publication number so you can match the document to your VIN and build date before downloading.
