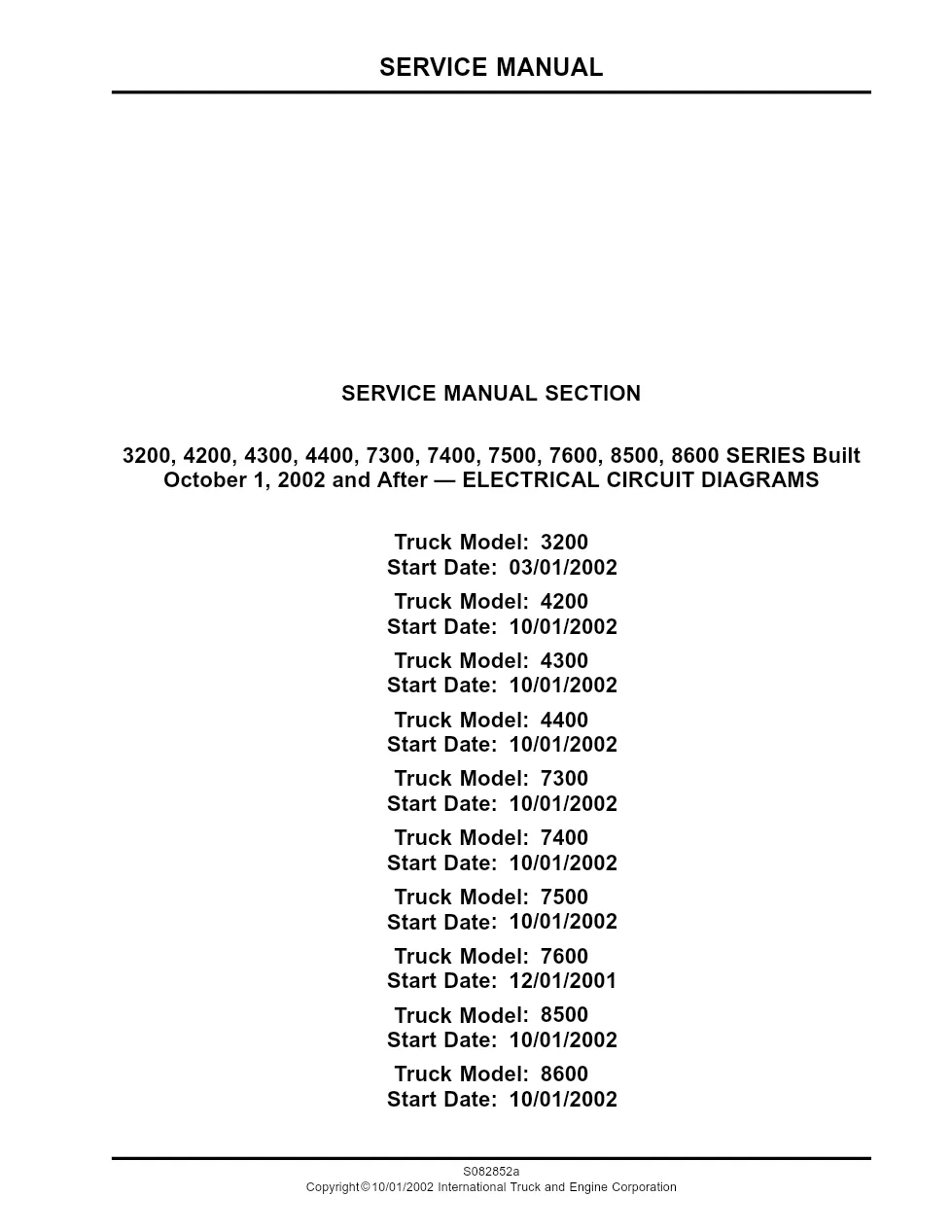

These TranStar wiring diagrams are the International Trucks 8000 Series electrical circuit diagrams, publication S082852A, for 3200, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 8500 and 8600 trucks built October 1, 2002 and after. The 187-page book is a schematic reference of circuit charts, connector pin numbering and composite connector views.
Official document details
| Brand | International Trucks |
| Model coverage | 3200, 4200, 4300, 4400, 7300-7600, 8500, 8600 |
| System / Group | Electrical circuit diagrams |
| Publication no. | S082852A |
| Revision | 10/01/2002 |
| Pages | 187 |
| File size | 3.3 MB |
| Format | |
| Language | English |
What the TranStar wiring diagrams show
- Instructions and charts: circuit number identification and location, schematic symbol chart, relay functions, lamp bulb chart
- NavPak/ECM I6 and V8 engine controller connector pin number identification
- 12 volt power distribution: accessory, battery feeds, 1708 and 1939 data links, grounds, ignition and start
- Cab accessories: cigar lighter, CB power, front doors windows and locks (power)
- Chassis accessories: air dryer and heated drain valve
- Connector composites with cavity, circuit, gauge and wire-color tables
Applicable truck models listed
Coverage runs across the medium- and heavy-duty 3200, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 8500 and 8600 Series, with per-model build start dates from late 2001 through 2002. Every sheet is drawn to the International restricted-print standard, and wire callouts use circuit numbers plus gauge and color codes such as 12LTGN, 18DKBL and 10WH so each conductor can be matched end to end. For model and VIN lookups, visit the official International Trucks website.
Who needs these TranStar wiring diagrams
Auto-electricians and diagnostic technicians use these wiring diagrams to trace power distribution, data links, door and lock circuits and connector composites on 8000 Series trucks. Each sheet identifies connectors, cavities and wire colors so faults can be found without guesswork.
The complete 187-page PDF is available in the DiagTechPro manuals library; a free account is required to download.
