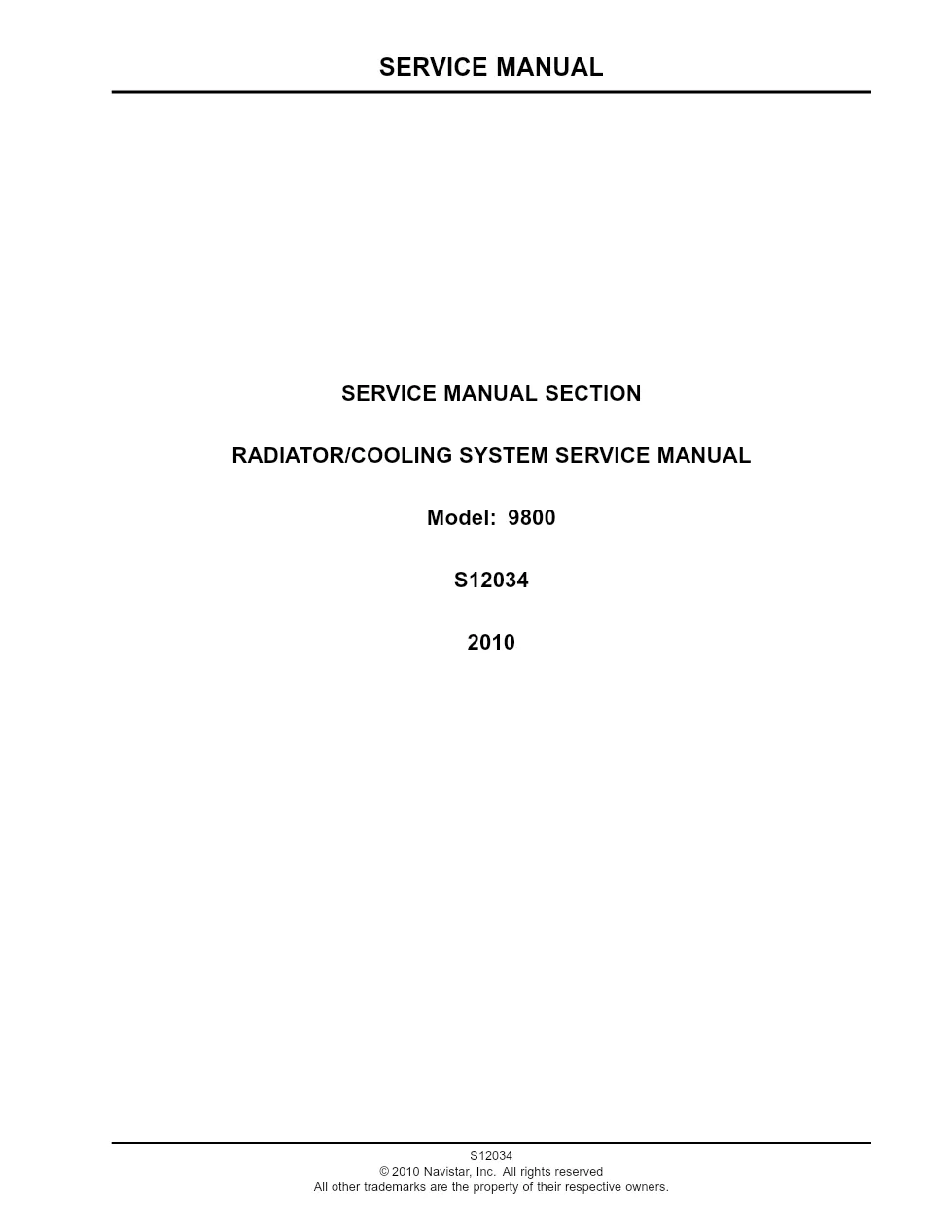

This International 9800 cooling system service manual (publication S12034, 2010) covers the radiator and cooling package on Navistar 9800 Series tractors. It documents the description and the removal and installation of every cooling component, from the surge tank to the fan drive.
Official document details
| Brand | International Trucks (Navistar) |
| Model coverage | International 9800 Series (Navistar) |
| System / Group | Radiator / Cooling System |
| Publication no. | S12034 |
| Year / Revision | 2010 |
| Pages | 46 |
| File size | 1.0 MB |
| Format | |
| Language | English |

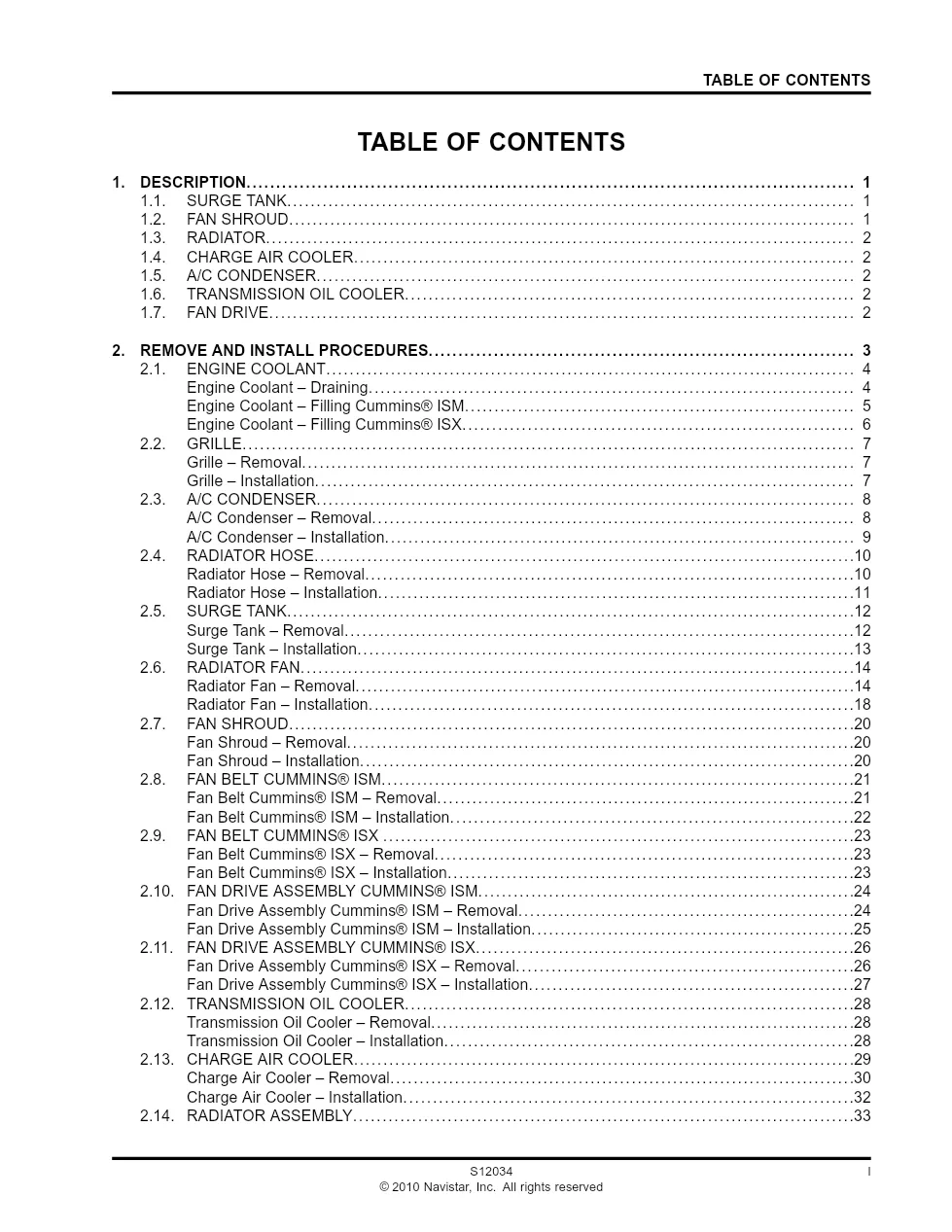

What the International 9800 cooling system manual covers
- Description — surge tank, fan shroud, radiator and charge air cooler
- A/C condenser, transmission oil cooler and fan drive
- Engine coolant draining and filling (Cummins ISM and ISX)
- Grille, radiator hose and surge tank removal
- Radiator fan, fan shroud and fan belt procedures
- Radiator assembly removal and torque chart
Navistar publication S12034 lists torque values such as radiator lower mounting bolts at 88 to 102 N·m, and gives separate fan belt procedures for Cummins ISM and Cummins ISX engines. It also carries the safety warnings for raising the cab and for releasing pressure from the surge tank.
Applicable truck models
This manual applies to Navistar 9800 Series tractors, including those fitted with Cummins ISM and ISX engines. Verify your engine and options before ordering parts. More on the marque is at the International Trucks official website.
Who needs this International 9800 cooling system manual
Heavy-truck technicians and fleet maintenance shops use this factory section to replace radiators, surge tanks and fan drives correctly and to torque fasteners to spec. It is written for trained professionals.
Before condemning a radiator or fan drive, the manual expects a proper pressure test and a check of the low-coolant sensor and site glass. Follow the coolant fill sequence exactly for your engine — Cummins ISM and ISX have different steps — and torque every mounting bolt to the values in the chart so the cooling package sits square and leak-free. Reusing damaged heat-shrink clamps or hoses is the fastest route to a repeat comeback.
The full PDF is available in the DiagTechPro manuals library — a free account is required to download. Each listing shows the exact publication number so you can match the document to your VIN and build date before downloading.
