This SPN 84 FMI 7 reference covers the Detroit DD Series Hall-effect vehicle speed signal wiring mismatch rationality fault on the GHG14 platform. It is part of the DiagTechPro truck manuals library and preserves the original TruckFaultCodes.com Detroit fault-code library (Copyright 2017).
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | Detroit DD Series (EPA 2007-current) engines; the same fault-code procedure is also filed under the Detroit Series 60 (DDEC VI, EPA 2007) group. |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Fault code | SPN 84 / FMI 7 |
| Source | TruckFaultCodes.com Detroit fault-code library (Copyright 2017) |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Hall-effect VSS rationality fault
- Battery and CAN pre-checks
- CPC4 configuration review
- ServiceLink and wiring schematic steps
Diagnostic steps in the SPN 84 FMI 7 document

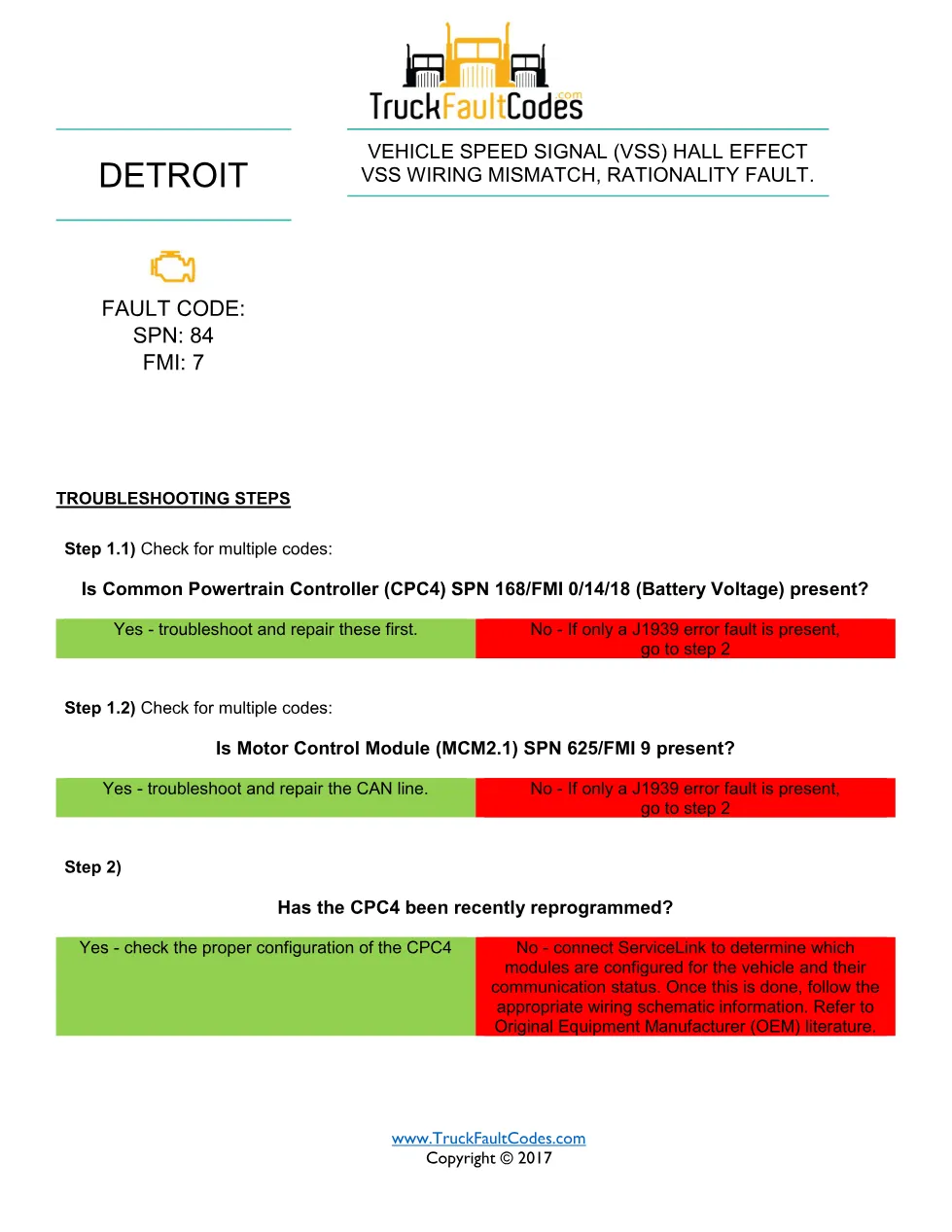

The technician checks for a Common Powertrain Controller (CPC4) battery-voltage code (SPN 168) and a Motor Control Module (MCM2.1) SPN 625 FMI 9 CAN fault, repairing those first. If only a J1939 error remains, the document reviews CPC4 configuration after any reprogramming, then uses ServiceLink to confirm configured modules and follows the appropriate wiring schematic and OEM literature.
The Vehicle Speed Signal (VSS) Hall-effect wiring mismatch, rationality fault condition on Detroit DD Series trucks is read and cleared with DiagnosticLink (formerly DDDL); the SPN and FMI pair identifies the exact circuit and failure mode. Confirm the code is active and capture freeze-frame data before running the pinpoint tests, then clear it and road-test the truck to verify the repair has held.
Applicable truck models and engines
This document applies to Detroit DD Series (EPA 2007-current) engines; the same fault-code procedure is also filed under the Detroit Series 60 (DDEC VI, EPA 2007) group. For factory service data, parts and warranty information, consult Detroit’s official DD engine support.
Who needs the SPN 84 FMI 7 manual
This reference is for DD Series technicians resolving a rationality mismatch between the Hall-effect speed signal and the expected VSS wiring.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download it.
