SPN 84 FMI 8 is the Detroit fault code for a vehicle speed sensor (vss) anti-tamper detection via antilock brake system (abs) vehicle speed comparison on the DD Series wheel-based vehicle speed sensor circuit. This 2-page reference from the DiagTechPro library reproduces the official Detroit troubleshooting steps so a technician can work the fault in the correct order. It is a factory-style diagnostic guide, not a repair shortcut.
Official document details
| Brand | Detroit (Detroit Diesel) |
| Model coverage | DD13, DD15, DD16 – DD Series (EPA 2007–current) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Suspect Parameter Number | 84 |
| Failure Mode Identifier | 8 |
| Description | Vehicle Speed Sensor (VSS) Anti-Tamper Detection Via Antilock Brake System (ABS) Vehicle Speed Comparison |
| Coverage / Revision | EPA07 / GHG14 |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification and description
- Battery, CAN and ABS pre-checks
- Hardwired versus J1939 VSS configuration
- CPC connector #3 resistance checks
- VSS+ and VSS- harness diagnostics
SPN 84 FMI 8 diagnostic overview

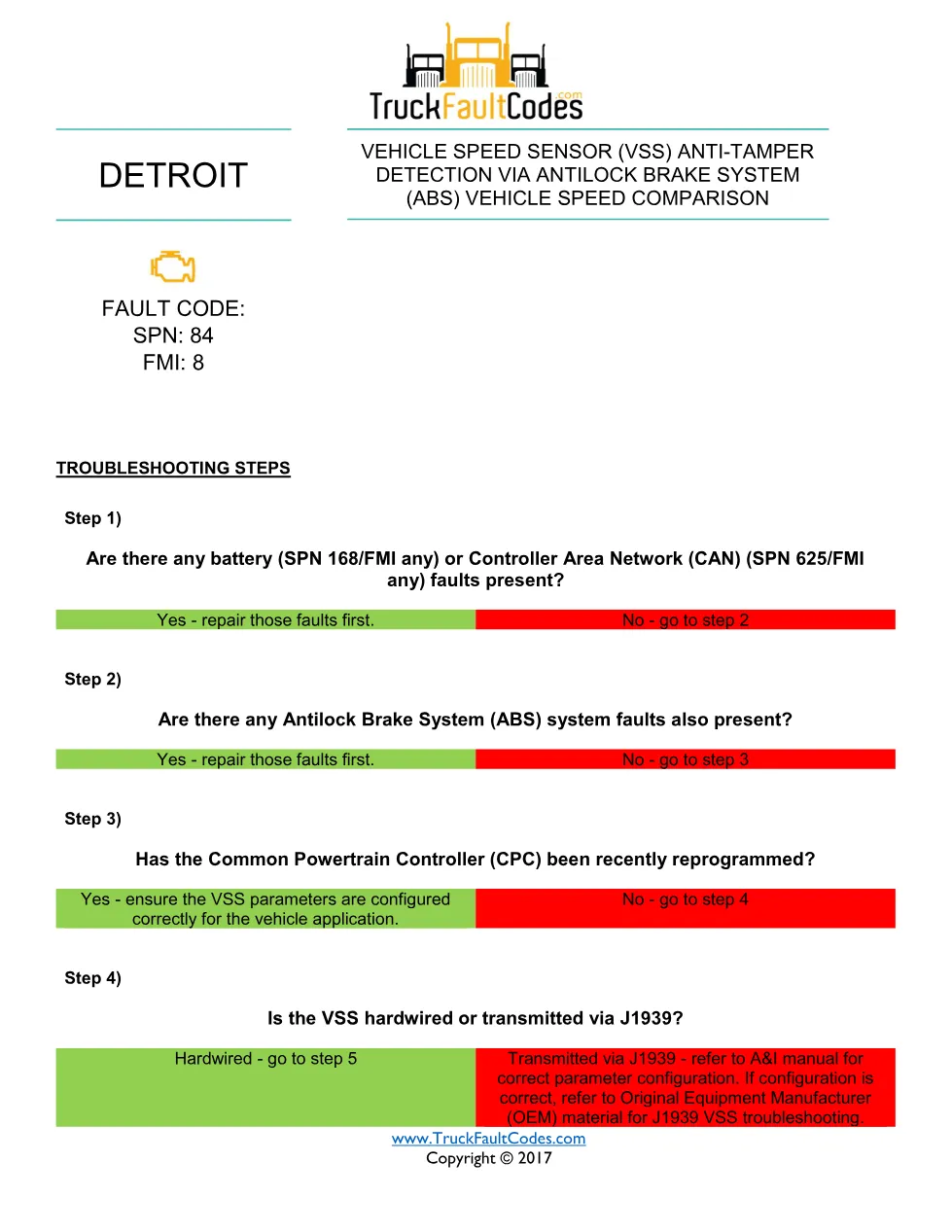

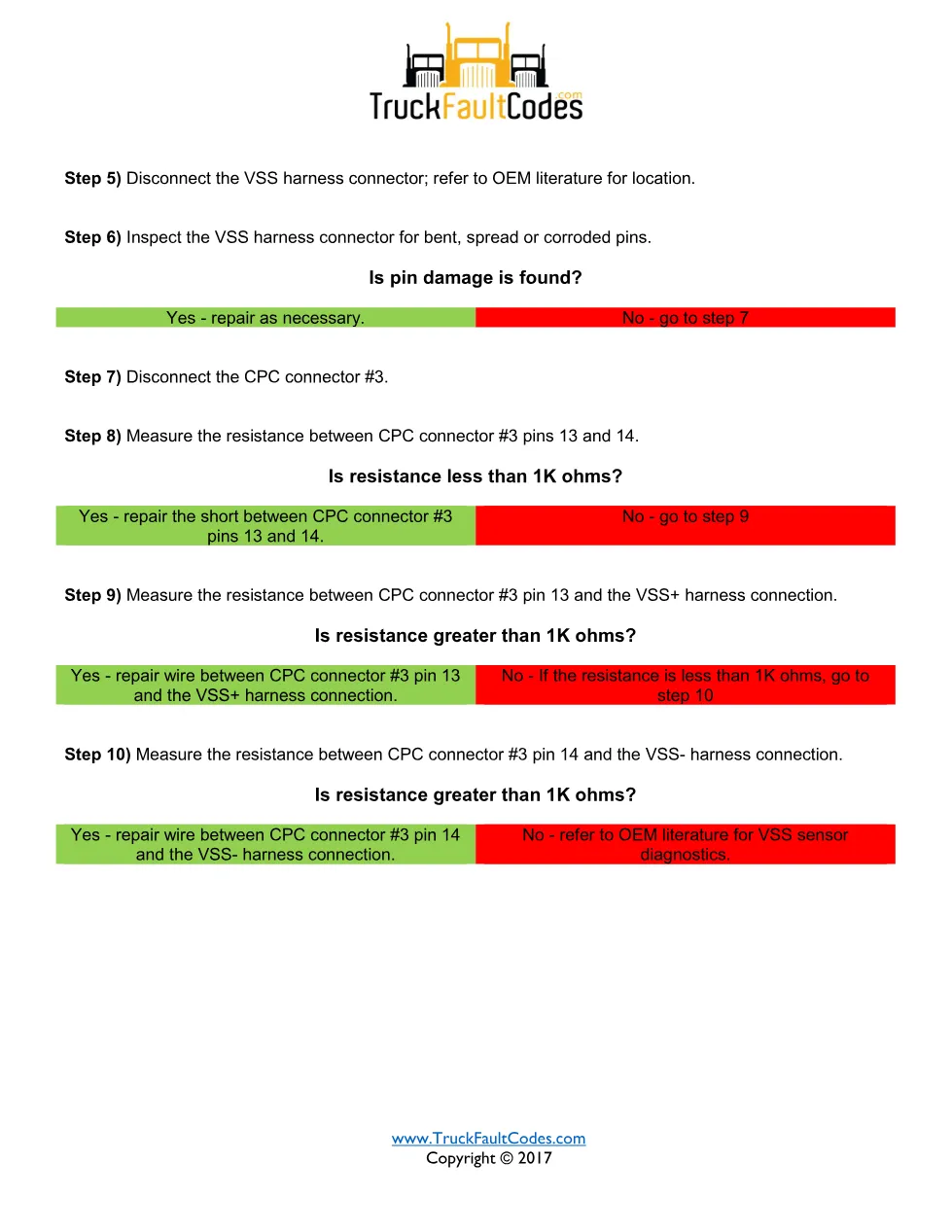

SPN 84 FMI 8 is set by an anti-tamper check that compares the vehicle speed sensor against the ABS vehicle speed. The technician clears battery (SPN 168), CAN (SPN 625) and ABS faults first, confirms the hardwired or J1939 setup, then measures resistance across CPC connector #3 pins 13 and 14 and the VSS+ and VSS- wiring. Each step is written as a yes or no decision, so the result of one measurement points directly to the next check or to the final repair action.
Applicable truck models and engines
It applies to Detroit DD13, DD15 and DD16 engines in the DD Series (EPA 2007 to current) family, and the same code is documented for the Series 60 (DDEC VI) platform. Vehicle speed can be hardwired to the Common Powertrain Controller or transmitted over J1939, so the guide points to the Application and Installation manual and OEM literature for chassis wiring. For factory support tools and warranty information, see Demand Detroit official resources.
Who needs this SPN 84 FMI 8 manual
This document is written for Detroit DD Series technicians investigating a speed-comparison anti-tamper flag that involves both the engine controller and the ABS system.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it, view every page, and print the decision steps for use at the workshop bench.
