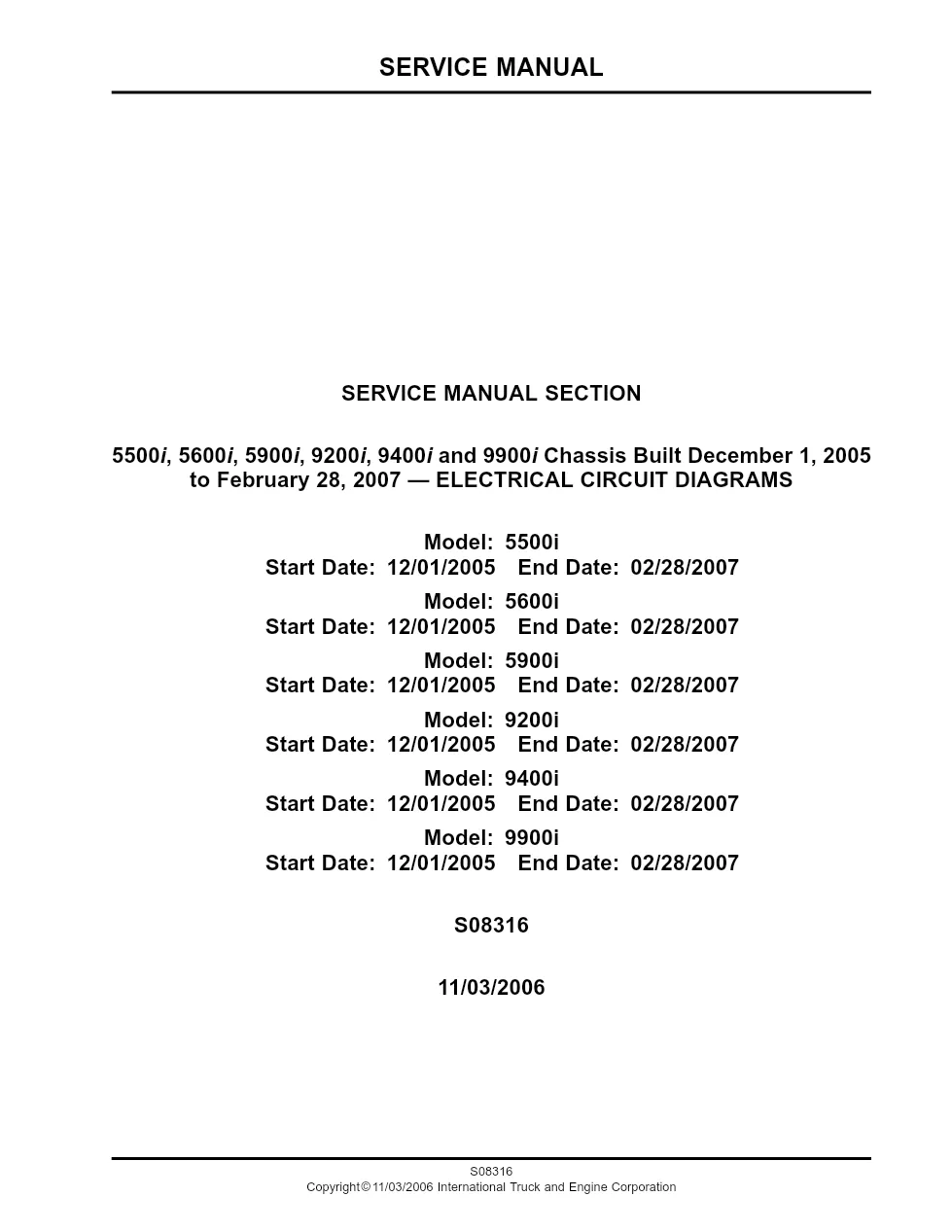

These PayStar wiring diagrams, publication S08316, are the International factory electrical circuit diagrams for 5000 Series (PayStar) chassis built from December 2005 to February 2007. The 250-page set maps every circuit on the 5500i, 5600i, 5900i, 9200i, 9400i and 9900i, from power distribution to trailer connections. Fourteen chapters run in the factory order, so a circuit can be followed from its feed through every adapter, ground stud and connector.
Official document details
| Brand | International Trucks |
| Model coverage | 5500i, 5600i, 5900i, 9200i, 9400i, 9900i (PayStar) |
| System / Group | Wiring Diagrams |
| Publication no. | S08316 |
| Revision | Chassis built Dec 2005 to Feb 2007 |
| Pages | 250 |
| File size | 3.9 MB |
| Format | |
| Language | English |
What the PayStar wiring diagrams show
- Circuit identification charts, schematic symbols and diagram instructions
- Relay pinout, function data and the lamp bulb chart
- 12 volt power distribution: start feed, battery, ground adapter and ground stud composites, and ignition
- Charging and cranking system with Cat and Cummins engines and overcrank protection
- Engine controls, cruise and engine brake for Caterpillar C10–C16 and Cummins ISM/ISX
- ABS/ATC (WABCO), trailer connection and two-speed axle wiring
- Connector composites, relay location and the Pro-Sleeper fuse index
Applicable truck models
Coverage is limited to the PayStar-family 5500i through 9900i chassis in the stated build window, with engine sections for Caterpillar and Cummins power, including the I6 HEUI engine and Cummins AHD and ISM controls. Wire callouts use circuit numbers with gauge and color codes such as 16DK BL and 18WH. Power distribution circuits also include the ether start switch, headlight and fog light switch feeds, and the APU system distribution box on sleeper-equipped chassis. Verify your vehicle build and options through the International Trucks official website before tracing a circuit.
Who needs these PayStar wiring diagrams
Auto-electricians and diagnostic technicians reach for these PayStar wiring diagrams in S08316 to trace grounds, connectors and relay feeds without guesswork, right down to the panel lights adapter composite and the Pro-Sleeper fuse index. Chapter 13 connector composites and the chapter 14 fuse and relay location sheets round out the set, each with cavity, circuit and terminal part numbers. Download the full PDF from the DiagTechPro manuals library with a free account.
