This document is a PACCAR P2604A DTC code diagnostic reference for truck mechanics servicing PACCAR MX EPA-certified engines. Published by PACCAR, it provides set conditions, diagnostic procedures, and repair verification steps for voltage circuit faults detected on the engine control unit.
The guide covers fault identification, root cause analysis, and systematic troubleshooting for the P2604A diagnostic trouble code in heavy-duty truck applications.
Document details and specifications — PACCAR P2604A DTC
| Brand | PACCAR |
| Model coverage | MX EPA Engines |
| System/Group | DTCs / MX Europe Engines (EPA 2004) |
| Publication number | M039697 |
| Year/Revision | 08.20.2016 / 17-Aug-2017 |
| Pages | 2 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Table of contents

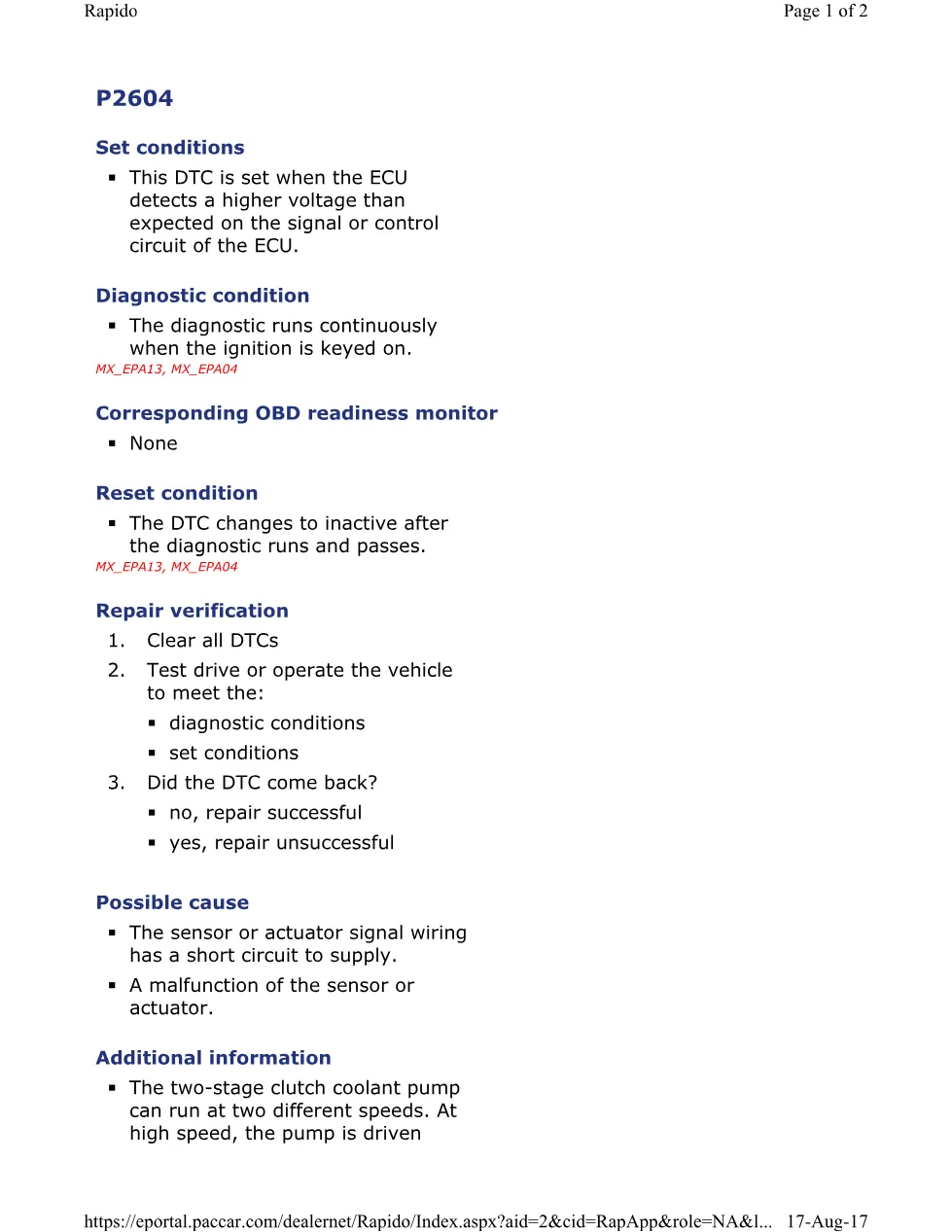

- P2604A set conditions
- Diagnostic condition and continuous monitoring
- Corresponding OBD readiness monitor
- Reset condition
- Repair verification procedure (3 steps)
- Possible cause analysis

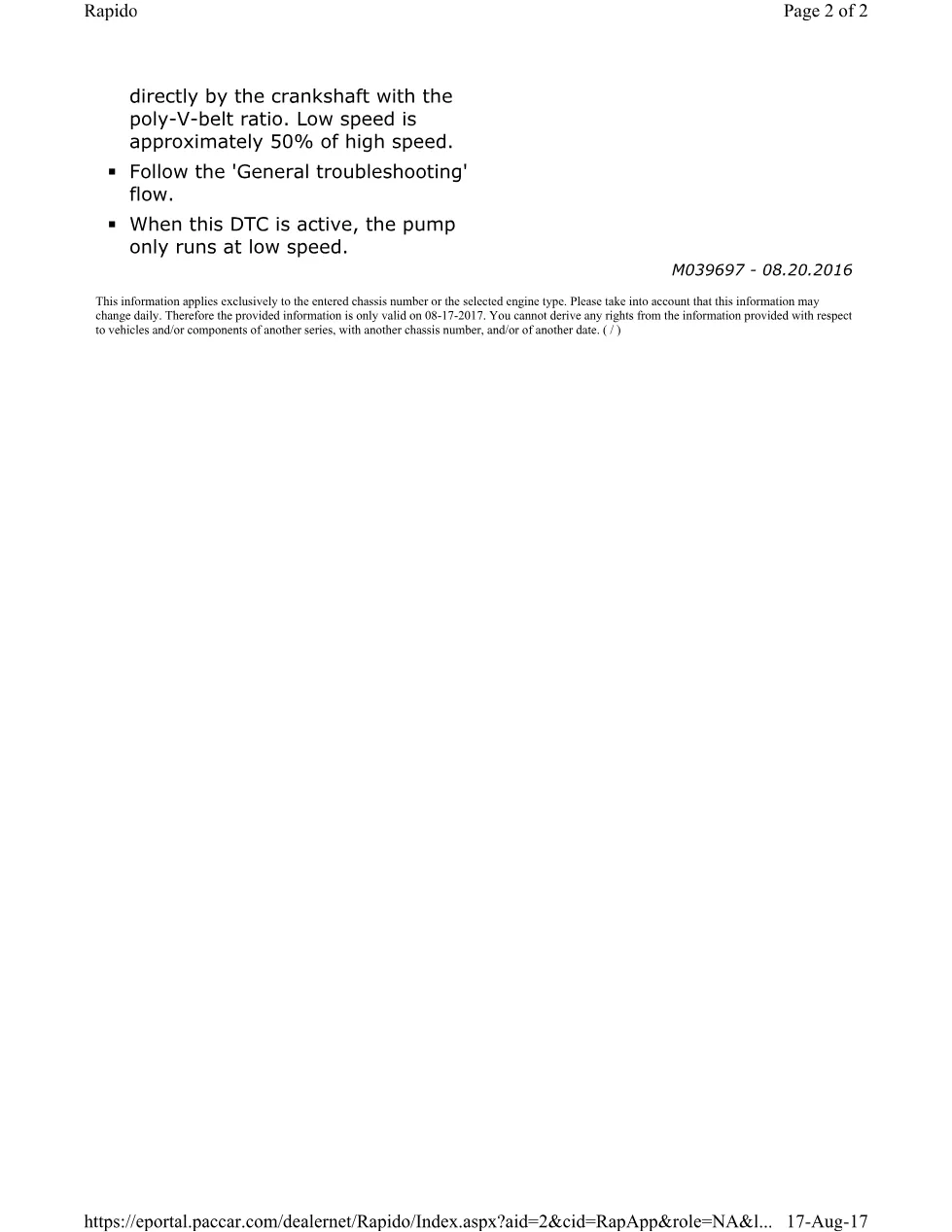

- Additional information — two-stage clutch coolant pump operation
- General troubleshooting flow reference
Applies to these models
This PACCAR P2604A DTC code document applies exclusively to PACCAR MX EPA 2004 and MX EPA 2013 truck engines with two-stage clutch coolant pump systems. The diagnostic information is specific to the entered chassis number and engine type and was valid as of 17 August 2017. For current applicability to your specific vehicle, consult the PACCAR official technical portal.
Who needs this P2604A DTC code manual
Diesel truck mechanics and workshop owners diagnosing voltage circuit faults on PACCAR MX engines require this P2604A DTC code reference. It is essential for technicians performing ECU signal troubleshooting, sensor/actuator diagnostics, and repair verification on EPA-compliant PACCAR heavy-duty trucks.
The complete P2604A DTC code PDF is available in the DiagTechPro manuals library. A free account is required to download the full 2-page document.
