This PACCAR P228C rail pressure diagnostic manual provides mechanics and workshop owners with comprehensive troubleshooting procedures for MX EPA 2004 engines equipped with common rail fuel systems. Published by PACCAR and extracted from the Rapido technical portal, this guide covers fault detection, diagnostic conditions, repair verification, and root-cause analysis for abnormal rail pressure faults.

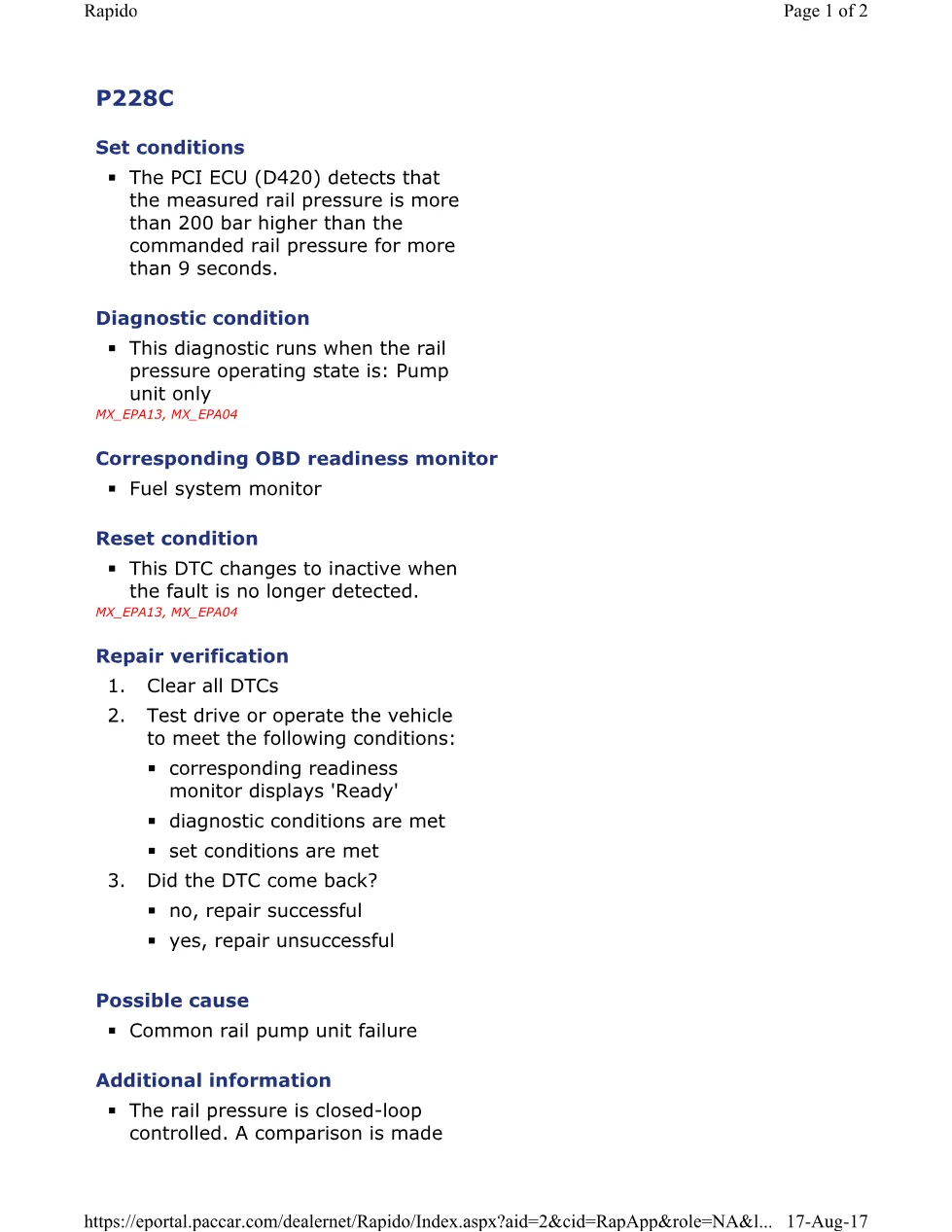

The PACCAR P228C rail pressure is triggered when the PCI ECU (D420) detects that measured rail pressure exceeds the commanded rail pressure by more than 200 bar for over 9 seconds, indicating potential common rail pump unit failure or sensor malfunction.
Document details and specifications — PACCAR P228C rail
| Brand | PACCAR |
| Model coverage | MX EPA 2004 engines |
| System/Group | DTCs / MX Europe Engines (EPA 2004) |
| Publication number | P228CA; M033870 |
| Year/Revision | 17 August 2017 |
| Pages | 2 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Table of contents
- Set conditions for PACCAR P228C rail pressure activation
- Diagnostic condition and operating states
- Corresponding OBD readiness monitor (Fuel system monitor)
- Reset conditions for the DTC
- Repair verification procedures with test drive requirements
- Possible causes (common rail pump unit failure)
- Additional information on rail pressure closed-loop control and sensor feedback

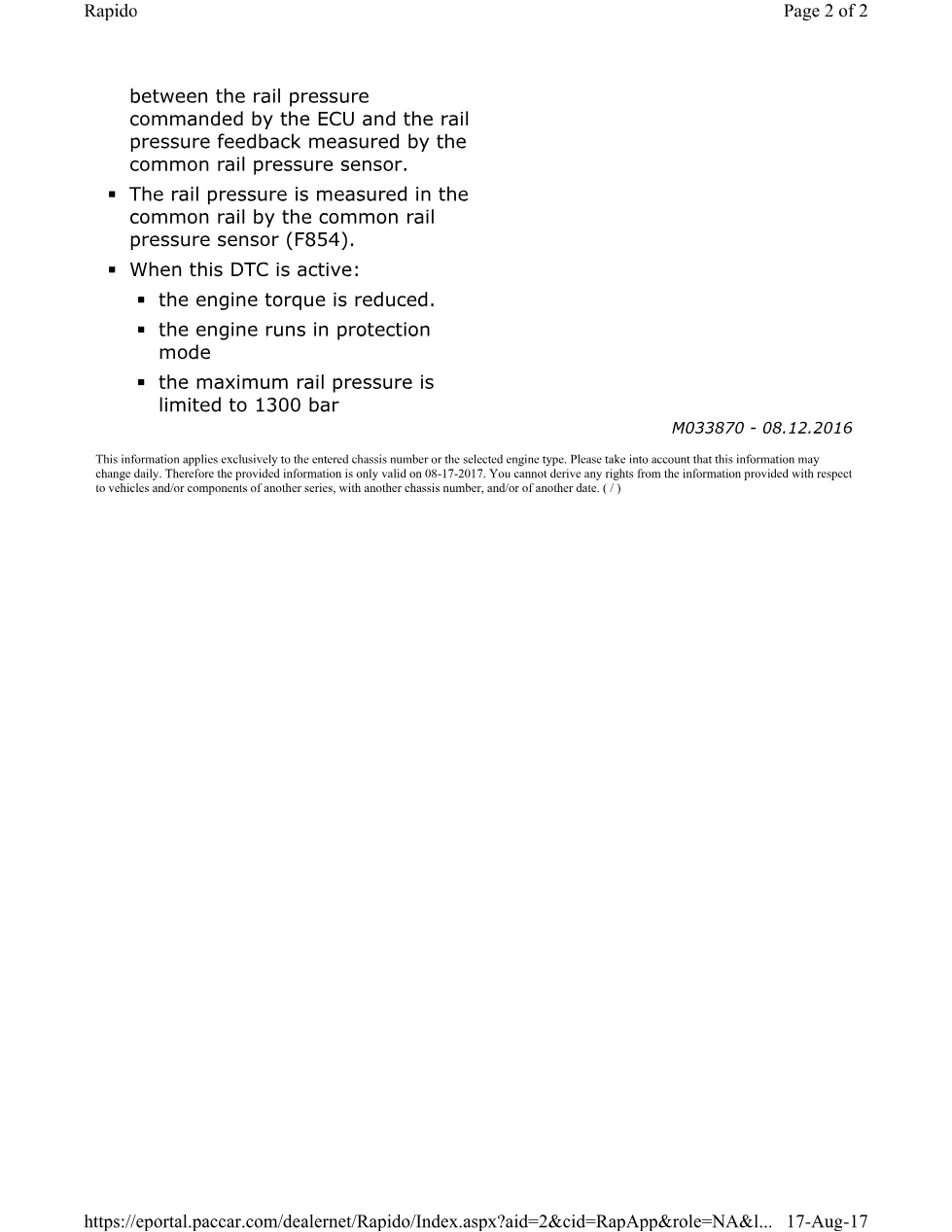

- Engine protection mode details and rail pressure limiting
