This PACCAR P2603 DTC troubleshooting document provides mechanics and workshop technicians with a complete diagnostic procedure for addressing possible engine overspeed conditions recorded by the PCI ECU (D420) on MX Europe engines certified under EPA 2004 emissions standards. Published by PACCAR, this guide delivers step-by-step fault isolation methodology to identify and resolve the root cause of the P2603 DTC.
The PACCAR P2603 DTC troubleshooting procedure assumes that supply power and ground to the PCI are functioning properly before beginning diagnostics. Technicians must use DAVIE diagnostic software to clear DTCs and run quick checks throughout the process.
Document details and specifications — PACCAR P2603 DTC
| Brand | PACCAR |
| Model coverage | MX Europe Engines |
| System/Group | DTCs / MX Europe Engines (EPA 2004) |
| Publication number | M051529 |
| Year/Revision | 17 August 2017 |
| Pages | 6 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Table of contents

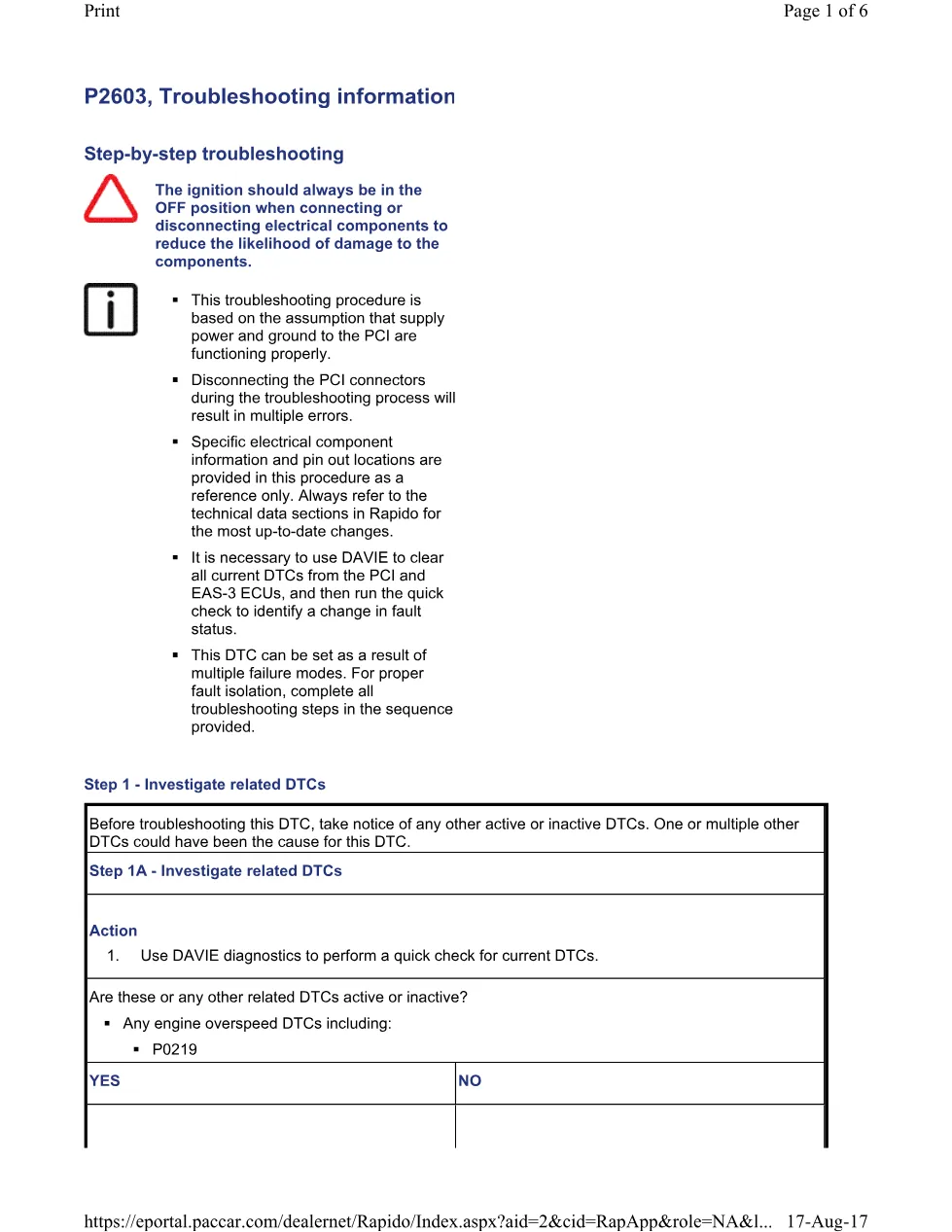

- Step 1 – Investigate related DTCs
- Step 1A – Investigate related DTCs (engine overspeed conditions)

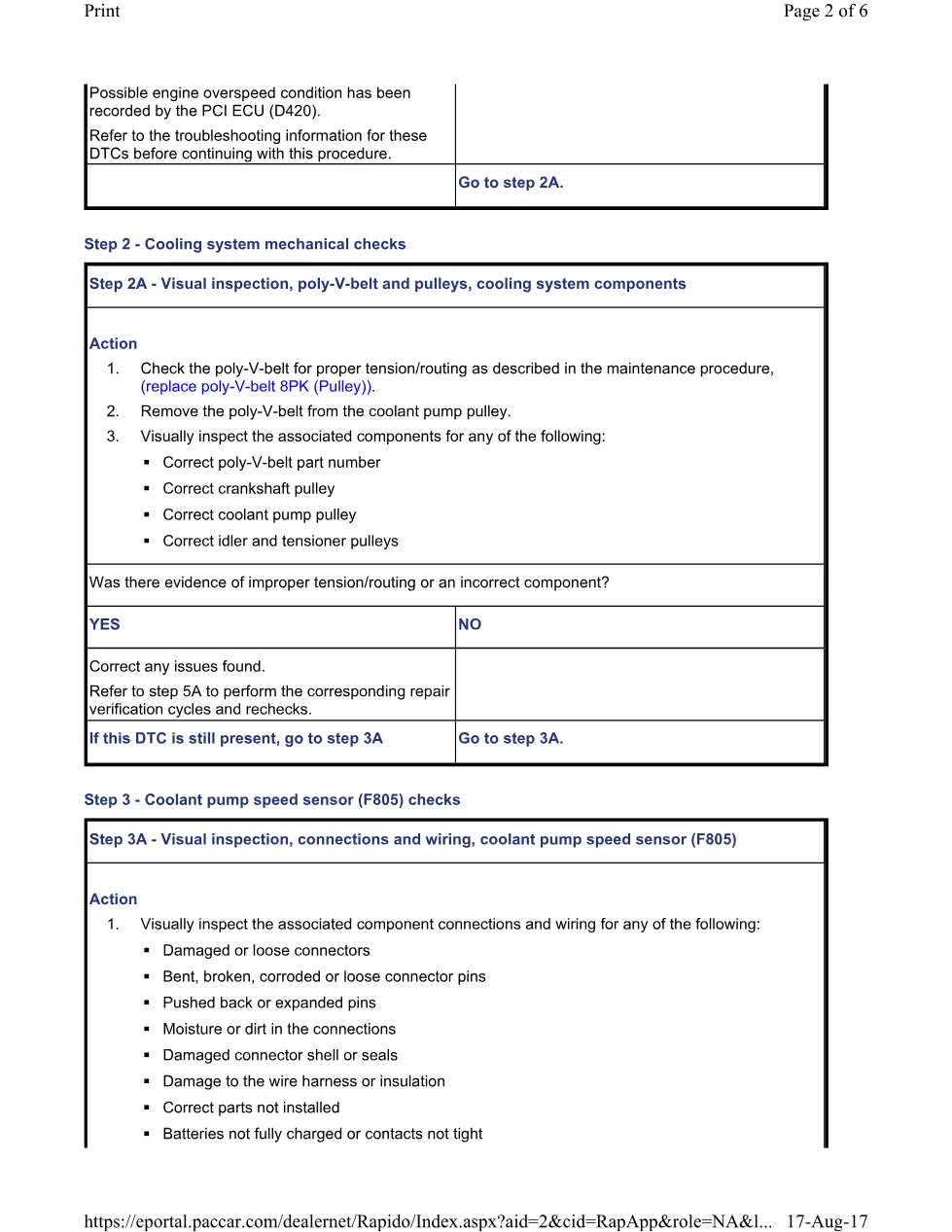

- Step 2 – Cooling system mechanical checks
- Step 2A – Visual inspection, poly-V-belt and pulleys, cooling system components

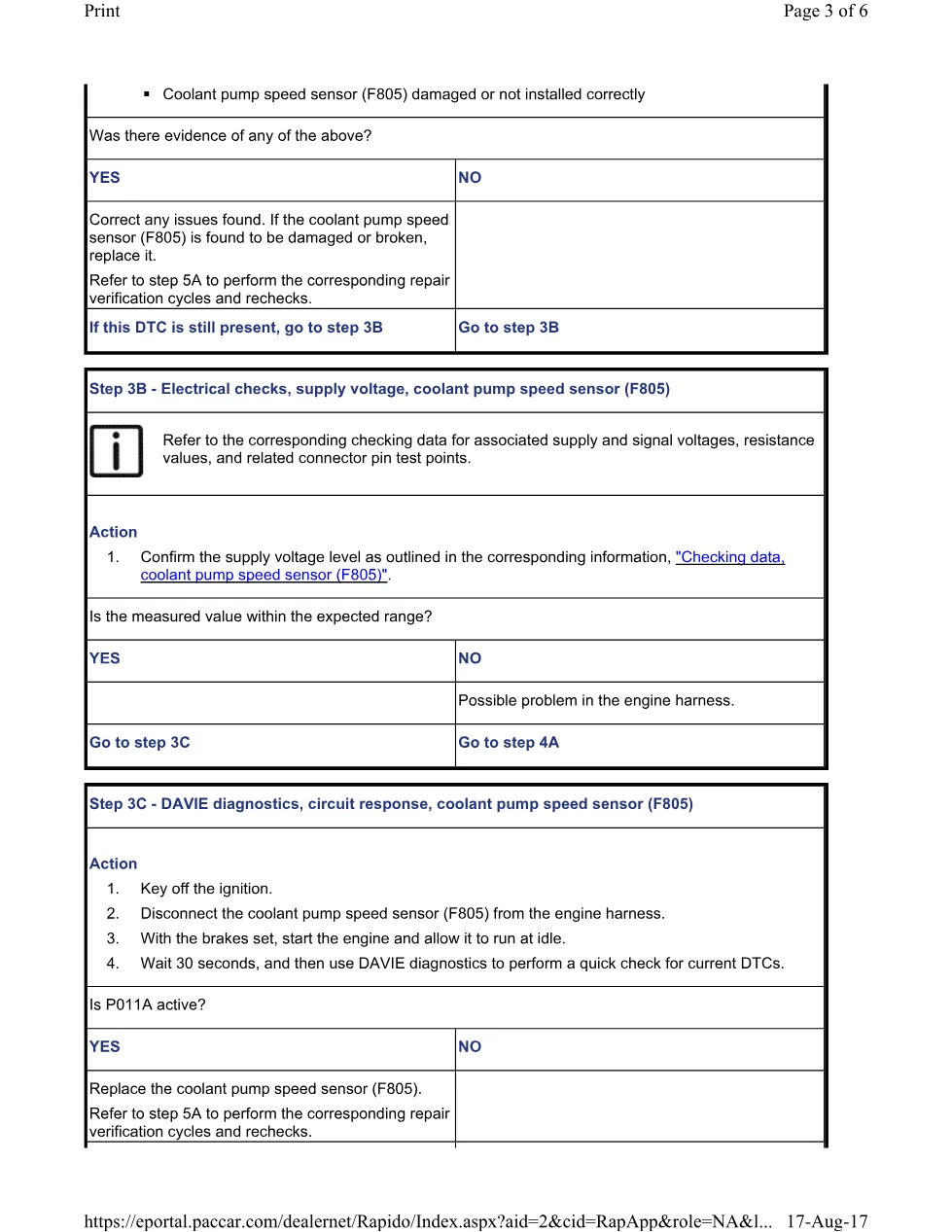

- Step 3 – Coolant pump speed sensor (F805) checks
- Step 3A – Visual inspection, connections and wiring, coolant pump speed sensor
- Step 3B – Electrical checks, supply voltage, coolant pump speed sensor
- Step 3C – DAVIE diagnostics, circuit response, coolant pump speed sensor
- Step 4 – PCI ECU (D420) and engine harness checks
- Step 4A – Visual inspection, connections and wiring, PCI ECU and engine harness connectors
- Step 4B – Electrical checks, isolation of open circuit, engine harness
- Step 4C – Electrical checks, isolation of short circuit, engine harness
- Step 5 – Repair verification
- Step 5A – Repair verification cycles
- Step 5B – DAVIE diagnostics, quick check, OBD readiness monitors
Applies to these models
This PACCAR P2603 DTC troubleshooting document applies to PACCAR MX Europe engines meeting EPA 2004 emissions certification standards. The diagnostic procedure covers coolant pump speed sensor F805, PCI ECU D420, and associated engine harness circuits. For engine-specific applications and current updates, visit PACCAR official.
Who needs this PACCAR P2603 DTC troubleshooting manual
Diesel mechanics, engine technicians, and workshop owners diagnosing overspeed DTCs on PACCAR MX Europe engines must follow this P2603 DTC troubleshooting procedure. The guide is essential for warranty repairs and emission-related diagnostics requiring systematic fault isolation and DAVIE software verification.
