This low oil pressure DTCs reference documents fault code SPN 100/FMI 17 (Oil Pressure Low) for Detroit DD-series engines on the GHG14 platform. It reproduces the original TruckFaultCodes.com fault tree, from the first check through the final repair, so the code can be confirmed and worked in the exact order the factory intended. Each step lists the measured value or check and the pass or fail branch that follows, matching the layout used in the source document.
low oil pressure DTCs troubleshooting overview
This GHG14 tree lights the Check Engine Lamp only. It clears companion codes SPN 100/FMI 3 and FMI 4, checks whether oil pressure is fluctuating, then inspects oil level, the oil gauge, the pump suction pipe, drive gears and pressure-relief valve, and finally checks for fuel in the oil. Unresolved cases route to the Detroit Customer Support Center. Follow the checks in sequence and verify the repair before clearing the code and releasing the vehicle.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD-series engines on the GHG14 platform |
| System / group | DTCs — engine oil pressure (CPC4/MCM2.1) |
| Fault code | SPN 100/FMI 17 |
| Source publication | TruckFaultCodes.com (© 2017) |
| Pages | 3 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents

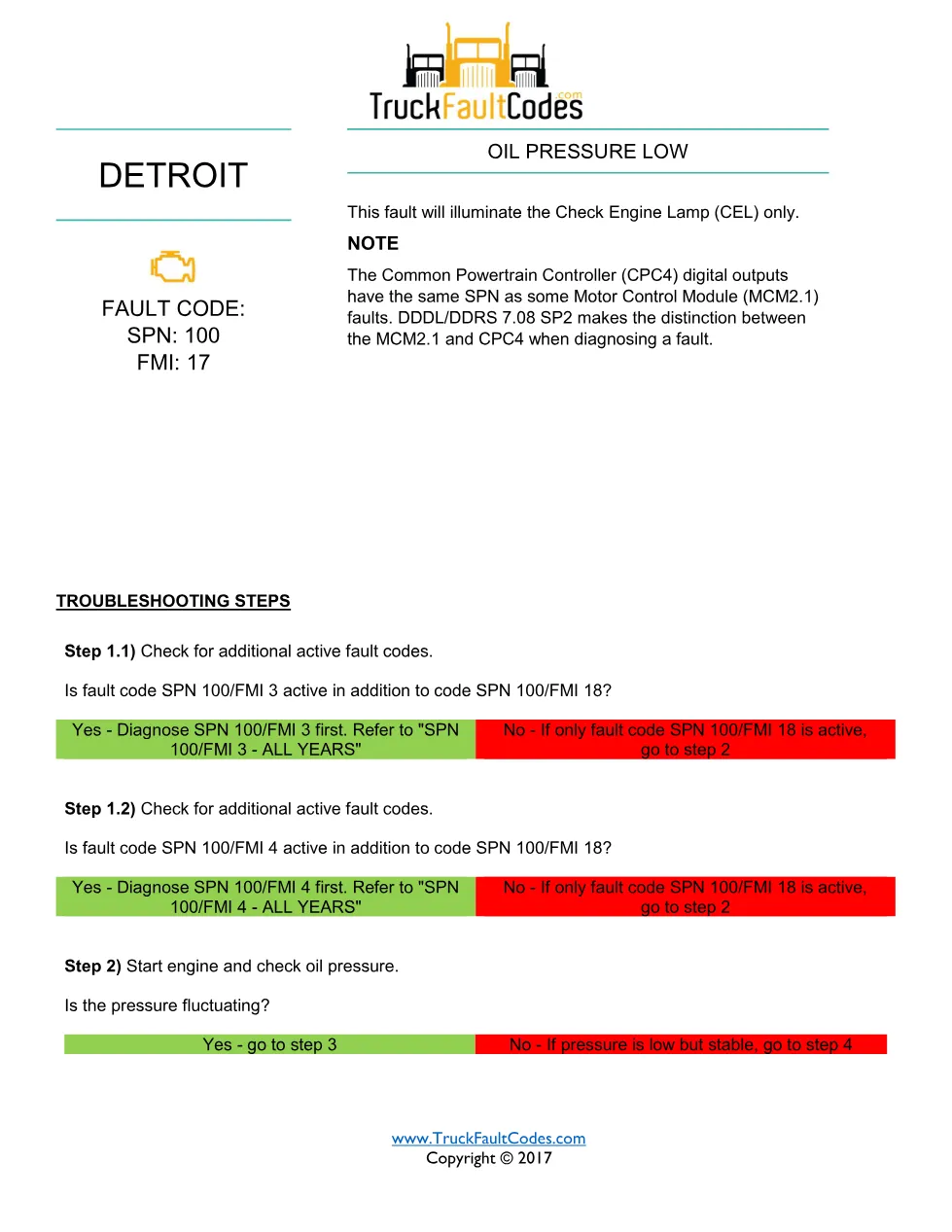

- Fault code identification — SPN 100/FMI 17
- Check Engine Lamp (CEL) illumination only
- Companion-code checks (SPN 100/FMI 3 and FMI 4)
- Oil-pressure fluctuation check

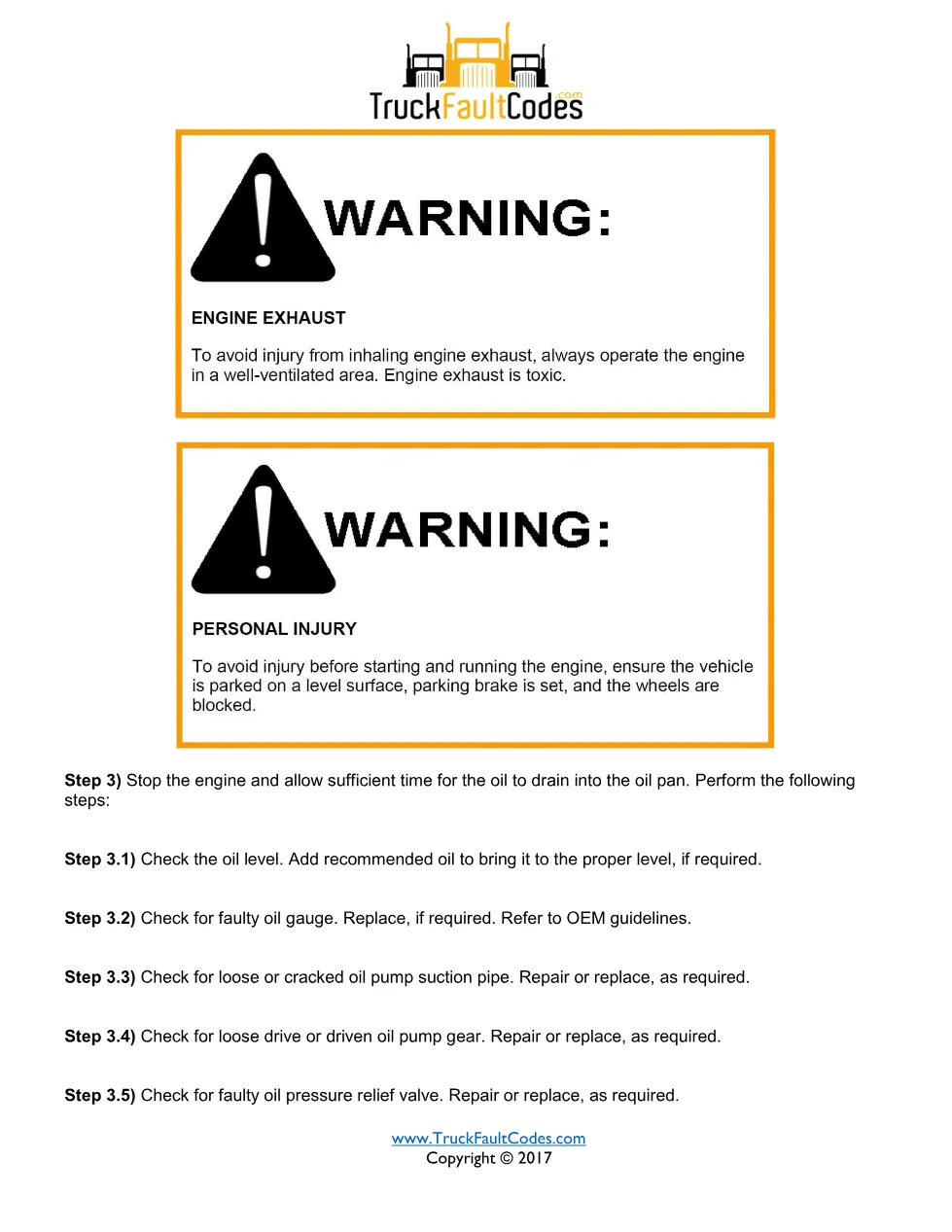

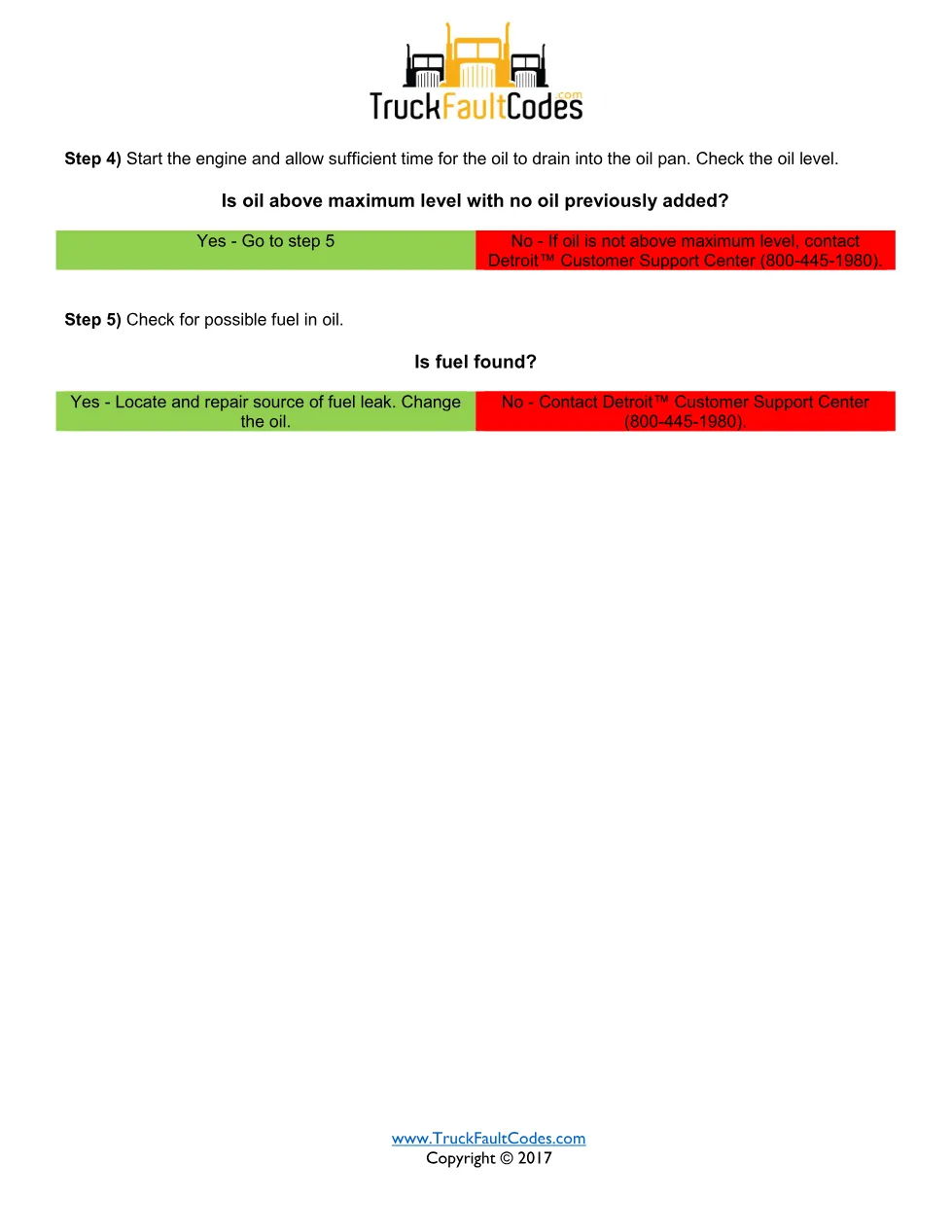

- Oil level, gauge, pump, relief valve and fuel-in-oil checks
Applicable truck models
It applies to Detroit DD-series engines on the GHG14 platform with CPC4 and MCM2.1 controllers. Always cross-check the reading against any companion codes before condemning a component. For the official product and service literature, visit the Detroit Diesel website.
Who needs this low oil pressure DTCs manual
Mechanics who need the ordered mechanical checks behind a check-engine-only oil-pressure code. It is written for shop use as a quick, printable reference to keep beside a diesel diagnostic tool during the job.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
