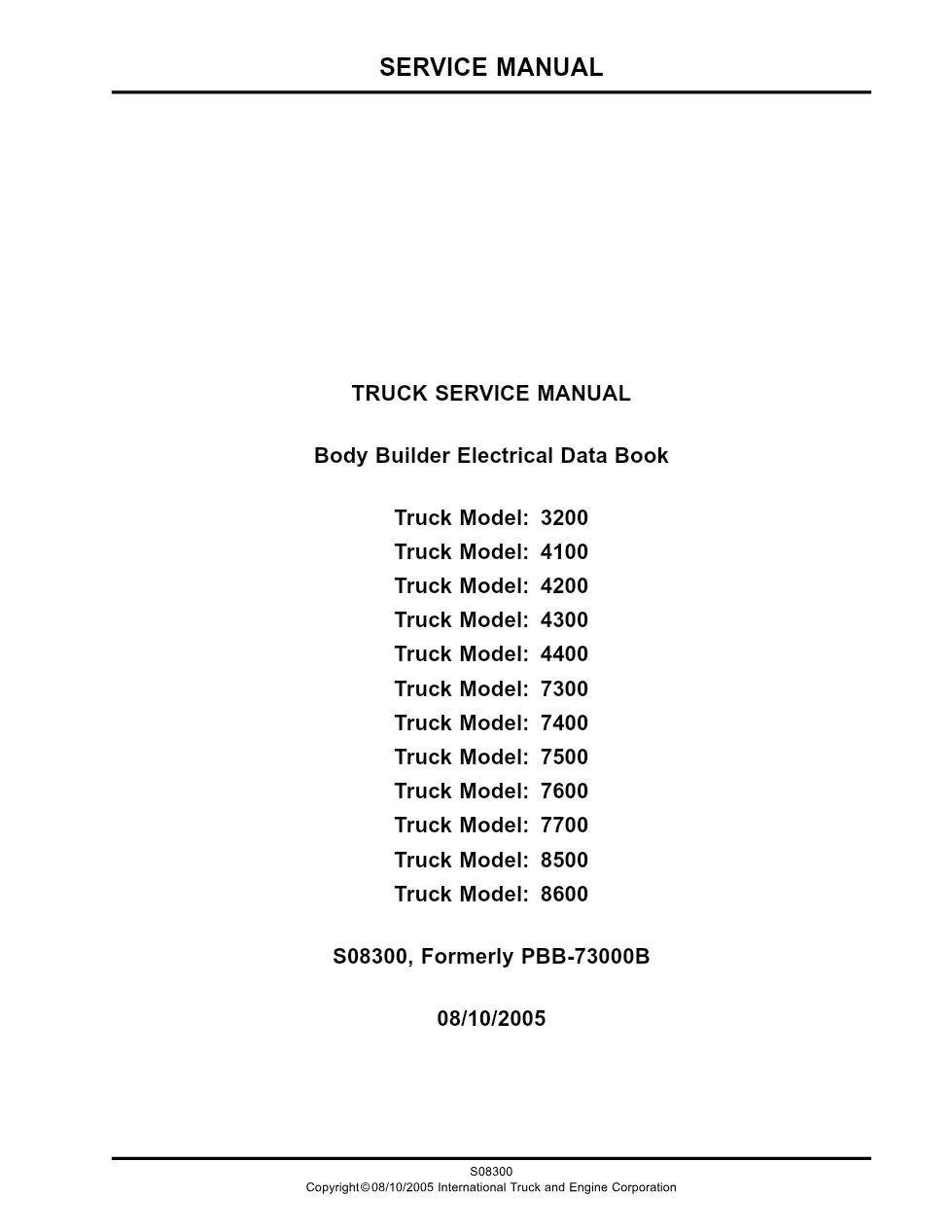

This International body builder databook is the 2005 Body Builder Electrical Data Book, publication S08300 (formerly PBB-73000B), for adding, wiring and controlling aftermarket bodies and equipment on International trucks. It explains the Diamond Logic electrical system, feature codes and programmable parameters used by upfitters.
Official document details
| Brand | International Trucks |
|---|---|
| Model coverage | 3200, 4100, 4200, 4300, 4400, 7300-7700, 8500, 8600 |
| System / Group | Body builder electrical / Diamond Logic |
| Publication no. | S08300 (formerly PBB-73000B) |
| Year / Revision | 08/10/2005 |
| Pages | 436 |
| File size | 7.9 MB |
| Format | |
| Language | English |

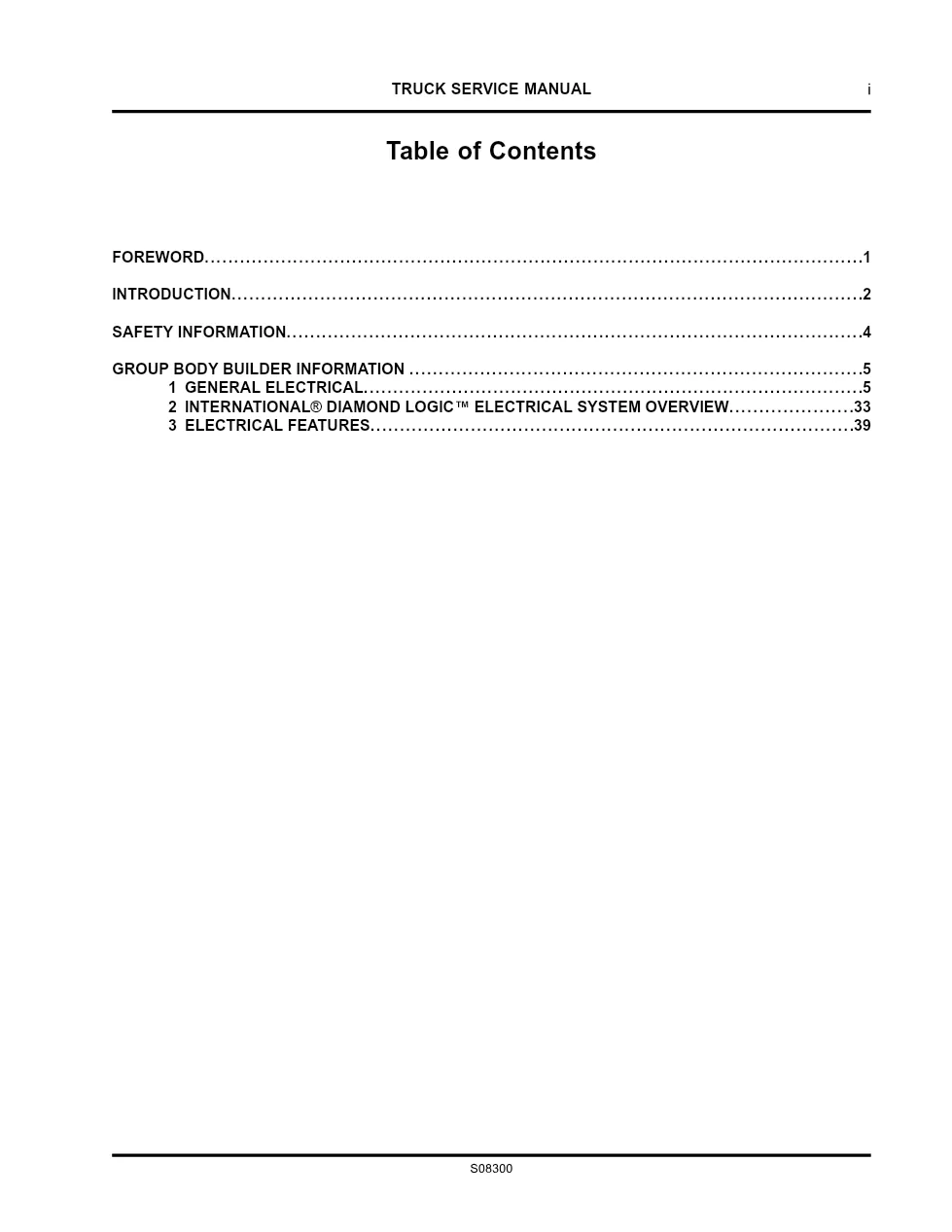

International body builder databook table of contents
- Foreword and disclaimer
- Introduction and safety information
- Group body builder information
- General electrical guidelines
- International Diamond Logic electrical system overview
- Electrical features and feature codes
- Master battery disconnect switch
- Remote power units and solenoid packs
- PTO control, dash mounted
- Allison transmission interface connectors
- Programmable parameters and testing
Applicable truck models covered
Coverage spans the International 3200, 4100, 4200, 4300 and 4400 along with the 7300, 7400, 7500, 7600 and 7700, 8500 and 8600. It complements publication CT-471 Body Builder Data, and reminds upfitters that International does not take responsibility for customer or body builder wiring. See the manufacturer at International Trucks official website.
Who needs the International body builder databook
Truck equipment upfitters and dealer technicians rely on this body builder databook because it defines the sales feature codes, connector part numbers and programmable parameters required to add power take-off, disconnect switches and remote power units correctly.
The book is written for the upfitter who turns a bare chassis into a finished truck, so it stresses that all ground connections be made to clean bare metal and that power leads be fused as close to the source as possible. It walks through master disconnect switch installation, explaining why the engine and transmission modules must stay connected to the batteries even when the switch is open. Later chapters supply connector and terminal part numbers for the Allison transmission interface and the remote power module, along with the software feature codes and programmable parameters that tailor PTO output and wiper behaviour through Diamond Logic Builder software.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
