This DT466 engine stand mounting manual is Section 1 of the International DT466 and DT530 (2000-2003) service manual, covering safe mounting of the engine to a repair stand and initial teardown. It details adapter-plate fitting and removal of the filters, oil cooler, road draft tube and turbocharger.
Official document details
| Brand | International Engines |
|---|---|
| Model coverage | International DT466E and DT530E diesel engines |
| System / group | DT466 & DT530 (2000-2003) / Service Manuals |
| Parent publication | DT466/530 (2000-2003) Service Manual (EGES2101) |
| Year / revision | 2000-2003 |
| Pages | 18 |
| File size | 1.0 MB |
| Format | |
| Language | English |
Document table of contents
- Mounting the engine on a stand
- Adapter plate installation
- Removing the oil filter
- Removing the coolant filter
- Removing the oil cooler assembly
- Oil pressure regulating valve removal
- Removing the road draft tube
- Removing the turbocharger
- Removing turbocharger oil lines
DT466 engine stand mounting steps

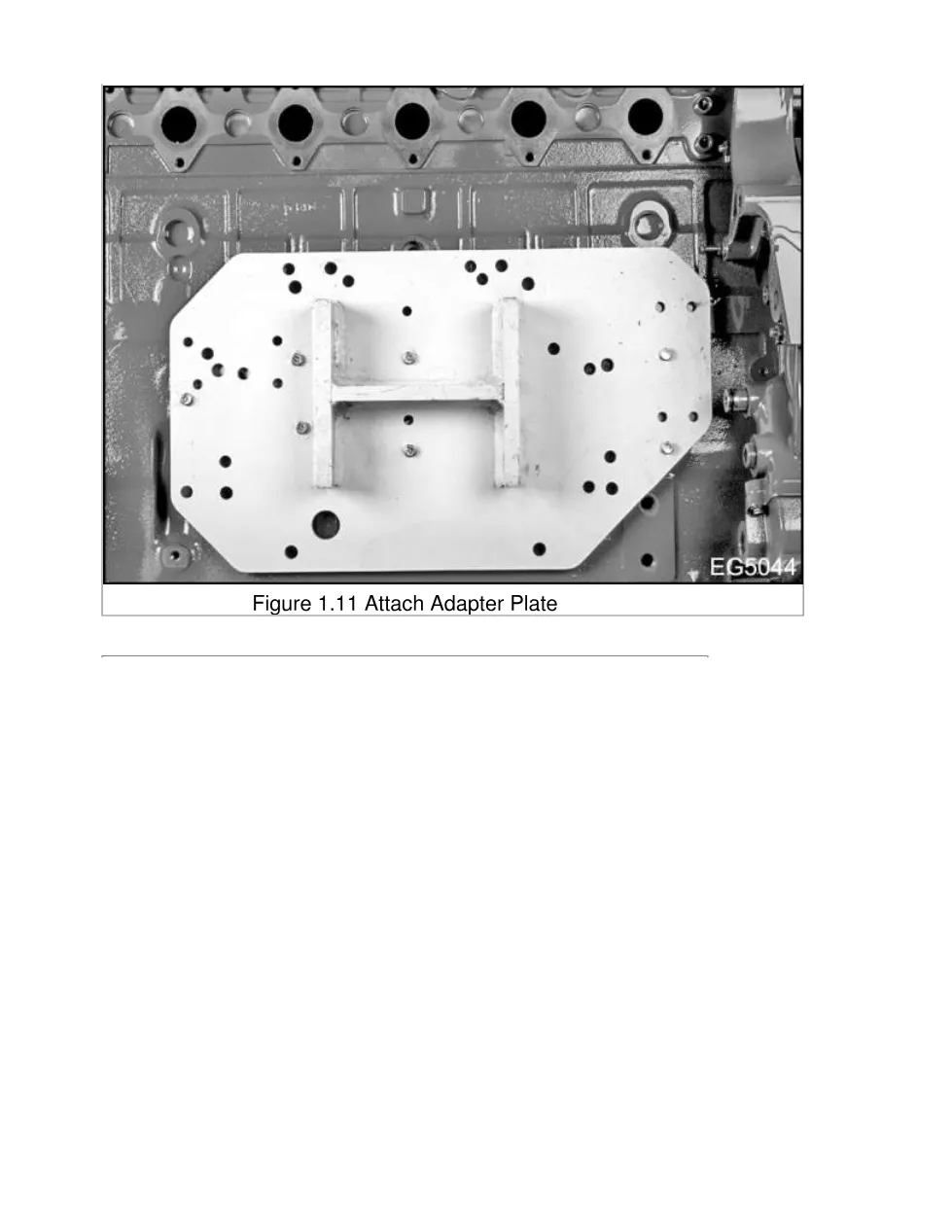

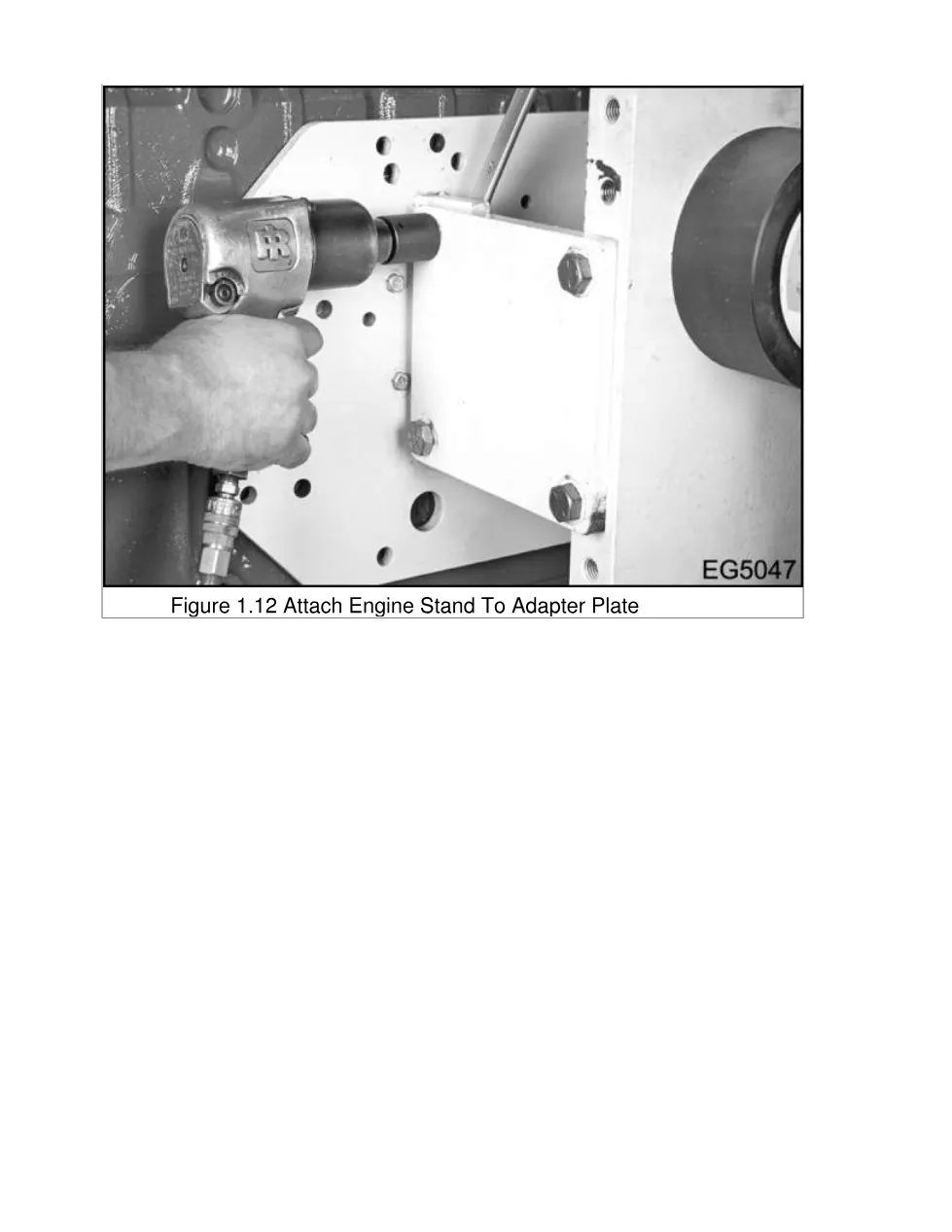

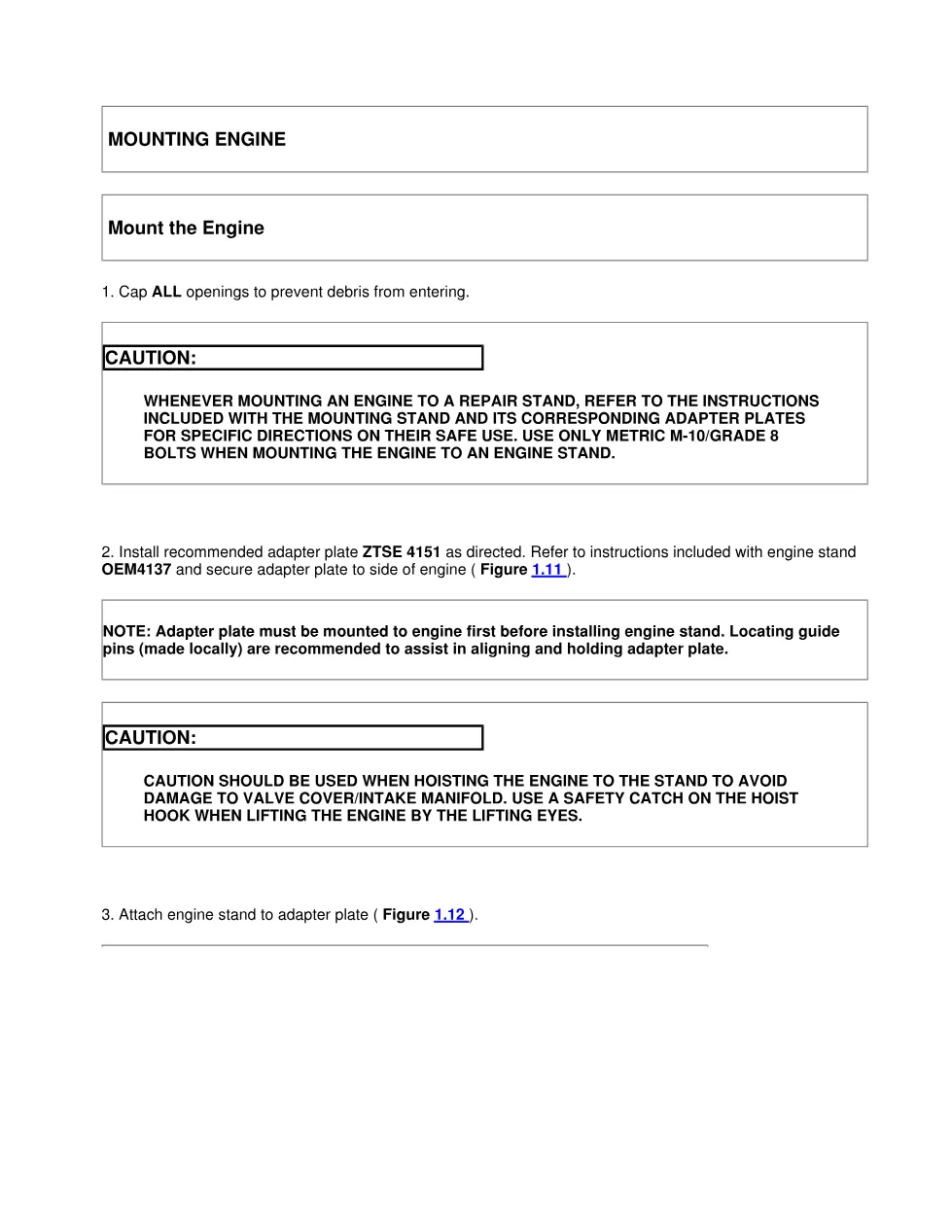

This section requires metric M-10/grade 8 bolts, adapter plate ZTSE4151 and engine stand OEM4137, with the adapter plate fitted to the engine before the stand. Follow-on removal covers the oil filter, coolant filter, oil cooler assembly, oil pressure regulating valve, road draft tube and turbocharger. Figures and numbered callouts illustrate each operation step by step, and every fastener is tightened to the special torque value published in the companion “Specifications, Special Torque Values, and Service Tools” section (publication EGES2101).
Applicable truck models
It applies to International DT466E and 530E diesel engines and stresses using a hoist safety catch and capping all openings to keep debris out. Do not mix the oil pressure regulating valve with the high oil pressure relief valve. For official model information, see the International Trucks (Navistar) website.
