The DT466 DT530 turbocharger chapter is Chapter 14 of the International DT466 and DT530 (2000-2003) service manual, covering turbocharger service for these engines. This 39-page section details disassembly of wastegate and non-wastegate turbochargers plus the theory of turbocharger operation.
Official document details
| Brand | International / Navistar |
| Model coverage | DT466 and DT530 (2000-2003) |
| System/Group | Service Manuals — Chapter 14, Turbochargers |
| Publication no. | Chapter of DT466/530 Service Manual (EGES2101 series) |
| Year/Revision | 2000-2003 applications |
| Pages | 39 |
| File size | 2.0 MB |
| Format | |
| Language | English |
Procedures in this DT466 DT530 turbocharger chapter

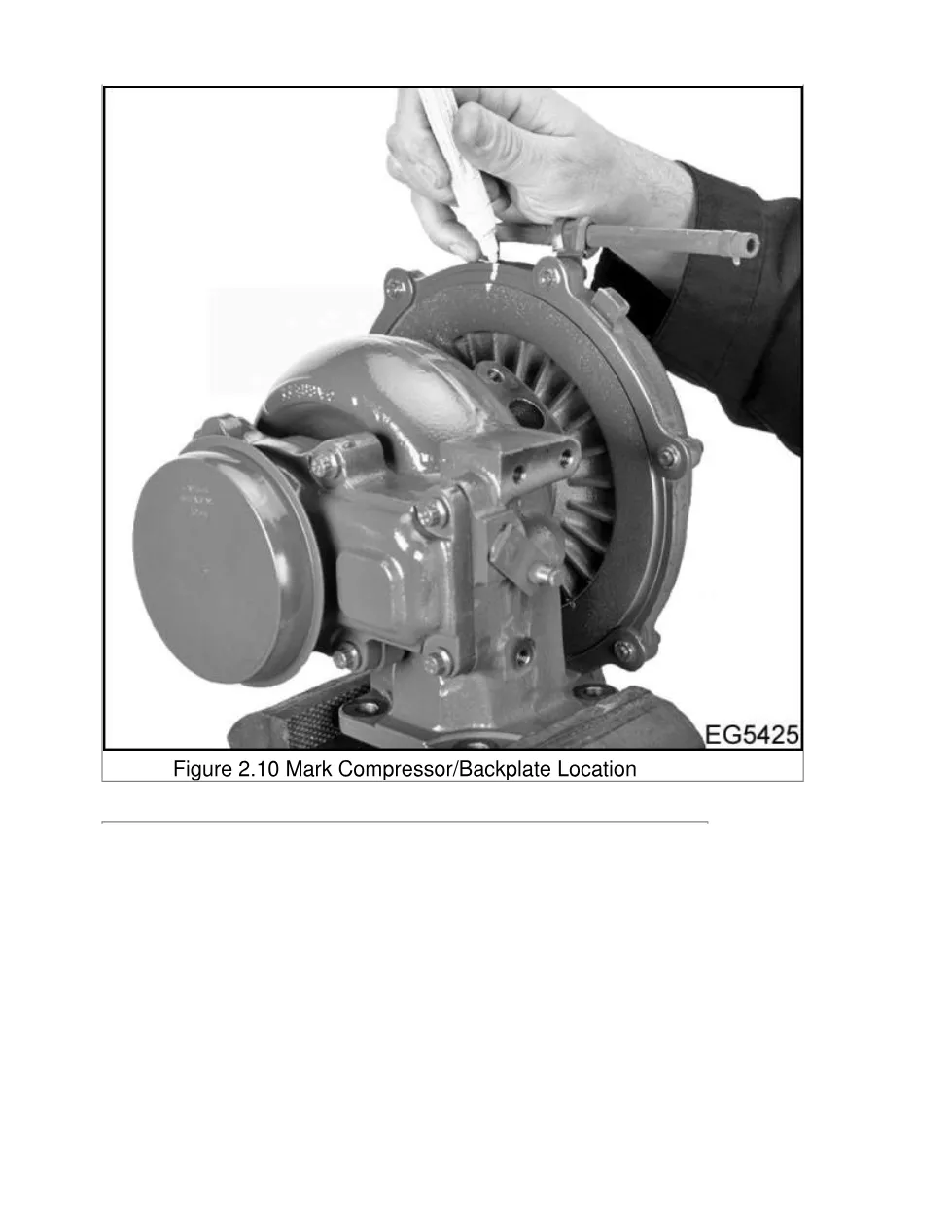

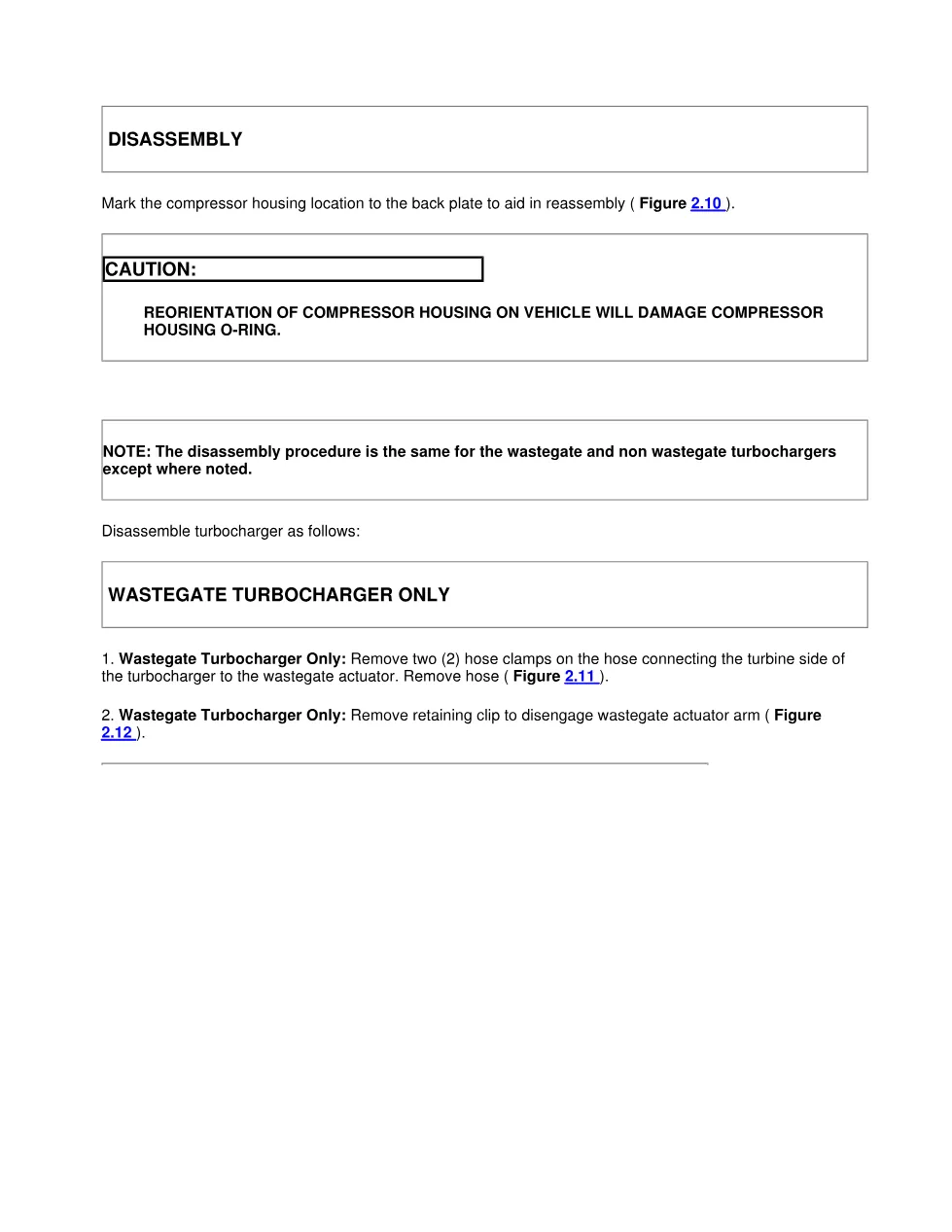

- Marking compressor housing and backplate before disassembly

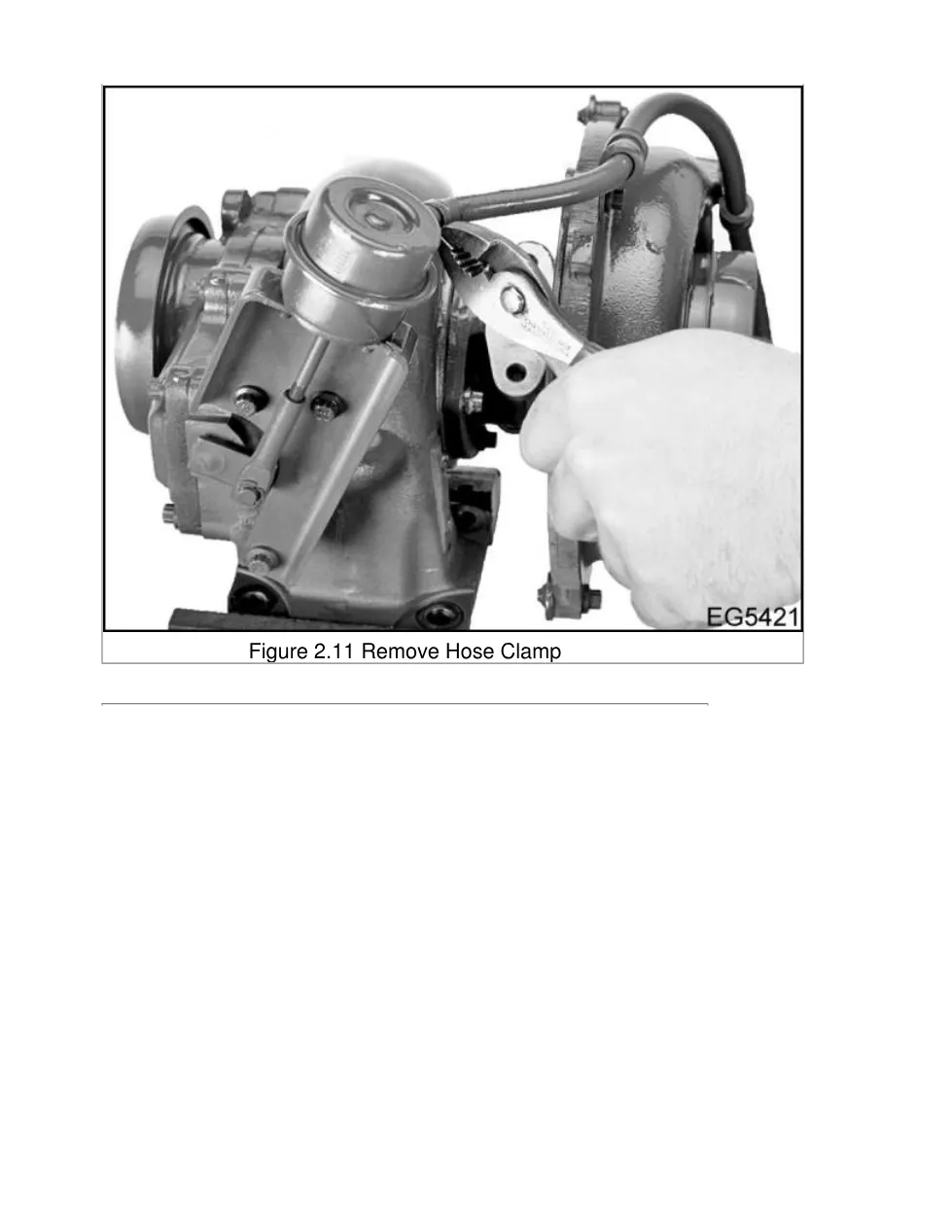

- Wastegate actuator hose, retaining clip and bracket removal
- Compressor housing, backplate O-Ring and center-housing separation
- Turbine and wastegate housing removal
- General operation and component identification
How the turbocharger works
This chapter applies to International DT466 and DT530 engines of the 2000-2003 range. It describes the unit as an exhaust-driven centrifugal air compressor with an oil- and air-cooled center housing and sleeve-type bearings lubricated by engine oil, with the turbine shaft driven to speeds over 100,000 rpm to raise intake-manifold pressure for more power, better fuel efficiency and the ability to hold power at altitude. Oil is fed from the clean-oil side of the filter through the feed tube, circulated in the center housing, and returned through a drain tube. The procedure notes it is the same for wastegate and non-wastegate units except where marked, and warns that reorienting the compressor housing on the vehicle will damage its O-Ring. Full engine and dealer support is available from the International Trucks website.
Who needs this DT466 DT530 turbocharger chapter
Technicians rebuilding or inspecting a boost-related complaint on a DT466 or DT530 use this chapter for the correct disassembly sequence and housing-marking cautions. It is also a useful theory reference for apprentices learning how the unit raises intake pressure.
