This DT466 exhaust manifold removal manual is Section 3 of the International DT466 and DT530 (2000-2003) service manual, covering the three-piece exhaust manifold, valve cover/intake manifold and road draft tube. It details manifold removal, warpage inspection and installation.
Official document details
| Brand | International Engines |
|---|---|
| Model coverage | International DT466E and DT530E diesel engines |
| System / group | DT466 & DT530 (2000-2003) / Service Manuals |
| Parent publication | DT466/530 (2000-2003) Service Manual (EGES2101) |
| Year / revision | 2000-2003 |
| Pages | 19 |
| File size | 0.7 MB |
| Format | |
| Language | English |
Document table of contents
- Exploded views of the exhaust manifold

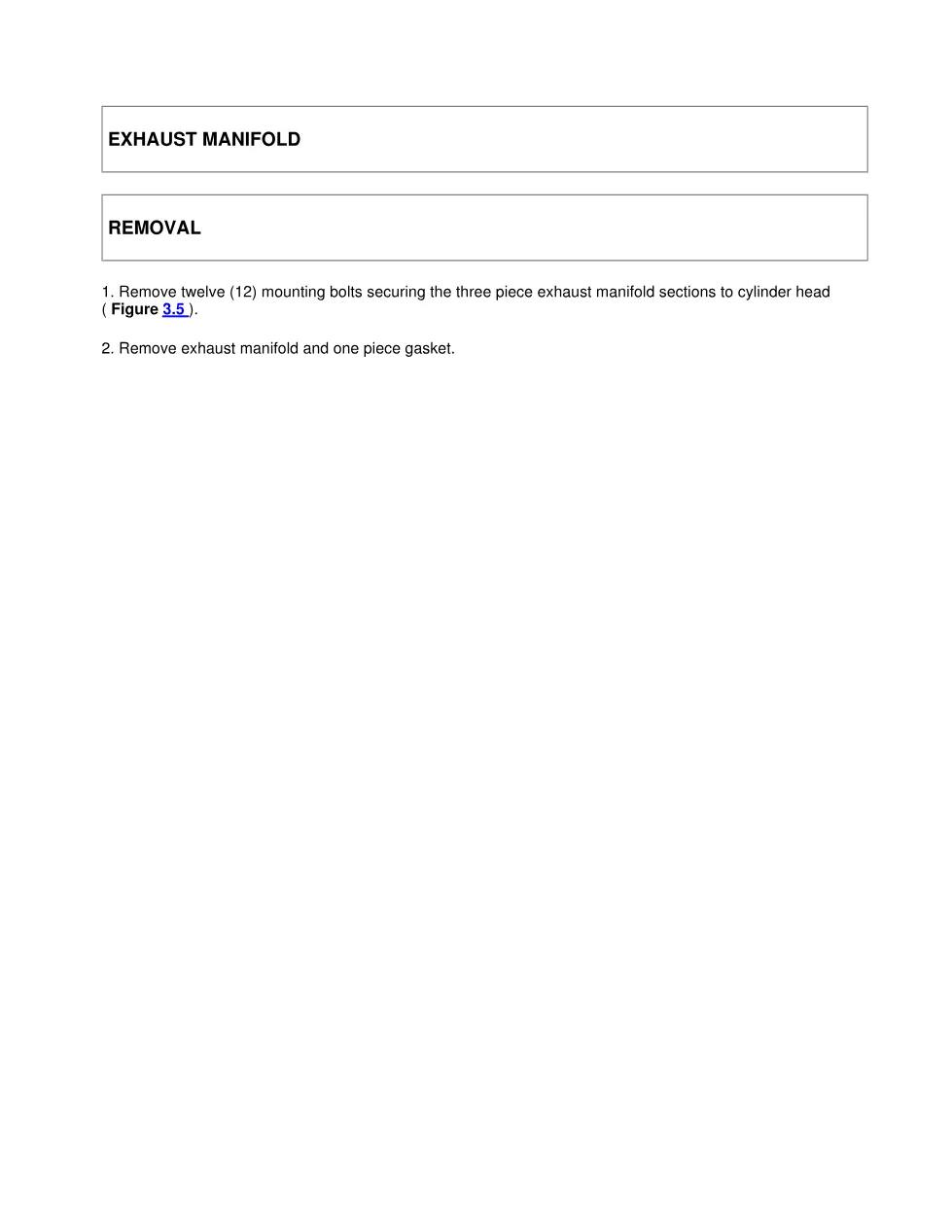

- Exhaust manifold removal
- Exhaust manifold cleaning
- Exhaust manifold inspection for warpage
- Exhaust manifold installation

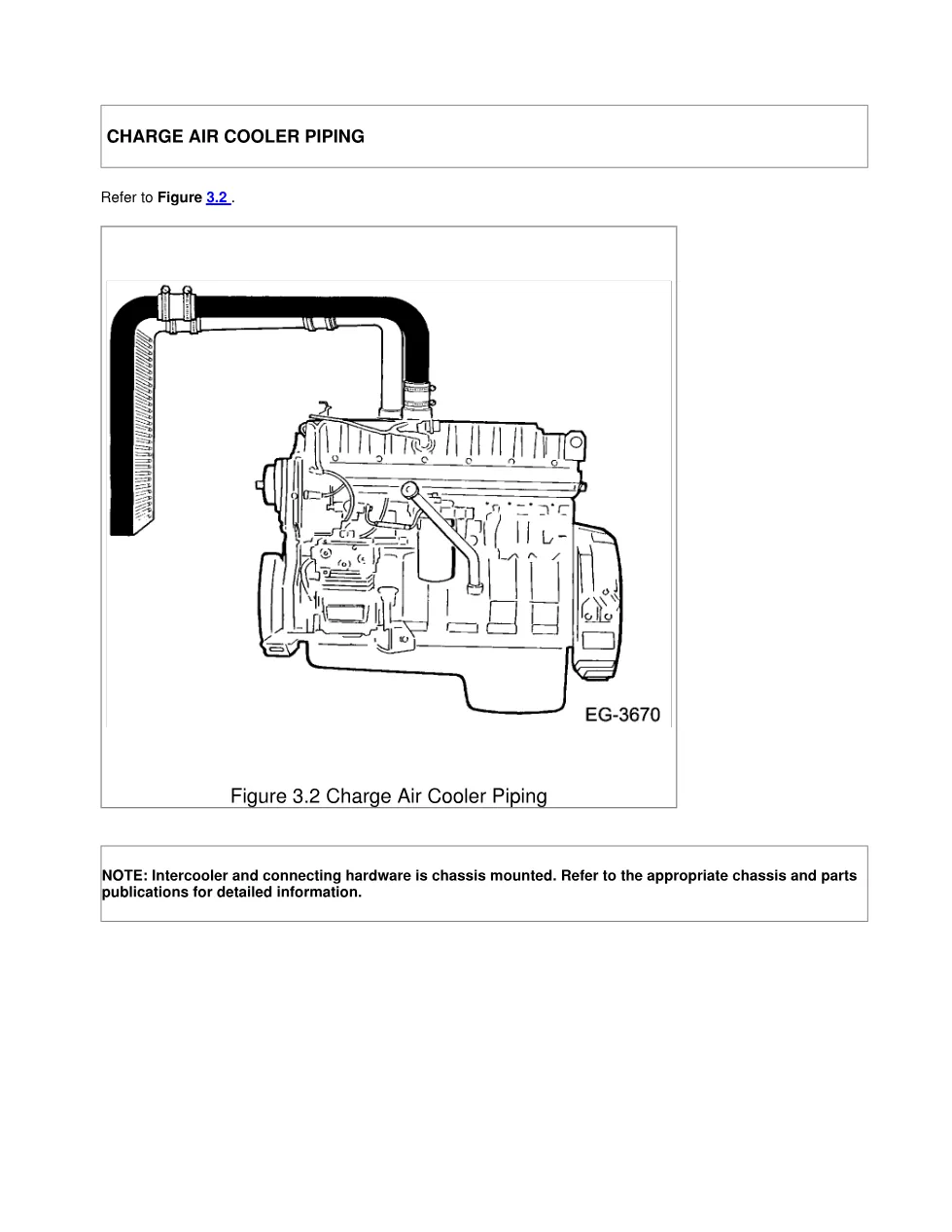

- Charge air cooler piping
- Road draft tube removal
- Valve cover/intake manifold
DT466 exhaust manifold removal steps
This section covers taking out the twelve mounting bolts and one-piece exhaust manifold gasket, cleaning the three-piece assembly, and checking warpage without a gasket using a 0.25 mm (0.010 in.) feeler gauge. Installation applies Never-Seez to the bolts and torques them to the special torque value; charge air cooler piping and the road draft tube are also covered. Figures and numbered callouts illustrate each operation step by step, and every fastener is tightened to the special torque value published in the companion “Specifications, Special Torque Values, and Service Tools” section (publication EGES2101).
Applicable truck models
It applies to International DT466E and 530E diesel engines; charge-air-cooler hardware is chassis-mounted, so refer to the chassis publications for that. A maximum of 0.64 mm (0.025 in.) may be ground to correct warpage. For official model information, see the International Trucks (Navistar) website.
Who needs this DT466 exhaust manifold removal
Technicians replacing a cracked manifold or leaking gasket use these steps to check flange warpage and reinstall the intake manifold and exhaust manifold correctly. Because this is one chapter of the complete International DT466 and DT530 (2000-2003) service manual set, most workshops download it alongside the diagnostic manual, the DTC list and the specification volume so the repair, testing and reference material stay together.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download.
