This CAT C15 ECM troubleshooting document provides the official Caterpillar diagnostic procedure for fault code 0253-02 (Check Customer or System Parameters) and the related ECM Memory Test used to resolve codes 252-11 and 253-02 on C15 on-highway truck engines. It details required parameter programming, connector inspection, flash file verification, and ECM replacement steps across five structured test steps.
Official CAT C15 ECM troubleshooting document details
| Brand | Caterpillar (CAT) |
| Model coverage | C15 Truck Engine MXS (On-Highway, MXS00001-UP) |
| System / Group | Engine Control Module (ECM) — DTCs 0253-02, 252-11 |
| Publication no. | RENR5088-10 |
| Year / Revision | Published 01/02/2009, updated 25/02/2009 |
| Pages | 10 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents

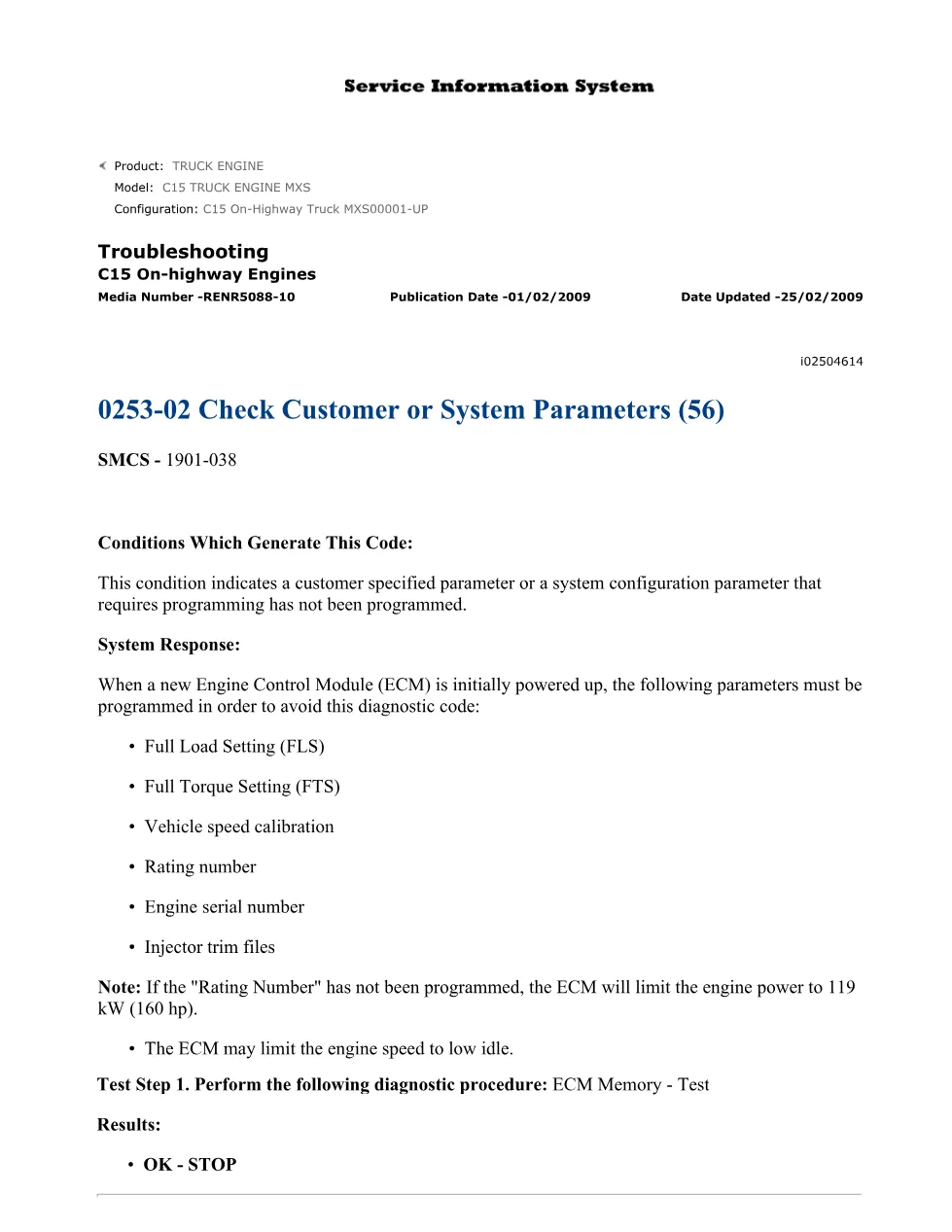

- 0253-02 Check Customer or System Parameters — Conditions, System Response

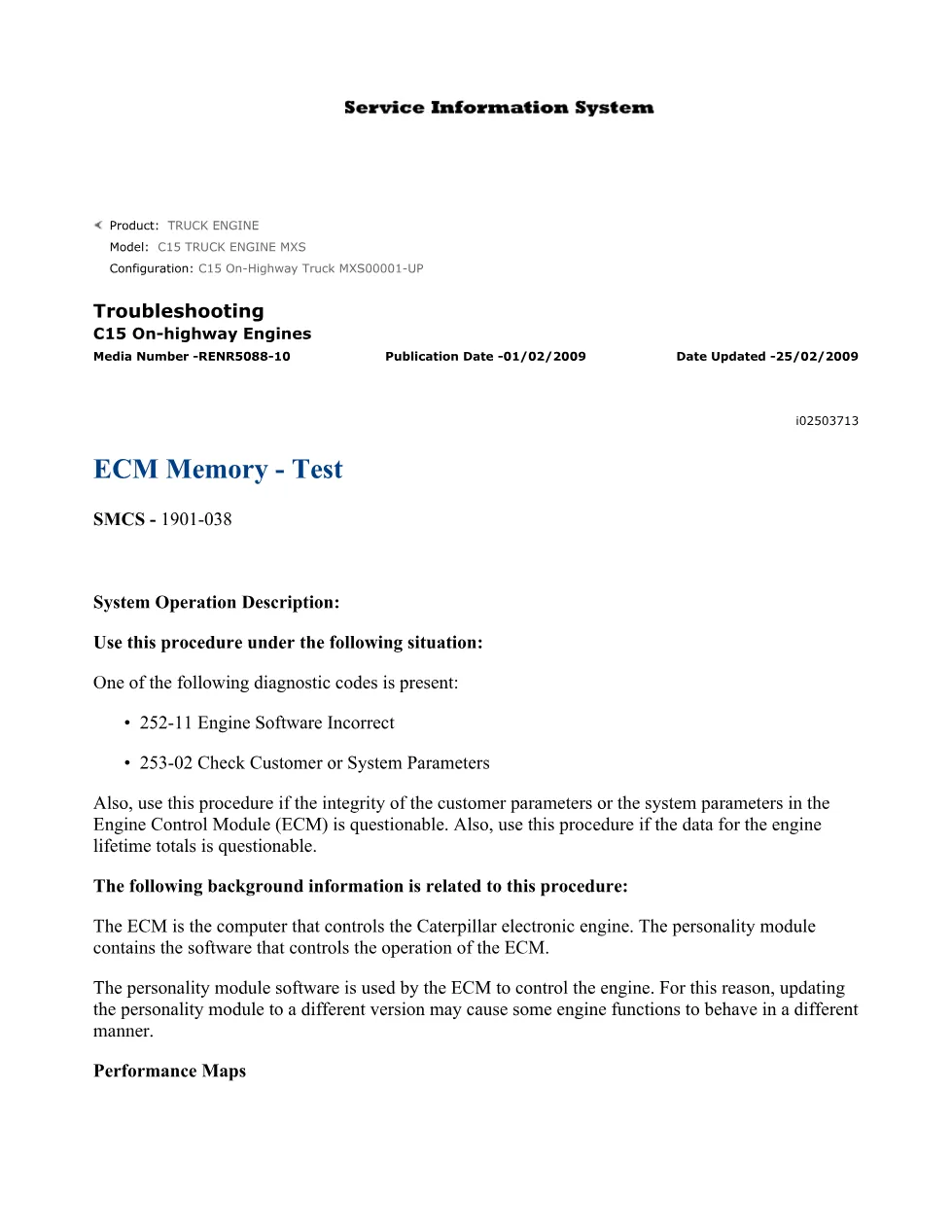

- ECM Memory – Test — System Operation Description

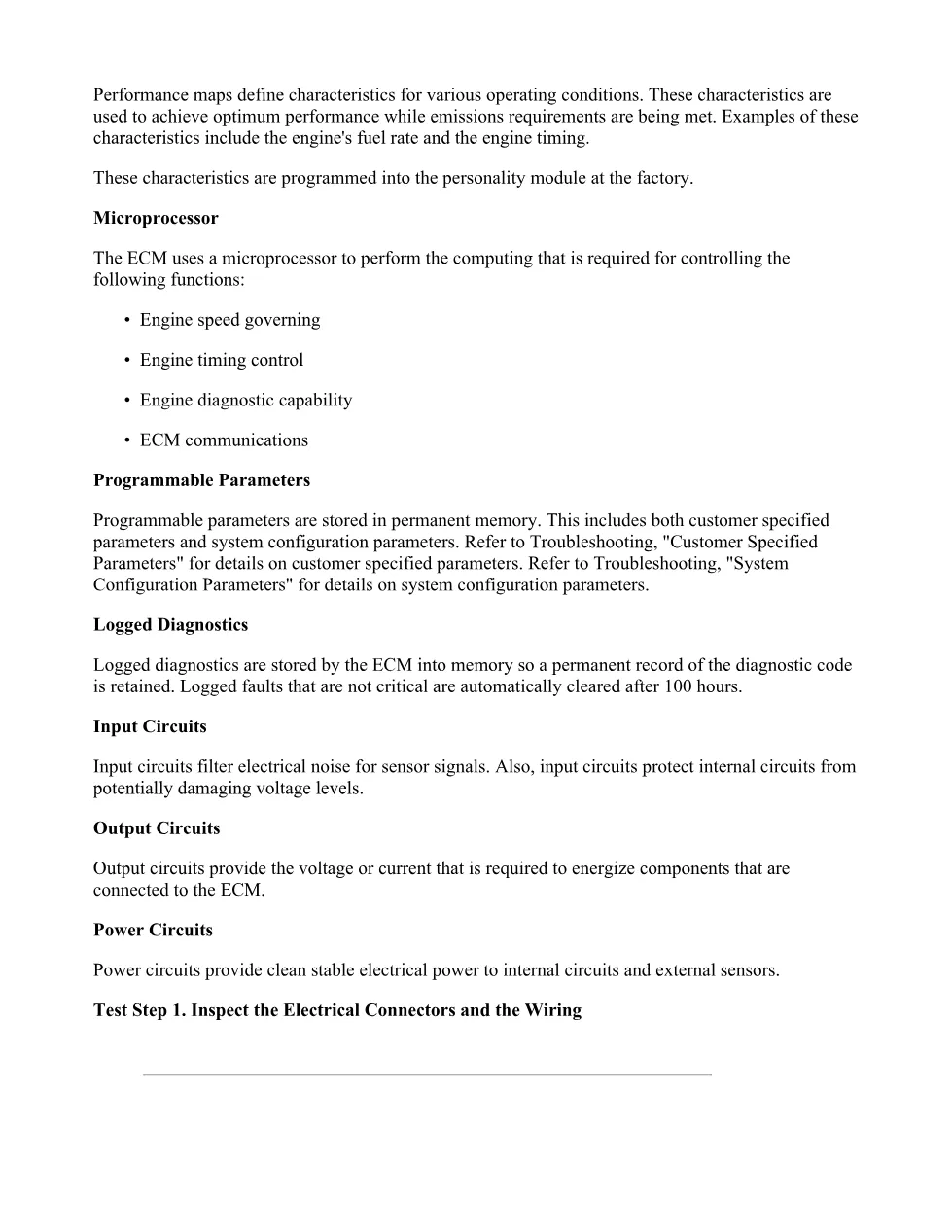

- Performance Maps, Microprocessor, Programmable Parameters, Logged Diagnostics
- Input Circuits, Output Circuits, Power Circuits
- Test Step 1: Inspect the Electrical Connectors and the Wiring (J1/P1, J2/P2 connector pinouts)
- Test Step 2: Check for Active Diagnostic Codes (using Cat ET)
- Test Step 3: Check the Part Number for the ECM Flash File
- Test Step 4: Determine Parameters that Require Programming (FLS, FTS, vehicle speed calibration, rating number, engine serial number, injector trim files)
- Test Step 5: Review Parameters and Data (customer/system parameters, engine lifetime totals)
Applicable truck models
This procedure applies to the Caterpillar C15 on-highway truck engine, configuration MXS00001-UP (MXS, NKS, or RKS serial prefix groups). The document covers ECM-controlled engines where a new or replacement ECM has been installed and critical parameters — Full Load Setting, Full Torque Setting, vehicle speed calibration, rating number, engine serial number, and injector trim files — have not yet been programmed. If the rating number remains unprogrammed, the ECM limits engine power to 119 kW (160 hp) and may restrict speed to low idle. For additional Caterpillar service resources, visit Caterpillar Support.
Who needs this CAT C15 ECM troubleshooting manual
Diesel mechanics and workshop owners servicing Caterpillar C15 engines will need this manual whenever DTC 0253-02 or 252-11 appears after an ECM replacement or flash update. It is also essential when customer parameters appear scrambled or engine lifetime totals are suspect, guiding technicians through connector inspection, Cat ET diagnostics, flash file updates, and ECM swap-testing.
The full PDF is available in the DiagTechPro manuals library, free account required to download.
