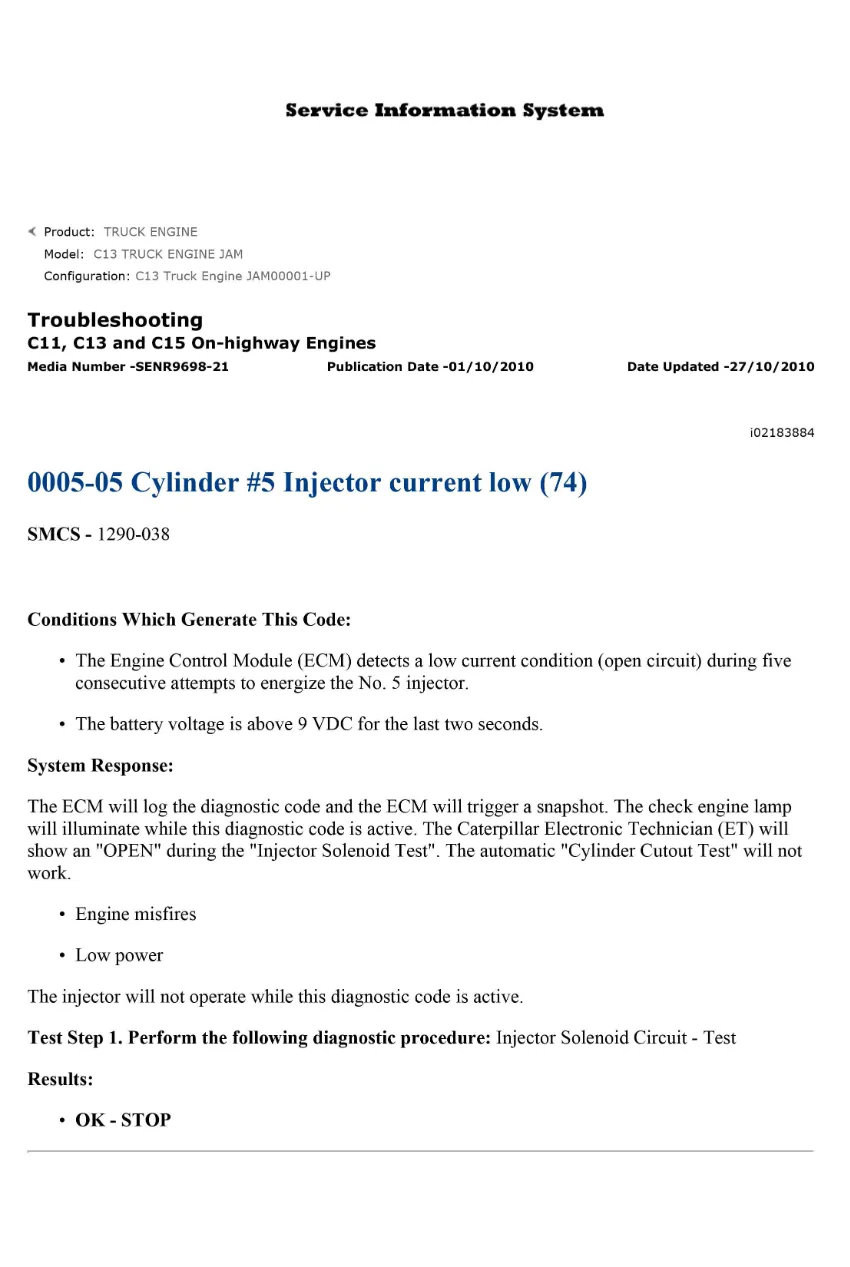

This 1-page diagnostic document addresses CAT C11 0005-05 issues, specifically DTC 0005-05 — Cylinder #5 Injector Current Low — for Caterpillar diesel engines. It provides fault code definition, probable causes, and recommended troubleshooting procedures for technicians working on affected engine platforms.
CAT C11 0005-05: Official CAT C11 0005-05 document details
| Brand | Caterpillar (CAT) |
| Model coverage | CAT C11, C13, C15 (All Others) |
| System / Group | Diagnostic Trouble Codes (DTCs) — Fuel Injection System |
| Publication no. | N/A |
| Year / Revision | Unknown |
| Pages | 1 |
| File size | 0.3 MB |
| Format | |
| Language | English |
CAT C11 0005-05: Document table of contents
- DTC 0005-05 — Cylinder #5 Injector Current Low
- Fault code conditions and description
- Probable causes of low injector current
- Diagnostic troubleshooting procedure
- Injector circuit inspection steps
Applicable truck models
This document applies to equipment powered by Caterpillar C11, C13, and C15 diesel engines classified under the “All Others” group. These engines are widely used in on-highway Class 8 trucks, vocational vehicles, and select industrial applications. The DTC 0005-05 fault relates to low current detected at the Cylinder #5 electronic unit injector, which can indicate wiring faults, connector issues, or a failed injector solenoid. Workshops servicing Kenworth, Peterbilt, and other OEMs that use CAT C11/C13/C15 power units will find this reference applicable. For additional technical resources and service bulletins, visit Caterpillar’s official support page.
Who needs this C15 injector current manual
Diesel technicians and workshop owners diagnosing a Cylinder #5 injector current low fault on CAT-powered trucks need this reference. It is especially useful when verifying injector solenoid resistance, inspecting harness continuity, and confirming ECM output driver function during a systematic DTC 0005-05 diagnosis.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
