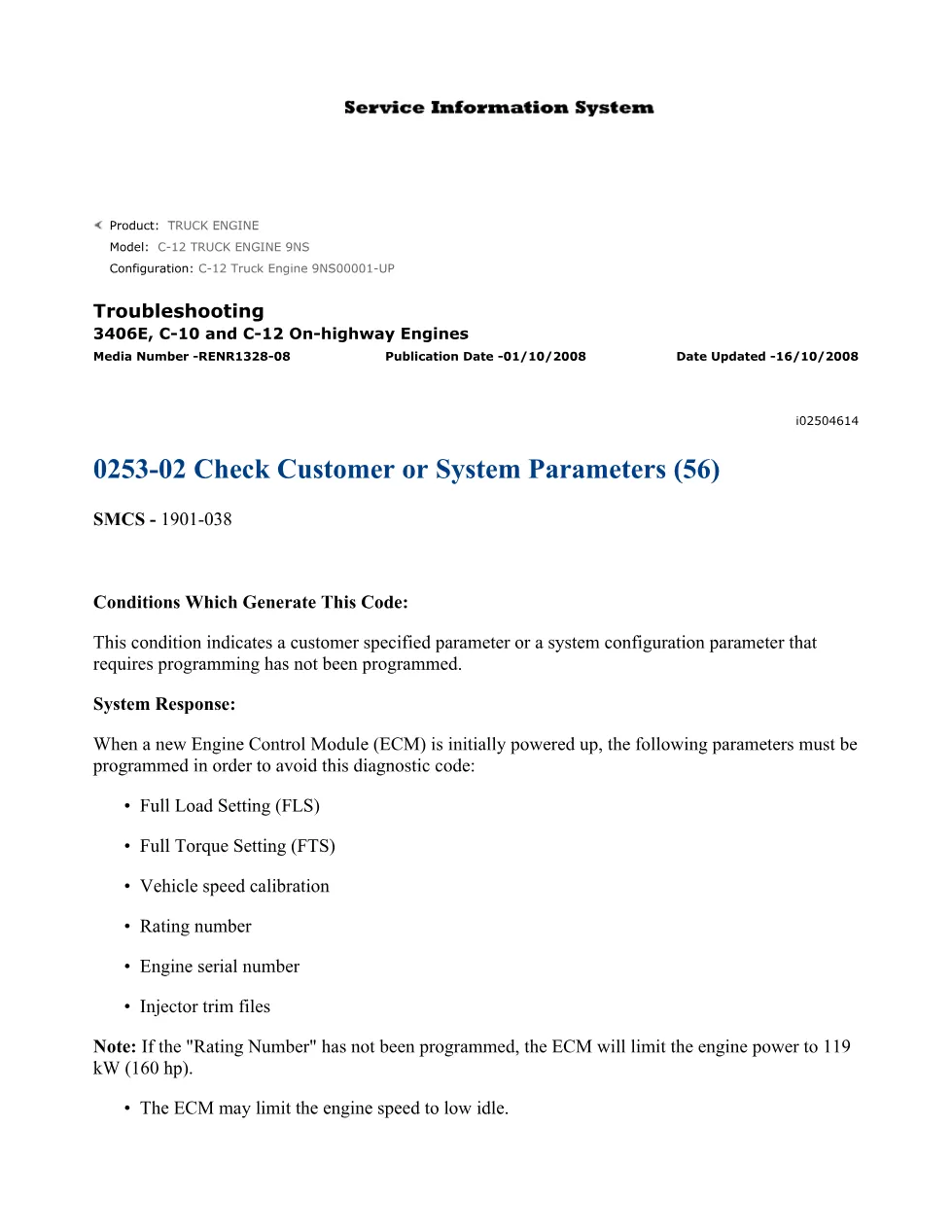

This 2-page troubleshooting document is the official CAT C-12 diagnostic code reference for fault code 0253-02 — Check Customer or System Parameters (56). It explains the conditions that generate this code on 3406E, C-10, and C-12 on-highway truck engines when required ECM parameters have not been programmed, and it directs the technician to the corrective test procedure.
Official CAT C-12 diagnostic code document details
| Brand | Caterpillar (CAT) |
| Model coverage | C-12 Truck Engine 9NS00001-UP; also applies to 3406E, C-10, and C-12 on-highway engines (8YS, 9NS, 5DS, 1LW prefix groups) |
| System / Group | Engine Control Module (ECM) — DTCs / SMCS 1901-038 |
| Publication no. | RENR1328-08 |
| Year / Revision | Published 01/10/2008, updated 16/10/2008 |
| Pages | 2 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Document table of contents
- Conditions Which Generate This Code — describes the trigger: a customer-specified parameter or system configuration parameter requiring programming has not been programmed
- System Response — lists the parameters that must be programmed when a new ECM is initially powered up:
- Full Load Setting (FLS)
- Full Torque Setting (FTS)
- Vehicle speed calibration
- Rating number
- Engine serial number
- Injector trim files
- Note: If the Rating Number has not been programmed, the ECM limits engine power to 119 kW (160 hp) and may limit engine speed to low idle
- Test Step 1 — Perform the diagnostic procedure: ECM Memory – Test
Applicable truck models
This troubleshooting guide covers Caterpillar 3406E, C-10, and C-12 on-highway truck engines with serial-prefix groups 8YS, 9NS, 5DS, and 1LW. The specific configuration referenced is the C-12 Truck Engine 9NS00001-UP. These engines are found in a wide range of Class 8 highway trucks. For additional product and service information, visit Caterpillar’s official support page.
Who needs this CAT C-12 diagnostic code manual
Technicians and workshop owners who encounter DTC 0253-02 after installing a new or replacement ECM on 3406E, C-10, or C-12 engines need this guide. It ensures all mandatory parameters — FLS, FTS, vehicle speed calibration, rating number, engine serial number, and injector trim files — are programmed correctly to restore full engine power and prevent speed limiting.
