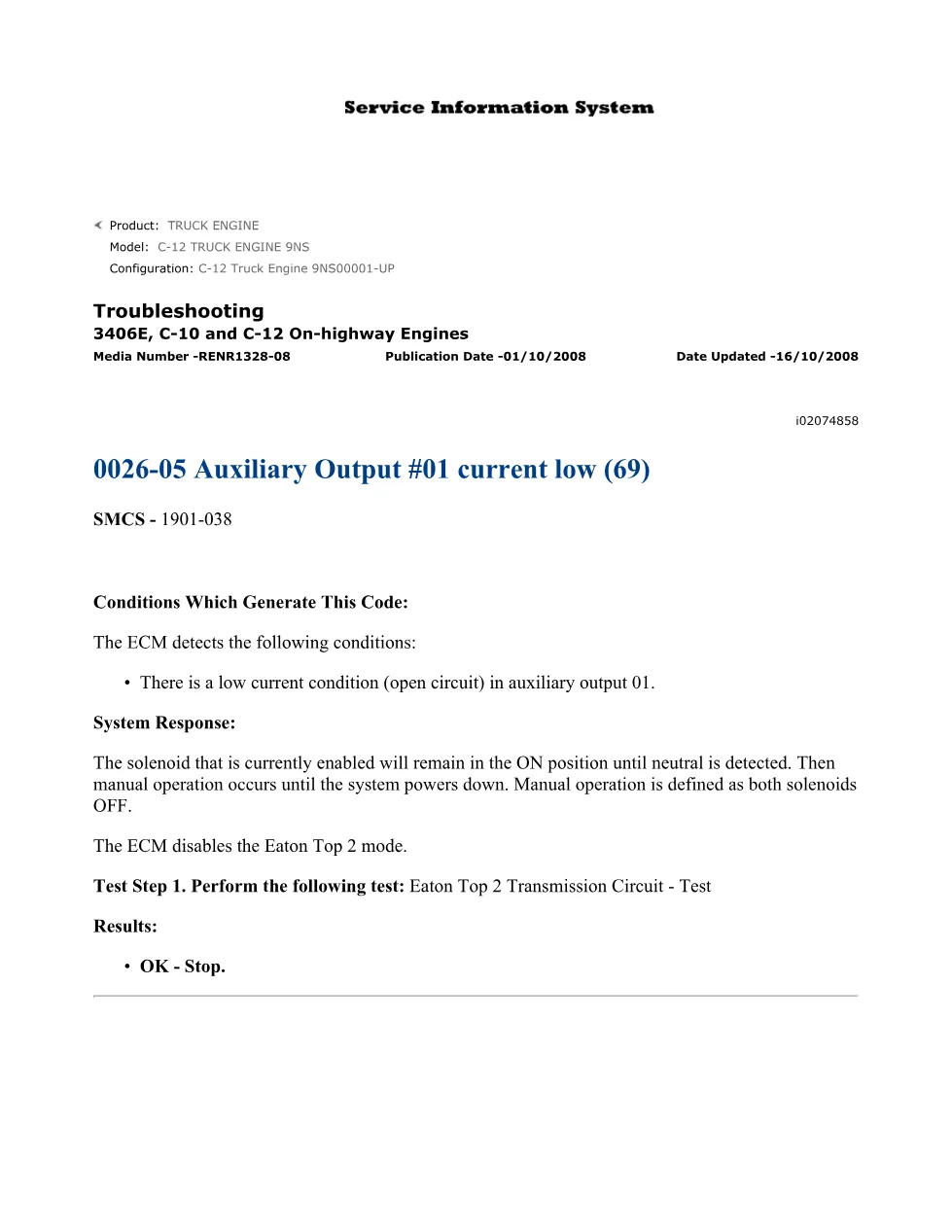

This one-page troubleshooting document provides CAT C-12 auxiliary output procedures for diagnosing diagnostic trouble code 0026-05 (Auxiliary Output #01 current low, flash code 69). It covers the conditions that generate this fault code on 3406E, C-10, and C-12 on-highway truck engines, the ECM system response, and the required test steps to resolve the issue.
Official CAT C-12 auxiliary output document details
| Brand | Caterpillar (CAT) |
| Model coverage | C-12 Truck Engine 9NS00001-UP; also applicable to 3406E and C-10 engines (8YS, 9NS, 5DS, or 1LW configurations) |
| System / Group | DTCs — SMCS 1901-038 (Auxiliary Output #01 current low) |
| Publication no. | RENR1328-08 |
| Year / Revision | Published 01/10/2008, updated 16/10/2008 |
| Pages | 1 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Document table of contents
- Conditions Which Generate This Code — ECM detection of low current (open circuit) in auxiliary output 01
- System Response — Solenoid behavior, neutral detection, manual operation mode, and Eaton Top 2 mode disabling
- Test Step 1 — Eaton Top 2 Transmission Circuit Test procedure and expected results
Applicable truck models
This troubleshooting guide applies to Caterpillar on-highway truck engines in the 3406E, C-10, and C-12 families. Specific serial number prefixes covered are 8YS, 9NS, 5DS, and 1LW. The document references the C-12 Truck Engine configuration 9NS00001-UP. These engines are commonly found in Class 8 heavy-duty trucks from various OEMs. Workshops servicing vehicles equipped with the Eaton Top 2 transmission paired with these CAT powertrains will find this code reference essential. For additional Caterpillar service literature and parts information, visit the Caterpillar official support page.
Who needs this C-12 auxiliary output manual
Diesel mechanics and workshop owners diagnosing DTC 0026-05 on 3406E, C-10, or C-12 engines need this document. It is particularly relevant when the ECM disables Eaton Top 2 mode and the transmission defaults to manual operation with both solenoids OFF, as understanding the fault conditions and circuit test procedure is critical for efficient repair.
The full PDF is available in the DiagTechPro manuals library. A free account is required to download.
