This CAT 3406E shop manual is a 137-page PDF service reference covering Caterpillar’s 3406E, C-10, C-12, C-15, C-16, and C-18 diesel engine families. It provides mechanics and workshop technicians with the factory-level repair and maintenance procedures needed to service these heavy-duty powerplants. The document is formatted for print and digital use at 31.8 MB.
Official CAT 3406E shop manual document details
| Brand | Caterpillar (CAT) |
| Model coverage | 3406E, C-10, C-12, C-15, C-16, C-18 |
| System / Group | 3406E C-10 C-12 C-15 C-16 C-18 / Manuals |
| Publication no. | Not specified in document |
| Year / Revision | Not specified |
| Pages | 137 |
| File size | 31.8 MB |
| Format | |
| Language | English |

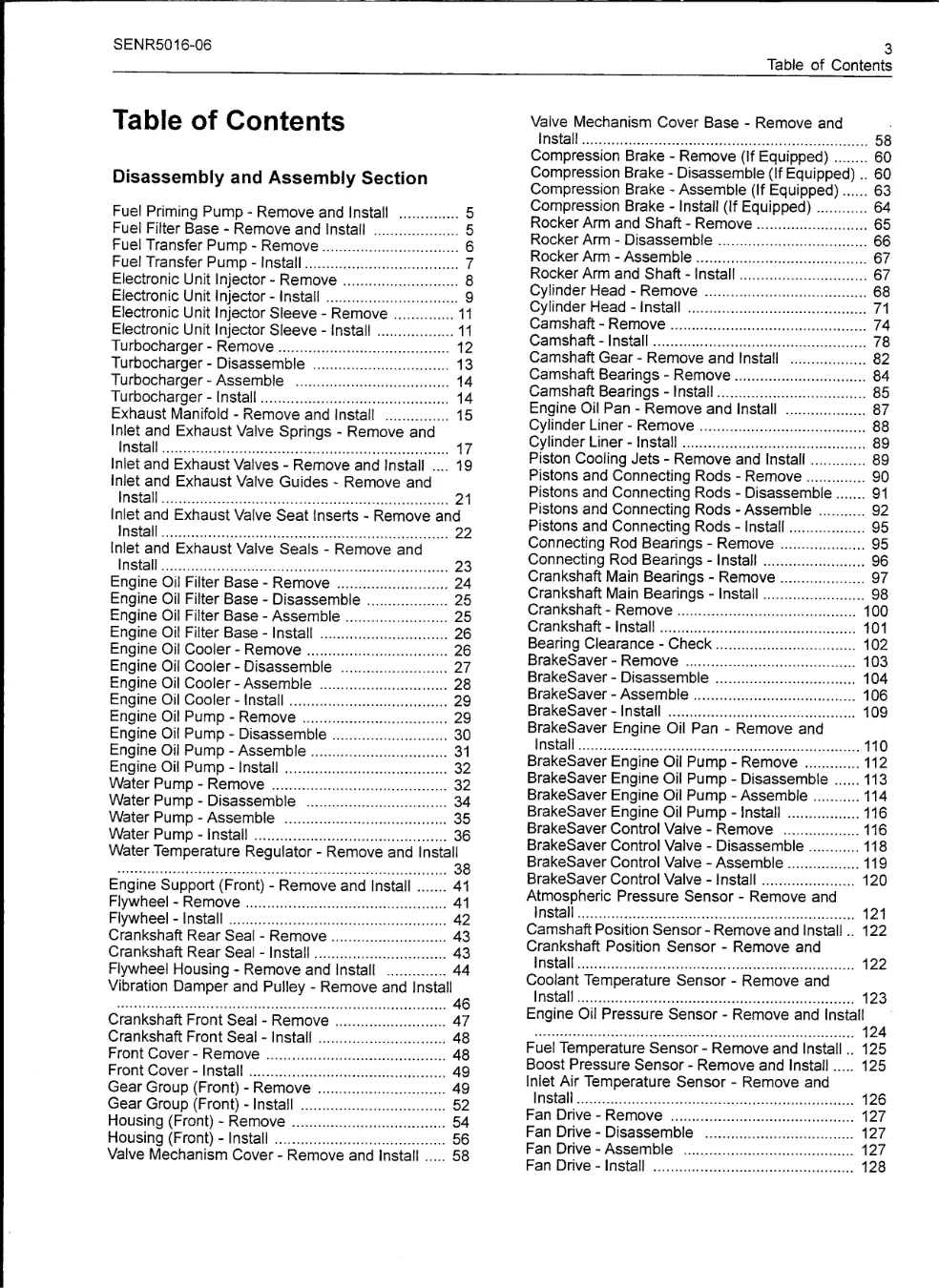

Document table of contents
- Engine general information and specifications
- Disassembly and assembly procedures
- Fuel system service
- Cooling system service
- Lubrication system service
- Air intake and exhaust system
- Electrical and electronic systems
- Troubleshooting and diagnostics
- Torque specifications and standard values
Applicable truck models
This shop manual applies to Caterpillar 3406E engines and their successor series — the C-10, C-12, C-15, C-16, and C-18. These inline six-cylinder diesel engines were widely installed in Class 8 on-highway trucks from manufacturers such as Peterbilt, Kenworth, Freightliner, Western Star, and International, as well as in off-highway and marine applications. The 3406E and C-series engines range from approximately 10 to 18 liters of displacement, serving vocational, long-haul, and heavy-equipment roles. For additional OEM resources, visit Caterpillar’s official support page.
Who needs this 3406E shop manual
Fleet maintenance technicians, independent diesel mechanics, and workshop owners servicing Caterpillar-powered trucks will find this manual essential. It consolidates the disassembly, assembly, diagnostic, and specification data required for in-frame and major overhaul work on 3406E and C-series engines.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
Using this document effectively
Use CAT 3406E Shop Manual — C-10 C-12 C-15 C-16 C-18 Engine Series as a reference alongside the exact machine identification, engine family, control module, and publication revision shown on the equipment. Confirm that the model and production range match before following any table, connector view, test sequence, or specification. Record the original fault code and operating conditions before clearing codes or disconnecting components.
