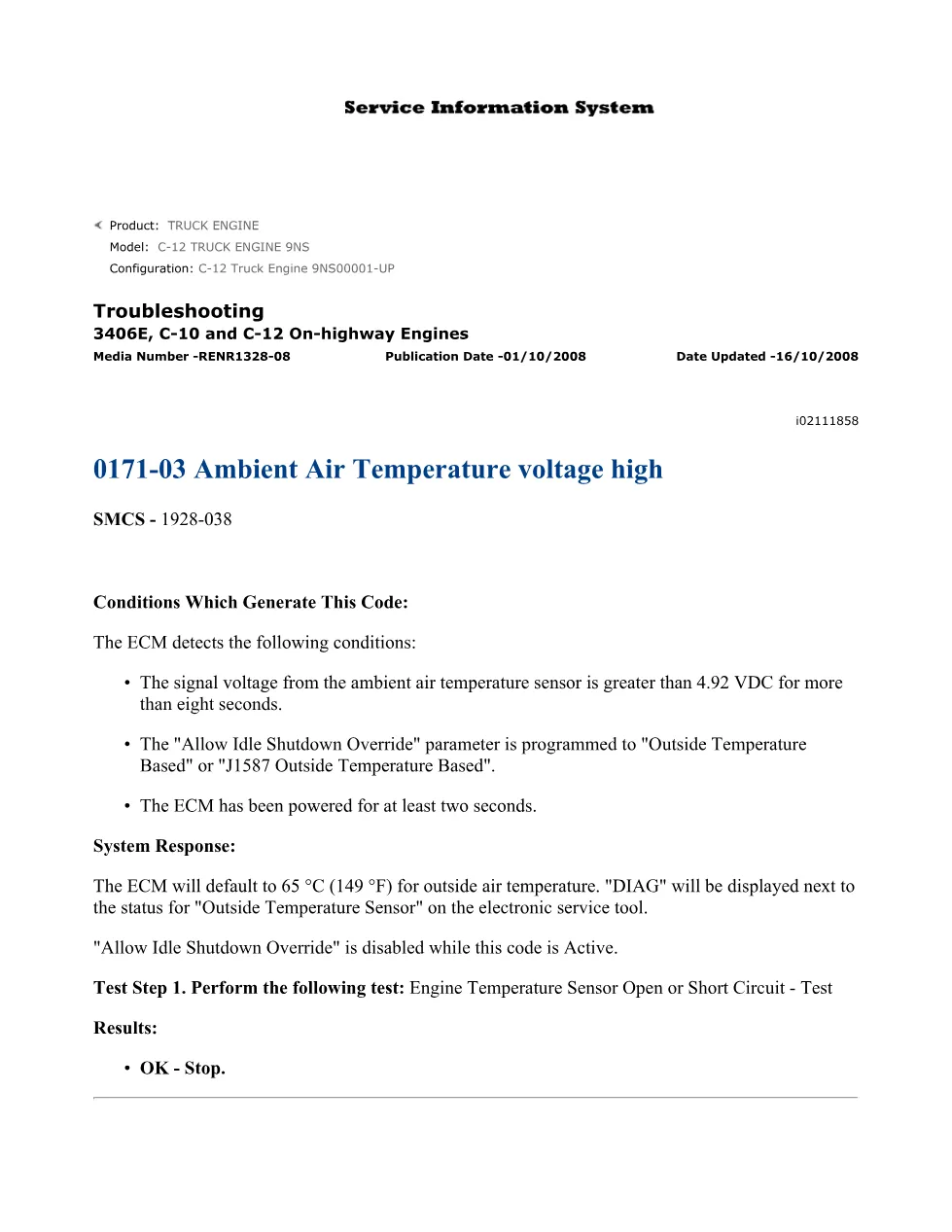

This document is a CAT 0171-03 ambient air temperature diagnostic troubleshooting guide covering voltage-high fault code procedures for Caterpillar 3406E, C-10, and C-12 on-highway truck engines. It details the conditions that generate diagnostic code 0171-03, the ECM system response and default values, and the corrective test steps a technician must follow to resolve the fault.
Official CAT 0171-03 ambient air temperature document details
| Brand | Caterpillar (CAT) |
| Model coverage | 3406E, C-10, C-12 Truck Engines (8YS, 9NS, 5DS, 1LW prefixes) |
| System / Group | Diagnostic Trouble Codes (DTCs) — SMCS 1928-038 |
| Publication no. | RENR1328-08 |
| Year / Revision | Published 01/10/2008, updated 16/10/2008 |
| Pages | 1 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Document table of contents
- Conditions Which Generate This Code — signal voltage greater than 4.92 VDC for more than eight seconds, “Allow Idle Shutdown Override” parameter settings, ECM power-up timing
- System Response — ECM default to 65 °C (149 °F) for outside air temperature, “DIAG” status display on electronic service tool, idle shutdown override disabled while code is active
- Test Step 1 — Engine Temperature Sensor Open or Short Circuit test procedure and expected results
