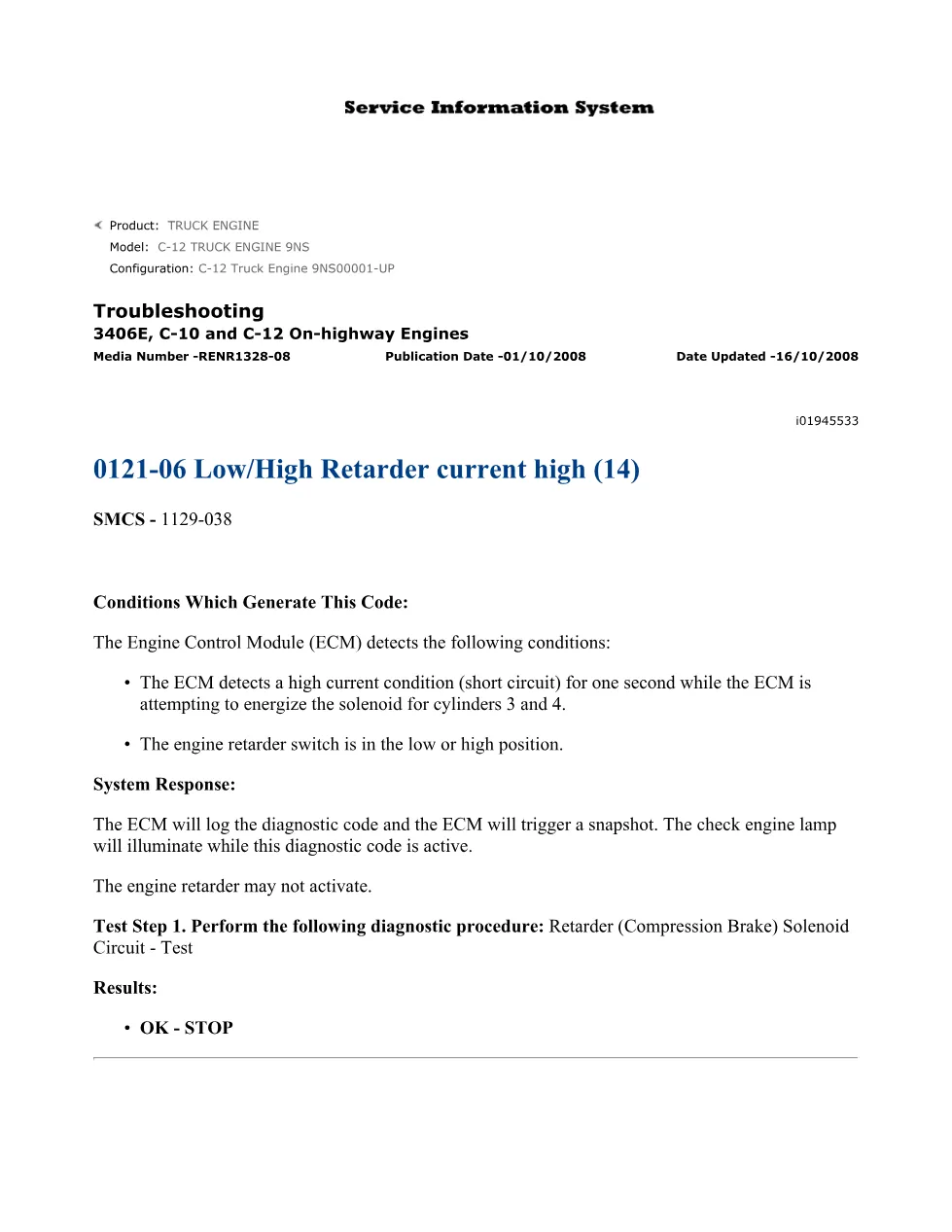

This document is a C-12 retarder troubleshooting DTCs guide that addresses diagnostic code 0121-06 (Low/High Retarder current high). Published by Caterpillar under media number RENR1328-08, it provides the conditions that generate the fault code, the ECM system response, and the required test procedure for resolving a high-current condition on the compression brake solenoid circuit.
Official C-12 retarder troubleshooting DTCs document details
| Brand | Caterpillar (CAT) |
| Model coverage | C-12 Truck Engine 9NS (9NS00001-UP); also references 3406E, C-10 |
| System / Group | Engine Retarder / Compression Brake — SMCS 1129-038 |
| Publication no. | RENR1328-08 |
| Year / Revision | Published 01/10/2008, updated 16/10/2008 |
| Pages | 1 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Document table of contents
- Conditions Which Generate This Code — ECM detection of high current (short circuit) on the solenoid for cylinders 3 and 4
- System Response — Diagnostic code logging, snapshot trigger, check engine lamp behavior, retarder activation status
- Test Step 1 — Perform the Retarder (Compression Brake) Solenoid Circuit – Test diagnostic procedure
Applicable truck models
This publication applies to Caterpillar on-highway truck engines in the 3406E, C-10, and C-12 families. The specific configuration listed is the C-12 Truck Engine serial prefix 9NS (9NS00001-UP). Other serial prefixes referenced in the broader 3406E/C-10/C-12 documentation group include 8YS, 5DS, and 1LW. The diagnostic code and test steps are relevant to any vehicle equipped with these engines and a CAT compression brake (engine retarder) system controlled by the Engine Control Module. For official Caterpillar technical resources, visit Caterpillar Support.
Who needs this retarder troubleshooting DTCs manual
Fleet mechanics and independent workshop technicians diagnosing a check engine lamp caused by DTC 0121-06 on 3406E, C-10, or C-12 powered trucks will need this document. It is essential for anyone tracing a short-circuit fault in the low/high retarder solenoid circuit on cylinders 3 and 4.
