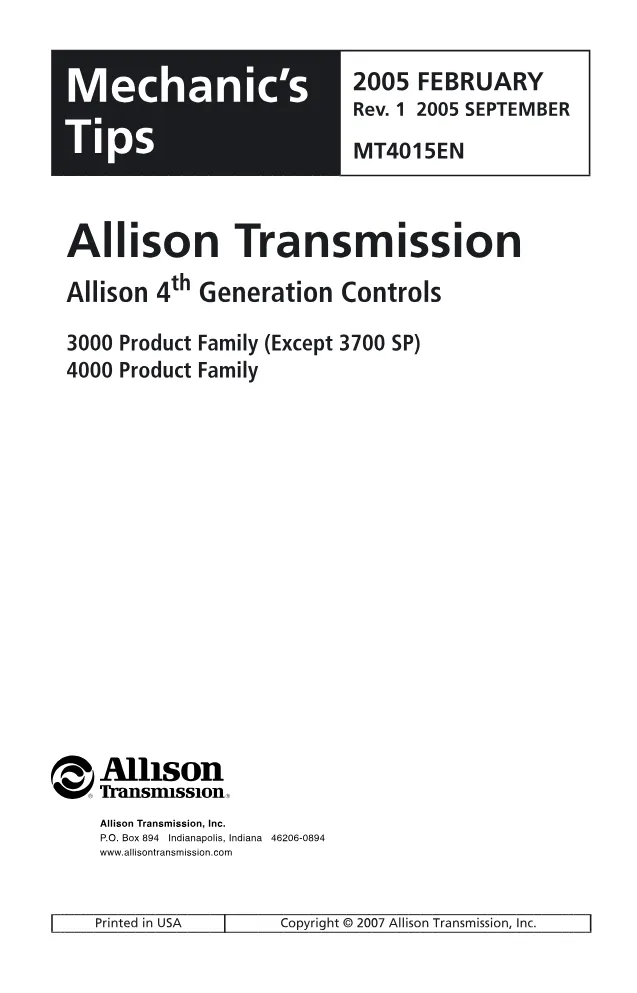

This 78-page Mechanic’s Tips manual (MT4015EN) provides Allison 3000 4000 tips for preventive maintenance, troubleshooting, removal, installation, and checks on transmissions equipped with Allison 4th Generation Controls. It covers the 3000 Product Family (except 3700 SP) and the entire 4000 Product Family, and is intended for technicians and workshop personnel who service these automatic transmissions in commercial vehicles.
Official Allison 3000 4000 tips document details
| Brand | Allison Transmission |
| Model coverage | 3000 Product Family (except 3700 SP), 4000 Product Family |
| System / Group | 4th Generation Electronic Controls — Automatic Transmission |
| Publication no. | MT4015EN |
| Year / Revision | 2005 February; Rev. 1 2005 September |
| Pages | 78 |
| File size | 4.6 MB |
| Format | |
| Language | English |
Document table of contents
- Section I — Introduction: About This Manual
- Section II — Preventive Maintenance: Periodic Inspection, Fluid Level Check, Keeping Fluid Clean, Fluid Recommendations, Fluid and Filter Change Intervals, Fluid Contamination, Fluid and Filter Change Procedure, Fluid Leak Diagnosis, Breather, Troubleshooting, Transmission Stall Test
- Section III — Removing Transmission: Draining, Disconnecting Controls, Uncoupling from Driveline/Engine/Vehicle, Removing Output Flange or Yoke
- Section IV — Transmission Preparation: Checking Input Components, Installing Output Flange or Yoke, Installing PTO, Installing Fill Tube and Seal, Checking Plugs and Openings
- Section V — Preparing Vehicle for Installation: Engine/Transmission Adaptation Requirements, Checking Flexplate Drive Assembly, Chassis and Driveline Inspection, Cooler/Filter/Lines, Checking Controls and Throttle Sensor
- Section VI — Installing Transmission into Vehicle: Mounting to Engine, Coupling to Driveline, Connecting Output Retarder Accumulator, PTO Controls, Parking Brake, Cooler, Electrical Components, Speedometer Drive, Filling Hydraulic System, Installation Checklist
- Section VII — Checks and Adjustments: Installation Checklist, Road Test and Vehicle Operation Checklist
- Section VIII — Customer Service: Owner Assistance, Service Literature
Applicable truck models
This manual applies to all commercial vehicles fitted with Allison 3000 series (except 3700 SP) or 4000 series automatic transmissions using 4th Generation electronic controls. Applications include emergency vehicles, highway trucks, pupil transport and shuttle buses, rugged duty vehicles, specialty vehicles, and motorhomes, as listed in the related operator’s manuals referenced inside the document (OM3656EN, OM3749EN, OM3750EN, OM3751EN, OM3752EN, OM3753EN, OM3349EN). The manual also references supporting publications such as the Electronic Troubleshooting Manual TS3989EN and the Allison DOC™ service tool guide GN3433EN. Detailed diagnostic trouble codes (DTCs) including P0880, P2723, P0727, and P0610 are documented with active/historic status. Dipstick markings, throttle sensor voltage specifications, and speed sensor locations for both product families are illustrated. For official resources visit Allison Transmission’s official website.
Who needs this Allison 3000 4000 tips manual
Fleet mechanics, independent transmission shops, and workshop owners servicing Allison 3000 or 4000 series transmissions will find this manual essential for fluid maintenance, DTC interpretation via the shift selector or Allison DOC™, and step-by-step transmission removal and reinstallation procedures.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
