This page covers the Detroit fault code SPN 5357 FMI 18, Fuel Quantity Low Detected, on DD Platform engines. It documents the monitored parameter, verification condition, and the 16-step factory diagnostic flow for GHG14 builds.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD13, DD15 and DD16 (DD Platform) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Source | TruckFaultCodes.com |
| Year / Revision | 2017 (GHG14) |
| Pages | 4 |
| File size | 0.27 MB |
| Format | |
| Language | English |
SPN 5357 FMI 18 table of contents
- Fault description and 25% derate
- Monitored parameter and verification
- Intake manifold sensor checks
- EGR delta P voltage test
- Charge Air Cooler leak check

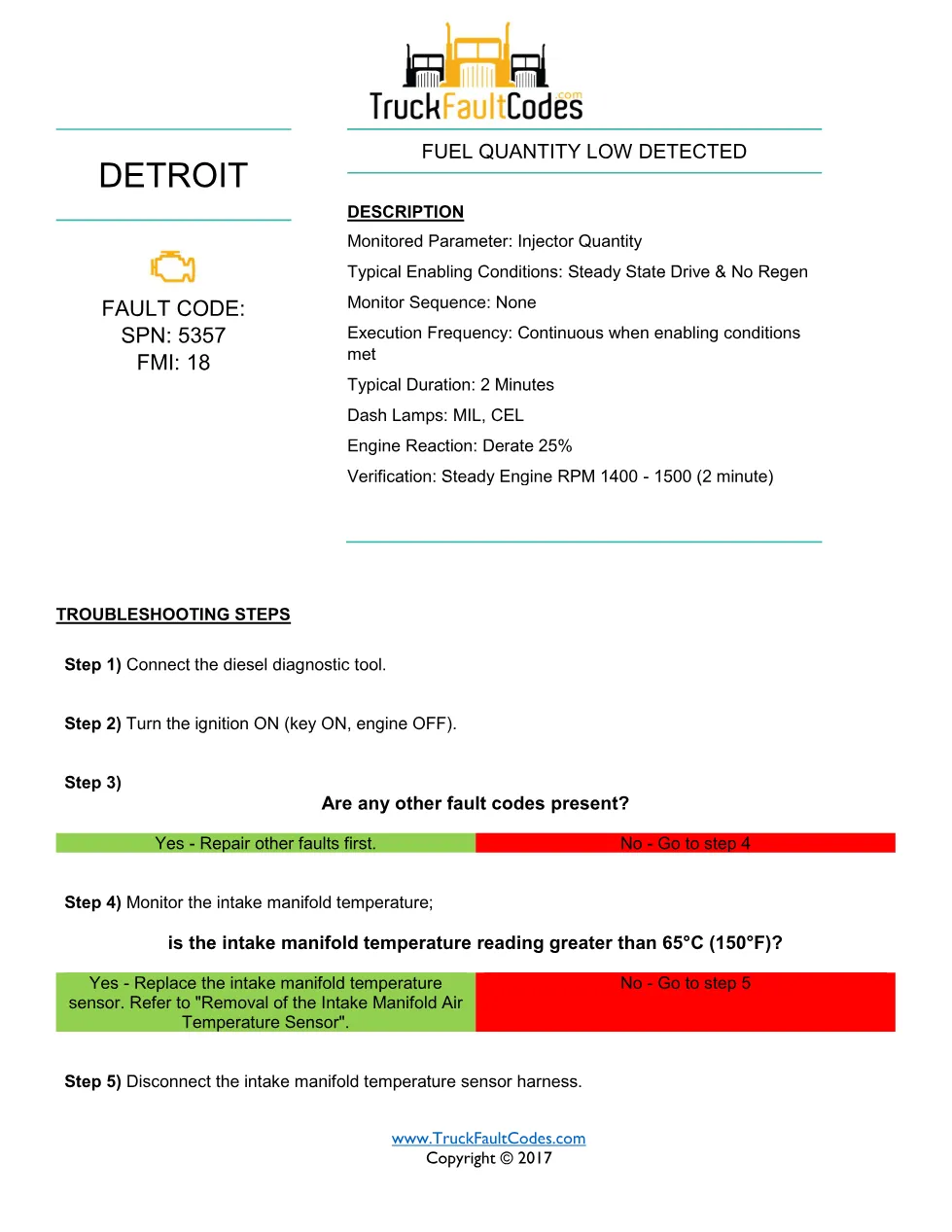

The monitored parameter is Injector Quantity, enabled in steady-state drive with no regen. Typical duration is 2 minutes, MIL and CEL are both on, and the engine reaction is a 25% derate. The code is verified at a steady engine RPM of 1400-1500 held for two minutes.

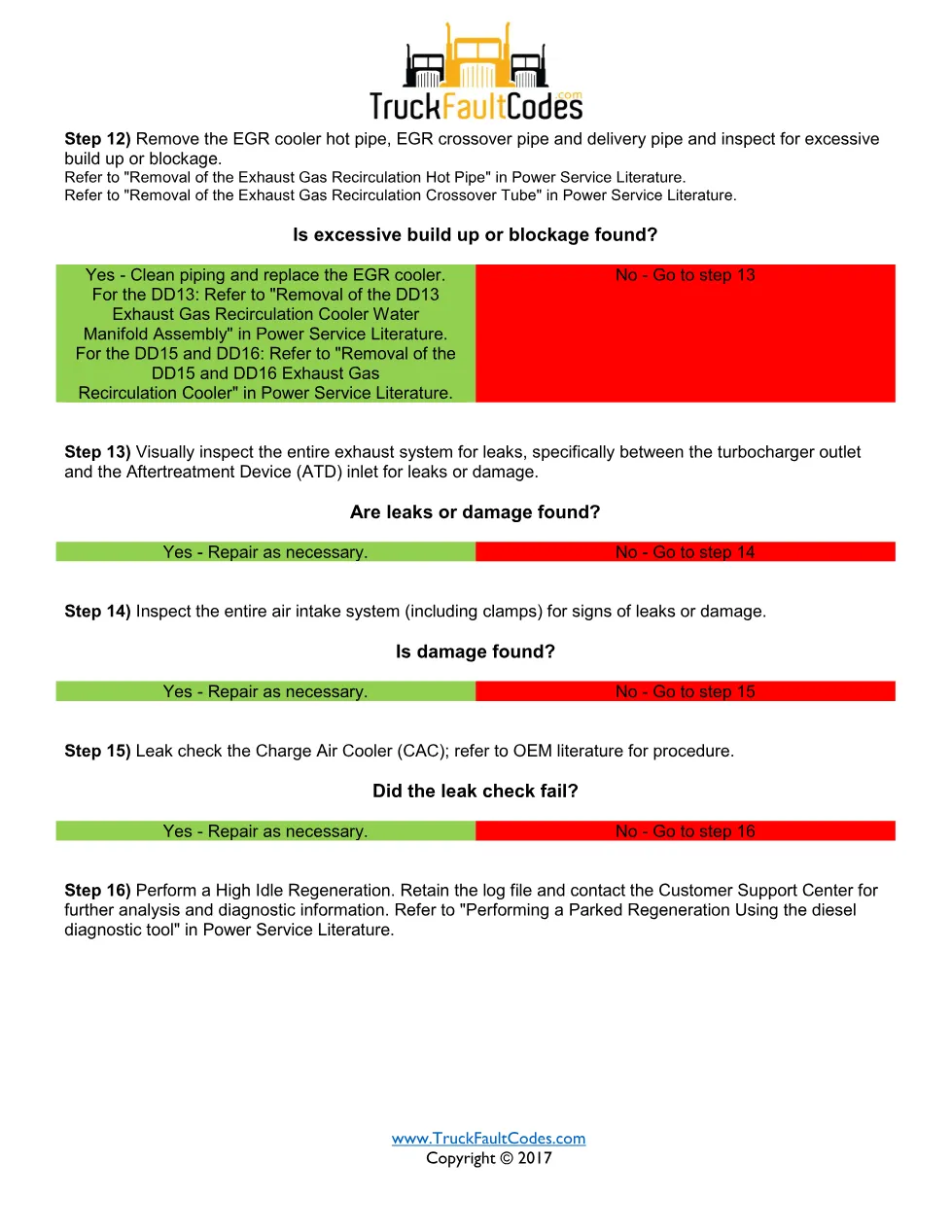

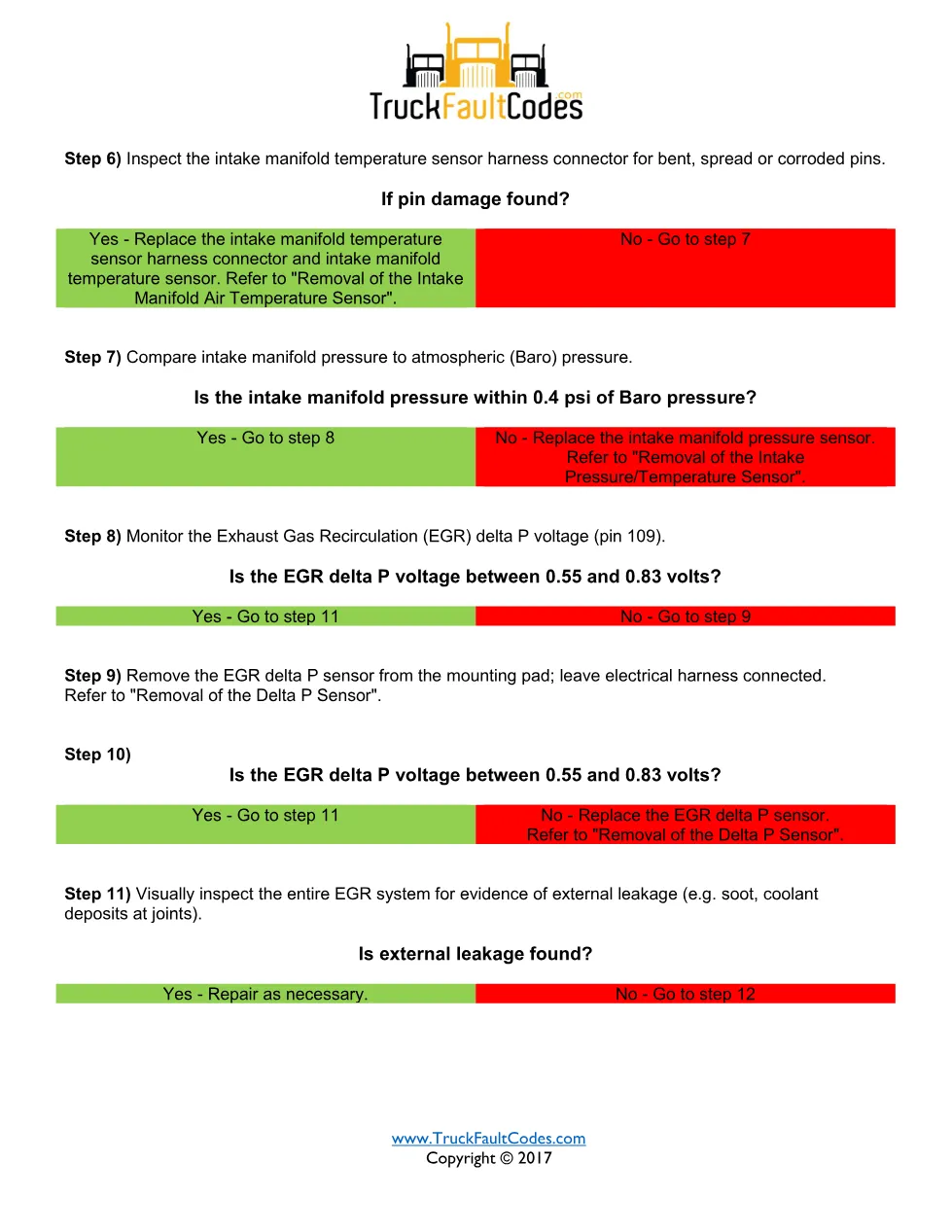

Diagnosis starts by clearing any other codes, then checks intake manifold temperature and its sensor for damaged pins, compares intake manifold pressure to barometric pressure, tests EGR delta P voltage between 0.55 and 0.83 volts on pin 109, inspects the EGR piping and exhaust for leaks or blockage, leak-checks the Charge Air Cooler, and ends with a high idle regeneration.
Applicable truck models
This guide applies to Detroit DD13, DD15 and DD16 engines built to EPA 2007 / GHG14. EGR cooler service differs between the DD13 and the DD15/DD16 per Power Service Literature. Manufacturer information is available at Detroit’s official website.
Who needs this SPN 5357 FMI 18 manual
Technicians troubleshooting a low-fueling 25% derate on DD Series engines use this document to trace intake, EGR and charge-air faults in order rather than guessing at the injector or sensor. The guide follows the factory decision-tree troubleshooting format.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
