The SPN 520271 ECA voltage overview describes Eaton Fault Code 66, ECA Battery Voltage, on the Fuller Advantage Heavy Duty transmission, where battery power to the Electric Clutch Actuator falls outside its operating range. This J1939 SPN 520271 ECA voltage page sets out the FMI thresholds, fallback and causes.
Official document details
| Brand | Eaton |
| Model coverage | Fuller Advantage Heavy Duty automated transmission with Electric Clutch Actuator |
| System / group | Fuller Advantage Heavy Duty / DTCs — Diagnostic Trouble Codes |
| Publication no. | TRTS0980 |
| Revision | 2016.06.20 |
| Pages | 3 |
| File size | 0.49 MB |
| Format | |
| Language | English |
SPN 520271 ECA voltage contents

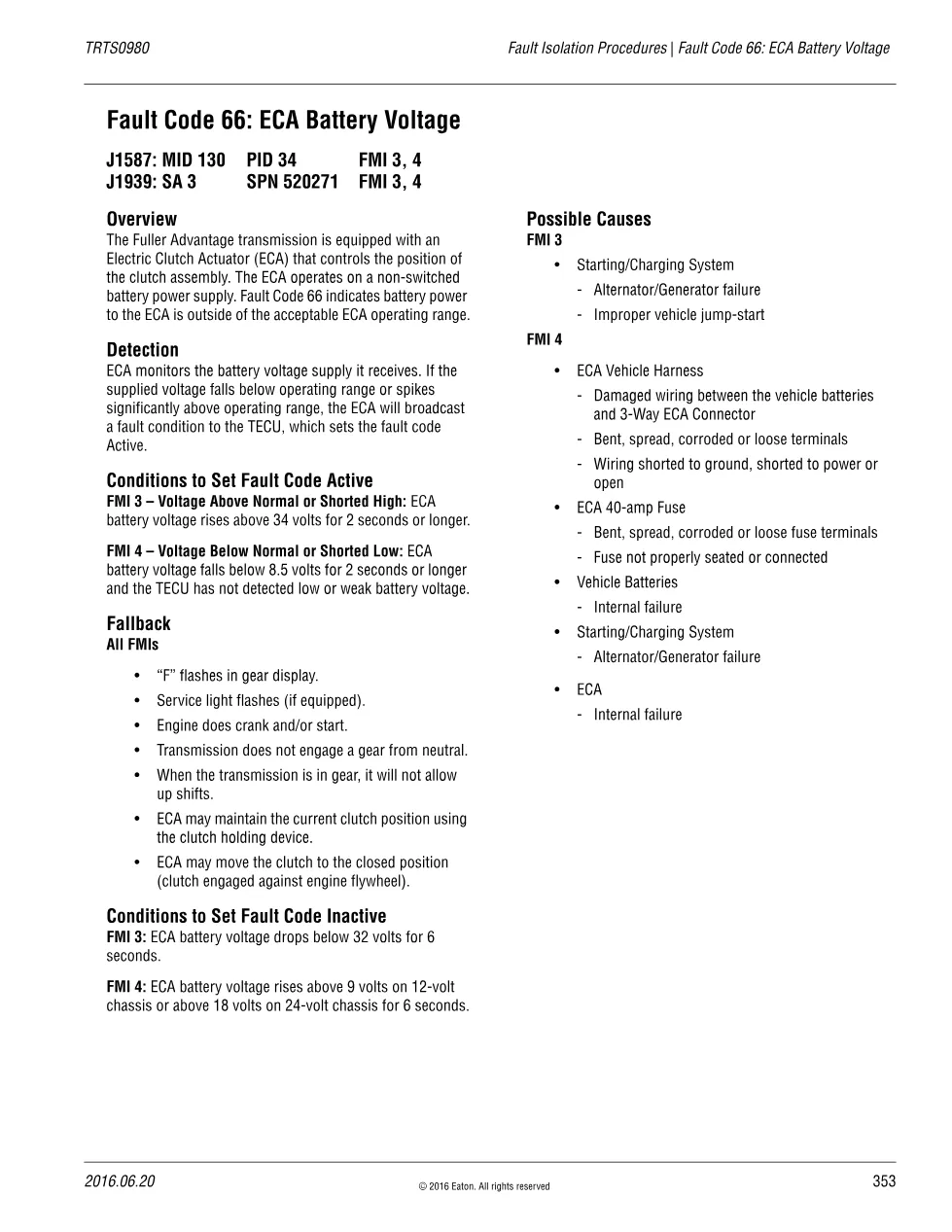

The document is organised as a set of numbered fault isolation steps, each with a stated purpose and a clear go-to branch that sends the technician to the next step, a repair or the final verification. The main sections cover:
- Overview of the Electric Clutch Actuator and its non-switched battery supply
- Detection thresholds for FMI 3 above 34 volts and FMI 4 below 8.5 volts
- Conditions that return the code Inactive at 32 volts or 9 and 18 volts
- Fallback behaviour, including the flashing F gear display
- Possible causes across the charging system, ECA Vehicle Harness and 40-amp fuse

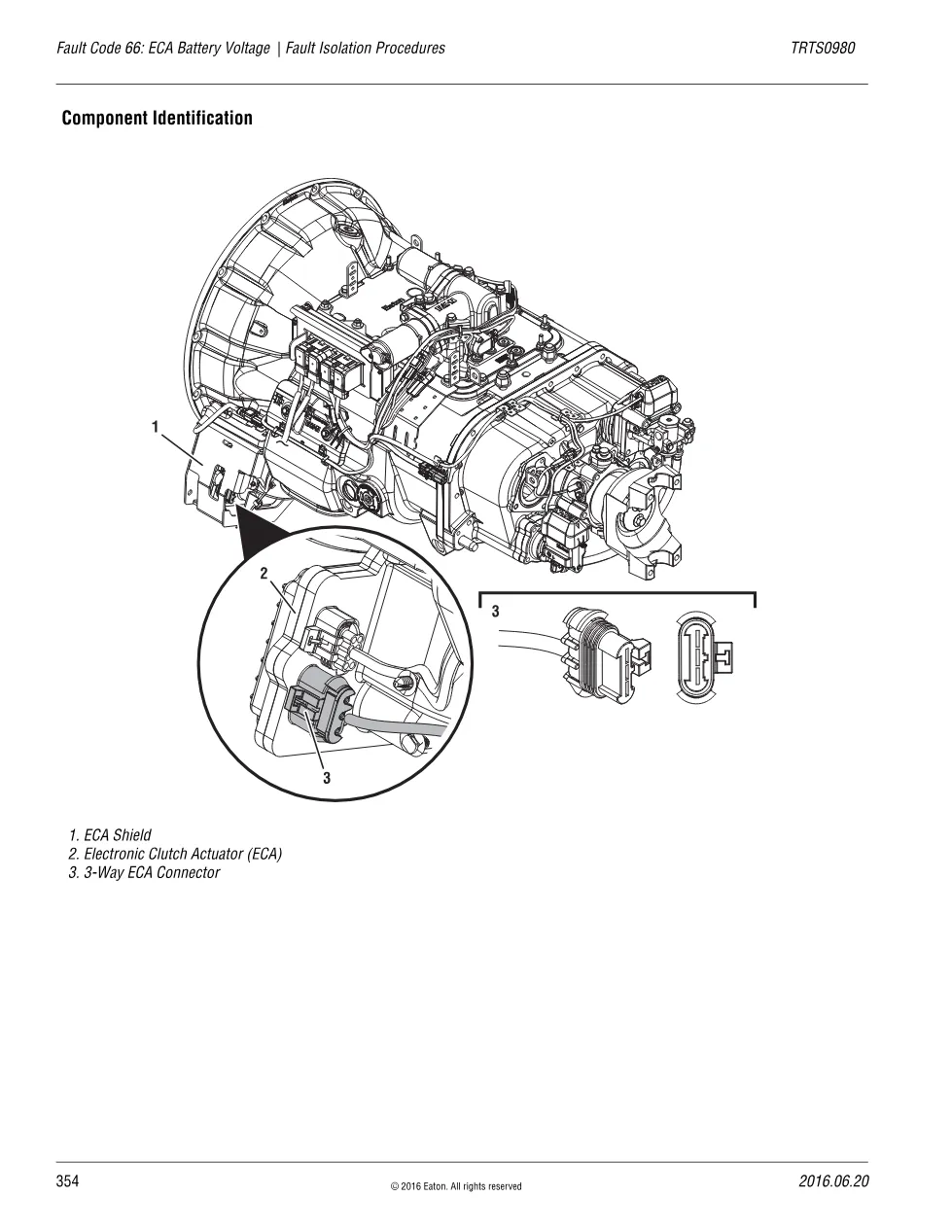

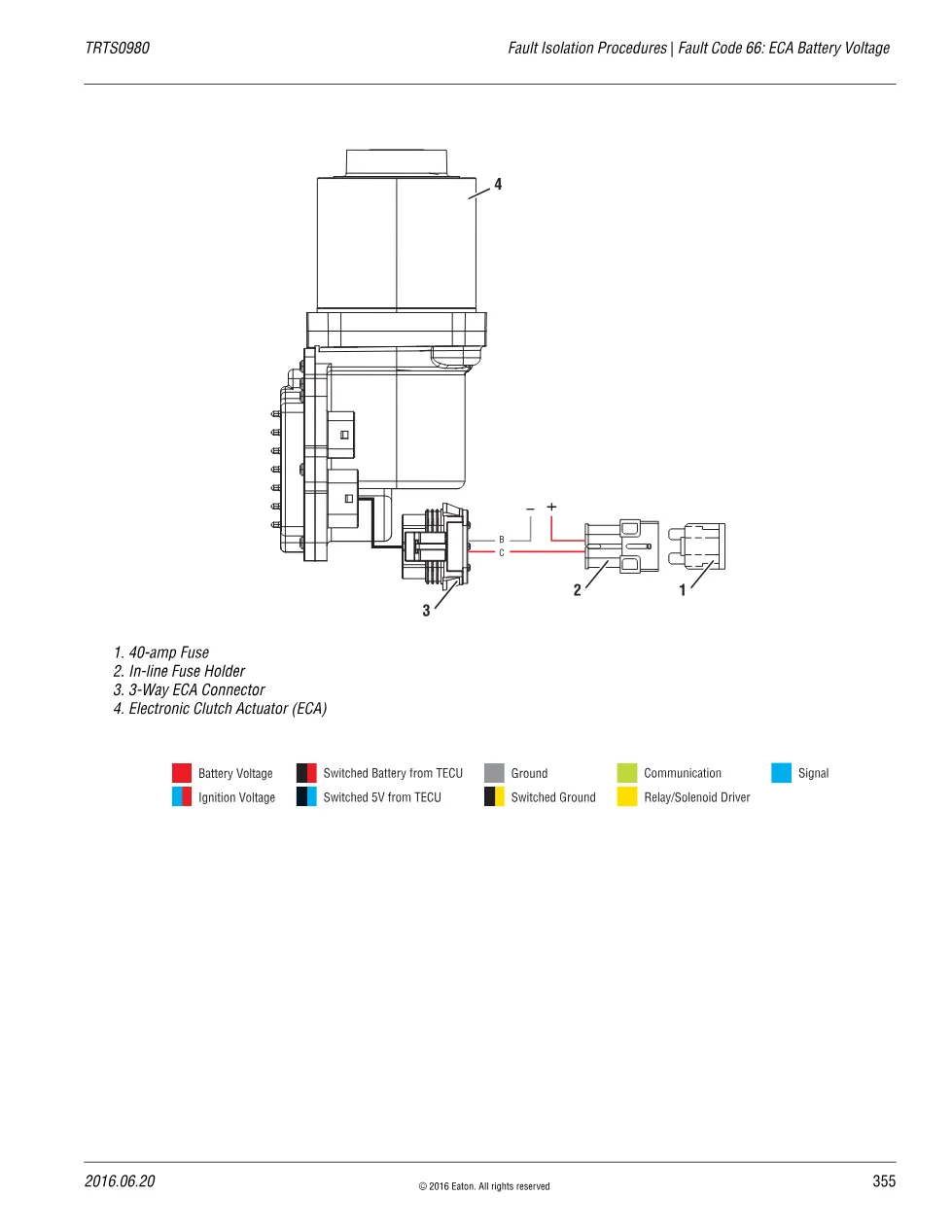

- Component identification for the ECA, ECA Shield and 3-Way ECA Connector
Applicable truck models
This overview applies to trucks fitted with the Eaton Fuller Advantage Heavy Duty automated manual transmission and its Electric Clutch Actuator, carrying J1587 MID 130 PID 34 and J1939 SA 3. Every step is performed with ServiceRanger, the Eaton diagnostic software, and cross-referenced to the wider TRTS0980 Fault Isolation Procedures manual. Manufacturer background and current service literature are published on Eaton’s official transmission website.
Who needs the SPN 520271 ECA voltage manual
A technician who reads SPN 520271 on a scan tool needs this overview to learn whether an over-voltage or under-voltage condition set the code before load testing the ECA Vehicle Harness and 40-amp fuse.
Because it is drawn straight from Eaton document TRTS0980, the page gives shop staff the same decision trees, connector pin references and pass-or-fail values the manufacturer uses, which shortens diagnosis time and supports accurate warranty documentation.
