The SPN 781 FMI 7 overview describes Eaton Fault Code 73, Failed to Engage Gear, on the Fuller Advantage Heavy Duty transmission, where the X-Y Gear Position Sensor reports the box could not reach a commanded gear. This J1939 SPN 781 FMI 7 page explains detection, fallback and probable causes.
Official document details
| Brand | Eaton |
| Model coverage | Fuller Advantage Heavy Duty automated transmission |
| System / group | Fuller Advantage Heavy Duty / DTCs — Diagnostic Trouble Codes |
| Publication no. | TRTS0980 |
| Revision | 2016.06.20 |
| Pages | 3 |
| File size | 0.96 MB |
| Format | |
| Language | English |
SPN 781 FMI 7 contents

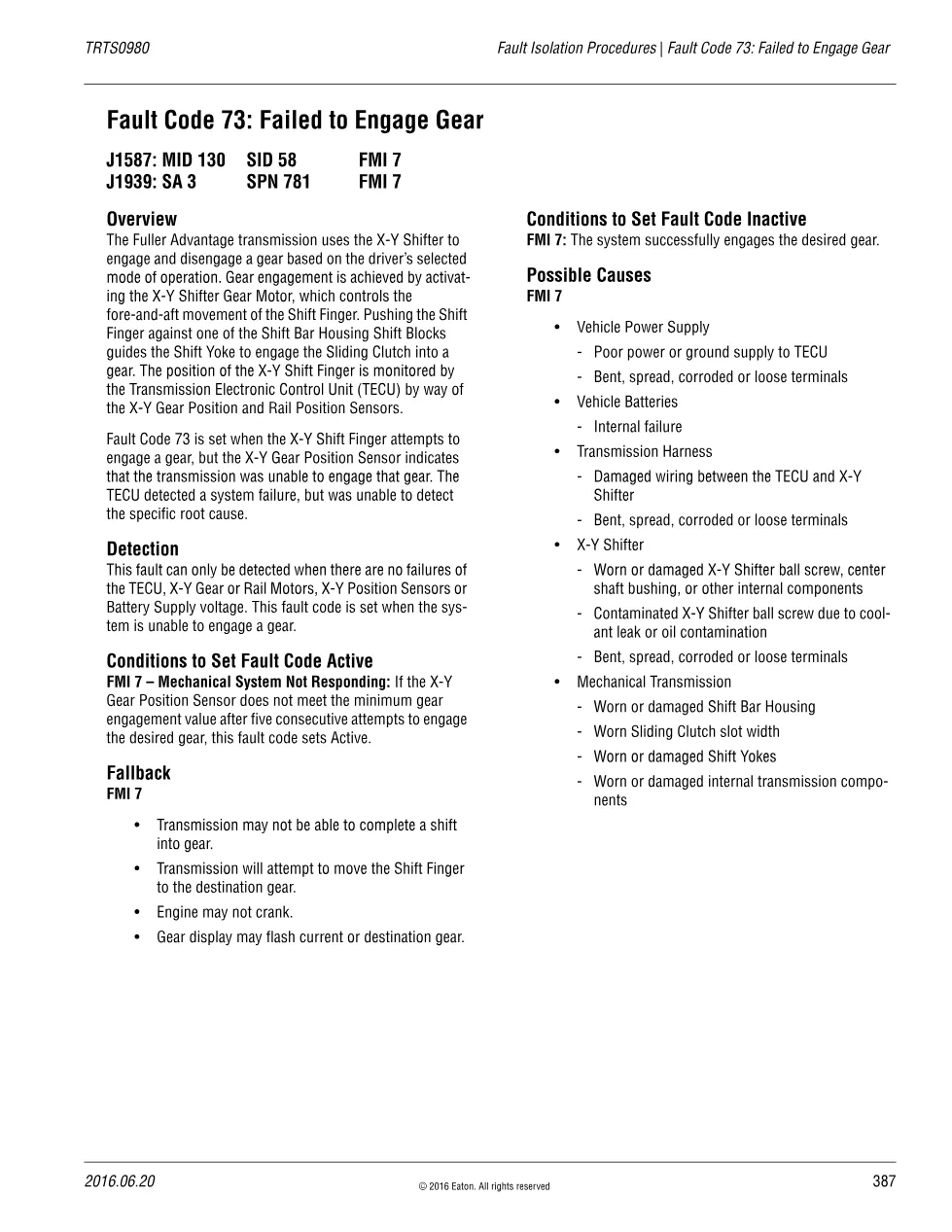

The document is organised as a set of numbered fault isolation steps, each with a stated purpose and a clear go-to branch that sends the technician to the next step, a repair or the final verification. The main sections cover:
- Overview of X-Y Shifter gear engagement and the Shift Finger
- Fault detection logic monitored by the TECU
- Conditions that set FMI 7, Mechanical System Not Responding, Active and Inactive
- Fallback behaviour and gear-display symptoms
- Possible causes across power supply, harness, X-Y Shifter and mechanical transmission

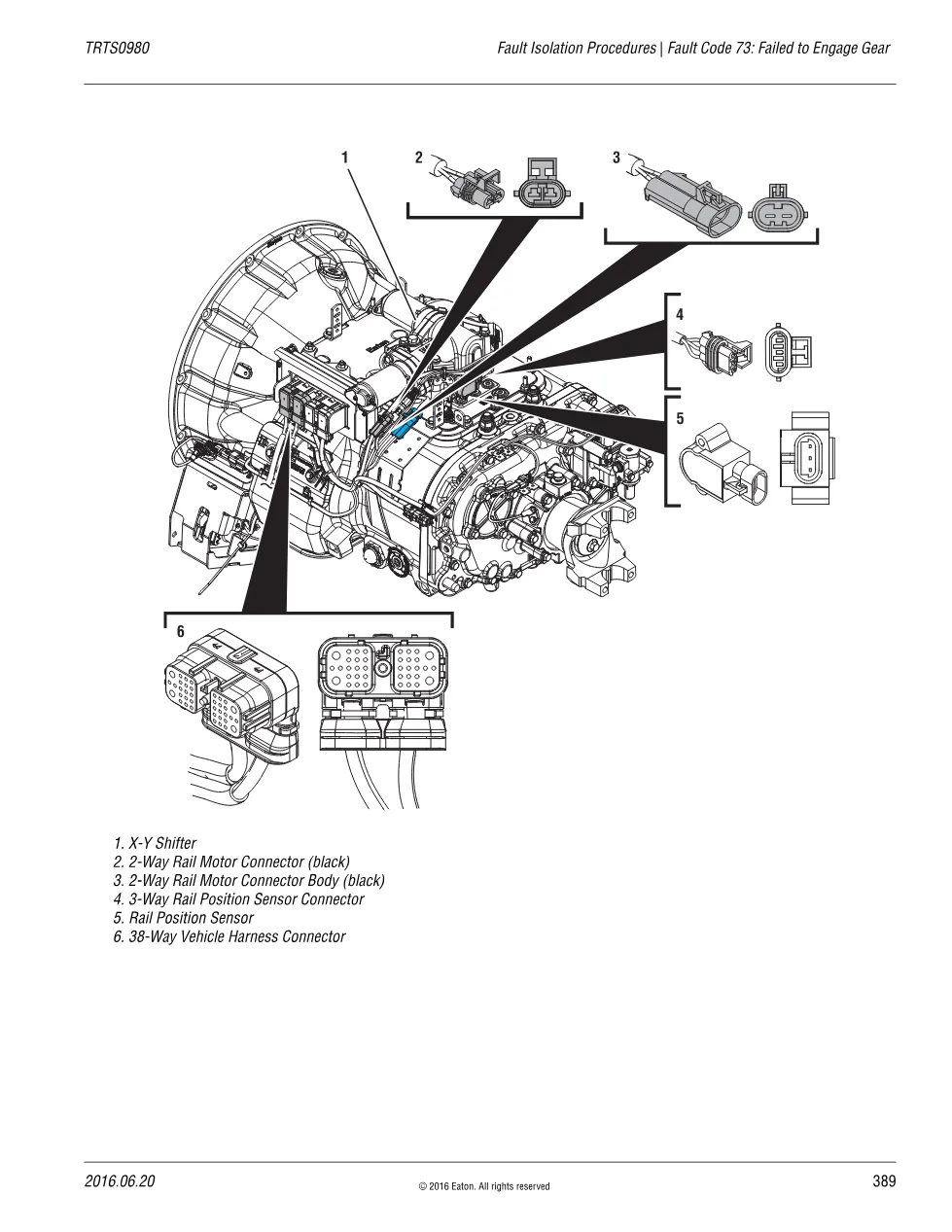

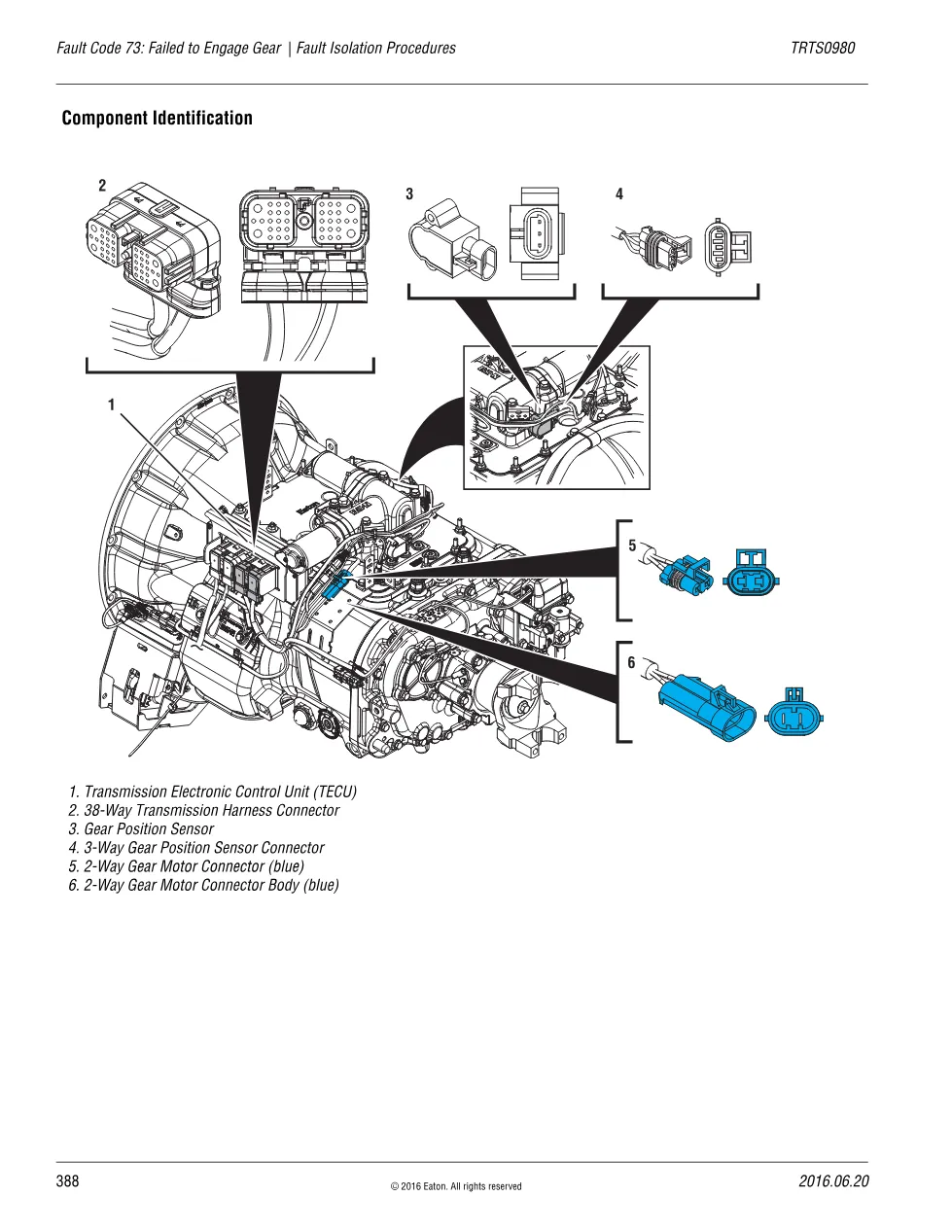

- Component identification for the Gear Position Sensor, Gear Motor and Rail Motor connectors
Applicable truck models
This overview applies to trucks fitted with the Eaton Fuller Advantage Heavy Duty automated manual transmission, its Transmission Electronic Control Unit (TECU) and X-Y Shifter, carrying J1587 MID 130 SID 58 and J1939 SA 3. Every step is performed with ServiceRanger, the Eaton diagnostic software, and cross-referenced to the wider TRTS0980 Fault Isolation Procedures manual. Manufacturer background and current service literature are published on Eaton’s official transmission website.
