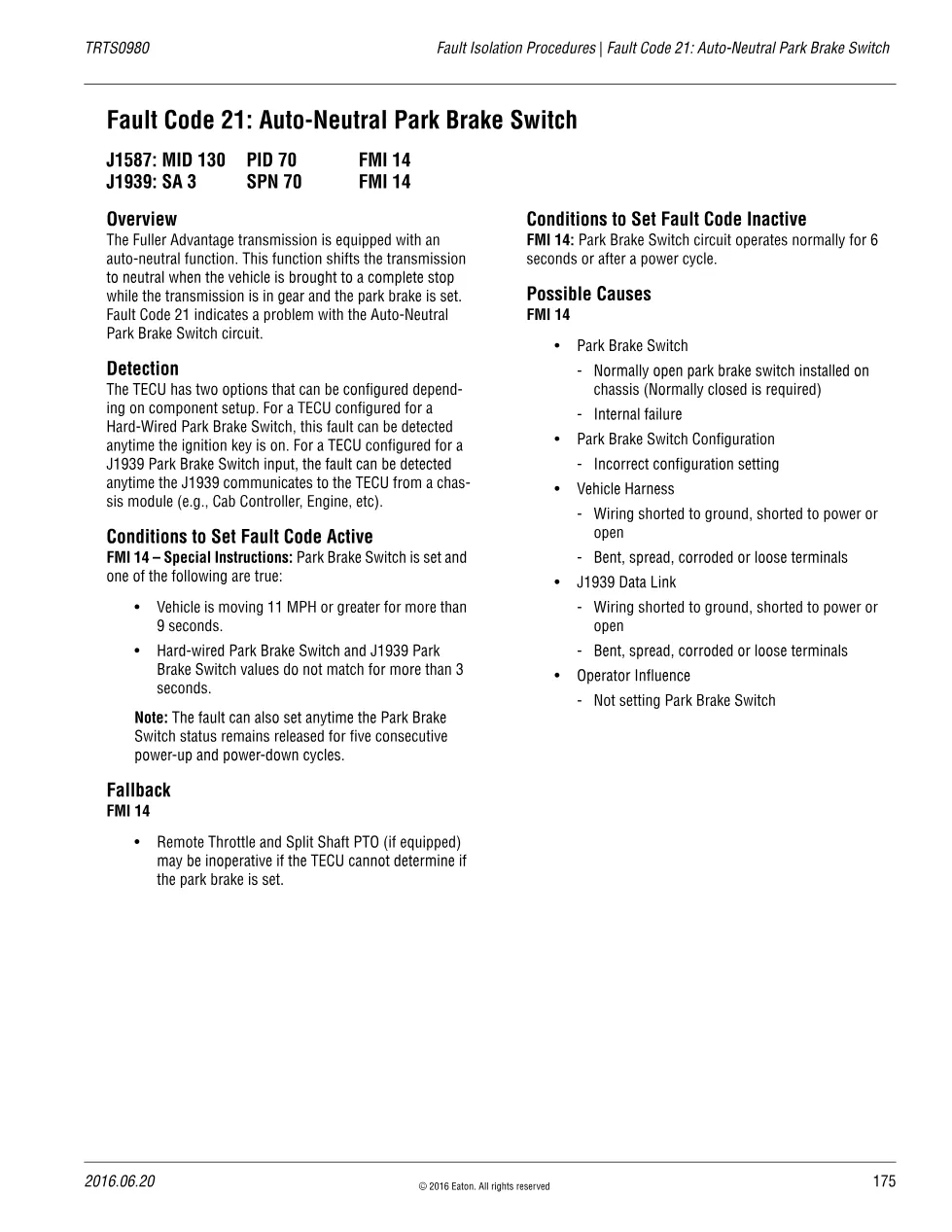

Park Brake Switch problems set Eaton Fault Code 21 on the Fuller Advantage Heavy Duty transmission, which uses an auto-neutral function to drop into neutral when the vehicle stops in gear with the brake set. This two-page section of publication TRTS0980 defines the J1939 SPN 70 FMI 14 condition for both hard-wired and J1939 inputs, the speed and mismatch triggers, and the wiring and configuration causes. It underpins any auto-neutral complaint.
Official document details
| Brand | Eaton |
|---|---|
| Model coverage | Fuller Advantage & Fuller Advantage Heavy Duty automated transmission |
| System / Group | DTCs – Fault Isolation Procedures |
| Publication no. | TRTS0980 |
| Year / Revision | 2016 (Rev. 2016.06.20) |
| Pages | 2 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Park Brake Switch table of contents
- Overview and fault description
- Detection method
- Conditions to set the fault code active
- Fallback and dashboard symptoms
- Conditions to set the fault code inactive
- Possible causes

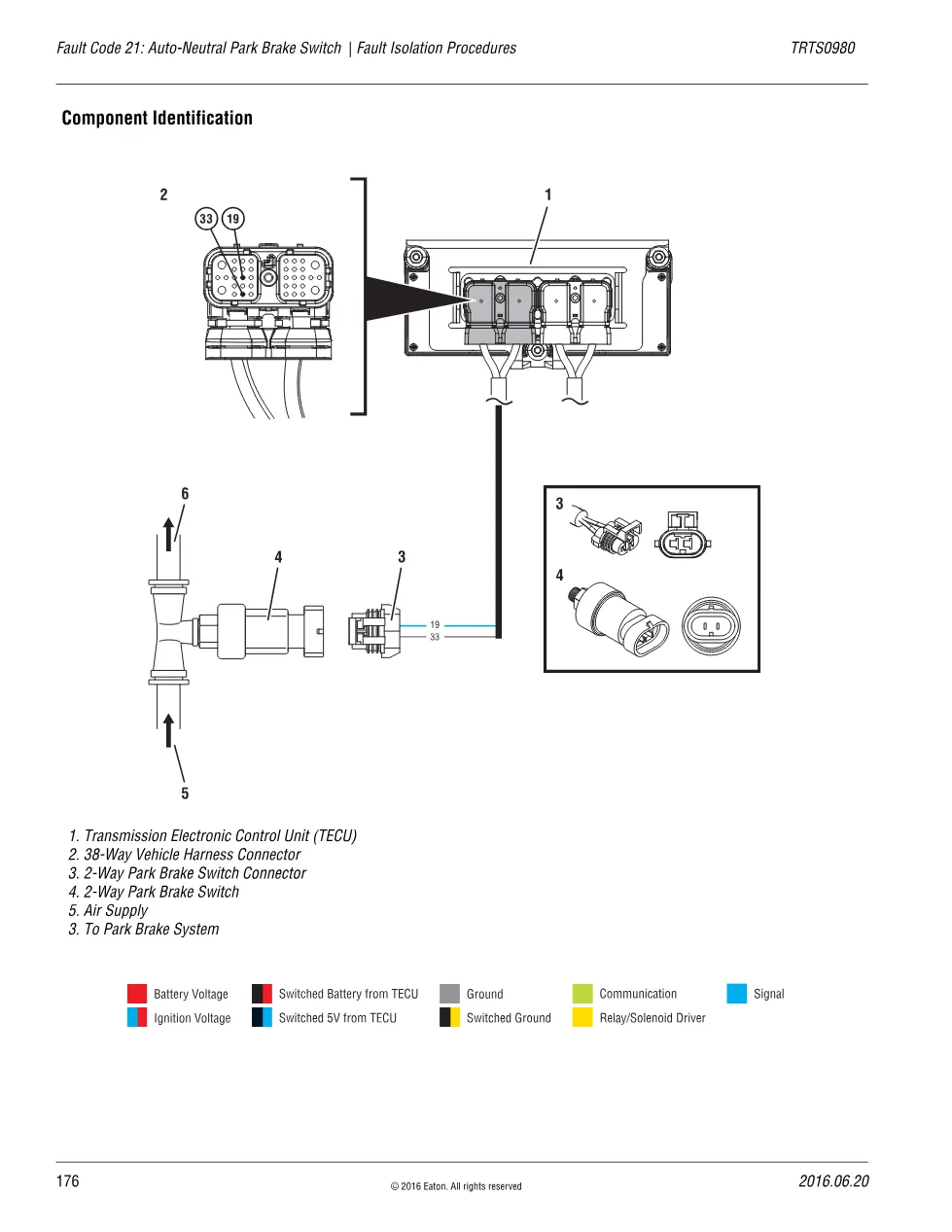

- Component identification
Applicable truck models covered
This definition covers Eaton Fuller Advantage and Fuller Advantage Heavy Duty automated transmissions on any chassis OEM, including installations wired for either a hard-wired or a J1939 input. The switch must be normally closed, and its wiring, the 2-Way connector and the J1939 data link follow OEM routing. Transmission data is published on the manufacturer’s official Eaton transmissions website.
