This one-page style reference documents Detroit fault code SPN 4356 FMI 3, the DEF line heater 3 circuit circuit failed high condition on DD Series (EPA 2007-current) aftertreatment systems. It walks the technician through inspecting the harness for bent, spread or corroded pins, disconnecting the ACM 120-pin connector, and measuring resistance to separate a wiring fault from a failed component. The procedure is sourced from the TruckFaultCodes.com Detroit fault-code library (© 2017) and mirrors the checks in Detroit Power Service Literature.
SPN 4356 FMI 3 document details
| Brand | Detroit |
|---|---|
| Model coverage | DD Series (EPA 2007-current) diesel engines |
| System / group | DEF Line Heater 3 Circuit — DTCs |
| Diagnostic trouble code | 4356 / 3 (circuit failed high) |
| Source / revision | TruckFaultCodes.com, © 2017 |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification and affected system
- Fault description and dash-lamp reaction

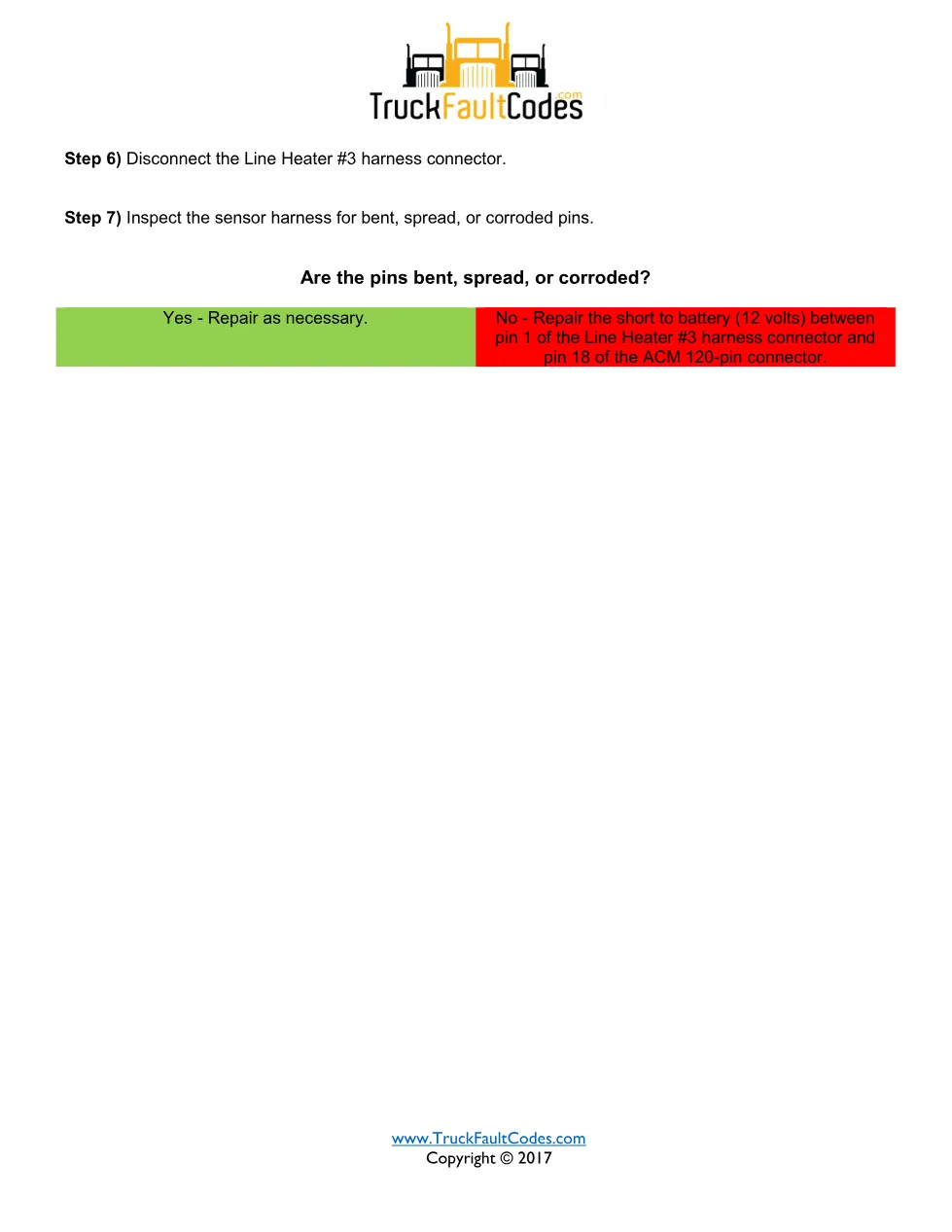

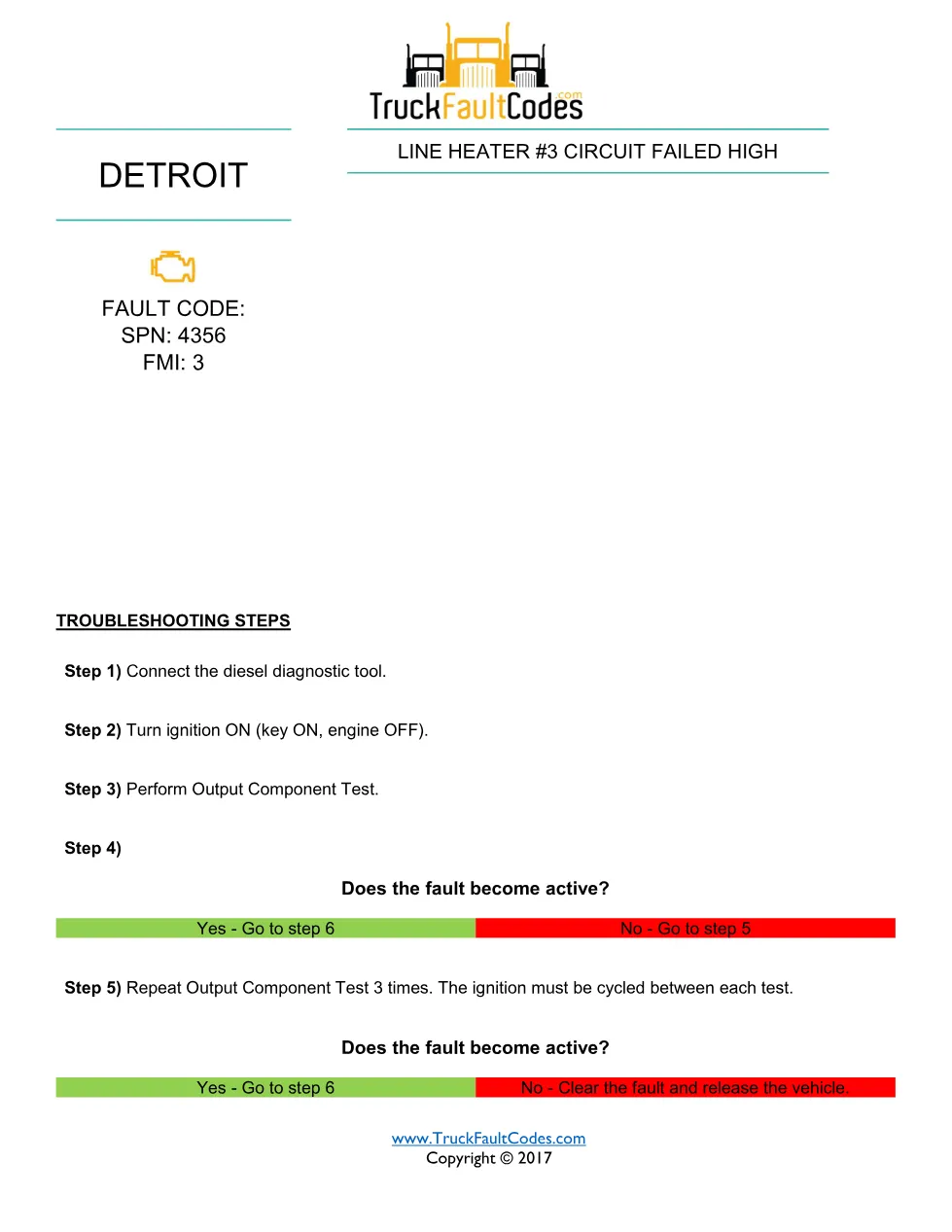

- Step-by-step troubleshooting procedure
- Harness connector and terminal pin inspection
- Resistance measurement and short-circuit checks
- Wiring repair and component replacement guidance
