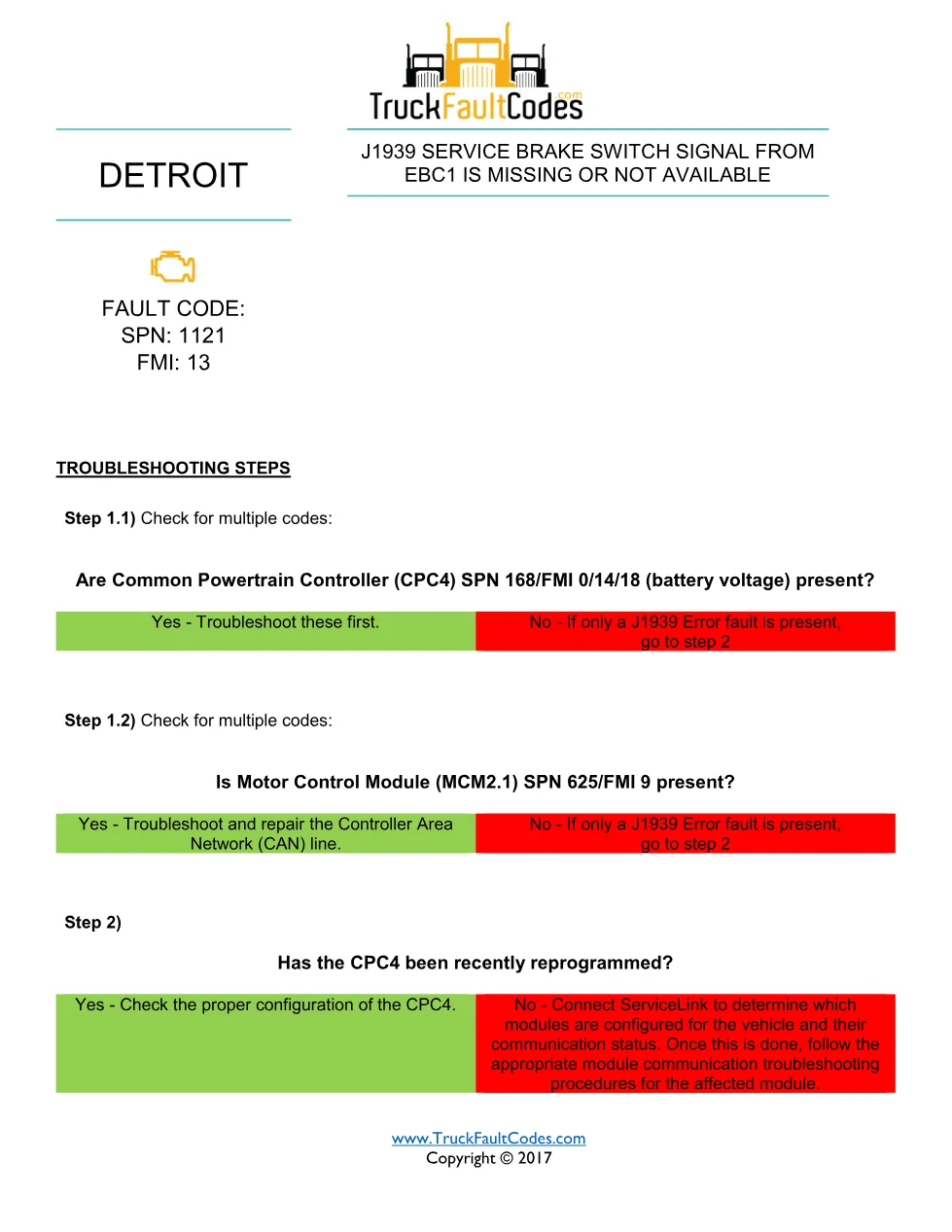

SPN 1121 FMI 13 is the Detroit DD Series fault-code troubleshooting sheet that documents a missing or unavailable J1939 service brake switch signal from EBC1 on the Motor Control Module engine platform. This 1-page reference reproduces the fault-code identification and the factory decision tree so a technician can diagnose the concern before replacing parts.
Official document details — SPN 1121 FMI
| Brand | Detroit |
|---|---|
| Model coverage | Detroit DD Series (EPA 2007-Current) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Fault code | FMI 13 under SPN 1121 (GHG14) |
| Source | Detroit fault-code literature via TruckFaultCodes.com, © 2017 |
| Pages | 1 |
| Format | |
| Language | English |
SPN 1121 FMI 13 fault description
This is a data-link communication fault rather than a mechanical failure. The procedure first has the technician check for related codes, including Common Powertrain Controller (CPC4) battery-voltage codes on SPN 168 and a Motor Control Module (MCM2.1) CAN code on SPN 625/FMI 9, and troubleshoot those first. If only the J1939 error is present, it directs the technician to confirm whether the CPC4 was recently reprogrammed and to verify its configuration, then to connect ServiceLink to determine which modules are configured and their communication status before following the affected module’s communication procedure.
The SPN 1121 FMI 13 sheet identifies the following likely causes and check points:
- Check for concurrent CPC4 SPN 168 battery-voltage codes
- Check for MCM2.1 SPN 625/FMI 9 Controller Area Network codes
- Verify CPC4 configuration after any reprogramming
- Use ServiceLink to confirm module communication status
Document table of contents
- Fault code identification
- Check for multiple codes
- CPC4 configuration verification
- Module communication troubleshooting with ServiceLink
Service tools referenced
- ServiceLink diagnostic software
Applicable truck models
This troubleshooting sheet applies to Detroit DD Series engines built from EPA 2007 to current that use the Motor Control Module (MCM) and Common Powertrain Controller architecture. Confirm the engine’s emissions family and calibration against the manufacturer’s official documentation at the Detroit engine website before repairs.
