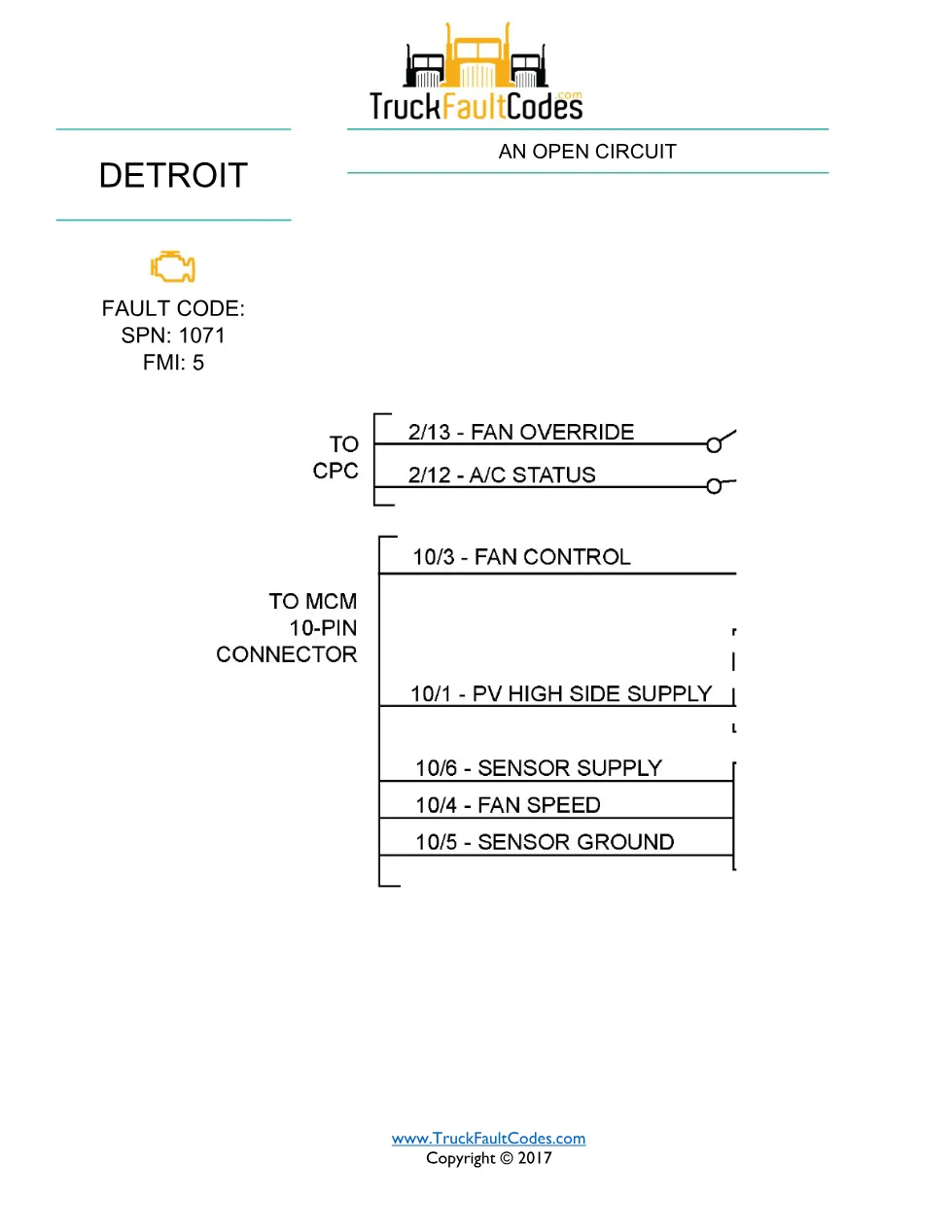

SPN 1071 FMI 5 is the Detroit DD Series fault-code troubleshooting sheet that documents an open circuit on the variable-speed fan control solenoid output on the Motor Control Module engine platform. This 4-page reference reproduces the fault-code identification and the factory decision tree so a technician can diagnose the concern before replacing parts.
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | Detroit DD Series (EPA 2007-Current) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Fault code | FMI 5 under SPN 1071 (ALL YEARS) |
| Source | Detroit fault-code literature via TruckFaultCodes.com, © 2017 |
| Pages | 4 |
| Format | |
| Language | English |
SPN 1071 FMI 5 fault description

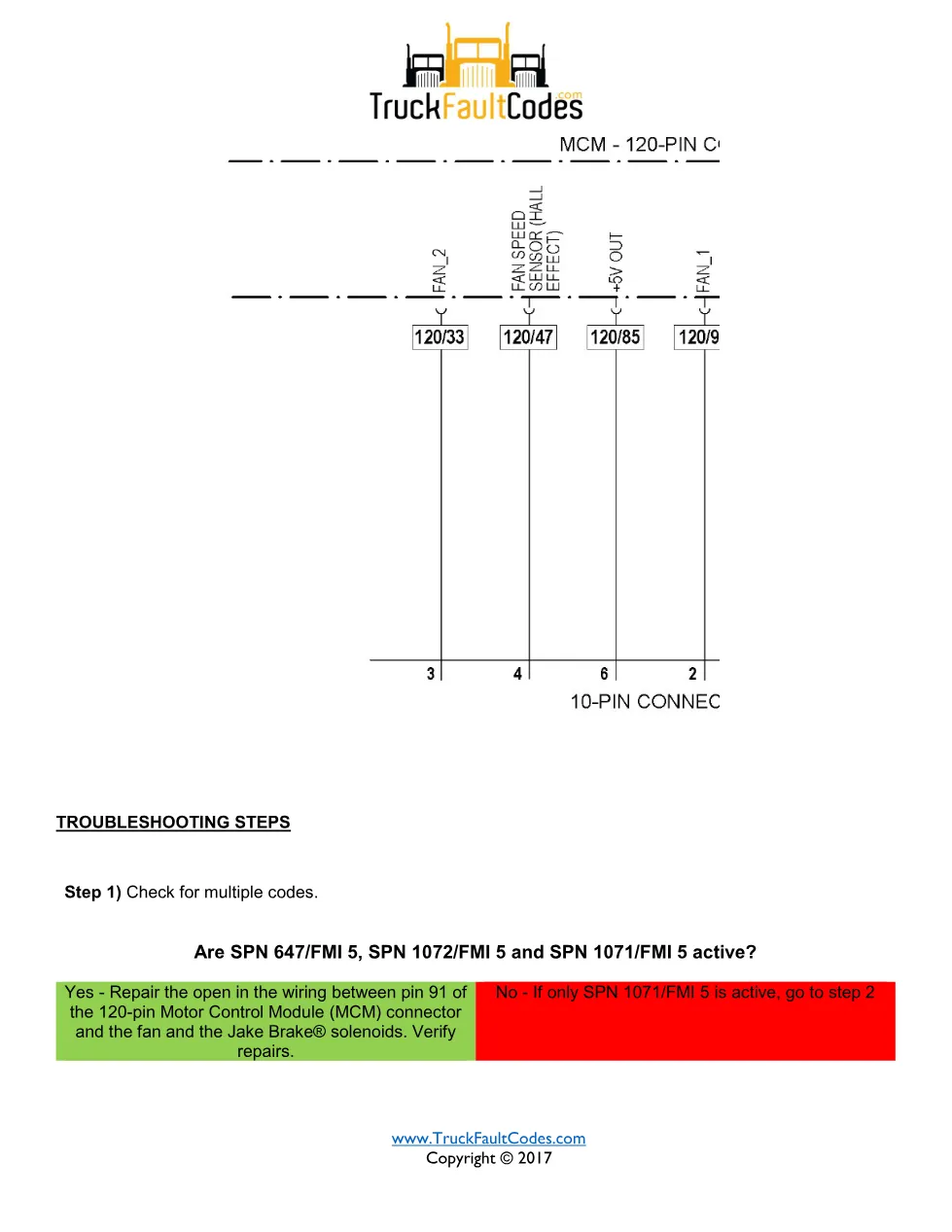

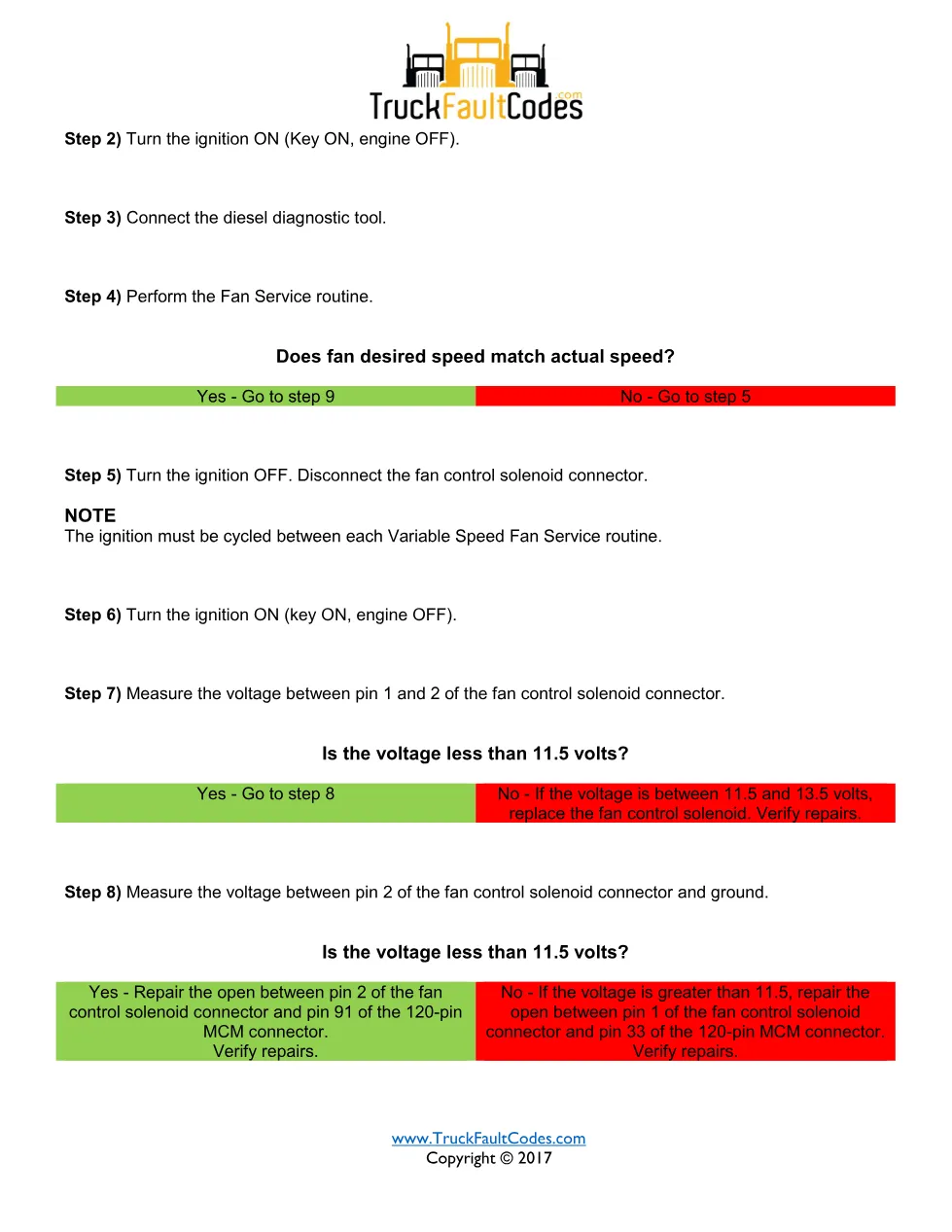

The four-page procedure first checks whether SPN 647/FMI 5, SPN 1072/FMI 5 and this code are all active, which points to a shared open between pin 91 of the Motor Control Module (MCM) 120-pin connector and the fan and Jake Brake solenoids. If only this code is present, the technician runs the Fan Service routine and compares desired to actual fan speed, then measures voltage at the fan control solenoid connector. Depending on the readings, the fault resolves to a failed fan control solenoid or an open between the solenoid pins and pins 91 or 33 of the MCM connector.
The SPN 1071 FMI 5 sheet identifies the following likely causes and check points:
- Shared open toward pin 91 of the MCM when multiple codes are active
- Low voltage at the fan control solenoid connector
- Failed fan control solenoid
- Open between the solenoid and pin 91 or pin 33 of the MCM
