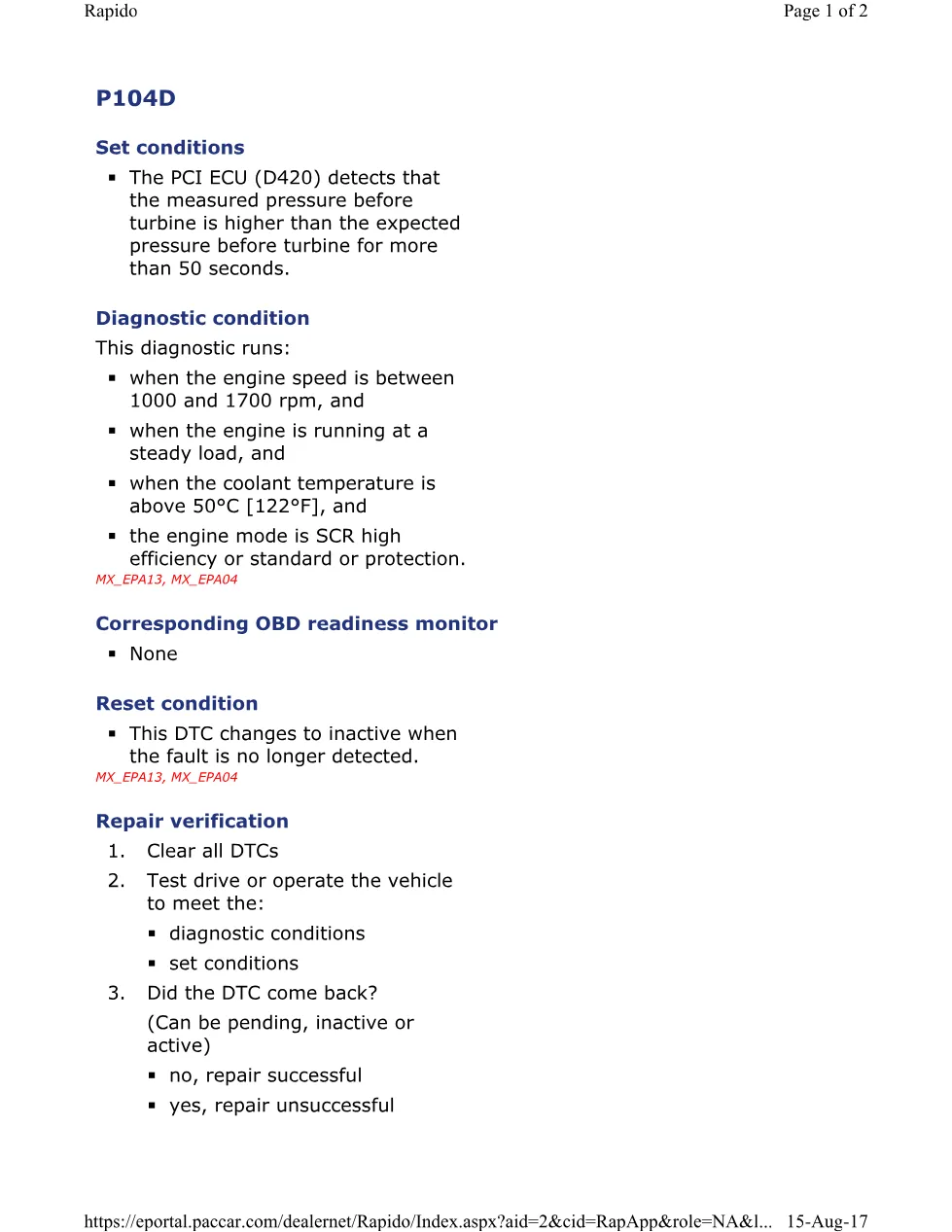

This is the PACCAR P104D turbocharged pressure diagnostic manual, a technical reference document published by PACCAR for mechanics and technicians servicing MX Europe EPA 2004 diesel engines. The document covers diagnostic procedures, set conditions, and repair verification steps for DTC P104D, which is triggered when the PCI ECU detects measured pressure before turbine exceeding expected thresholds for more than 50 seconds.
The PACCAR P104D turbocharged pressure document provides essential troubleshooting guidance for turbocharger system faults on qualifying truck platforms.
Document details and specifications — PACCAR P104D turbocharged
| Brand | PACCAR |
| Model coverage | MX Europe EPA 2004 engines |
| System/Group | DTCs / MX Europe Engines (EPA 2004) |
| Publication no. | M033223 |
| Year/Revision | 15-Aug-2017 (02.22.2017) |
| Pages | 2 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Table of contents
- Set conditions — engine speed, load, and coolant temperature requirements
- Diagnostic condition — operating parameters for DTC activation
- Corresponding OBD readiness monitor
- Reset condition — fault inactivity criteria
- Repair verification — test drive and DTC retest procedure

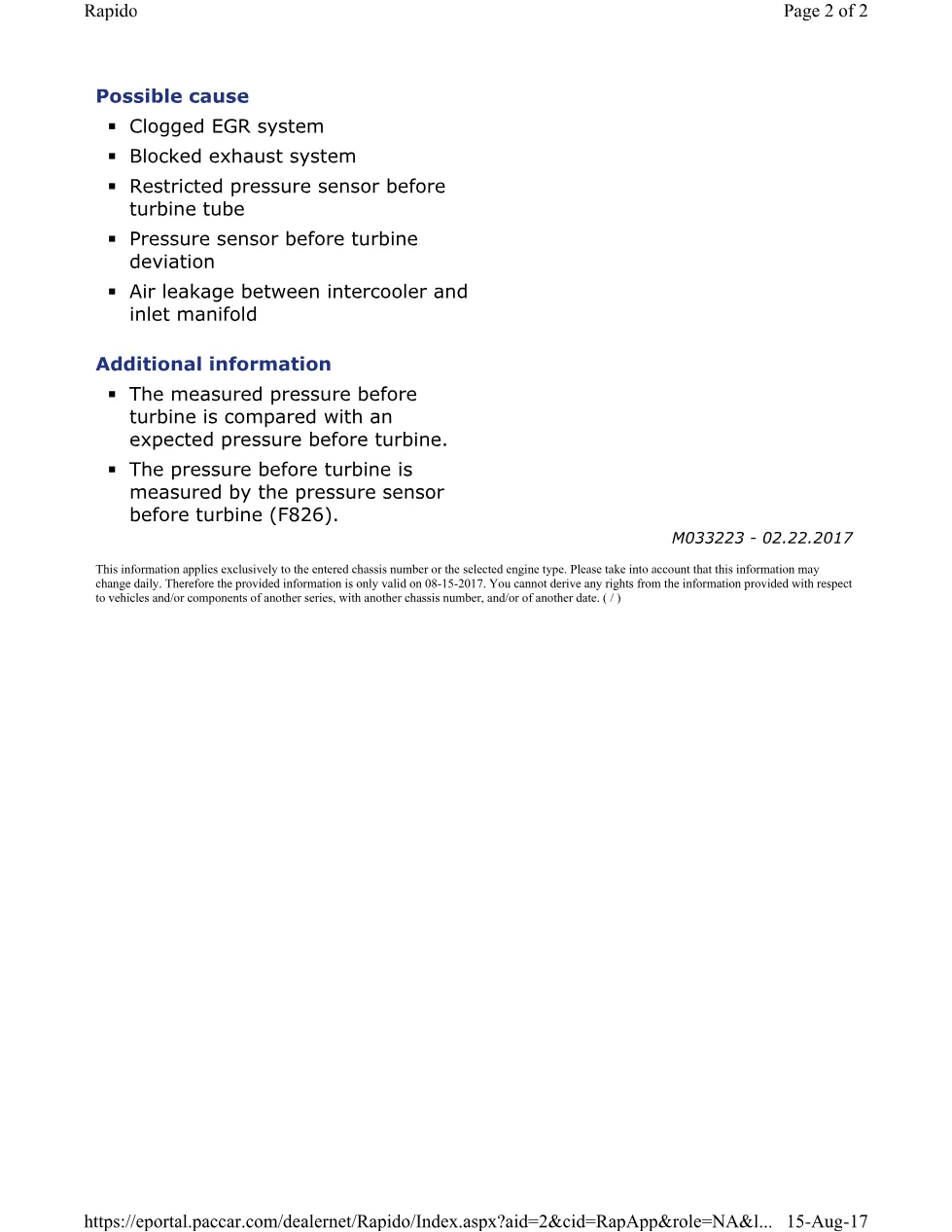

- Possible cause — EGR blockage, exhaust restriction, sensor deviation
- Additional information — pressure sensor reference and measurement method
Applies to these models
The P104D turbocharged pressure diagnostic applies exclusively to PACCAR MX Europe EPA 2004 engines with PCI ECU (D420) control systems. This includes trucks equipped with pressure sensor before turbine (F826) and SCR engine modes (high efficiency, standard, or protection). Coverage includes both MX_EPA13 and MX_EPA04 compliant powerplants. For complete application scope and chassis-specific details, consult PACCAR official website.
Who needs this P104D turbocharged pressure manual
Diesel mechanics, fleet technicians, and workshop owners diagnosing turbocharger faults on PACCAR MX Europe engines require the P104D turbocharged pressure manual. This guide streamlines fault isolation for clogged EGR systems, blocked exhaust paths, restricted sensor tubes, and intercooler air leaks that trigger P104D codes.
The complete P104D turbocharged pressure document is available in the DiagTechPro manuals library; a free account is required to download the PDF.
