This PACCAR P1057 fault code diagnostic manual is the official 2013 MX Engine Diagnostic Service document published by PACCAR for heavy-duty truck technicians. The guide provides comprehensive troubleshooting procedures for the pressure before turbine diagnostic fault, covering sensor inspection, electrical testing, and step-by-step repair validation.
The PACCAR P1057 fault code indicates that measured exhaust gas pressure before the turbine is lower than expected, affecting critical engine systems including the VTG turbocharger control, EGR flow regulation, and engine brake operation.
Document details and specifications — PACCAR P1057 fault
| Brand | PACCAR |
| Model coverage | 2013 MX Series Engines |
| System/Group | DTCs / MX Engines (EPA 2013) |
| Publication no. | P1057 |
| Year/Revision | 2013 |
| Pages | 5 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Table of contents

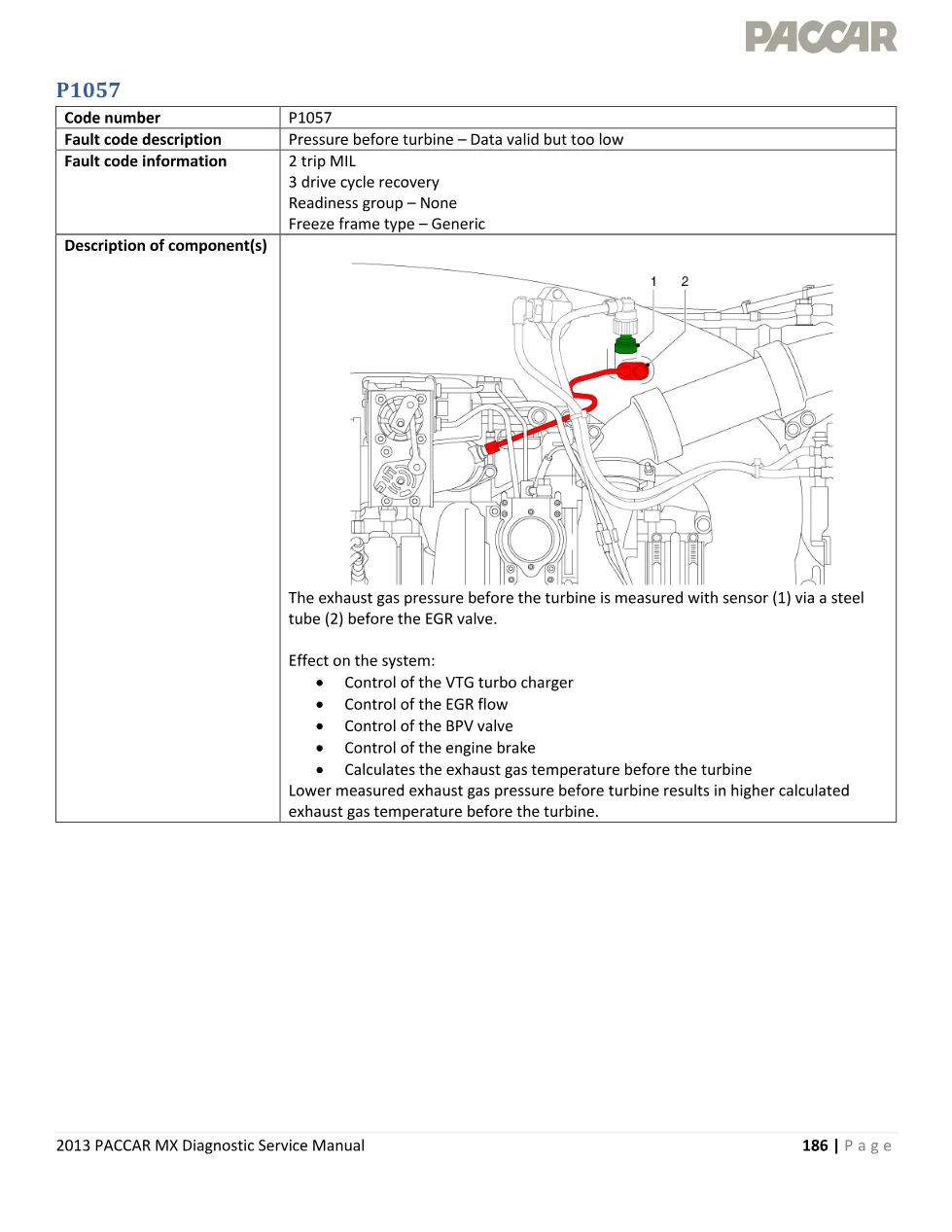

- Fault code description and information
- Description of components and system effects

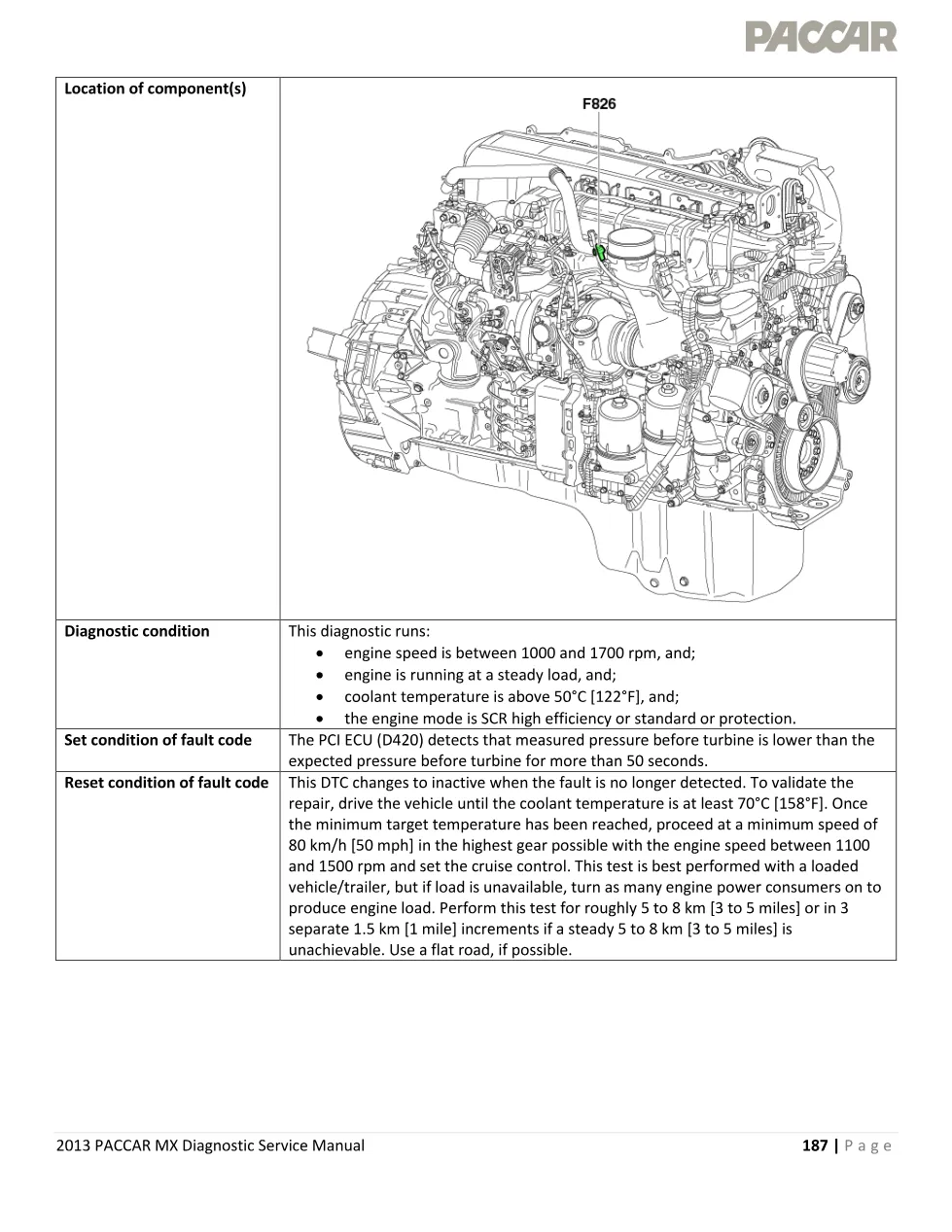

- Location of components
- Diagnostic conditions and fault set criteria
- Reset conditions and verification drive cycle

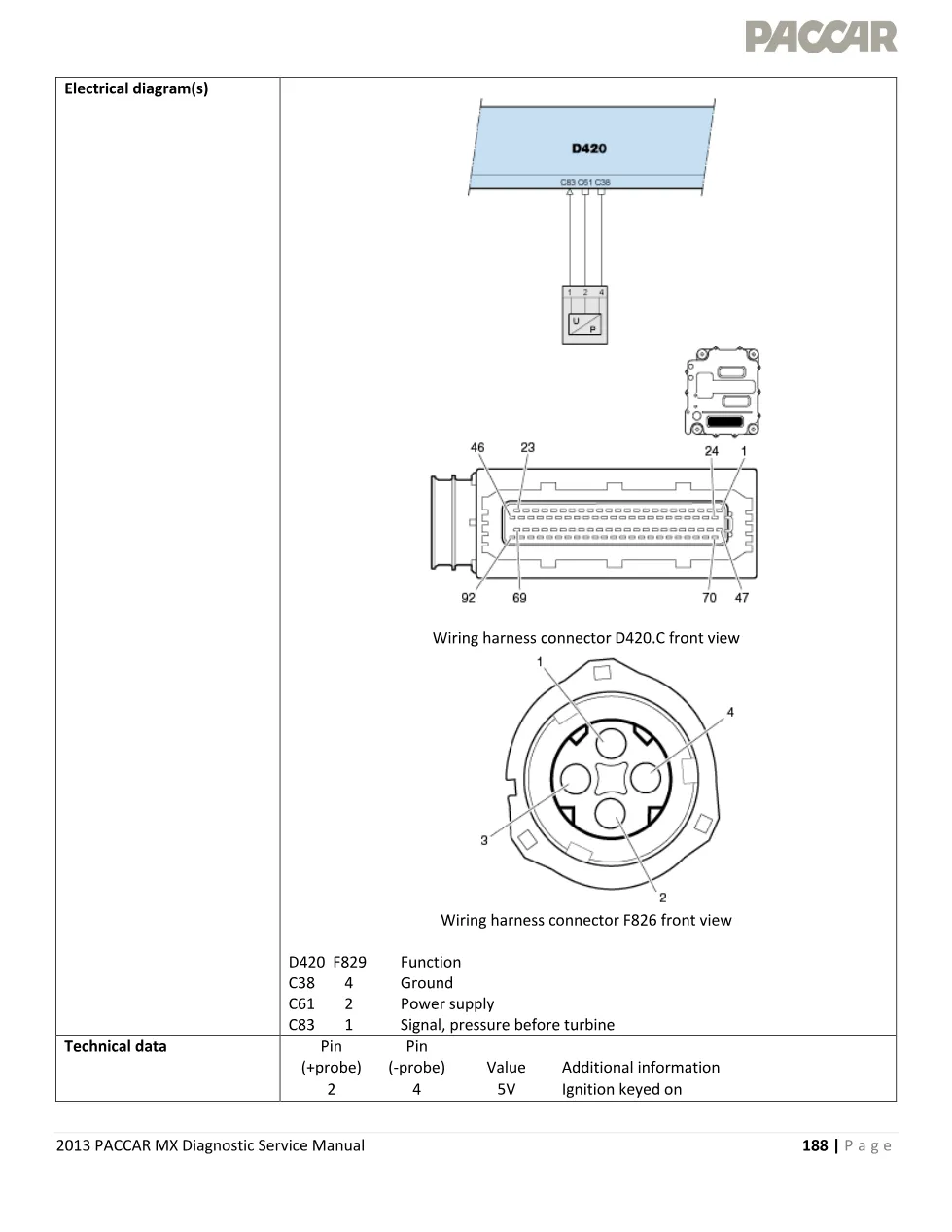

- Electrical diagrams and connector pinouts
- Technical data and voltage specifications
- Possible causes and additional information
- Six-step diagnostic troubleshooting procedure
- DAVIE monitoring and sensor testing
- Visual inspection and component replacement
- PACCAR Engine Support contact information
Applies to these models
This P1057 fault code manual applies to 2013 PACCAR MX Series diesel engines equipped with SCR emission control systems. The diagnostic procedures cover the exhaust gas pressure sensor mounted before the turbine and its associated control circuits. For complete technical support and engine specifications, visit PACCAR official website.
Who needs this P1057 fault code manual
Diesel truck mechanics and workshop owners diagnosing exhaust system pressure faults on PACCAR MX engines need this manual. The step-by-step troubleshooting guide walks technicians through sensor testing, air system leak checks, and component replacement procedures required to resolve the pressure before turbine code.
The complete P1057 fault code diagnostic manual is available in the DiagTechPro manuals library. A free account is required to download the full 5-page PDF.
