The PACCAR MX U1011 diagnostic addresses CAN communication hardware or software faults affecting the E-CAN bus in 2013 PACCAR MX engines. Published by PACCAR, this 22-page service manual provides detailed troubleshooting and component diagnostic procedures for mechanics and workshop technicians working on heavy-duty diesel truck engines subject to EPA 2013 emissions standards.
Code U1011 triggers one MIL illumination and one Stop Engine lamp activation per trip, requiring three drive cycles for recovery. This comprehensive fault documentation covers all E-CAN networked components including the humidity sensor, EGR valve module, backpressure valve, and VTG turbo charger actuator.
Document details and specifications — PACCAR MX U1011
| Brand | PACCAR |
| Model coverage | MX Engines (2013) |
| System/Group | DTCs / MX Engines (EPA2013) |
| Year/Revision | 2013 |
| Pages | 22 |
| File size | 1.3 MB |
| Format | |
| Language | English |
Table of contents
- Code number and fault code description

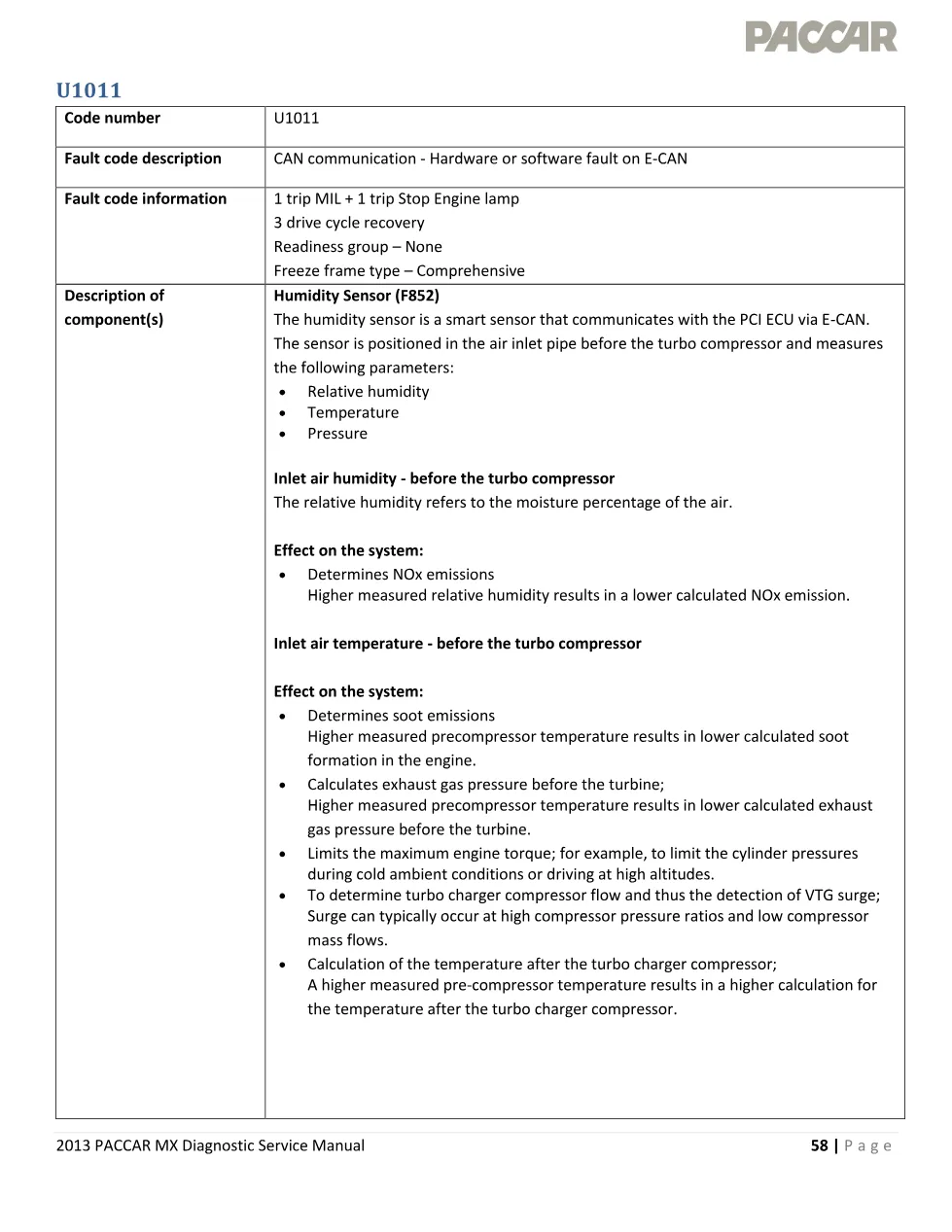

- Component descriptions: Humidity Sensor (F852), EGR Valve Module (L095), Backpressure Valve (L096), VTG Turbo Charger Actuator (L037)

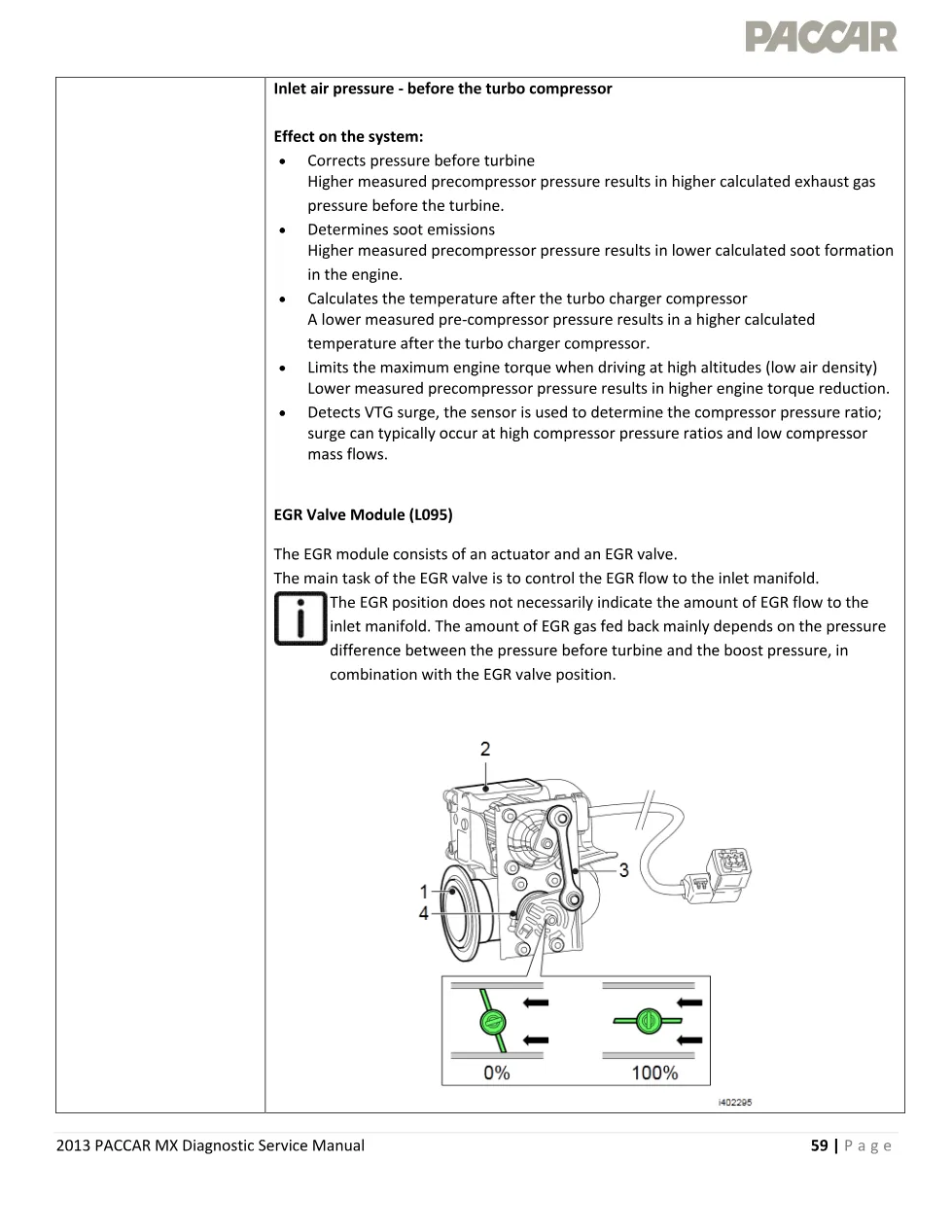

- Inlet air humidity, temperature, and pressure measurement effects

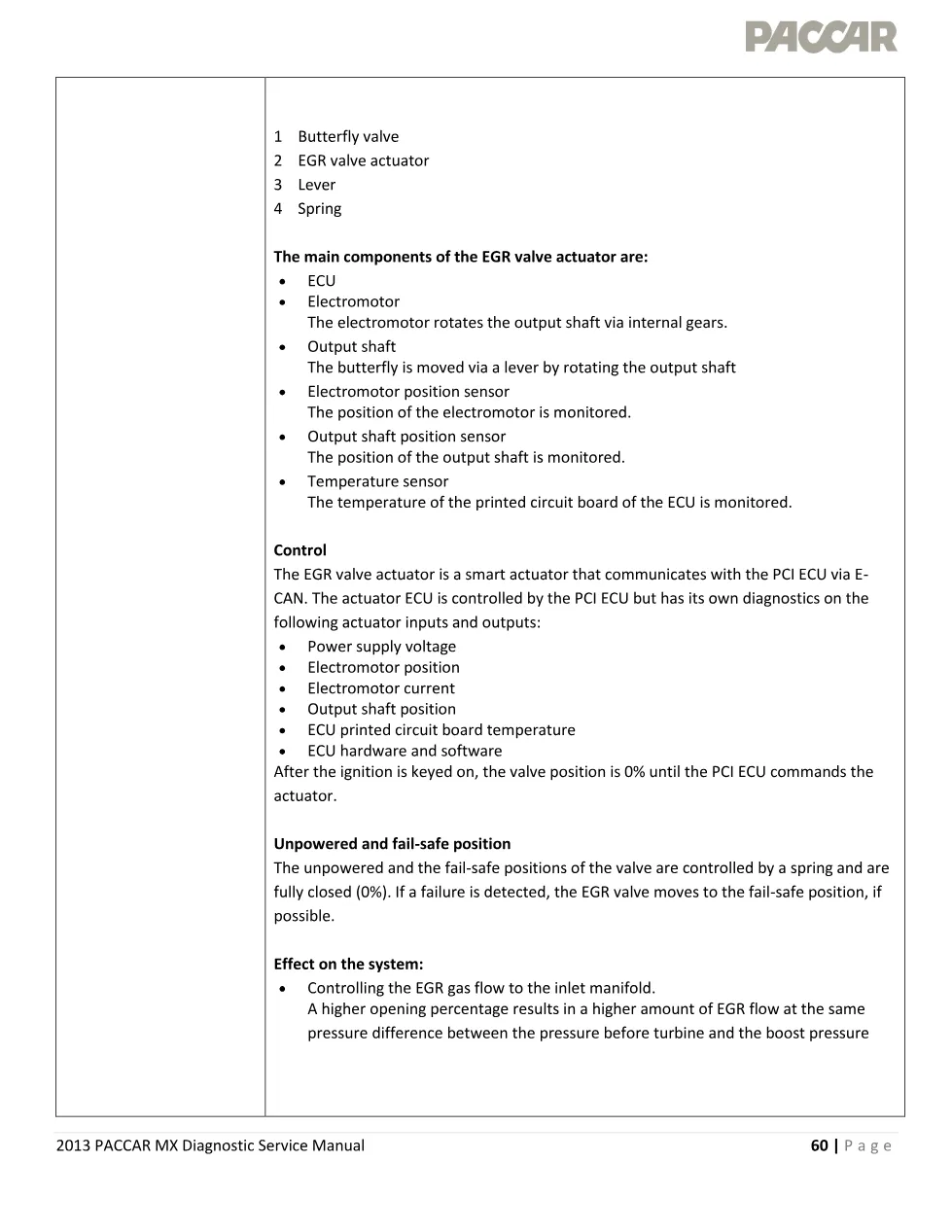

- EGR valve control systems and fail-safe positions
- Backpressure valve operation and E-CAN communication
- Diagnostic conditions and fault code set/reset criteria
- Electrical diagrams for E-CAN components
- Component and wiring check procedures
- Step-by-step troubleshooting workflow
- Repair verification cycles and DAVIE diagnostics
- PACCAR Engine Support Center contact information
