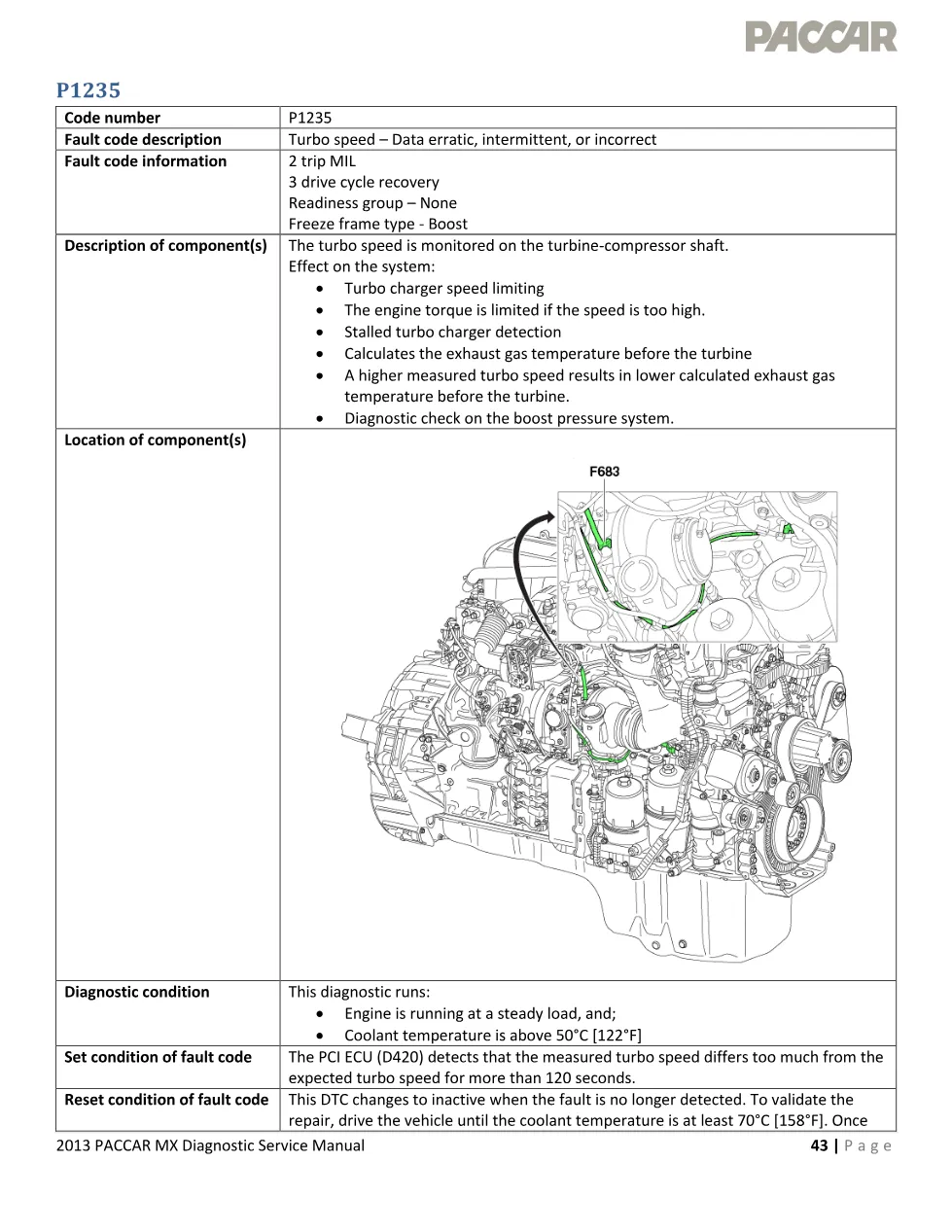

This is the 2013 PACCAR MX turbo speed diagnostic service manual covering fault code P1235 for EPA2013-compliant MX engines. Published by PACCAR, this technical document provides mechanics and workshop technicians with step-by-step troubleshooting procedures, electrical test values, and component replacement guidance for turbo speed sensor faults. The manual includes wiring harness diagrams, sensor specifications, and detailed drive cycle validation procedures.
Document details and specifications — PACCAR MX turbo
| Brand | PACCAR |
| Model coverage | MX Engines (EPA2013) |
| System/Group | DTCs / Turbocharger Management |
| Publication no. | P1235 |
| Year/Revision | 2013 |
| Pages | 4 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Table of contents
- Fault code P1235 description and trip conditions
- Component description and system effects
- Diagnostic conditions and fault set criteria
- Reset conditions and drive cycle validation

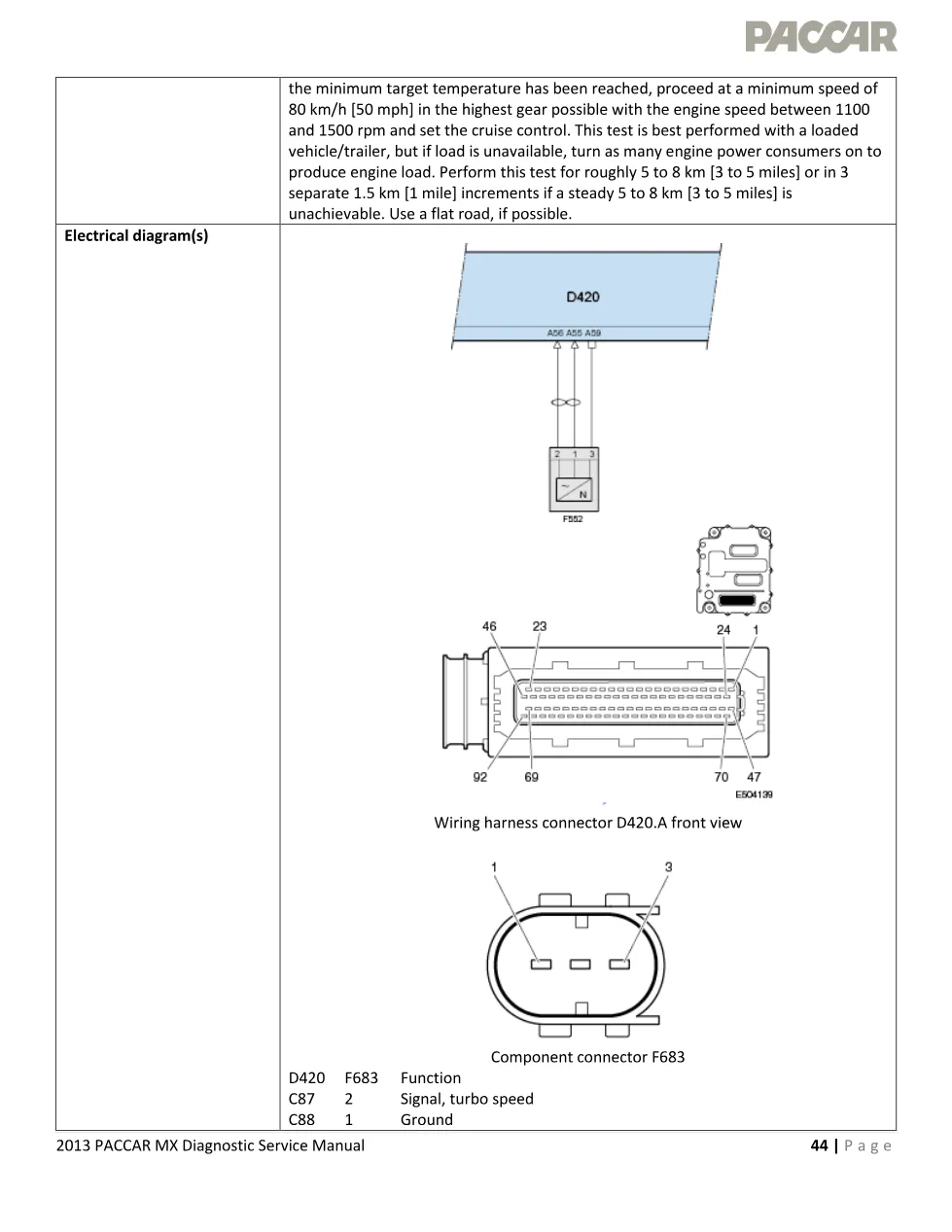

- Electrical wiring diagrams and connector pinouts

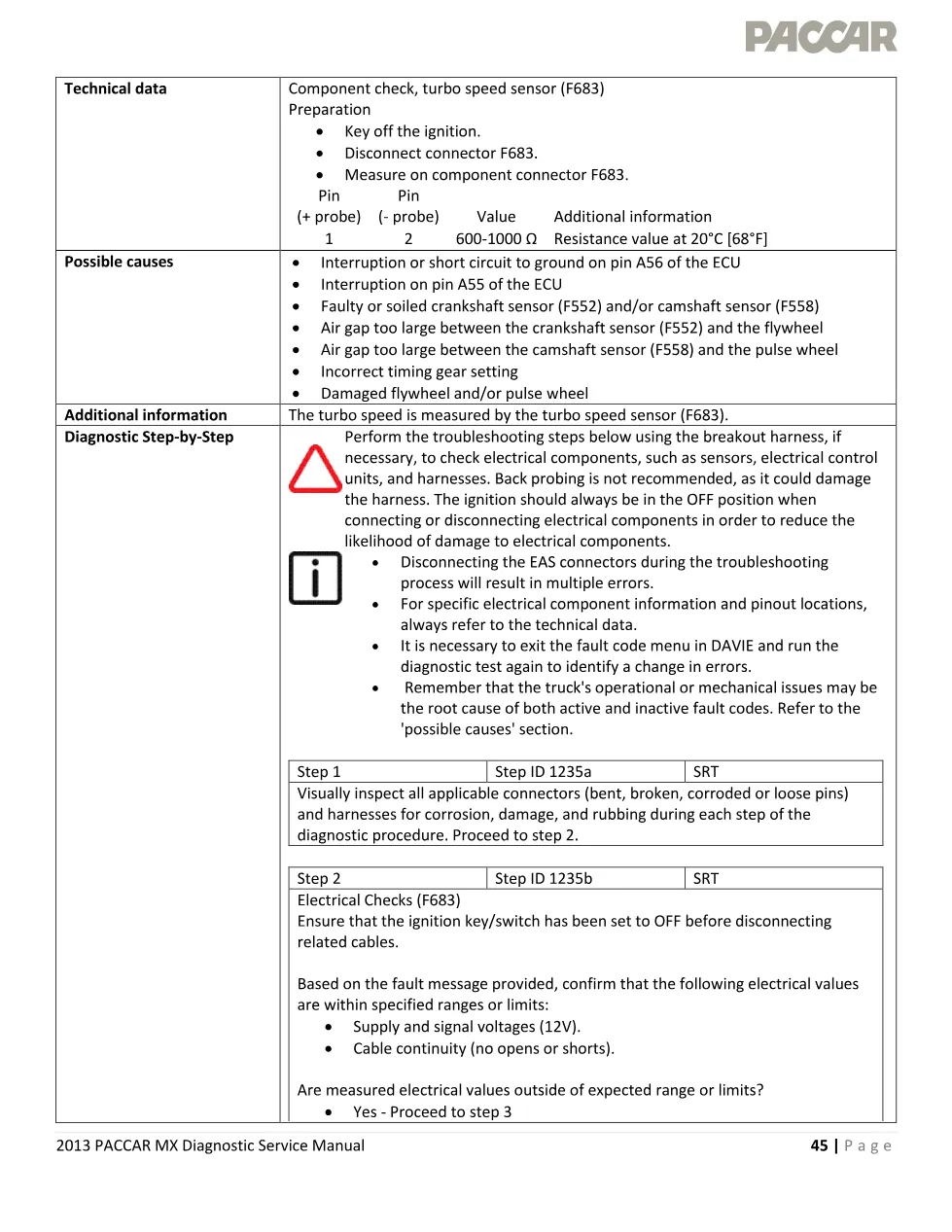

- Technical data and component testing procedures
- Possible causes and root cause analysis
- Step-by-step diagnostic troubleshooting
- Verification drive cycle procedures
- PACCAR Engine Support contact information
