PACCAR MX P101F is the diagnostic trouble code documented on this 5 pages extract from the 2013 PACCAR MX Diagnostic Service Manual, published by PACCAR for EPA2013 MX engines. PACCAR prints the fault as “BPV actuator current – Data valid but too high”, in the manual’s standard fault code layout.
Document details for PACCAR MX P101F
| Brand | PACCAR |
|---|---|
| Model coverage | PACCAR MX engines, EPA2013 emissions level |
| System / group | DTCs / MX Engines (EPA2013) |
| Source publication | 2013 PACCAR MX Diagnostic Service Manual |
| Fault code | P101F — BPV actuator current – Data valid but too high |
| Pages | 5 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Fault code summary and monitor data

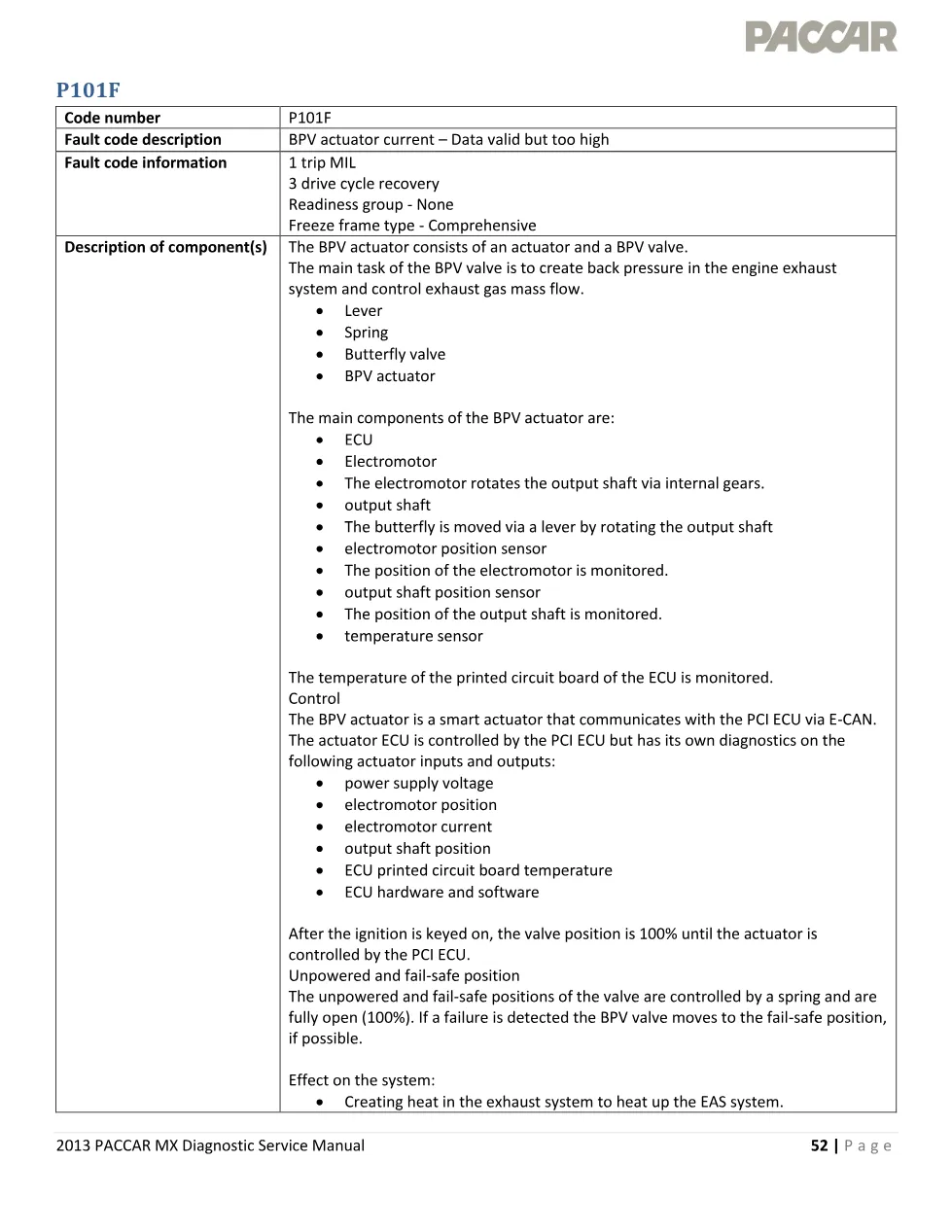

The manual lists 1 trip MIL with 3 drive cycle recovery, no readiness group and a comprehensive freeze frame type. The diagnostic runs continuously when the ignition is on.
- Code number
- Fault code description
- Fault code information
- Description of component(s)
- Set condition of fault code
- Reset condition of fault code
- Possible causes
- Diagnostic Step-by-Step
- Verification Drive Cycle

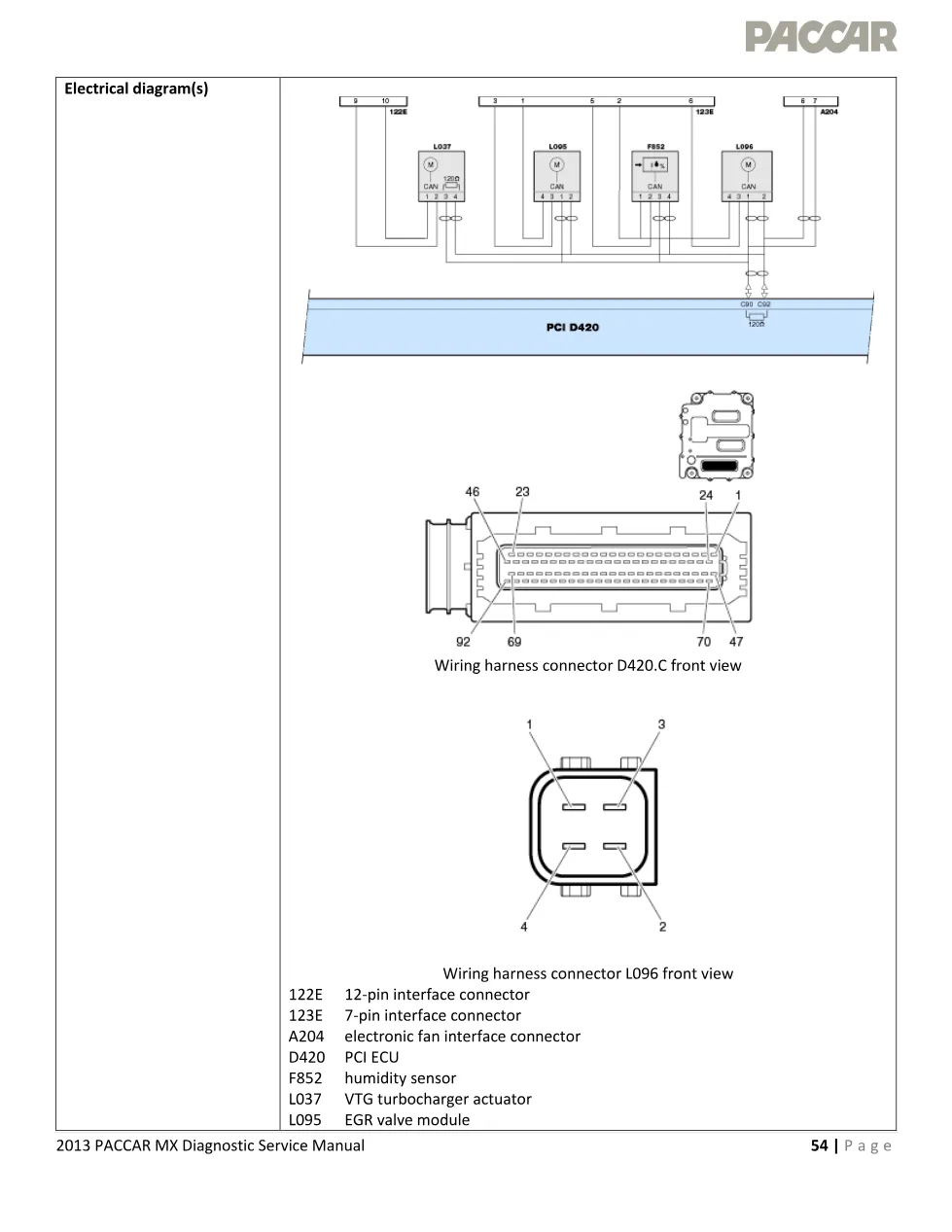

Component and system background
The BPV actuator drives a butterfly valve through a lever and spring to create back pressure in the exhaust system and control exhaust gas mass flow. It is a smart actuator on E-CAN with its own diagnostics on supply voltage, electromotor position and current, output shaft position, printed circuit board temperature and its own hardware and software.
Set and reset conditions for PACCAR MX P101F

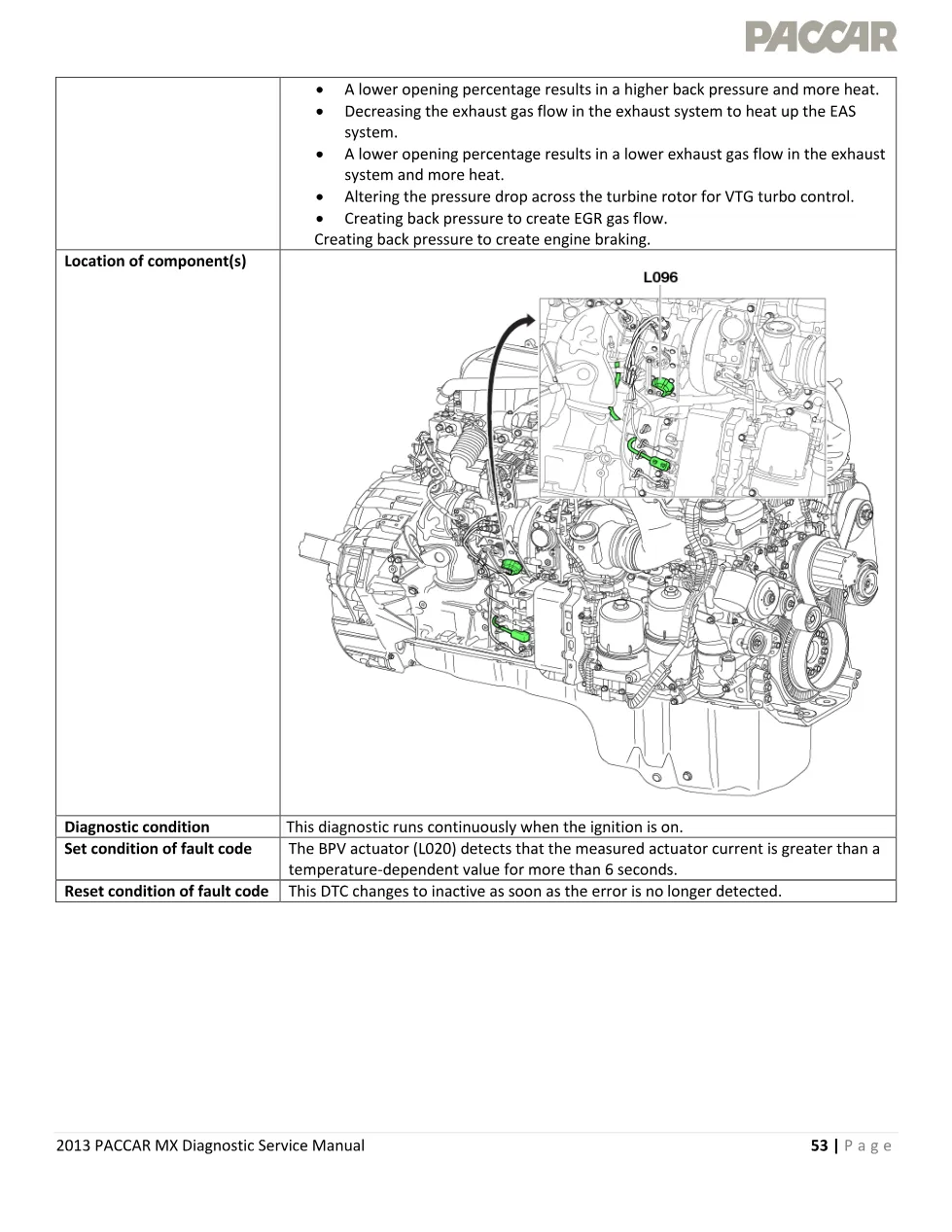

The code is set when the BPV actuator (L020) detects that the measured actuator current is greater than a temperature dependent value for more than 6 seconds, and it goes inactive as soon as the error is no longer detected. Listed causes are a sticking or blocked BPV valve or mechanism and high bearing friction combined with a high actuator temperature. The manual warns that actuator motor torque is reduced while this fault is active, which can stop the actuator reaching its target position and bring up P101E as well.
