This PACCAR MX oil pressure document is a technical service manual extracted from the 2013 PACCAR MX Diagnostic Service Manual. It provides mechanics and workshop owners with detailed guidance on diagnosing and resolving fault code P0522, which indicates oil pressure voltage too low or a short circuit to ground on ECU D420 pin C84. Published by PACCAR for their MX-series engines certified to EPA 2013 emissions standards, this manual covers the oil pressure sensor circuit, electrical testing procedures, and step-by-step troubleshooting methodology.
Document details and specifications — PACCAR MX oil
| Brand | PACCAR |
| Model coverage | MX Engines (EPA 2013) |
| System/Group | DTCs / MX Engines |
| Year/Revision | 2013 |
| Pages | 4 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Table of contents
- Fault code P0522 description and recovery information

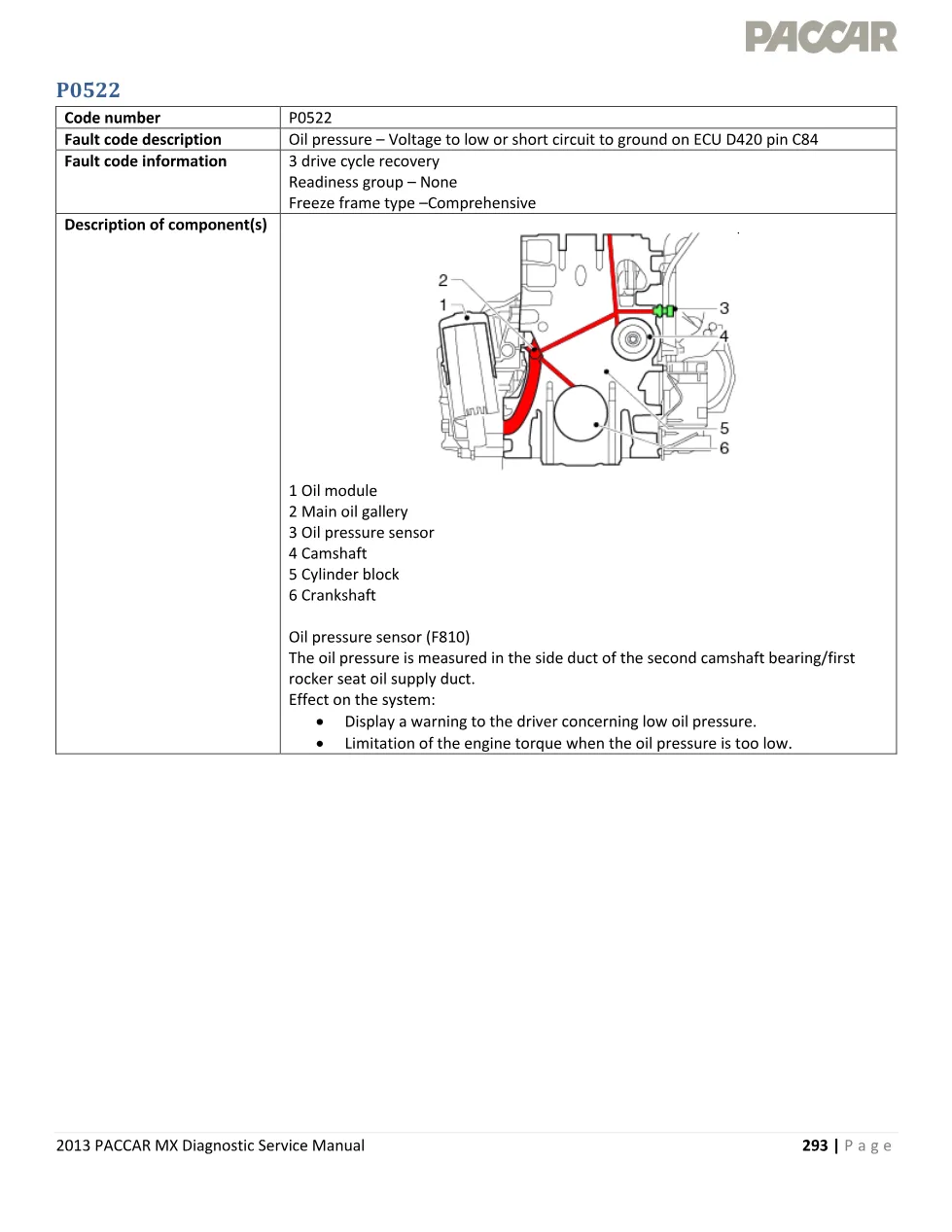

- Description of oil pressure system components (oil module, gallery, sensor, camshaft, cylinder block, crankshaft)
- Oil pressure sensor F810 location and measurement point
- System effects: driver warning display and engine torque limitation

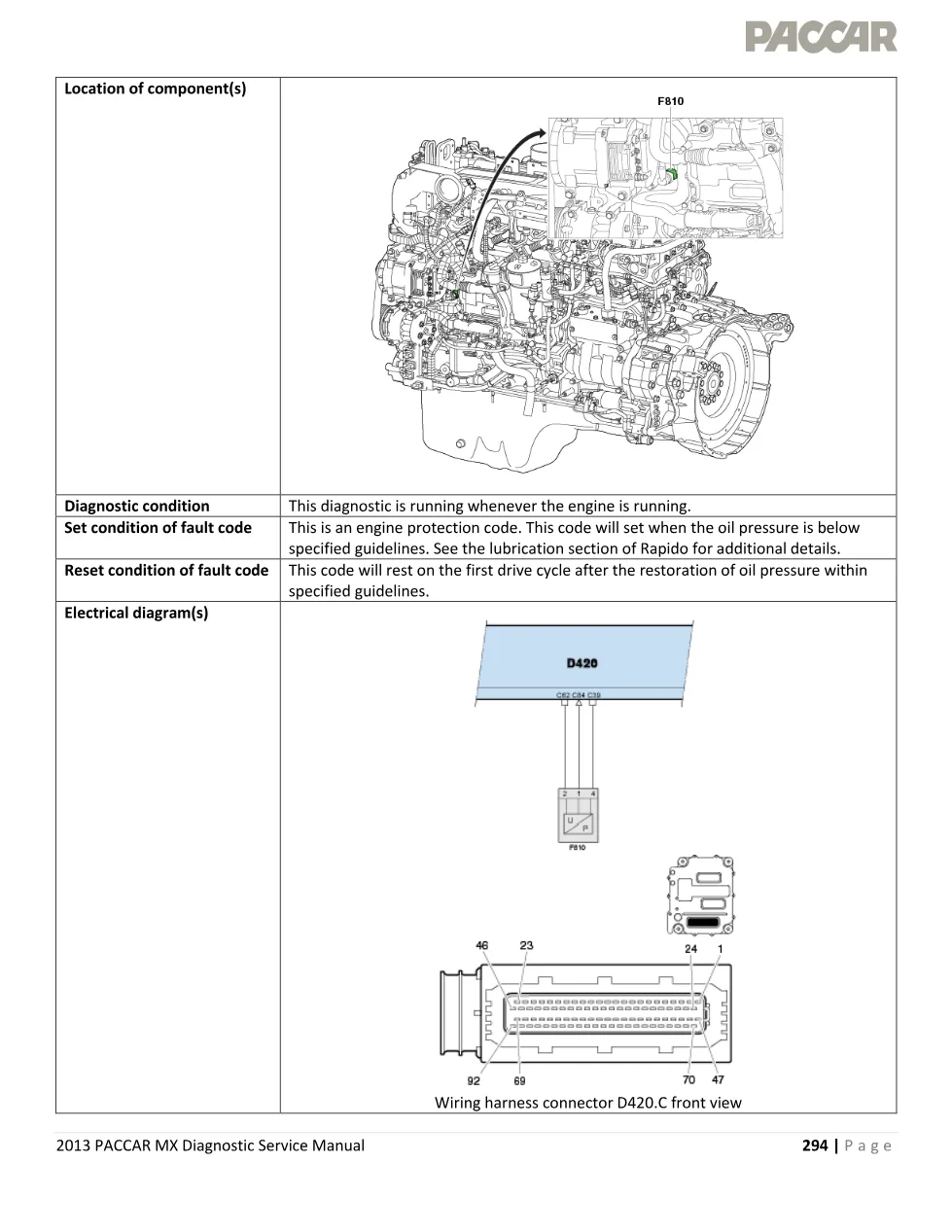

- Location of components diagram
- Diagnostic condition and fault code set/reset conditions
- Electrical wiring diagrams (connectors D420 and F810)

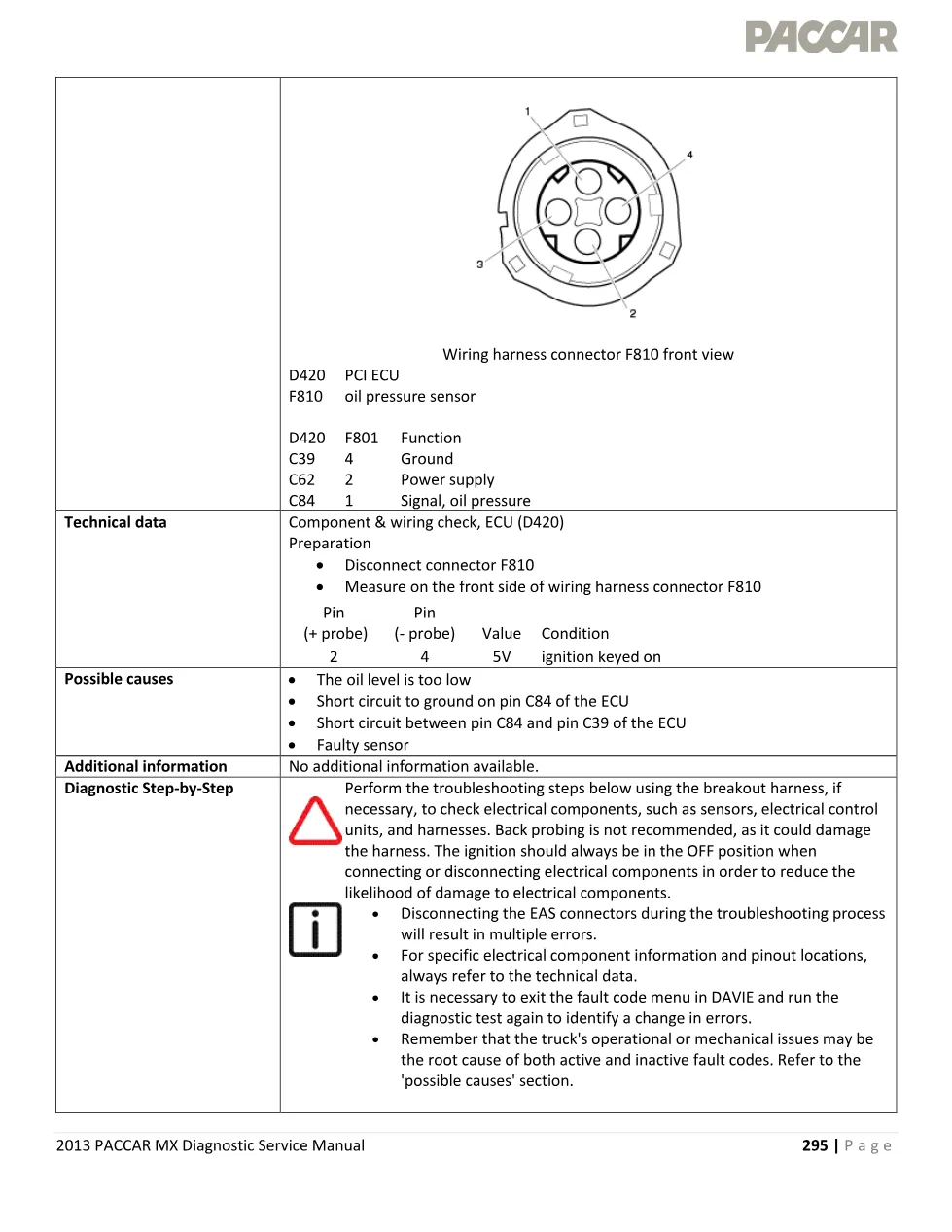

- Technical data and component checking procedures for ECU D420
- Possible causes: low oil level, short circuits, faulty sensor
- Five-step diagnostic procedure with Step ID references (0552a through 0552e)
- Verification drive cycle procedure
