This is the 2013 PACCAR MX lambda sensor Diagnostic Manual, a complete service reference for troubleshooting DTC code P1135 (lambda sensor heater voltage too low or short circuit to supply on ECU pin D420 C46). Published by PACCAR, this five-page technical guide covers the lambda sensor heater system for EPA 2013 compliant MX engines used in heavy-duty trucks. The manual provides electrical diagrams, component specifications, and step-by-step diagnostic procedures required to isolate and repair heater circuit faults.
Document details and specifications — PACCAR MX lambda
| Brand | PACCAR |
| Model coverage | MX Engines (EPA 2013) |
| System/Group | DTCs / MX Engines |
| Publication number | P1135 |
| Year/Revision | 2013 |
| Pages | 5 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Table of contents
- Code number P1135 and fault code description
- Fault code information (trip count, MIL, recovery cycles)

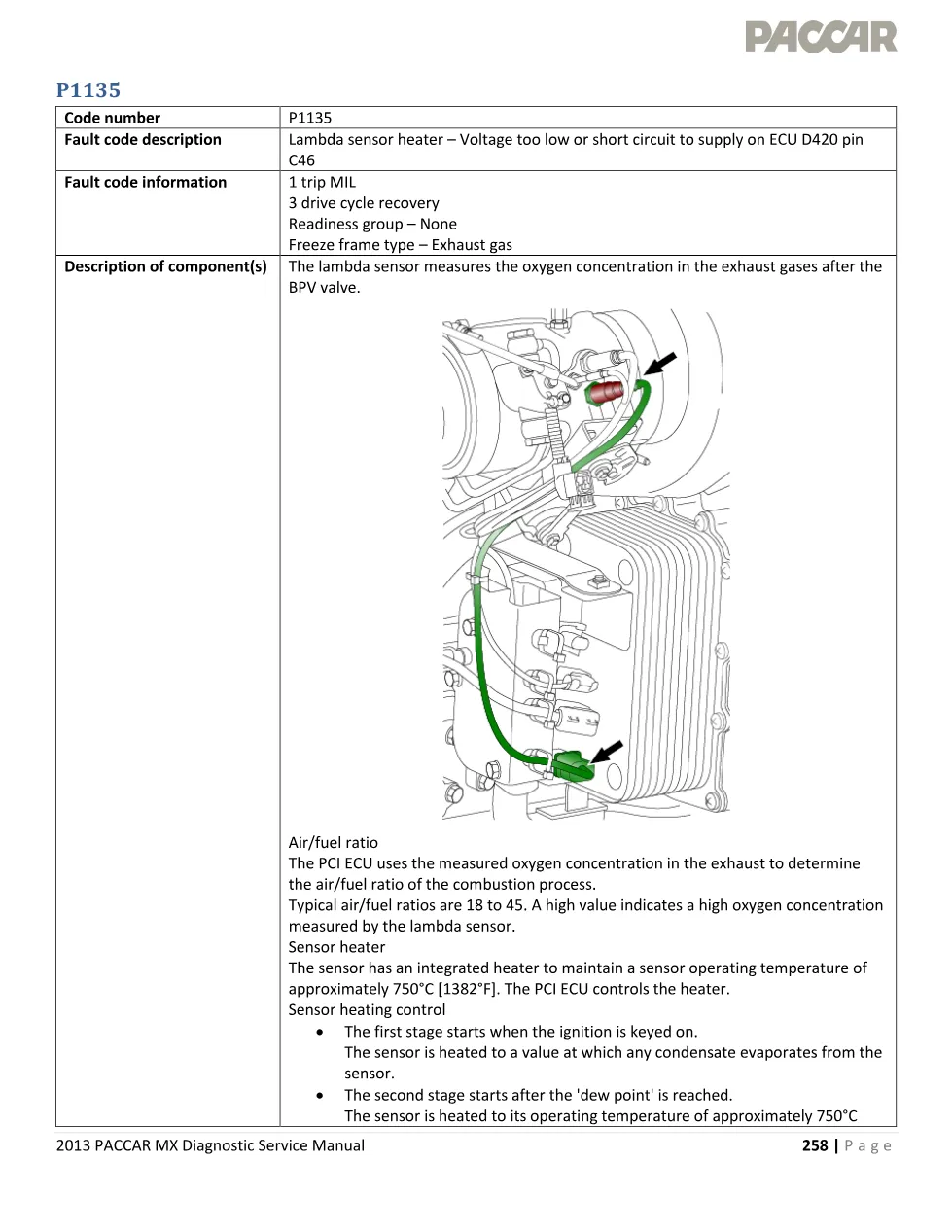

- Description of component(s) – lambda sensor, air/fuel ratio control, and sensor heater operation
- Sensor heating control – two-stage heating process and dew point calculation

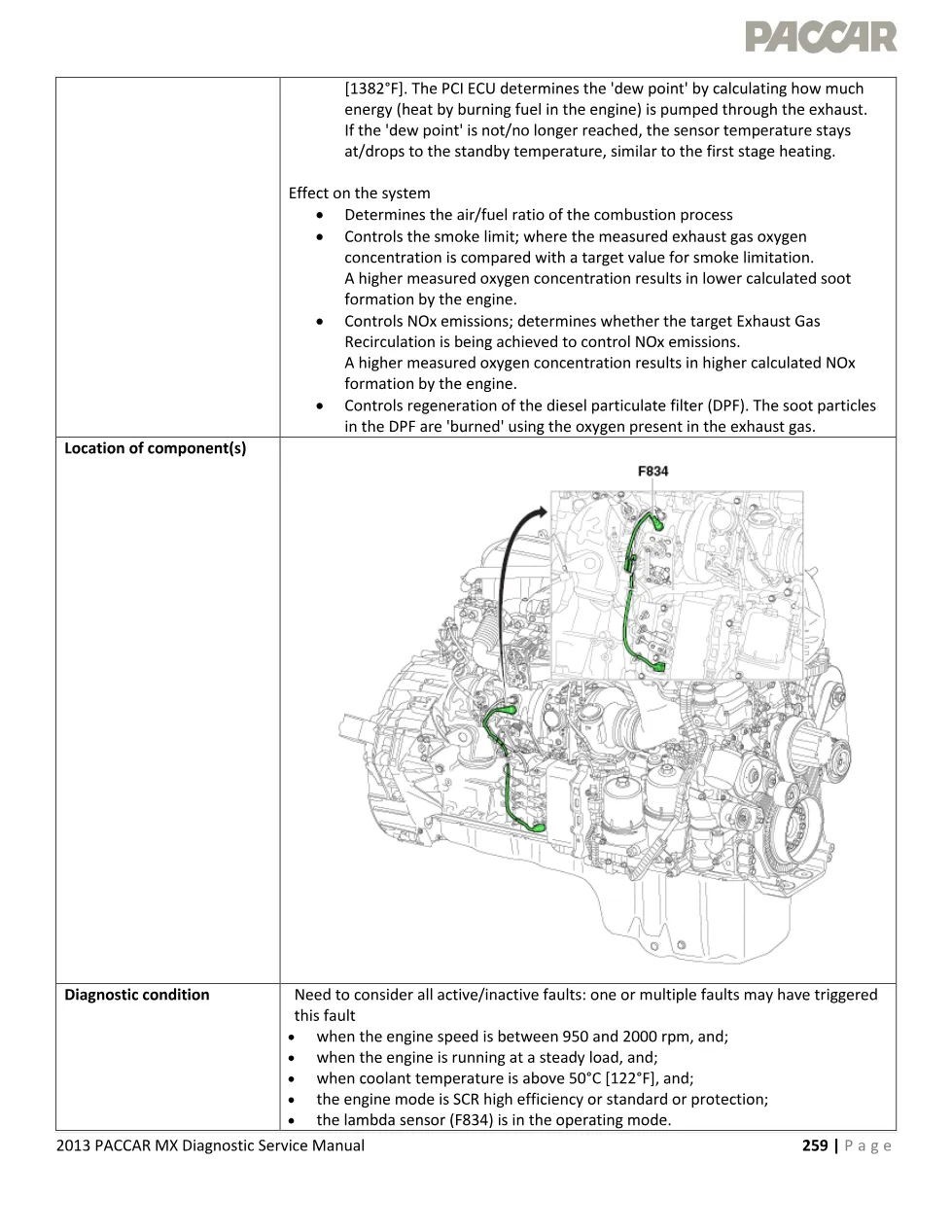

- Effect on the system – smoke limit control, NOx emissions, DPF regeneration
- Location of component(s)
- Diagnostic condition and activation criteria
- Set and reset conditions of fault code

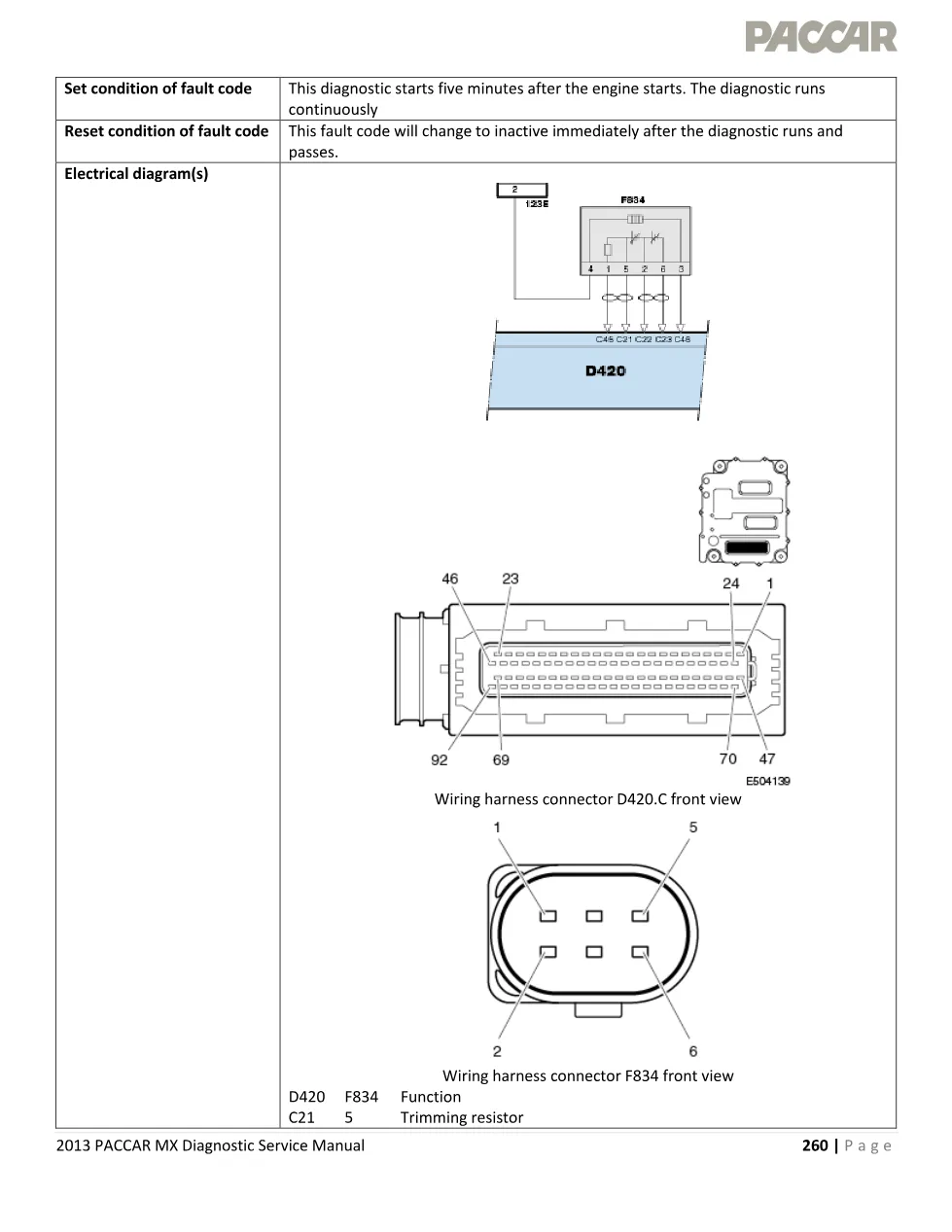

- Electrical diagram(s) – wiring harness connectors D420 and F834
- Technical data – lambda sensor (F834) component check and resistance values
- Technical data – ECU (D420) circuit check and power supply measurement
- Possible causes
- Diagnostic Step-by-Step procedure (Steps 1 through 5)
- Verification Drive Cycle for repair validation
