The PACCAR MX injector solenoid code P1201 diagnostic guide is the official technical manual for troubleshooting fuel injector solenoid valve issues on 2013 PACCAR MX engines. Published by PACCAR, this document provides mechanics and workshop technicians with step-by-step electrical diagnostics, wiring schematics, and component resistance specifications for cylinder 1 injector problems.
Fault code P1201 is triggered when the needle control valve current drops below 4.5 amperes, indicating a potential open circuit or fault on ECU pin D420 A2. The diagnostic runs continuously whenever the ignition is on and requires three drive cycles to clear.
Document details and specifications — PACCAR MX injector
| Brand | PACCAR |
| Model coverage | PACCAR MX Engines (EPA 2013) |
| System/Group | DTCs / MX Engines (EPA2013) |
| Publication number | 2013 PACCAR MX Diagnostic Service Manual |
| Year/Revision | 2013 |
| Pages | 5 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Table of contents

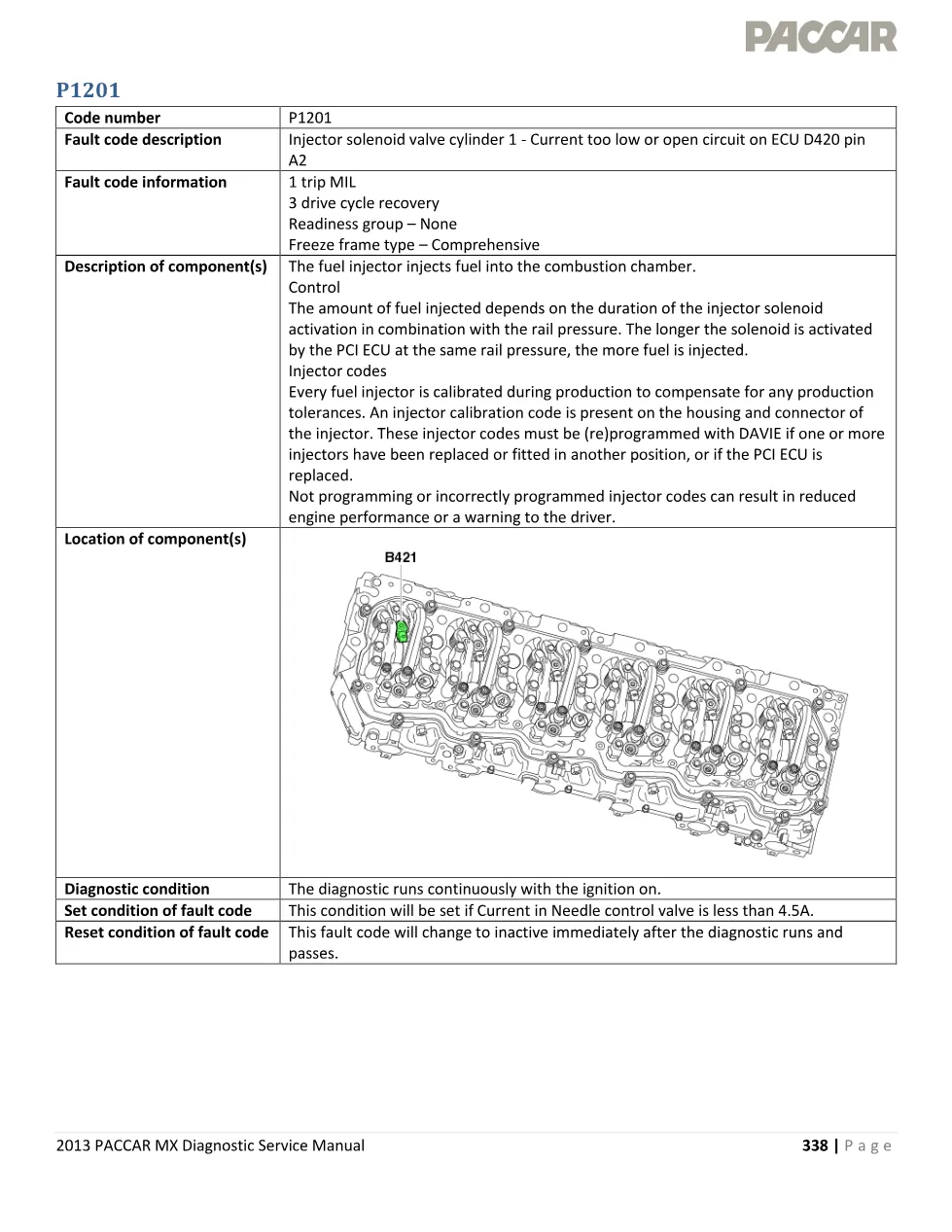

- Fault code P1201 description and MIL information
- Component description: fuel injector solenoid valve operation and control
- Injector calibration codes and reprogramming requirements

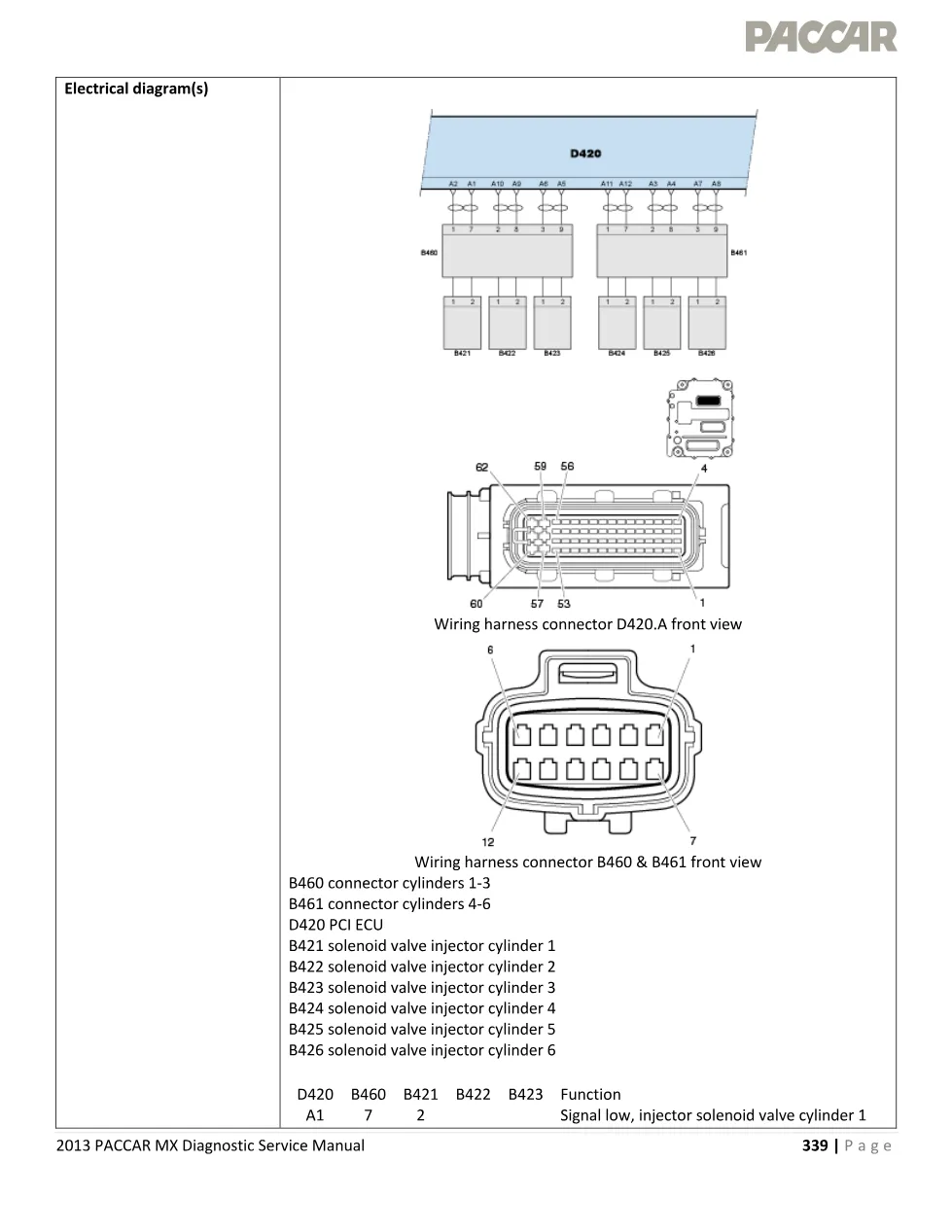

- Electrical diagrams: D420 ECU pinouts and B460/B461 connector layouts
- Wiring harness pin assignments for cylinders 1–6

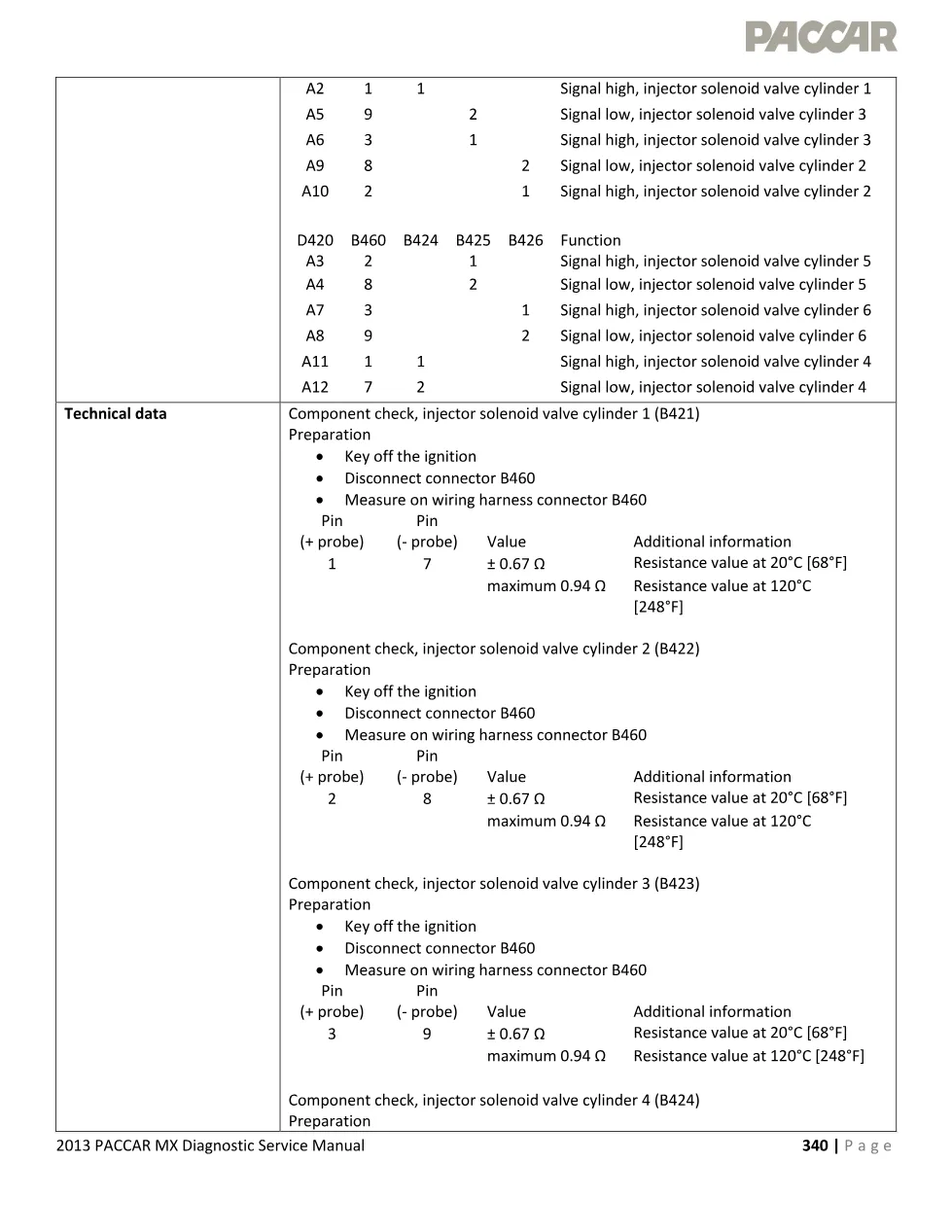

- Technical data: solenoid valve resistance measurements (20°C and 120°C)
- Possible causes: faulty sensor, connector, or wiring
- Four-step diagnostic procedure with breakout harness guidance
- Verification drive cycle and Engine Support Call Center contact
