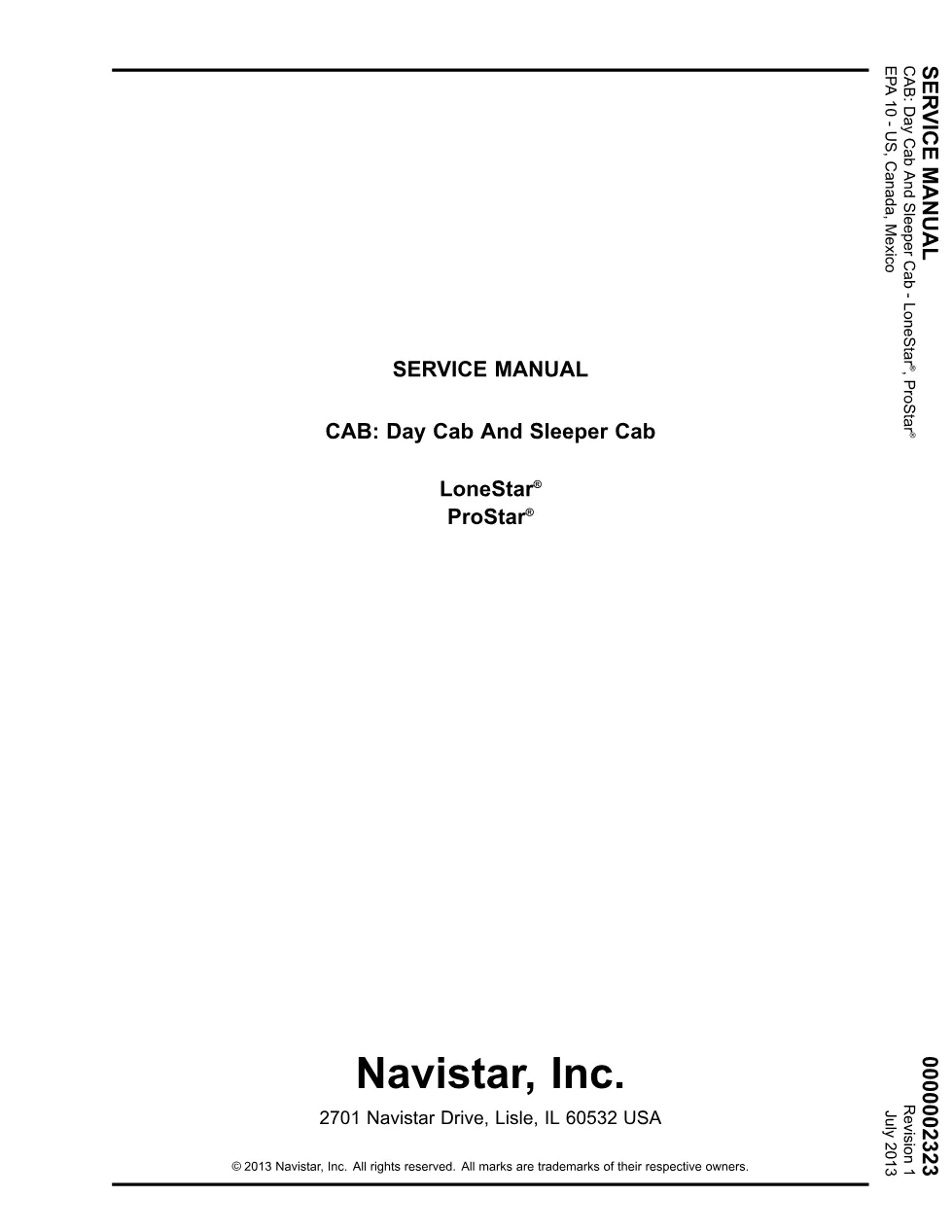

This is the LoneStar cab service manual, publication 0000002323 Revision 1, for International LoneStar and ProStar Day Cab and Sleeper Cab trucks. It covers cab description plus removal and installation of glass, doors, cab mounting insulators, air suspension and sleeper interior.
Official document details
| Brand | International Trucks (Navistar) |
| Model coverage | LoneStar and ProStar (Day Cab and Sleeper Cab) |
| System / Group | LoneStar / Cab Manual |
| Publication no. | 0000002323 |
| Year / Revision | Revision 1, July 2013 |
| Pages | 232 |
| File size | 7.3 MB |
| Format | |
| Language | English |
Inside the LoneStar cab service manual
- Description: day cab and sleeper cab, VIN tag location
- Windshield and rear window glass service
- Sunshade, sun visor and ignition switch cylinder
- Cab doors, hinges, striker pins and trim panels
- Front cab mounting insulators and cab air suspension
- Sleeper interior “Suite” and torque chart

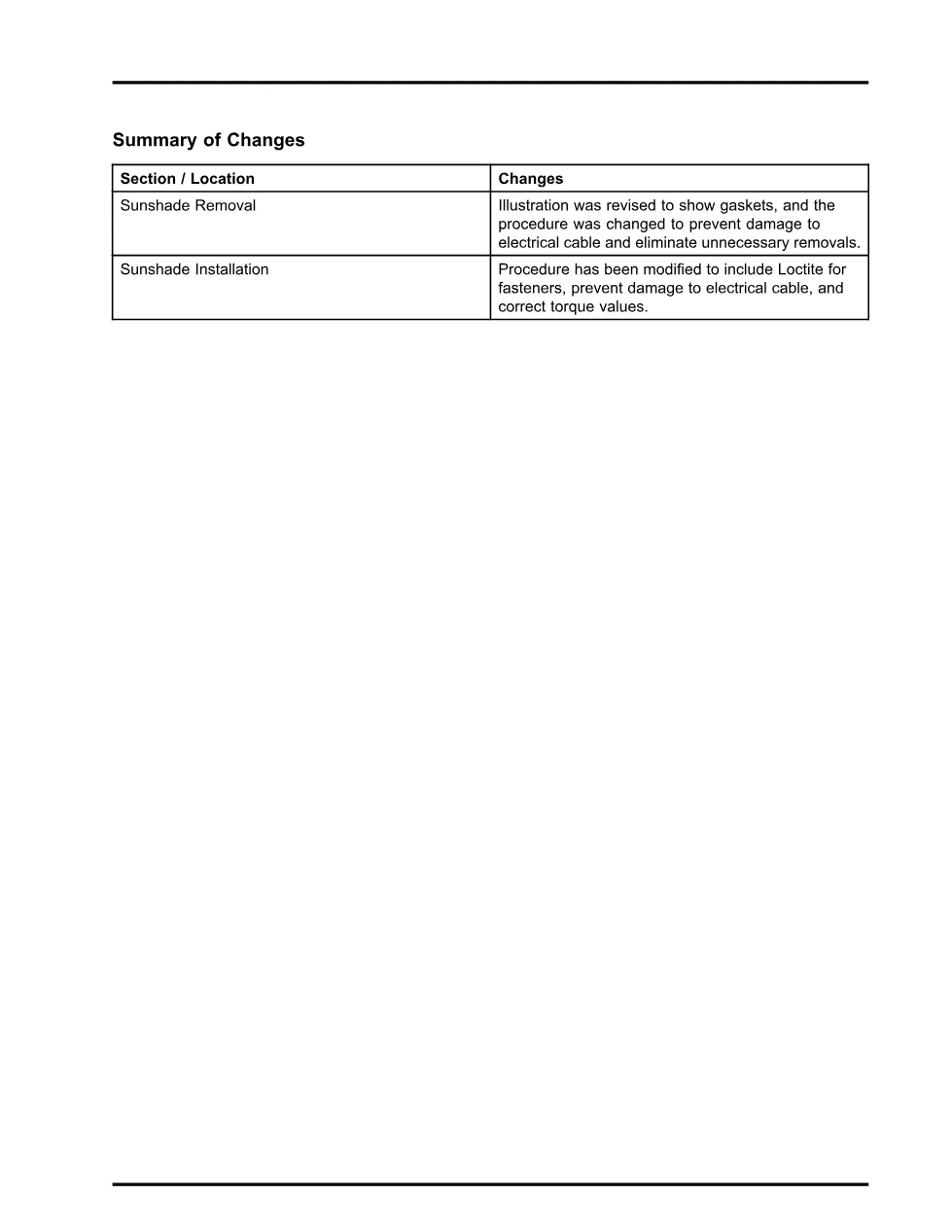

Published by Navistar in July 2013 as Revision 1, this manual documents the day cab and sleeper cab from description through removal and installation, with a summary of changes noting revised sunshade procedures and corrected torque values. It covers the windshield, rear window glass, hood seal, sunshade, sun visor and ignition switch and cylinder, then moves through cab doors, hinges, striker pins, check brackets and links, trim panels, vapor barriers and inner door handles. Glass installation calls for 43532 body primer applied over bare metal and scratches, left to dry six to ten minutes. Structural coverage includes front cab mounting insulators torqued to 88 to 106 Lbf-ft and the cab air suspension height control valve, while the sleeper interior “Suite” section handles the airline cabinets and bunk hardware. A two-part torque chart closes the manual.
Applicable truck models
Coverage includes LoneStar and ProStar day and sleeper cabs, EPA 10 for US, Canada and Mexico. Procedures use 43532 body primer for glass bonding, and fastener torques such as 88 to 106 Lbf-ft on front cab mounting insulators. Verify coverage against your VIN and build sheet on the International Trucks website.
Who needs the LoneStar cab service manual
Cab and interior technicians use this manual to bond windshields and rear glass, service doors and the sleeper “Suite” interior, and set the cab air suspension height on LoneStar and ProStar tractors.
The complete 232-page PDF is available in the DiagTechPro manuals library; a free account is required to download.
