This park and tail lamps document, diagram P94-1384, is the connector-information sheet for the Kenworth exterior lighting circuit built around the power distribution box. Rather than a step-by-step procedure, it is a reference table that names every connector in the harness together with its cavity count, part number and physical location, so a technician can go straight to the right plug instead of tracing wires blind.

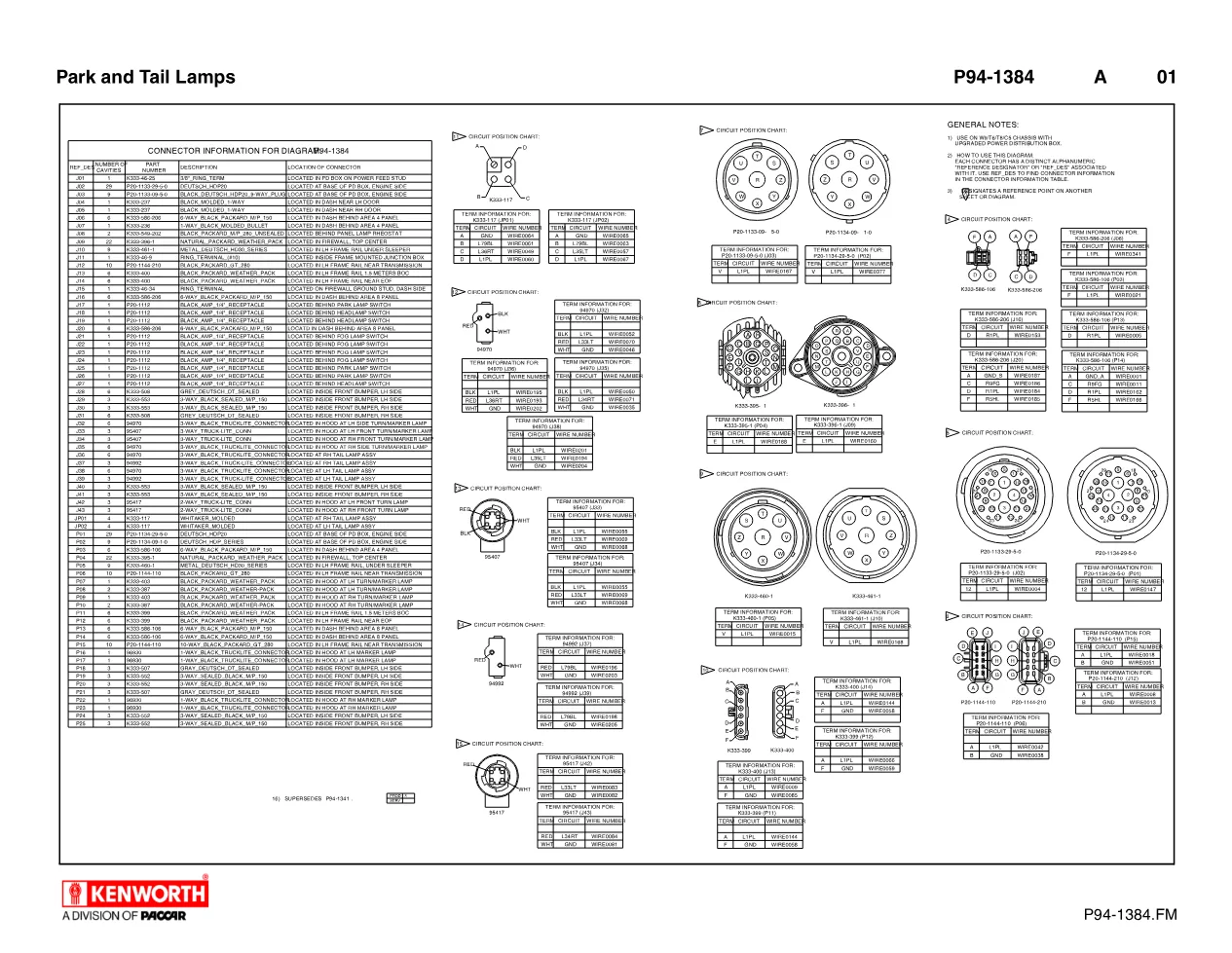

How the connector chart is organized — park and tail
Each row lists a reference designator (J01, J02, J03 and so on), the number of cavities, the Kenworth part number and a plain-language location. Examples include J02, a 29-cavity Deutsch HDP20 at the base of the PD box on the engine side, and J01, a 3/8-inch ring terminal on the power feed stud inside the PD box. J06 is a 6-way Packard M/P 150 behind the dash Area 4 panel, and J08 is a 2-way Packard M/P 280 behind the panel lamp rheostat.
Connector families used — park and tail
The park and tail lamps chart spans several connector families across the truck, which tells the technician what tooling, terminals and seals a repair will require:
- Deutsch HDP20 multi-way plugs at the power distribution box
- Packard Weather Pack connectors in the firewall, top centre
- Deutsch HD30 series in the LH frame rail under the sleeper
- Packard M/P 280 GT connectors in the LH frame rail near the transmission
- A ring terminal inside the frame-mounted junction box
Why this reference matters

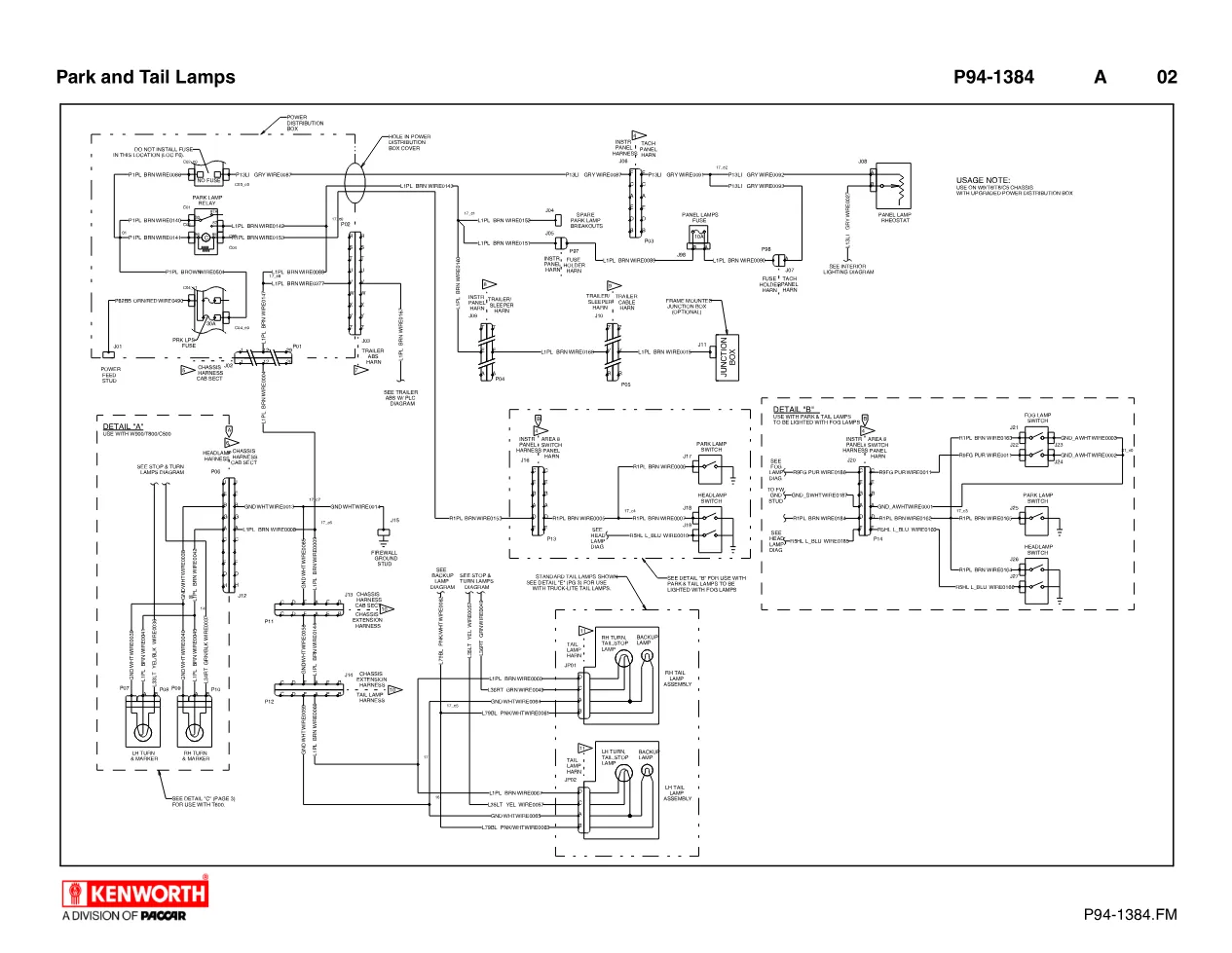

When a rear lamp or marker circuit fails, the fastest path is to identify the exact connector rather than chase wire colours across the length of the chassis. This park and tail lamps chart tells the technician where to unplug and back-probe, from the dash near the door pillars to the frame-mounted junction box under the sleeper. Publication P94-1384 applies to Kenworth C500, T600, T800 and W900 chassis equipped with the power distribution box, so it should be matched to the truck by build before use.
Kenworth releases these prints through its dealer service channel; model details are on the Kenworth brand site. Browse matching electrical sheets in the DiagTechPro manuals library.
Applies to these truck models
This is the manufacturer document shared across 4 model families. It applies to:
- Kenworth C5
- Kenworth T6
- Kenworth T8
- Kenworth W9
