This PACCAR general oil temp sensor circuit procedure documents DTC44103, logged when the Chassis Node on a multiplexed Kenworth or Peterbilt detects an open in the general oil temperature thermistor sensor circuit used for select optional components. Published under bulletin PM819003/KM815056 (09/16/2011) as part of the Electrical System Service Manual, the page walks through Electronic Service Analyst gauge simulation, CVSG data link wiring checks, and Pin A/B continuity to the Chassis Node before pinning a general oil temp sensor fault on the sensor itself.
Document details and specifications — general oil temp
| Brand | PACCAR |
| Model coverage | Kenworth and Peterbilt trucks, 2011 and newer, CECU3 with Chassis Node |
| System/Group | DTCs / Cab (2011 & Newer) — Electrical System Service Manual |
| Publication no. | PM819003/KM815056 |
| Year/Revision | 09/16/2011 |
| Pages | 4 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Table of contents

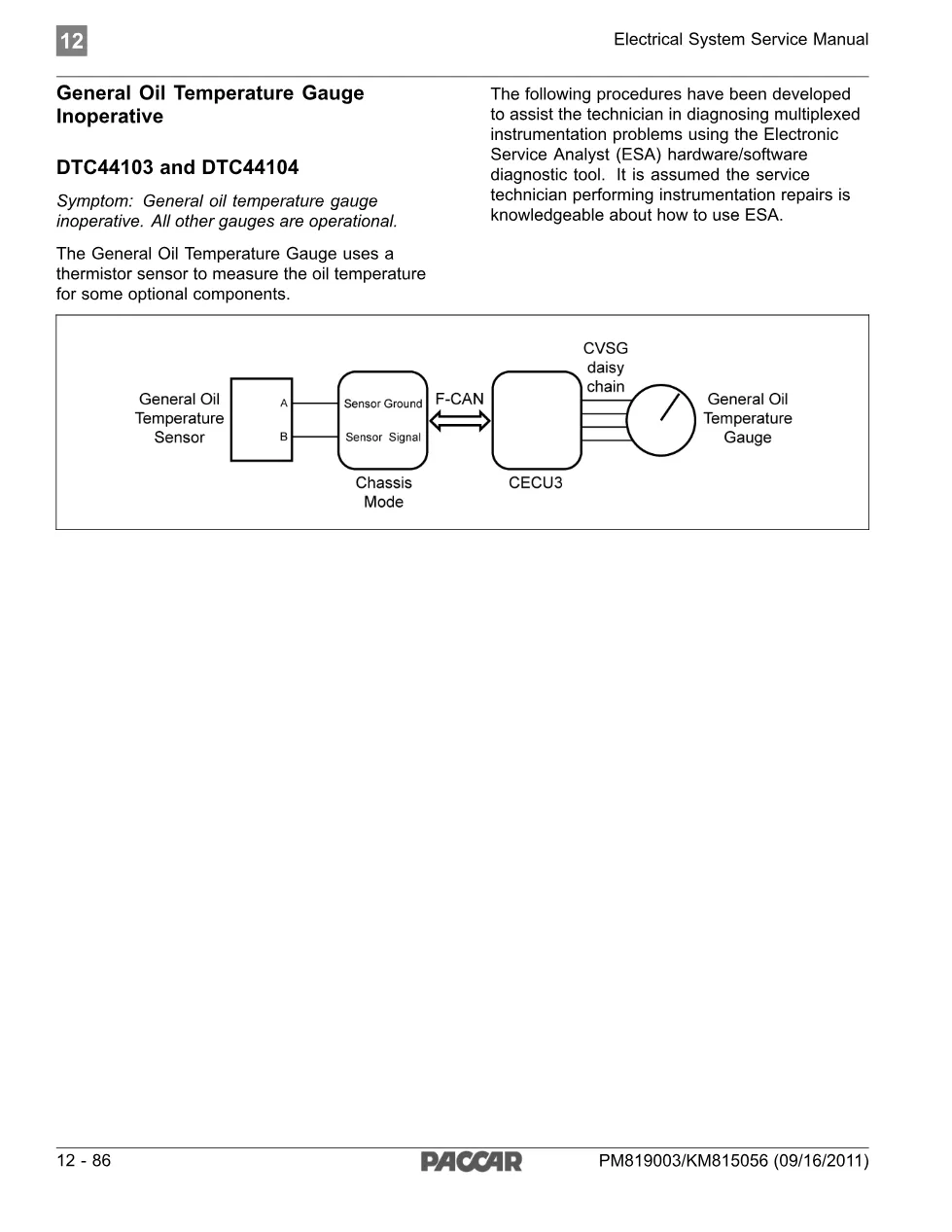

- General Oil Temperature Gauge Inoperative
- DTC44103 and DTC44104

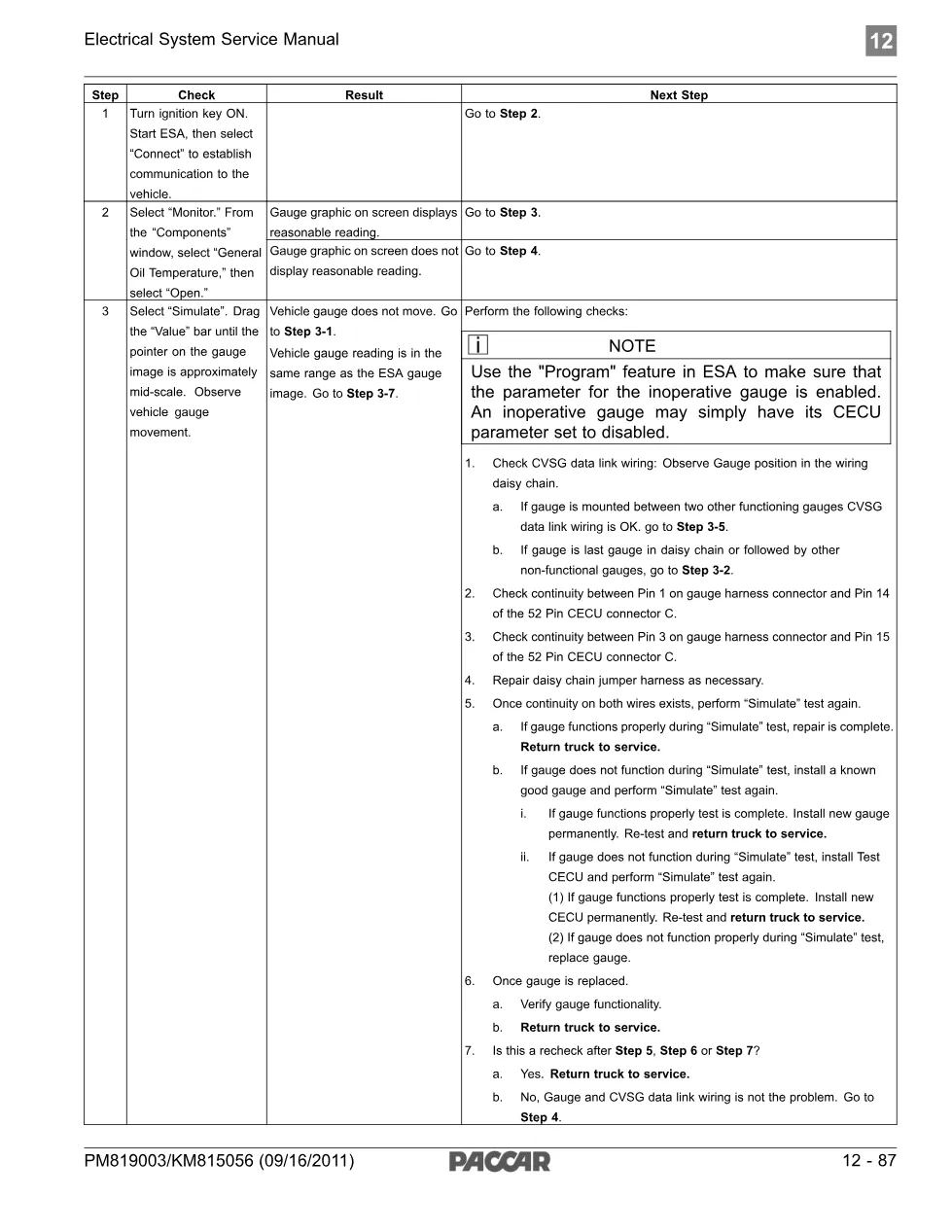

- Step 1-3: ESA Connect, Monitor, Simulate
- Step 4: Diagnose gauge DTCs (Open circuit path)

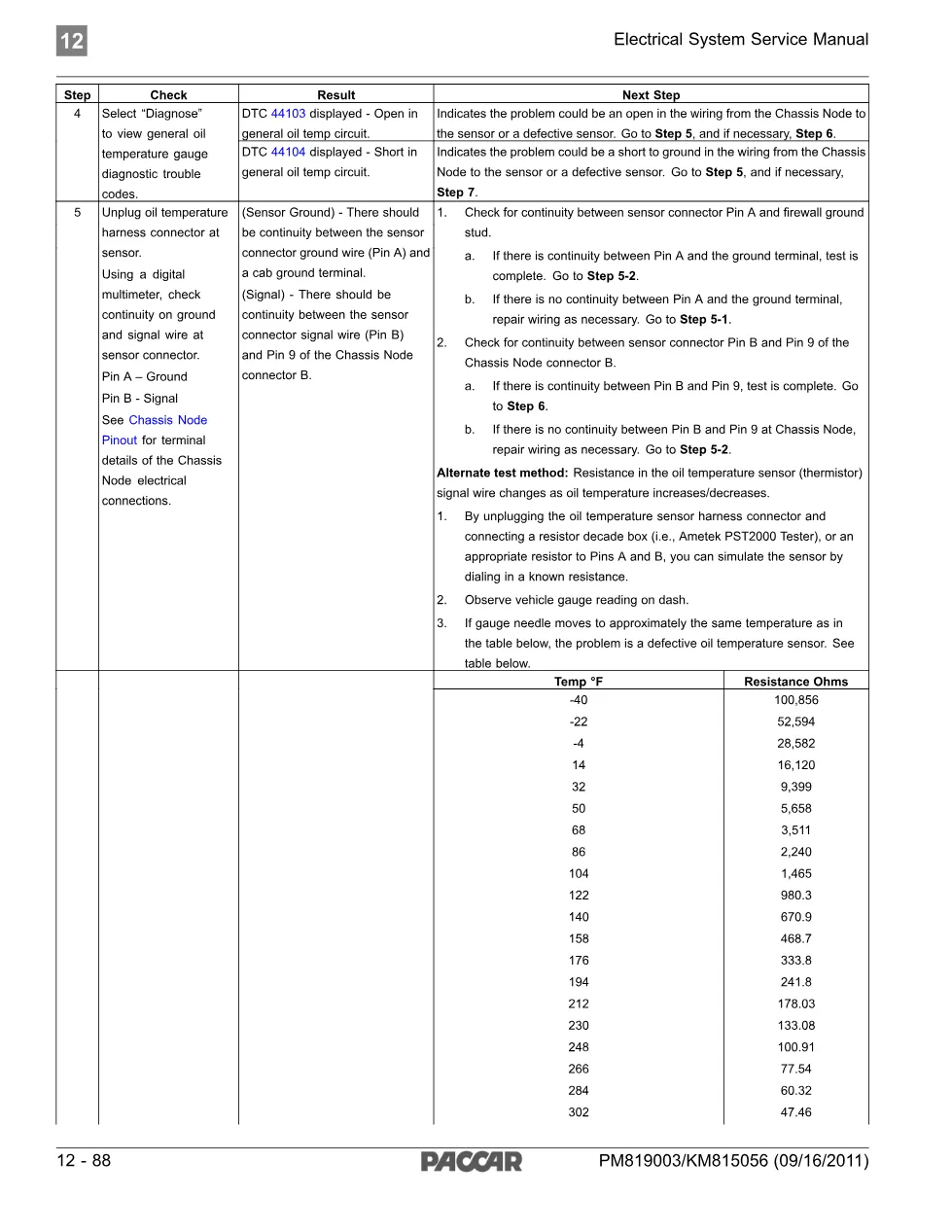

- Step 5: Sensor and Chassis Node Pin 9 continuity checks
- Step 6: Confirm open-in-sensor vs. open-in-wiring
